Dashboard fuse boxfig. 93
DEVICE PROTECTEDFUSE AMPERE
FreeF12 –
Headlamp alignment corrector F13 5
INT/A Engine compartment control unit relays F31 5
EOBD diagnosis plug supply /Uconnect
™/ Alarm buzz / Alarm volumetric sensors /
Electrofan / TPMS system / Electric mirror controls / Climate control system controlsF36 15
Brake light switch (NA) / Instrument panel node / Headlight alignment corrector F37 5
Doors and luggage compartment central locking F38 15
Windscreen/rear window washer pump F43 20
Electric window (driver side)F47 20
Electric window (passenger side) F48 20
Parking sensors / Control lighting / Electro-chrome mirror / Rain/dusk sensor / Sun roof /
TPMS system / Cigar lighter lighting / SBR system panelF49 5
Climate control system controls / Radio system configuration /
Bluetooth®/ Brake light
switch (NC) / Clutch switch / Reverse gear switch / Airflow meter (Diesel versions) / Water in
diesel filter sensor (Diesel versions)F51 5
Instrument panel nodeF53 5
114
IN AN EMERGENCY

REFUELLING
Turbo TwinAir 1.4-litre Petrol
Prescribed fuels and original
lubricants
litres kg litres kg
Fuel tank 45 – 45 –Unleaded petrol not less than
95 RON (EN
228 specification) including a reserve of 5 - 7 – 5 - 7 –
Engine cooling system (with
climate control)5.4 5.3 5.2 4.6Mixture of distilled water and
PARAFLU fluid
UP
50%(*)
Engine sump 2.8 2.5 2.7 2.3SELENIA DIGITEK P.E. (Turbo
TwinAir versions)
SELENIA StAR P.E. (1.4 Petrol
versions) Engine sump and filter 3.3 2.8 2.9 2.5
Gearbox casing/differential 1.65 1.5 1.6 1.4TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
(Anti-lock braking system)0.53 0.5 0.53 0.5 TUTELA TOP 4/S
Windscreen/rear
window/headlight washer fluid
reservoir
(**)2.2 (4.5) 1.9 (4.0) 2.8 (4.6) 2.5 (4.1)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(**) Values in brackets refer to versions with headlight washer
169

1.4 Turbo Petrol/LPG 120 HP 1.4 Turbo MultiAir
Prescribed fuels and original
lubricants
litres kg litres kg
Fuel tank 45 – 45 –Unleaded petrol not less than
95 RON
(EN228 specification)/LPG
(1.4 Turbo Petrol/LPG 120 HP
versions)
Unleaded petrol not less than
95 RON
(EN228 specification)
(1.4 Turbo MultiAir versions) LPG tank (1.4 Turbo Petrol/LPG
120 HP versions)
(*)39 – – –
including a reserve of 5 - 7 – 5 - 7 –
Engine cooling system (with
climate control)6.3 5.0 6.0 5.3Mixture of distilled water and
PARAFLU fluid
UP
50%(**)
Engine sump 2.75 2.4 3.1 2.6SELENIA MULTIPOWER GAS
5W-40 (1.4 Turbo Petrol/LPG
120 HP versions)
SELENIA DIGITEK P.E.
(1.4 Turbo MultiAir versions) Engine sump and filter 3.3 2.9 3.5 3.0
Gearbox casing/differential 2.0 1.7 2.0 1.7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
(Anti-lock braking system)0.53 0.5 0.53 0.5 TUTELA TOP 4/S
Windscreen/rear
window/headlight washer fluid
reservoir
(***)2.2 (4.5) 1.9 (4.0) 2.2 (4.5) 1.9 (4.0)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) Maximum refuelling capacity including reserve
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(***) Values in brackets refer to versions with headlight washer
170
TECHNICAL SPECIFICATIONS

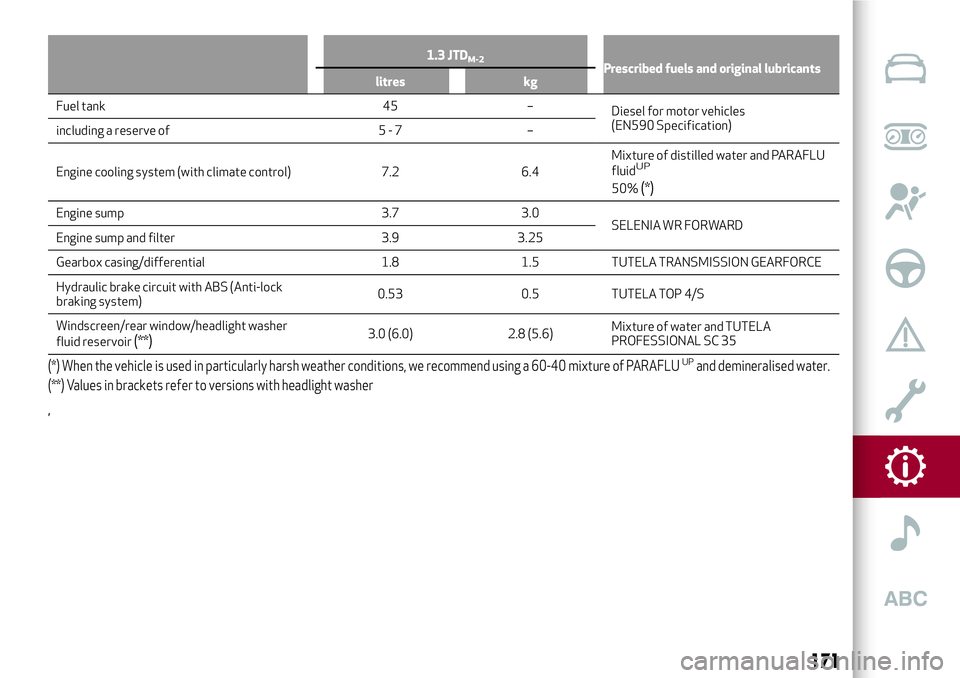

1.3 JTDM-2Prescribed fuels and original lubricants
litres kg
Fuel tank 45 –
Diesel for motor vehicles
(EN590 Specification)
including a reserve of 5 - 7 –
Engine cooling system (with climate control) 7.2 6.4Mixture of distilled water and PARAFLU
fluid
UP
50%(*)
Engine sump 3.7 3.0
SELENIA WR FORWARD
Engine sump and filter 3.9 3.25
Gearbox casing/differential 1.8 1.5 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit with ABS (Anti-lock
braking system)0.53 0.5 TUTELA TOP 4/S
Windscreen/rear window/headlight washer
fluid reservoir
(**)3.0 (6.0) 2.8 (5.6)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(**) Values in brackets refer to versions with headlight washer
,
171

FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by specific
European Directives.
The following procedures are used to measure the fuel consumption:
urban cycle: cold starting followed by driving that simulates urban use of the vehicle;
extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies between 0 and 120 km/h;
combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban
cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim
level/equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely
affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The fuel consumption
will get more regular only after having driven the first 3000 km.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
Versions Urban Extra-urban Combined
Turbo TwinAir 100 HP(*) (****)4.5 3.4 3.8
Turbo TwinAir 105 HP
(*)5.0 3.8 4.2
1.4 Petrol 8V 78 HP7.3 4.6 5.6
1.4 Turbo Petrol/LPG 120 HP
8.2
(**)/ 10.6(***)5.1(**)/ 6.6(***)6.2(**)/ 8.1(***)
1.4 Turbo Petrol/LPG 120 HP(****)8.1(**)/ 10.4(***)5.0(**)/ 6.5(***)6.1(**)/ 7.9(***)
1.4 Turbo MultiAir 135 HP7.4 4.5 5.6
1.4 Turbo MultiAir 135 HP TCT
(****)7.1 4.5 5.5
1.4 Turbo MultiAir 140/170 HP TCT7.0 4.4 5.4
(*) Type-approval test starting in 2ndgear.
(****) Version for specific markets
(**) Running on petrol
(***) Running on LPG
176
