2020 Acura TLX CONTROLS

194
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
To access the center pocket, push the lid
forward until the latch engages.
To close it, push forward on the tab until the
latch releases, then allow the lid to slide to the
fully closed position.
To open the center pocket tray, push the tray
forward until it latches.
To close it, push forward on the tab until the
latch release, then pul l the tray rearward to
the fully closed position.
■Center Pocket
Tab
Lid
Tab
TrayModels without wireless charger
20 ACURA TLX-31TZ36500.book 194 ページ ２０１９年２月７日　木曜日　午後２時２分

Continued195
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Front seat beverage holders
Are located in the console between the front
seats.
■Front door side beverage holders
Are located on the both of the front door side
pockets.
■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
20 ACURA TLX-31TZ36500.book 195 ページ ２０１９年２月７日　木曜日　午後２時２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
196
Controls
The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (center pocket)
Open the lid and the tray* to access.
■Accessory power socket (console
compartment)
Open the console lid and the cover to access.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element. This can overheat the power socket.
The accessory power socket s are designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent battery drain, only use the power socket
with the engine running.
* Not available on all models
20 ACURA TLX-31TZ36500.book 196 ページ ２０１９年２月７日　木曜日　午後２時２分

Continued197
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
To use the wireless charger, the power mode must be in ACCESSORY or ON.
Charge a compatible device on the ar ea indicated by the mark as follows:
1. Open the center pocket.
2 Center Pocket P. 194
2.Place the device you want to charge on the
charging area.
u The system will au tomatically start
charging the device, and the green
indicator light will come on.
u Make sure that the device is compatible
with the system, and placed with the
chargeable side in the center of the
charging area.
3. When charging is completed, the green
indicator light will go off.
u If the device is not located on the charge
area correctly, the green indicator light
will blink.
■Wireless Charger*1Wireless Charger*
Using the information scr een or multi-information
display, you can disable th e wireless charger function.
2 Customized Features P. 120, 292
3CAUTION
Metal objects between the charge pad and
the device to be charged will get hot and
can burn you.
•Always remove foreign objects from the
charge pad before charging the device.
• Be sure the surface is clear of dust and
other debris before charging.
• Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.
• Do not use oil, grease, alcohol, benzine
or thinner for cleaning the charge pad.
• Do not cover the system with towels,
clothing, or other objects while charging
etc.
• Avoid spraying aerosols which may come
in contact with the charge pad surface.
Charging Area
Green Indicator
* Not available on all models
20 ACURA TLX-31TZ36500.book 197 ページ ２０１９年２月７日　木曜日　午後２時２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
198
Controls
■When charging does not start
Perform one of the solution s in the following table.
IndicatorCauseSolution
Slow Blink
There is an obstacle(s) between
the charging area and the
device.Remove the
obstacle(s).
The device is not within the
charging area. Move the device to the
center of the charging
area where is
located.
Fast BlinkThe wireless charger is faulty.
Turn the vehicle off
and back on. If the
indicator still blinks,
contact a dealer.
1
Wireless Charger*
This system consumes a lot of power. Do not use the
system for a long time when the engine is not
running. This may weaken the battery, making it
difficult to start the engine.
When using the wireless charger, check the user’s
manual that came with th e compatible device you
want to charge.
NOTICE
Do not place any magneti c recording media or
precision machines within the charging area while
charging.
The data on your cards such as credit cards can be
lost because of the magneti c effect. Also precision
machines such as watches can go wrong.

Continued199
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
1Wireless Charger*
In the following cases, ch arging may stop or not start:•The device is already fully charged.
•The temperature of the device is extremely high
while charging.
•You are at a place that emits strong
electromagnetic waves or noises, such as TV
station, electric power plant, or gas station.
A device may not charge if the size or shape of its
chargeable side is not appropriate for use with the
charging area.
Not all devices are compatible with the system.
During the charging phase, it is normal for the
charging area and de vice to heat up.
Charging may be briefl y interrupted when:
•All the doors or the trunk are closed
- to avoid interference with the proper functioning
of the keyless access system.
•The position of the device is altered.
•The radio is scanning for AM stations.
Do not charge more than one device at a time on a
charging area.
* Not available on all models
20 ACURA TLX-31TZ36500.book 199 ページ ２０１９年２月７日　木曜日　午後２時２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
200
Controls
There are coat hooks on the rear grab handle
of both sides. Pull it down to use it.
There are coat hooks on the door pillar of
both sides.
■Coat Hooks1 Coat Hooks
The coat hooks are not desi gned for large or heavy
items.
20 ACURA TLX-31TZ36500.book 200 ページ ２０１９年２月７日　木曜日　午後２時２分

Continued201
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

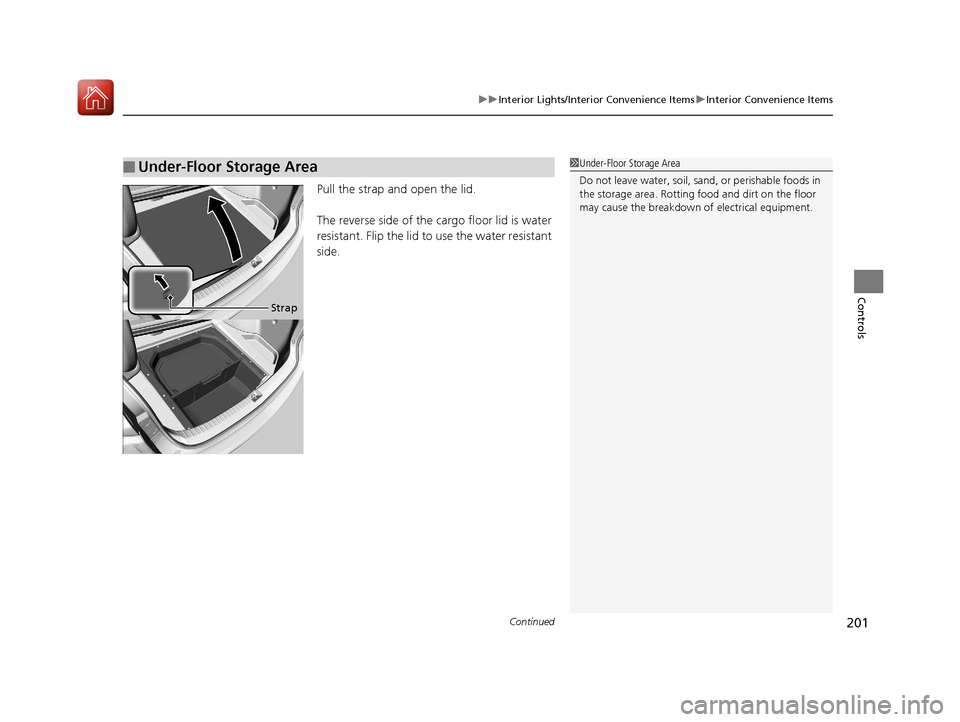

Pull the strap and open the lid.
The reverse side of the cargo floor lid is water
resistant. Flip the lid to use the water resistant
side.
■Under-Floor Storage Area1 Under-Floor Storage Area
Do not leave water, soil, sand, or perishable foods in
the storage area. Rotting f ood and dirt on the floor
may cause the breakdown of electrical equipment.
Strap
20 ACURA TLX-31TZ36500.book 201 ページ ２０１９年２月７日　木曜日　午後２時２分
