uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Driving
Collision Mitigati on Braking SystemTM (CMBSTM)
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
■How the system works
1 Collision Mitigation Braking SystemTM (CMBSTM)
Important Safety Reminder
The CMBS
TM is designed to reduce the severity of an
unavoidable collision. It do es not prevent a collision
nor stop the vehicle automati cally. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions:
2 CMBS
TM Conditions and Limitations P. 462
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 400
Be careful not to have the radar sensor cover strongly
impacted.
1 How the system works
Rapid vibrations on the steering wheel alert you
when your vehicle speed is between 19 and 62 mph
(30 and 100 km/h) with an oncoming vehicle
detected in front of you.
When the CMBS
TM activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.
The radar sensor is
in the front grille.
The camera is
located behind
the rearview
mirror.
The system starts monitoring the roadway ah ead when your vehicle speed is about 3
mph (5 km/h) and there is a vehicle in front of you.
When to use
The CMBSTM activates when:●The speed difference between your vehicle and a vehicle or pedestrian detected
in front of you becomes about 3 mph (5 km/h) and over with a chance of a
collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a
collision with an oncoming detected vehicle or a pedestrian in front of you.
20 ACURA RLX HYBRID-31TY36601.book 458 ページ ２０１９年７月２３日　火曜日　午後６時２５分

464
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Driving
• When there is a group of people in front of your vehicle walking together side by
side.
• Surrounding conditions or belongings of the pedestrian alter the pedestrian’s
shape, preventing the system from recogn izing that the person is a pedestrian.
• When the pedestrian is shorter than about 3.3 feet (1 me ter) or taller than about
6.6 feet (2 meters) in height.
• When a pedestrian blends in with the background.
• When a pedestrian is bent over or squa tting, or when their hands are raised or
they are running.
• When several pedestrians are walking ahead in a group.
• When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).
The CMBS
TM may automatically shut itself off and the CMBSTM indicator comes and
stays on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain ro ad, or curved and winding road for an
extended period.
• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions that caused the CMBS
TM to shut off improve or are addressed
(e.g., cleaning), the system comes back on.
■Automatic shutoff
Limitations applicable to pedestrian detection only
20 ACURA RLX HYBRID-31TY36601.book 464 ページ ２０１９年７月２３日　火曜日　午後６時２５分

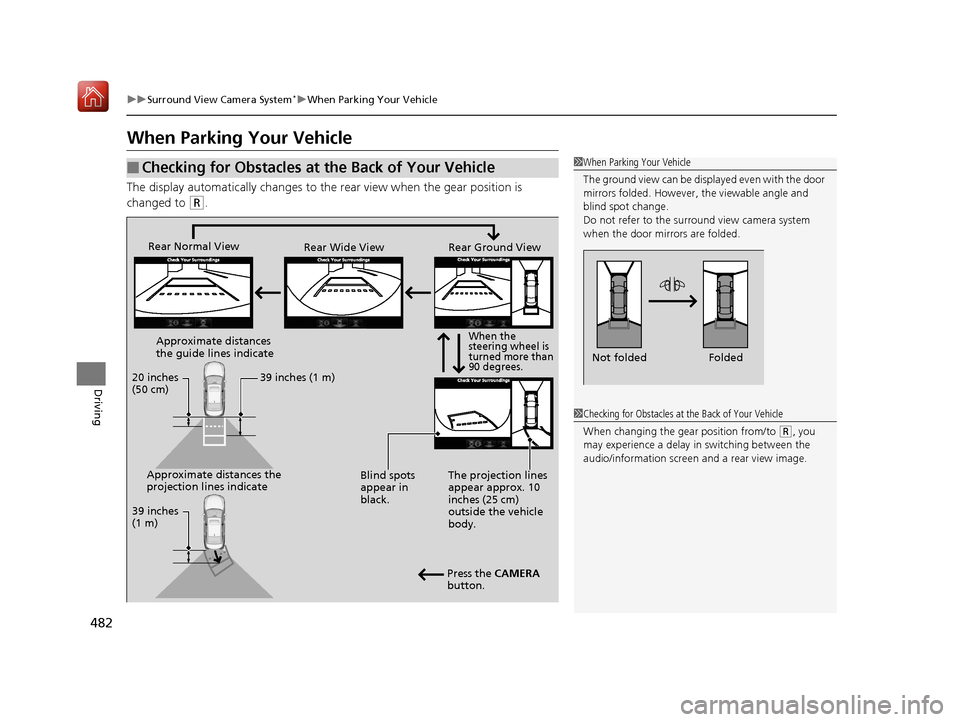

482
uuSurround View Camera System*uWhen Parking Your Vehicle
Driving
When Parking Your Vehicle
The display automatically changes to the rear view when the gear position is
changed to
(R.
■Checking for Obstacles at the Back of Your Vehicle1 When Parking Your Vehicle
The ground view can be disp layed even with the door
mirrors folded. However, the viewable angle and
blind spot change.
Do not refer to the surround view camera system
when the door mirrors are folded.
Folded
Not folded
1 Checking for Obstacles at the Back of Your Vehicle
When changing the gear position from/to
(R, you
may experience a delay in switching between the
audio/information screen and a rear view image.
Rear Wide View
Rear Normal View
Rear Ground View
When the
steering wheel is
turned more than
90 degrees.
The projection lines
appear approx. 10
inches (25 cm)
outside the vehicle
body.
Blind spots
appear in
black.
Press the CAMERA
button.
Approximate distances
the guide lines indicate
Approximate distances the
projection lines indicate 39 inches (1 m)
20 inches
(50 cm)
39 inches
(1 m)
20 ACURA RLX HYBRID-31TY36601.book 482 ページ ２０１９年７月２３日　火曜日　午後６時２５分

602
Index
Compact Spare Tire (Optional)........ 553, 587
Console Compartment ............................. 187
Controls ..................................................... 127
Coolant (Engine) ....................................... 509
Adding to the Radiator ............................ 510
Adding to the Reserve Tank ..................... 509
High Temperature Indicator ....................... 85
Low Temperature Indicator ........................ 85
Overheating............................................. 565
Coolant (Inverter) ..................................... 511
Creeping (Dual Clutch Transmission) ....... 384
Cross Traffic Monitor ................................ 472
Cup Holders ............................................... 189
Customized Features ................................ 295
D
Daytime Running Lights ........................... 159
Dead Battery (12-Volt) ............................. 562
Defrosting the Windshield and Windows .................................................. 207
Devices that Emit Radio Waves ................ 589
Dimming Headlights ............................................... 156
Rearview Mirror ....................................... 172
Dipstick (Engine Oil) ................................. 505
Directional Signals (Turn Signal) .............. 155
Door Mirrors ............................................. 173
Doors ......................................................... 129
Auto Door Locking .................................. 142
Auto Door Unlocking ............................... 142 Door Open Message.................................. 37
Keys ........................................................ 129
Locking/Unlocking the Doors from
the Inside ........................................ 18, 139
Locking/Unlocking the Doors from
the Outside ........................................... 131
Lockout Prevention System ...................... 137
DOT Tire Quality Grading ........................ 523
Driver’s Knee Airbag .................................. 52
Driving ...................................................... 371
Braking ................................................... 450
Dual Clutch Transmission ........................ 384
Shifting Gear ........................................... 385
Turning on the Power.............................. 378
Driving Position Memory System ............ 169
Dual Clutch Transmission Creeping ................................................. 384
Fluid ........................................................ 512
Kickdown ................................................ 384
Operating the Shift Button ................ 23, 387
Shifting ................................................... 385
Dust and Pollen Filter ............................... 531
E
Elapsed Time............................................. 117
Electric Parking Brake
Indicator.................................................... 77
Electric Parking Brake System Indicator............................................ 77, 569 Electric Power Steering (EPS) System
Indicator ........................................... 84, 569
Electronic Stability Control (ESC) ............ 439
Emergency ................................................ 580
Emissions Testing (Readiness Codes) ...... 591
Energy Efficiency ........................................ 12
Engine ....................................................... 588
Coolant .................................................. 509
Jump Starting ......................................... 562
Oil .......................................................... 504
Remote Engine Start ............................... 380
Engine Compartment Cover .................... 503
Engine Coolant ........................................ 509
Adding to the Radiator ........................... 510
Adding to the Reserve Tank .................... 509
High Temperature Indicator ...................... 85
Low Temperature Indicator ....................... 85
Overheating ............................................ 565
Engine Oil ................................................. 504
Adding ................................................... 506
Checking ................................................ 505
Displaying Oil Life ................................... 496
Low Oil Pressure Indicator ................. 76, 567
Recommended Engine Oil ....................... 504
e-pretensioners .......................................... 40
EPS (Electric Power Steering) System ........ 84
Exhaust Gas Hazard (Carbon Monoxide) .. 72
Expanded Rear Door Sunshades ............. 199
Exterior Care (Cleaning) .......................... 534
Exterior Mirrors ........................................ 173
20 ACURA RLX HYBRID-31TY36601.book 602 ページ ２０１９年７月２３日　火曜日　午後６時２５分

604
Index
HFL (HandsFreeLink®)............................... 324
High Beam Indicator ................................... 87
High Voltage Battery ................................ 449
Hill Start Assist System .............................. 382
HomeLink ® Universal Transceiver ............ 321
Honda App License Agreement ............... 281
Hybrid Vehicle SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®) ............ 9
I
Identification Numbers
Engine, Motor, and Transmission ............. 588
Vehicle Identification ............................... 588
Illumination Control
Buttons............................................ 166, 167
Immobilizer System .................................. 146
Indicator .................................................... 87
Indicators ..................................................... 76
12-Volt Battery Charging System ....... 81, 567
Adaptive Cruise Control (ACC) with Low Speed Follow.............................................. 90, 402
Anti-lock Brake System (ABS) ..................... 84
Auto High-Beam ........................................ 87
Automatic Brake Hold........................ 78, 454
Automatic Brake Hold System ............ 78, 454
Blind spot information System ........... 92, 444
Brake System (Amber)................................ 79
Brake System (Red) ............................ 76, 568 Collision Mitigati
on Braking System
TM
(CMBSTM) ........................................... 92, 93
Door and Trunk Open ............................... 37
Electric Parking Brake ................................ 77
Electric Parking Brake System ............ 77, 569
Electric Power Steering (EPS) System .. 84, 569
Fog Light ................................................... 87
Gear Position............................................. 81
High Beam ................................................ 87
High Temperature ..................................... 85
Immobilizer System ................................... 87
Keyless Access System ............................... 88
Lane Keeping Assist System (LKAS) .... 91, 423
Lights On .................................................. 87
Low Fuel ................................................... 83
Low Oil Pressure ................................ 76, 567
Low Temperature ...................................... 85
Low Tire Pressure/TPMS ............. 86, 445, 447
Malfunction Indicator Lamp............... 81, 568
POWER SYSTEM ........................................ 80
READY ...................................................... 80
Road Departure Mitigation (RDM) ............. 89
Seat Belt Reminder .............................. 39, 83
Security System Alarm ............................... 88
SPORT Mode ..................................... 88, 393
Supplemental Restraint System ............ 57, 84
System Message ........................................ 86
Transmission System.................................. 82
Turn Signal ................................................ 86 Vehicle Stability Assist
TM (VSA
®)
System ............................................ 85, 439
VSA ® OFF .......................................... 85, 440
Information .............................................. 585
Instant Fuel Economy .............................. 117
Instrument Panel ........................................ 75
Brightness Control .................................. 166
Interface Dial ............................................ 216
Interior Lights ........................................... 182
Interior Rearview Mirror ......................... 172
Inverter Coolant ....................................... 511
J
Jack (Wheel Nut Wrench) ........................ 556
Jump Starting ........................................... 562
K
Key Number Tag ...................................... 130
Keyless Access System .............................. 131
Keyless Lockout Prevention ..................... 137
Keys ........................................................... 129
Lockout Prevention ................................. 137
Number Tag............................................ 130
Rear Door Won’t Open ........................... 141
Remote Transmitter ................................ 136
Two-way Keyless Access Remote..... 138, 380
Types and Functions................................ 129
Kickdown (Dual Clutch Transmission) .... 384
20 ACURA RLX HYBRID-31TY36601.book 604 ページ ２０１９年７月２３日　火曜日　午後６時２５分

605
Index
L
Lane Keeping Assist System (LKAS)........ 421
Language (HFL) ........................................ 325
LATCH (Child Seats) ................................... 65
Lights ................................................ 156, 514
Auto High-Beam ..................................... 160
Auto High-Beam Indicator......................... 87
Automatic............................................... 157
Bulb Replacement ................................... 514
Daytime Running Lights .......................... 159
Fog Lights ............................................... 159
High Beam Indicator ................................. 87
Interior.................................................... 182
Light Switches......................................... 156
Lights On Indicator.................................... 87
Turn Signals ............................................ 155
Load Limits ............................................... 375
Locking/Unlocking ................................... 129
Auto Door Locking/Unlocking ................. 142
Childproof Door Locks ............................ 141
From Inside ............................................. 139
From Outside .......................................... 131
Keys........................................................ 129
Using a Key............................................. 137
Lockout Prevention System ..................... 137
Low Battery Charge (12-Volt) ................. 567
Low Fuel Indicator ..................................... 83
Low Keyless Access Remote Signal
Strength .................................................. 130
Low Oil Pressure Indicator ................. 76, 567
Lower Anchors ........................................... 65 Luggage (Maximum Load Limit)
............. 375
Lumbar Support ........................................ 176
M
Maintenance............................................. 491
12-Volt Battery ........................................ 529
Brake Fluid .............................................. 512
Cleaning .................................................. 532
Climate Control System ........................... 531
Coolant ........................................... 509, 511
Maintenance Minder
TM............................ 495
Oil ........................................................... 505
Precautions .............................................. 492
Radiator .................................................. 510
Remote Transmitter ................................. 530
Replacing Light Bulbs ............................... 514
Safety ...................................................... 493
Service Items ........................................... 498
Tires ........................................................ 520
Transmission Fluid ................................... 512
Under the Hood ...................................... 501
Malfunction Indicator Lamp .............. 81, 568
Map Lights ................................................ 183
Maximum Load Limit ............................... 375
Meters, Gauges ......................................... 112
Mirrors
Adjusting ................................................. 172
Door........................................................ 173
Exterior .................................................... 173
Interior Rearview ..................................... 172 Modifications (and Accessories)
.............. 537
Moonroof ................................................. 151
MP3 ................................................... 245, 268
Multi-Information Display ....................... 114
Multi-View Rear Camera .......................... 476
N
Numbers (Identification).......................... 588
O
Odometer................................................. 116
Oil (Engine) ....................................... 504, 587
Adding .................................................... 506
Checking................................................. 505
Displaying Oil Life .................................... 496
Low Oil Pressure Indicator ................. 76, 567
Recommended Engine Oil ............... 504, 587
Viscosity .......................................... 504, 587
On Demand Multi-Use Display
TM............. 217
Open Source Licenses ............................... 294
Opening
Trunk ...................................................... 582
Opening/Closing Hood....................................................... 502
Moonroof ............................................... 151
Power Windows ...................................... 149
Trunk ...................................................... 143
Operating the Switches Around the Steering Wheel ...................................................... 152
20 ACURA RLX HYBRID-31TY36601.book 605 ページ ２０１９年７月２３日　火曜日　午後６時２５分

606
Index
Outside Temperature Display.................. 116
Overheating .............................................. 565
P
Paddle Shifters (Sequential Mode) .......... 392
Pandora® ................................................... 267
Panic Mode ............................................... 148
Parking ...................................................... 466
Parking Brake ............................................ 450
Parking Sensor System .............................. 468
Passenger Airbag Off Indicator ................. 58
Passing Indicators ..................................... 156
POWER Button .......................................... 152
Power Distribution Monitor ............. 124, 227
Power Rear Sunshade ............................... 198
Power System Turning on............................................... 378
POWER SYSTEM Indicator .......................... 80
Power Windows ........................................ 149
Precautions While Driving
Rain ......................................................... 383
Pregnant Women ....................................... 43
Puncture (Tire) .................................. 541, 553
R
Radiator..................................................... 510
Radio (AM/FM) .......................................... 237
Radio (SiriusXM ®)...................................... 242 Radio Data System (RDS)
......................... 239
Range ........................................................ 117
RDS (Radio Data System) ......................... 239
Reactive Force Pedal ................................ 394
Readiness Codes (Emissions Testing) ....... 591
READY Indicator ......................................... 80
Rear Defogger/Heated Door Mirror Button ..................................................... 168
Rear Seat Heaters ..................................... 197
Rear Temperature Control Dial ............... 208
Rearview Mirror ....................................... 172
Refueling .................................................. 488
Fuel Gauge.............................................. 112
Gasoline .......................................... 488, 586
Low Fuel Indicator ..................................... 83
Regenerative Energy and Regenerative Braking ...................................................... 12
Regulations ............................... 447, 523, 589
Remote Engine Start with Vehicle
Feedback ................................................. 380
Remote Transmitter ................................. 136
Replacement
Battery .................................................... 530
Bulbs ....................................................... 514
Fuses ....................................... 572, 576, 577
Tires ........................................................ 526
Wiper Blade Rubber ................................ 517
Reporting Safety Defects ......................... 590
Resetting a Trip Meter ............................. 116
Reverse Tilt Door Mirror .......................... 173Right Selector Wheel
............................... 114
Road Departure Mitigation (RDM) ......... 416
On and Off ............................................. 418
S
Safe Driving ................................................ 33
Safety Labels .............................................. 73
Safety Message ............................................ 1
Seat Belts .................................................... 38
Adjusting the Shoulder Anchor ................. 42
Automatic Seat Belt Tensioners ................. 40
Checking .................................................. 44
e-pretensioners ......................................... 40
Fastening .................................................. 41
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 67
Pregnant Women...................................... 43
Reminder ............................................ 39, 83
Warning Indicator ............................... 39, 83
Seat Heaters ............................. 195, 196, 197
Seats Adjusting ................................................ 175
Front Seats.............................. 175, 178, 180
Seat Heaters ........................... 195, 196, 197
Security System ........................................ 146
Immobilizer System Indicator..................... 87
Security System Alarm Indicator ................ 88
Selecting a Child Seat ................................ 64
Sequential Mode ...................................... 391
20 ACURA RLX HYBRID-31TY36601.book 606 ページ ２０１９年７月２３日　火曜日　午後６時２５分
