2020 Acura RLX HYBRID display

96
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with transmission and it is
not possible to select
(R.
•Have your vehicle checked by a dealer.
•Appears if you depress the accelerator pedal when the
transmission is in
(N.
•Release the accelerator peda l. After that, depress the
brake pedal and change the transmission position.
• Appears when you press and hold the (N button for
more than two seconds.• Disappears when you set the gear position to other
than
(N.
2 If you want to keep the transmission in (N
position (car wash mode) P. 389
• Appears when you change to (N, then release the (N
button.
2 If you want to keep the transmission in (N
position (car wash mode) P. 389
• All gear positions come on when the transmission is
operated.•Acceleration is not possible while the indicator is on.
• Goes off a few seconds late r if there is no problem.
• After the indicator goes off, you can drive normally.
20 ACURA RLX HYBRID-31TY36601.book 96 ページ ２０１９年７月２３日　火曜日　午後６時２５分

97
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when there is a pr oblem with the sensor on
the 12-volt battery.• Have your vehicle checked by a dealer.
2 Checking the 12-Volt Battery P. 529
•Appears when the starter system has a problem.•As a temporary measure, press and hold the POWER
button for up to 15 seconds while depressing the brake
pedal and manually turn on the power system.
Have your vehicle checked by a dealer.
• Appears after the driver’s door is opened when the
power mode is in ACCESSORY.•Change the power mode to VEHICLE OFF.
2 POWER Button P. 152
•Appears when the power mode is in ACCESSORY.
—
U.S.
Canada
20 ACURA RLX HYBRID-31TY36601.book 97 ページ ２０１９年７月２３日　火曜日　午後６時２５分

98
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you close the door with the power mode
in ON without the keyless access remote inside the
vehicle.• Disappears when you bring the keyless access remote
back inside the vehicle and close the door.
2 Keyless Access Remote Reminder P. 154
•Appears when the keyless access remote battery
becomes weak.•Replace the battery as soon as possible.
2 Replacing the Button Battery P. 530
•Appears if the keyless access remote battery is too weak
to turn on the po wer system or the key is not within
operating range to turn on the power system.
A beeper sounds six times.• Bring the keyless access remote in front of the POWER
button to be touched with.
2 If the Keyless Access Remote Battery is Weak P. 560
•Appears three seconds after you bring the keyless
access remote in front of the POWER button when To
Start, Hold Remote Near Start Button appears. To
Start Vehicle: Brake + Push appears sequentially.•Unless you bring the keyless access remote in front of
the POWER button, this message does not appear.
2If the Keyless Access Remote Battery is Weak P. 560
•Appears when you set the power mode to ACCESSORY
or ON.
2 Turning on the Power P. 378
•Appears if you press the POWER button while the
vehicle is moving.
2 Emergency Power System Off P. 561
20 ACURA RLX HYBRID-31TY36601.book 98 ページ ２０１９年７月２３日　火曜日　午後６時２５分

99
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when you set the power mode to ON without
fastening the driver’s seat belt.
• Appears when you change the gear position after
(P
has been automatically selected with the driver’s door
open, the driver’s seat belt unfastened, then the brake
pedal is released.
• Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 387
•Appears when you try to change the gear position
without depressing the brake pedal.•Depress the brake pedal, then select a shift button.
•Appears when you try to change the gear position
without releasing your foot off the accelerator pedal.•Release your foot off the acce lerator pedal, then select
a shift button.
• Appears when the parking button is pressed while the
vehicle is moving.
• Appears if you change the gear position to
(R while the
vehicle is moving forward, or to
(D while the vehicle is
reversing.
• Make sure that the vehicle comes to a stop before
operating the select button.
20 ACURA RLX HYBRID-31TY36601.book 99 ページ ２０１９年７月２３日　火曜日　午後６時２５分

100
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the electric system.
• Appears when you set the power mode to OFF while
driving.•Immediately stop in a safe place and set the parking
brake.
• Continue driving if the message goes off soon after.
• If there is a problem with the transmission system, the
transmission system indicator comes on.
2 Transmission System Indicator P. 82
•Appears if you press the POWER button within five
seconds of putting the transmission into
(N.
• The transmission remains in (N for 15 minutes, then
automatically switches to
(P.
2 If you want to keep the transmission in (N
position (car wash mode) P. 389
• Appears if the vehicle is stopped and the driver’s seat
belt is unfastened, as there is a possibility that the
vehicle may roll.•When the vehicle is idling or when you are parking or
exiting the vehicle, put the transmission into
(P before
releasing the brake pedal.
2 Shift Operation P. 387
•Appears if any door or the trunk is not completely
closed.
• Appears if any door or the trunk is opened while
driving. The beeper sounds.•Goes off when all doors and the trunk are closed.
•Appears if there is a problem with the acoustic vehicle
alerting system.• Have your vehicle checked by a dealer immediately.
20 ACURA RLX HYBRID-31TY36601.book 100 ページ ２０１９年７月２３日　火曜日　午後６時２５分

101
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears if there is a problem with the radiator system.•Drive slowly to prevent ov erheating and have your
vehicle checked by a dealer as soon as possible.
• Appears when there is a pr oblem with the headlights.•Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle chec ked by a dealer as soon as
possible.
• Appears if there is a problem with the parking sensor
system.•Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If th e indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
• Appears if the automatic brake hold is automatically
canceled while it is in operation.•Immediately depress the brake pedal.
•Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 454
Models with
parking sensor
system
20 ACURA RLX HYBRID-31TY36601.book 101 ページ ２０１９年７月２３日　火曜日　午後６時２５分

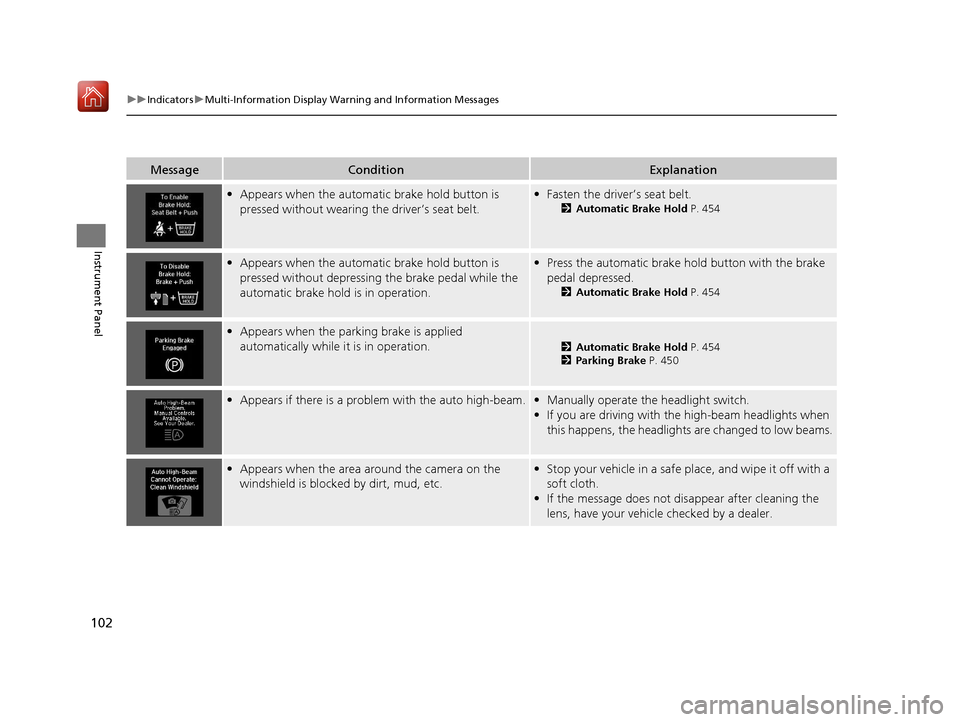

102
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the automatic brake hold button is
pressed without wearing the driver’s seat belt.•Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 454
•Appears when the automatic brake hold button is
pressed without depressing the brake pedal while the
automatic brake hold is in operation.•Press the automatic brake ho ld button with the brake
pedal depressed.
2 Automatic Brake Hold P. 454
•Appears when the parking brake is applied
automatically while it is in operation.
2 Automatic Brake Hold P. 454
2 Parking Brake P. 450
•Appears if there is a problem with the auto high-beam.•Manually operate the headlight switch.
• If you are driving with the high-beam headlights when
this happens, the headlights are changed to low beams.
• Appears when the area around the camera on the
windshield is blocked by dirt, mud, etc.•Stop your vehicle in a safe pl ace, and wipe it off with a
soft cloth.
• If the message does not disappear after cleaning the
lens, have your vehicle checked by a dealer.
20 ACURA RLX HYBRID-31TY36601.book 102 ページ ２０１９年７月２３日　火曜日　午後６時２５分

103
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears after the 12-volt battery charging system
indicator comes on.•Your vehicle has less ability to accelerate and may be
harder to start on an incline.
• Contact a dealer immediately.
•Appears when the High Volt age battery temperature is
too low to operate (approx. -22°F [-30°C] or below).•You can start the engine an d use the climate control
system to warm up the interior, which will also warm
the High Voltage battery e nough for you to drive the
vehicle.
• The engine speed does not in crease even if you fully
depress the accelerator pedal.
• Appears when the High Voltage battery and other
system control temperatures are too low to operate
(approx. -40°F [-40°C] or below).•You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.
• Contact a dealer if necessary.
•Appears when the rear mo tor fluid temperature is
extremely low.• The vehicle speed is temporarily limited up to 74 mph
(120 km/h). This is canceled after the fluid temperature
rises.
20 ACURA RLX HYBRID-31TY36601.book 103 ページ ２０１９年７月２３日　火曜日　午後６時２５分
