129
uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button
Controls
When the power mode is set to any mode
other than OFF and you remove the keyless
access remote from the vehicle and shut the
door, an alarm will sound. If the alarm
continues to sound, place the keyless access
remote in another location. ■ When the power mode is in
ACCESSORY
The alarm will sound from outside the vehicle. ■ When the power mode is in ON
An alarm will sound both inside and outside the vehicle. In additi on, a warning indicator
will appear on the instrument panel.

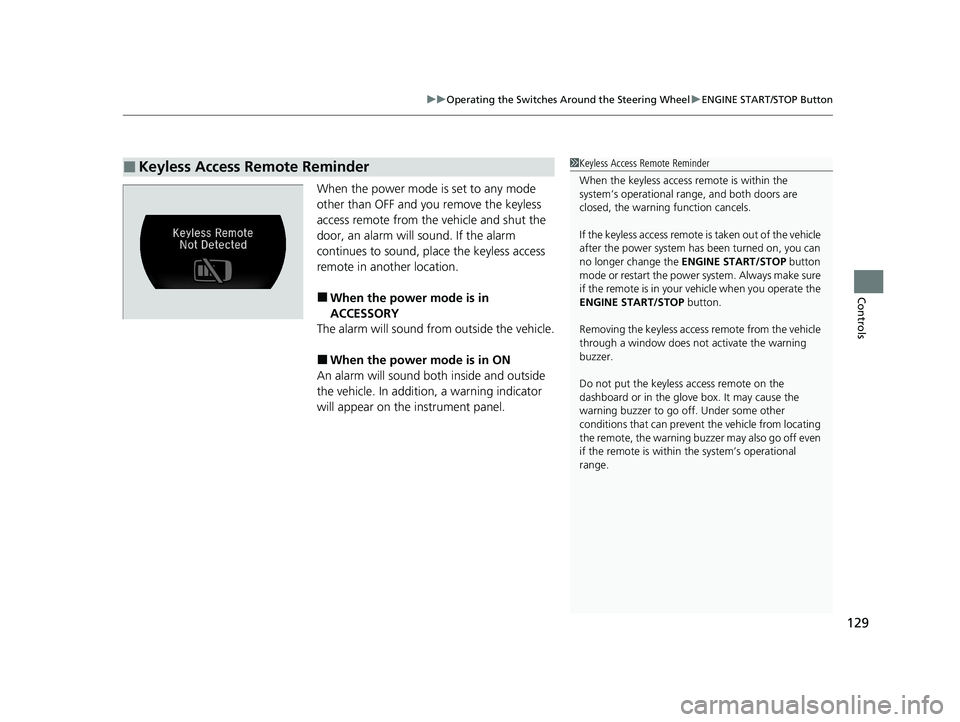

■Keyless Access Remote Reminder1Keyless Access Remote Reminder
When the keyless access remote is within the
system’s operational range, and both doors are
closed, the warni ng function cancels.
If the keyless access remote is taken out of the vehicle
after the power system has been turned on, you can
no longer change the ENGINE START/STOP button
mode or restart the power system. Always make sure
if the remote is in your vehicle when you operate the
ENGINE START/STOP button.
Removing the keyless access remote from the vehicle through a window does not activate the warning
buzzer.
Do not put the keyless access remote on the
dashboard or in the glove box. It may cause the
warning buzzer to go of f. Under some other
conditions that can prevent the vehicle from locating
the remote, the warning buzzer may also go off even
if the remote is within the system’s operational range.
20 ACURA NSX PMC-31T6N6300.book 129 ページ ２０１９年９月１１日　水曜日　午後４時５１分

183
uuAudio System Basic OperationuDisplay Setup
FeaturesSelect the current source icon, then select an icon on the source list to switch the
audio source.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
■Selecting an Audio Source1Selecting an Audio Source If you startup pre-installed a udio apps, is
displayed on the lower right of the screen.
These pre-installed apps ca nnot be displayed on the
source select screen.
You can startup thos e audio apps from .
Pandora ® is available only in the U.S.
■Limitations for Manual Operation
Select the source icon.
Source Select Screen
Source List Icons
1Limitations for Manual Operation
When the vehicle is in TRACK mode, the following
screen is displayed and the audio system becomes
inoperable. To return to th e normal screen, touch any
part of the audio/information screen.
You can turn the li mitation on and off.
2 Customized Features P. 244
20 ACURA NSX PMC-31T6N6300.book 183 ページ ２０１９年９月１１日　水曜日　午後４時５１分

225
uuAudio Error MessagesuAndroid/Apps
Features
Android/Apps
If an error occurs while using the audio system or apps, you may see the following
error messages. If you cannot clear the error message, contact an authorized Acura
NSX dealer.
*1:****part is variable characters, and will change depending upon where an error occurs.
Error Message *1Solution
Unfortunately, **** has
stopped.Error has occurred within app, select
OK on the screen to close the app.
**** is not responding.
Would you like to close it?
App is not responding. Select Wait if you can wait for a response from app a little longer. If it does not respond even if you keep
waiting, select OK to close the app and start it up. If the error message continues, perform Factory Data
Reset .
2 Defaulting All the Settings P. 266
20 ACURA NSX PMC-31T6N6300.book 225 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued297
uuBluetooth® HandsFreeLink ®uHFL Menus
Features
HFL can display newly received text or e-mail messages as well as 20 of the most
recently received messages on a linked cell phone. Each received message can be
read aloud and replied to using a fixed common phrase.
1.A pop-up appears and notifies you of a new
text or e-mail message.
2. Select Read to listen to the message.
uThe text or e-mail me ssage is displayed.
The system automatica lly starts reading
out the message.
3. To discontinue the message read-out, select
Stop .
■Receiving a Text/E-mail Message1Receiving a Text/E-mail Message
The system does not display any received messages
while you are driving. You can only hear them read aloud.
The system can only receive messages that are sent as
text (SMS) messages. Messages sent using data
services will not be displayed in the list.
With some phones, you may be able to display up to
20 most recent text and e-mail messages.
State or local laws may limit your use of the HFL text
/e-mail message feature. Only use the text /e-mail
message feature when conditions allow you to do so
safely.
When you receive a text or e-mail message for the first time since the phone is paired to HFL, you are
asked to turn the New Message Notification
setting to On.
2 To turn on or off the text/e-mail notice
P. 281
20 ACURA NSX PMC-31T6N6300.book 297 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued301
uuBluetooth® HandsFreeLink ®uHFL Menus
Features
■
Read or Stop reading a message
1. Go to the text or e-mail message screen.
uThe system automatica lly starts reading
the message aloud.
2 Displaying Messages P. 299
2. Select Stop to stop reading.
Select Read again to start reading the
message from the beginning.
■ Reply to a message
1. Go to the text or e-mail message screen.
uThe system automatica lly starts reading
the message aloud.
2 Displaying Messages P. 299
2. Select Reply.
3. Select the reply message.
uThe pop-up menu appears on the screen.
4. Select Send to send the message.
uComplete appears on the screen when
the reply message was successfully sent.
1Reply to a message
The available fixed reply messages are as follows: • Talk to you later, I

uuWhen DrivinguTurning on the Power
322
Driving
3. Press the ENGINE START/STOP button
without depressing the accelerator pedal.
uThe Ready To Drive message appears
on the driver information interface.
uWhen the ambient temperature is
extremely low, the ve hicle does not move
until certain conditions are met.
A warning message appears instead of
Ready To Drive .
2 Driver Information Interface
Warning and Information Messages
P. 90
uIf the High Voltage battery is fully ch arged, the gasoline engine may not start.
uThe gasoline engine starts either accordi ng to the temperature of the engine or
when the High Voltage batte ry charge level is low.
uRegardless of the High Voltage battery char ge level, the gasoline engine always
starts.
uGasoline engine starts with a louder sound than QUIET mode.
When engine temperature or High Volt age battery temperature are low, or
when High Voltage battery charge level is low, gasoline engine starts at the
same sound level as QUIET mode.
You can turn the power system off when the vehicle is completely stopped.
1. Select
(P .
2. Press the ENGINE START/STOP button.
1Turning on the Power
The immobilizer system pr otects your vehicle from
theft. If an improperly code d key (or other device) is
used, the power system does not activate.
2 Immobilizer System P. 122
Bring the keyless access remote close to the ENGINE
START/STOP button if the batte ry in the keyless
access remote is weak.
2 If the Keyless Access Remote Battery is Weak P. 446
The power system may not activate if the keyless
access remote is subjecte d to strong radio waves.
Do not hold the ENGINE START/STOP button to
start the power system. If the power system does not start, wait at least 30
seconds before trying again.
You can set the Integrated Dynamics System mode to
be selected when you set the power mode to ON.
2 Customized Features P. 244
■Stopping the Power System
When the Integrated Dynamics System is in QUIET mode
When the Integrated Dynamics System is in SPORT mode
20 ACURA NSX PMC-31T6N6300.book 322 ページ ２０１９年９月１１日　水曜日　午後４時５１分

324
uuWhen DrivinguPrecautions While Driving
Driving
Precautions While Driving
Avoid driving in deep water and on flooded roads. This can damage the power
system or driveline, or cause electrical component failure.
The vehicle is equipped with ultra high performance summer tires that, due to their
decreased tread depth, are at greater risk of hydroplaning on wet roads compared
to regular tires. Exercise caution when driving on wet surfaces.
The vehicle is equipped with ultra high performance summer tires. These tires are
designed for optimum performance and handling in warm climates, and are not
suitable for below freezing, snowy or ic y weather conditions. If you drive under
these circumstances, use of winter tires is recommended and may be mandatory,
depending on your region, province or territory. 2 Winter Tires P. 415
2 Cold Weather Driving P. 416
Due to limitations of the Lithium-ion Hi gh Voltage battery, the minimum starting
temperature for the vehicle is -4°F (-20°C).
Inability to start the vehicle and/or decrea sed performance is expected if the vehicle
is operated at temperatures below -4°F (-20°C).
■In Rain
■In Snow and Ice
1Precautions While Driving
NOTICE
Do not select a shift button while pressing the
accelerator pedal.
NOTICE
The following can damage the under spoiler, under
covers, front bumper, rear diffuser, brake cooling
components, and side sill: • Parking the vehicle by a parking block
• Parallel pa rking along the road shoulder
• Driving toward the bottom of a hill
• Driving up or down to a different surface level
(such as a road shoulder)
• Driving on a rutted or bumpy road
• Driving on a road with potholes
• Driving over speed bump
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored. Repeated operation under these conditions can
eventually damage the system.
If the power mode is set to ACCESSORY while
driving, the power system will shut down and all
steering and brake power a ssist functions will stop,
making it difficult to control the vehicle.
Driving in snow or icy c onditions may accumulate ice
on the brake disk surface, reducing braking power.
20 ACURA NSX PMC-31T6N6300.book 324 ページ ２０１９年９月１１日　水曜日　午後４時５１分

325
uuWhen DrivinguDual Clutch Transmission
Driving
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
If any of these components are damaged or loose, the stability, handling, and
powertrain cooling performance of the vehicle may be adversely affected.
Dual Clutch Transmission
As with a conventional gasoline-powered ve hicle with an automatic transmission,
this vehicle will creep.
Keep the brake pedal firmly depressed when stopped.
The accelerator pedal features a kick down switch. Quickly depressing the
accelerator pedal while driving may cause the transmission to drop to a lower gear,
subsequently increasing vehicle speed. De press the accelerator pedal carefully,
especially when driving uphill, on slippery roads, and curves.
■Other Precautions
■Creeping
■Kickdown
1Precautions While Driving
Do not press the
(N button, as you will lose
regenerative braking (and ac celeration) performance.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this recommendation when
the brake pads are replaced.
Models with iron brake discs
1Dual Clutch Transmission
The DCT will not operate when it is extremely cold. If the vehicle has been park ed in extremely cold
conditions, after you start th e engine, wait until it
gets warm. Keep your vehicle parked until the
READY indicator comes on.
20 ACURA NSX PMC-31T6N6300.book 325 ページ ２０１９年９月１１日　水曜日　午後４時５１分
