2020 Acura MDX fuse box

Visual Index
6
Quick Reference Guide❚Power Window Switches (P165)
❚Hood Release Handle (P582)
❚Driver’s Side Interior Fuse Box (P665)
❚Driver’s Knee Airbag (P48)
❚Memory Buttons (P186)
❚SET Button (P186)
❚Shift Button
Electronic Gear Selector
(P472)
❚Rearview Mirror (P188)
❚Driver’s Front Airbag (P44)
❚Accessory Power Socket (P213)
❚Passenger’s Side Interior Fuse
Box
(P667)
❚Glove Box (P208)
❚Door Mirror Controls (P189)
❚Power Door Lock Master Switch (P153)
❚Driver’s Side Interior Fuse Box (P666)
❚Passenger’s Front Airbag (P44)
❚Power Tailgate Button (P158)
❚Fuel Fill Door Release Button
(P570)
❚Auto Idle Stop OFF Button (P481)
❚Dynamic Mode Button (P486)
❚USB Ports (P233)
❚Accessory Power Socket* (P213)
❚Auxiliary Input Jack (P236)
❚AC Power Outlet* (P214)
20 ACURA MDX-31TZ56600.book 6 ページ ２０１９年４月２４日　水曜日　午後５時４４分

662
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1STRLD7.5 A
2−−
3ACG FR15 A
4 Washer 15 A
5IG1 OP(7.5 A)
6 ECU FR 7.5 A
7Starter7.5 A
8FI Sub 15A
9DBW15 A
10 FI Main 15 A
11IG Coil15 A
12 DRL R 10 A
13DRL L10 A
14 Injector 20 A
15−−
16 Back Up 10 A
17MG Clutch(7.5 A)
18 FR Fog*(7.5 A)
19−−
20 H/L HI R 7.5 A
21−−
22 Small 10 A
23−−
24 H/L HI L 7.5 A
25SBW15 A
26 H/L LO R 10 A
27H/L LO L10 A
28 Oil LVL 7.5 A
29Main Fan30 A
30 Sub Fan 30 A
31Wiper Main30 A
Circuit ProtectedAmps
* Not available on all models
20 ACURA MDX-31TZ56600.book 662 ページ ２０１９年４月２４日　水曜日　午後５時４４分

663
uuFuses uFuse Locations
Continued
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the battery. Push the tabs to
open the box.
■Engine Compartment Fuse
Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Main Fuse150 A
2
VSA MTR40 A
VSA FSR 20 A Hazard
30 A
RR BLOWER&BMS 30 A DC/DC 3 60 ARR F/B-2 60 A
AS F/B-2 60 A EPS 60 A3
H/L Washer*(30 A)
IG1B Main30 A
R/B Main60 A
DR F/B-150 A
AS F/B-150 A
RR F/B-160 A
IG1A Main30 A
DR F/B-250 A
4 FI Main 40 A
5FR Blower40 A
6RR DEF 40A
7IG1 Main ST30 A
8− −
9Hazard10 A
10 BMS 7.5 A
11−−
Circuit ProtectedAmps
* Not available on all models
20 ACURA MDX-31TZ56600.book 663 ページ ２０１９年４月２４日　水曜日　午後５時４４分

664
uuFuses uFuse Locations
Handling the Unexpected
Located near the + terminal on the battery.
Pull up the cover.
Replacement of this fuse should be done by
a dealer.
Fuse location is shown on the back of the
positive battery terminal cover.
■Engine Compartment Fuse
Box Type C
FusePositive Battery
Terminal Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
Fan Main60 A
20 ACURA MDX-31TZ56600.book 664 ページ ２０１９年４月２４日　水曜日　午後５時４４分

665
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1AS Door Lock10 A
2RR DR Door Lock7.5 A
3DR Door Lock7.5 A
4FR AS Door Unlock10 A
5RR DR Door Unlock7.5 A
6DR Door Unlock(7.5 A)
7D/L Main20 A
8−−
9ETS TELE20 A
10 IG1 RR 15 A
11Shifter7.5 A
12 IG1 FR 20 A
13ACC7.5 A
14 − −
15DR P/Seat (SLI)20 A
16 S/R 20 A
17RR DR P/W20 A
18 Smart 10 A
19FR DR P/W20 A
20 − −
21Fuel Pump20 A
22 IG1 AS 15 A
23Smart7.5 A
24 ACG AS 7.5 A
25−−
26 IG2 HAC 7.5 A
27DRL7.5 A
28 ACC Key Lock 7.5 A
29DR P/Seat (LUM)7.5 A
30 INT Lights 7.5 A
31ETS TILT20 A
32 DR P/Seat (REC) 20 A
33−−
34−−
Circuit ProtectedAmps
20 ACURA MDX-31TZ56600.book 665 ページ ２０１９年４月２４日　水曜日　午後５時４４分

666
uuFuses uFuse Locations
Handling the Unexpected
Located under the type A driver’s side
interior fuse box. Take off the cover to
open.
Fuse locations are shown on the label on
the back side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side In terior Fuse Box
Type B
Fuse Box Side Panel Cover
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1VST 130 A
2Horn10 A
3VST 230 A
4−−
5−−
6−−
7−−
8−−
9Meter10 A
10RES/CP/AA*10 A
11MICU7.5 A
12EPS/VSA7.5 A
13Audio/TCU7.5 A
14Back Up10 A
15Audio/ANC20 A
* Not available on all models
20 ACURA MDX-31TZ56600.book 666 ページ ２０１９年４月２４日　水曜日　午後５時４４分

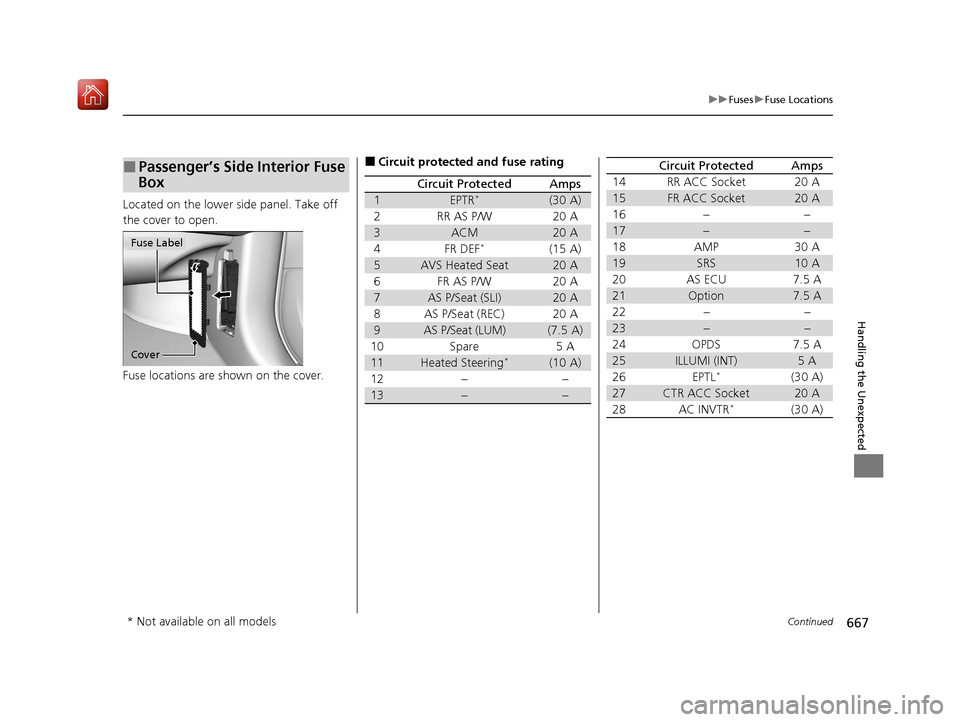

667
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■Passenger’s Side Interior Fuse
Box
Cover
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1EPTR*(30 A)
2RR AS P/W20 A
3ACM20 A
4FR DEF*(15 A)
5AVS Heated Seat20 A
6FR AS P/W20 A
7AS P/Seat (SLI)20 A
8AS P/Seat (REC)20 A
9AS P/Seat (LUM)(7.5 A)
10Spare5 A
11Heated Steering*(10 A)
12−−
13−−
14RR ACC Socket20 A
15FR ACC Socket20 A
16−−
17−−
18AMP30 A
19SRS10 A
20AS ECU7.5 A
21Option7.5 A
22−−
23−−
24OPDS7.5 A
25ILLUMI (INT)5 A
26EPTL*(30 A)
27CTR ACC Socket20 A
28AC INVTR*(30 A)
Circuit ProtectedAmps
* Not available on all models
20 ACURA MDX-31TZ56600.book 667 ページ ２０１９年４月２４日　水曜日　午後５時４４分

668
uuFuses uFuse Locations
Handling the Unexpected
Located on the left side of cargo area.
Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
Fuse locations are shown on the cover.
Locate the fuse in question by the fuse
number and box cover number.
■Rear Fuse Box
Fuse Label
Fuse BoxCover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1PTG Closer20 A
2−−
3USB CHARGE15 A
4Fuel Lid7.5 A
5Seat Slide20 A
6−−
7RR Heat Seat*(20 A)
8−−
9−−
10−−
11−−
12Rear Wiper10 A
13Rear ECU7.5 A
14SH-AWD*(20 A)
15EPB-R30 A
16EPB-L30 A
17−−
18PTG MTR40 A
* Not available on all models
20 ACURA MDX-31TZ56600.book 668 ページ ２０１９年４月２４日　水曜日　午後５時４４分
