2020 Acura MDX TPMS

524
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Tire Pressure Monitoring System (TPMS) - Required
Federal Explanation
Each tire, including the spare (i f provided), should be checked
monthly when cold and inflated to the inflation pressure
recommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label.
(If your vehicle has tires of a different size than the size indicated
on the vehicle placard or tire infl ation pressure label, you should
determine the proper tire inflat ion pressure for those tires.)
As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale
when one or more of your tire s is significantly under-inflated.
Accordingly, when the low tire pr essure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate
them to the proper pressure.
Driving on a significantly under-in flated tire causes the tire to
overheat and can lead to tire fail ure. Under-inflation also reduces
fuel efficiency and tire tread li fe, and may affect the vehicle’s
handling and stopping ability.
20 ACURA MDX-31TZ56600.book 524 ページ ２０１９年４月２４日　水曜日　午後５時４４分

525
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver ’s responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumination of th e TPMS low tire pressure telltale.
Your vehicle has also been equi pped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the syst em detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illumina ted. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
20 ACURA MDX-31TZ56600.book 525 ページ ２０１９年４月２４日　水曜日　午後５時４４分

608
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance
Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure ra ting (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stability Assist ® (VSA®) system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
If you replace a wheel, only use TPMS sp ecified wheels approved for your vehicle.
Make sure that the wheel’s specifications match thos e of the original wheels.1Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
20 ACURA MDX-31TZ56600.book 608 ページ ２０１９年４月２４日　水曜日　午後５時４４分

625
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 626
If a Tire Goes Flat
Changing a Flat Tire ......................... 627
Temporarily Repairi ng a Flat Tire....... 635
Engine Does Not Start Checking the Engine ........................ 649
If the Keyless Access Remote Battery is Weak ............................................. 650
Emergency Engine Stop ................... 651
Models with a compact spare tire
Models with temporary tire repair kit
Jump Starting .................................... 652
Overheating How to Handle Overheating............. 654
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On ... 656
If the Charging System Indicator Comes On .. 656
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 657
If the Brake System Indicator (Red) Comes On ................................................... 658
If the Speed-Sensitive Electric Power Steering
(EPS) System Indicator Comes On........... 658
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 660
If the Transmission System Indicator Blinks along with the Warning Message ...... 661
Fuses Fuse Locations ................................. 662
Inspecting and Changing Fuses ........ 669
Emergency Towing ........................... 670
When You Cannot Unlock the Fuel Fill Door... 671
When You Cannot Open the Tailgate.. 672
Refueling........................................... 673
Refueling From a Portable Fuel Container . 673
20 ACURA MDX-31TZ56600.book 625 ページ ２０１９年４月２４日　水曜日　午後５時４４分

uuIf a Tire Goes Flat uChanging a Flat Tire
634
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. Afte r driving for a few miles (kilometers), Tire
Pressure Monitor Problem will appear on the multi-information display and the
indicator will start blinking for a short time and then stay on; however, this is normal
and is no cause for concern.
If you replace the tire with a full-size tire, the warning message on the multi-
information display and the low tire pressu re/TPMS indicator will go off after a few
miles (kilometers).
■TPMS and the Compact Spare Tire1 TPMS and the Compact Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific whee ls. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
20 ACURA MDX-31TZ56600.book 634 ページ ２０１９年４月２４日　水曜日　午後５時４４分

660
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

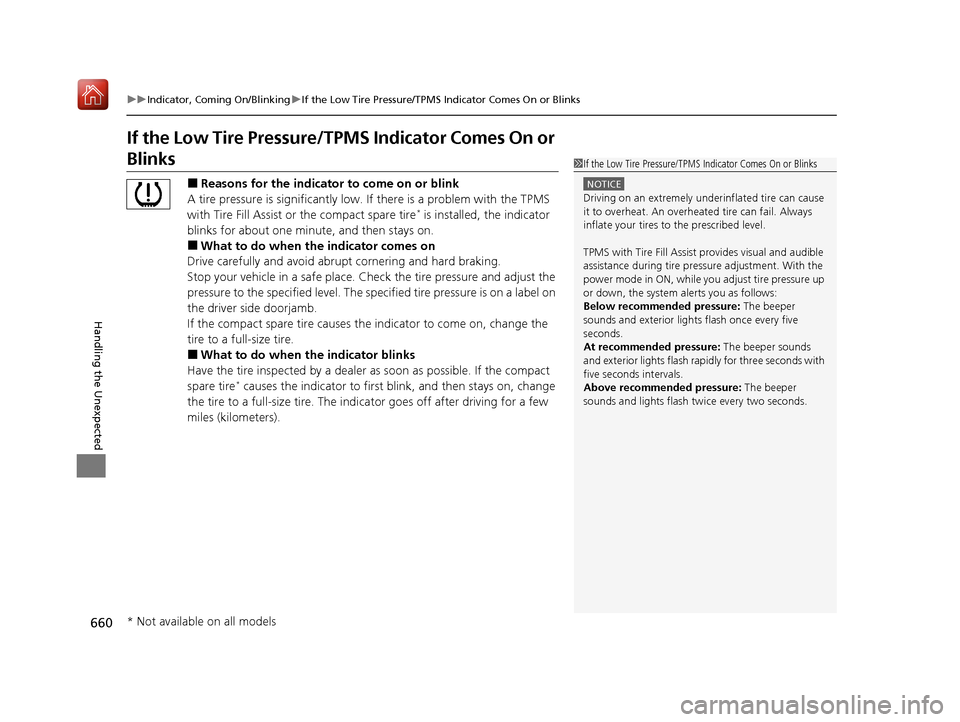

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire
* is installed, the indicator
blinks for about one mi nute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
If the compact spare tire causes th e indicator to come on, change the
tire to a full-size tire.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to first b link, and then stays on, change
the tire to a full-size tire. The indi cator goes off after driving for a few
miles (kilometers).
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON, while y ou adjust tire pressure up
or down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for three seconds with
five seconds intervals.
Above recommended pressure: The beeper
sounds and lights flash tw ice every two seconds.
* Not available on all models
20 ACURA MDX-31TZ56600.book 660 ページ ２０１９年４月２４日　水曜日　午後５時４４分

694
Index
I
Identification Numbers............................ 678
Engine and Transmission.......................... 678
Vehicle Identification ............................... 678
Illumination Control ................................. 183
Button ..................................................... 183
Immobilizer System .................................. 162
Indicator .................................................... 89
Indicators ..................................................... 78
Adaptive Cruise Control (ACC) with Low Speed Follow ............................ 95, 489
Anti-lock Brake System (ABS) ..................... 86
Auto High-Beam ........................................ 86
Auto Idle Stop ........................................... 92
Auto Idle Stop System................................ 92
Automatic Brake Hold........................ 81, 533
Automatic Brake Hold System ............ 81, 533
Blind spot information System ........... 99, 527
Brake System (Amber)................................ 79
Brake System (Red) ............................ 78, 658
Charging System ............................... 82, 656
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 97, 98
Electric Parking Brake................................. 80
Electric Parking Brake System ..................... 80
Fog Lights .................................................. 89
Gear Position ............................................. 83
High Beam................................................. 88
Immobilizer System .................................... 89
Keyless Access System ............................... 91
Lane Keeping Assist System (LKAS) .... 93, 512 Lights On .................................................. 89
Low Fuel ................................................... 85
Low Oil Pressure ................................ 82, 656
Low Tire Pressure/TPMS ............................. 88
Malfunction Indicator Lamp............... 82, 657
Road Departure Mitigation (RDM) ............. 94
Seat Belt Reminder .............................. 34, 85
Security System Alarm ............................... 90
Speed-sensitive Electric Power
Steering (EPS) System ...................... 88, 658
Super Handling-All Wheel Drive
TM.............. 91
Supplemental Restraint System ............ 53, 86
System Message ........................................ 90
Transmission System.......................... 84, 661
Turn Signal ................................................ 88
Vehicle Stability Assist ® (VSA ®)
System ............................................ 87, 518
VSA ® OFF .......................................... 87, 519
Information .............................................. 675
Information Screen .................................. 244
Instrument Panel ........................................ 77
Brightness Control................................... 183
Integrated Dynamics System ................... 486
Dynamic Mode button ............................ 486
Interface Dial ............................................ 239
Interior Lights ........................................... 206
Interior Rearview Mirror .......................... 188
iPhone ............................................... 291, 318
iPod ................................................... 284, 318
J
Jack (Wheel Nut Wrench) ........................ 631
Jump Starting ........................................... 652
K
Key Number Tag ...................................... 141
Keyless Access System .............................. 142
Keyless Lockout Prevention ..................... 149
Keys ........................................................... 139
Lockout Prevention ................................. 149
Number Tag............................................ 141
Rear Door Won’t Open ........................... 153
Remote Transmitter ................................ 147
Types and Functions................................ 139
Kickdown (Automatic Transmission) ...... 471
L
Lane Keeping Assist System (LKAS)........ 510
Indicator ................................................... 93
LATCH (Child Seats) ............................. 61, 68
LED Puddle Light ...................................... 144
Legal Information on Apple CarPlay/ Android Auto ......................................... 331
License information ................................. 334
Lights ................................................ 172, 593
Automatic............................................... 173
Bulb Replacement ................................... 593
Daytime Running Lights .......................... 175
High Beam Indicator ................................. 88
20 ACURA MDX-31TZ56600.book 694 ページ ２０１９年４月２４日　水曜日　午後５時４４分

697
Index
Security System Alarm Indicator ................ 90
Select Button ............................................ 472
Operation ............................................... 474
Selecting a Child Seat ................................ 60
Sequential Mode ...................................... 478
Sequential Mode Operation ................... 479
Setting the Clock ...................................... 138
SH-AWD ® (Super Handling-All Wheel
Drive
TM) ................................................... 521
SH-AWD ® Torque Distribution
Monitor ................................................... 124
Shift Button ........................................ 18, 472
Shifting (Transmission) ...................... 18, 472
Shoulder Anchor ........................................ 37
Side Airbags ............................................... 50
Side Curtain Airbags .................................. 52
Siri Eyes Free ............................................. 298
SiriusXM ® Radio ....................................... 257
Snow Tires ................................................ 610
Spare Tire ......................................... 627, 677
Spark Plugs ............................................... 676
Specifications ........................................... 676
Specified Fuel ................................... 569, 676
Speedometer ............................................ 119
Speed-sensitive Electric Power Steering (EPS)
System Indicator ........................................... 88, 658
SRS Airbags (Airbags) ................................ 44
Starting Assist Brake Function ................ 485
Starting the Engine .................................. 464
Does Not Start ........................................ 649 Jump Starting .......................................... 652
Remote Engine Start ................................ 466
Steering Wheel ......................................... 187
Adjusting ................................................. 187
Heater ..................................................... 216
Stopping .................................................... 546
Summer Tires ............................................ 610
Sunglasses Holder ..................................... 216
Super Handling-All Wheel DriveTM
(SH-AWD ®) .............................................. 521
Indicator .................................................... 91
Supplemental Restraint System (SRS) ........ 44
Surround View Camera System ............... 559
Switches (Around the Steering
Wheel) ............................................. 4, 5, 168
Synchronized Mode .................................. 223
System Message Indicator .......................... 90
T
Tachometer............................................... 119
Tailgate ..................................................... 155
Unable to Open ....................................... 672
Temperature
Gauge ..................................................... 119
Outside Temperature Display ................... 122
Temperature Gauge ................................. 119
Temperature Sensor ......................... 122, 230
Temporary Tire Repair Kit ........................ 636
Text Message .................................... 428, 430
Third Row Seat (Folding Down) .............. 203Third Row Seat Access
.............................. 196
Tie-down Anchors .................................... 215
Time (Setting) ........................................... 138
Tire Fill Assist .................................... 522, 660
Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist .................................. 522
Indicator............................................ 88, 660
Tire Repair Kit ........................................... 635
Tires ........................................................... 602
Air Pressure ..................................... 603, 677
Checking and Maintaining ...................... 602
Inspection ............................................... 602
Labeling .................................................. 603
Puncture (Flat Tire) .......................... 627, 635
Regulations ............................................. 605
Rotation .................................................. 609
Spare Tire ........................................ 627, 677
Summer .................................................. 610
Temporary Tire Repair Kit ........................ 636
Tire Chains .............................................. 610
Tire Repair Kit.......................................... 635
Wear Indicators ....................................... 607
Winter..................................................... 610
Tools .......................................................... 626
Towing a Trailer ....................................... 452
Equipment and Accessories ..................... 455
Load Limits .............................................. 452
Towing Your Vehicle ................................ 461
Emergency .............................................. 670
20 ACURA MDX-31TZ56600.book 697 ページ ２０１９年４月２４日　水曜日　午後５時４４分
