2020 Acura MDX HYBRID sensor

623
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface and apply the parking
brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
Models with temporary tire repair kit
1Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.
•The tire sealant has expired.
•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tires
extremely under inflated.
•The tire bead is no longer seated.
•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture isYUse Kit
Smaller than 3/16 inch (4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
20 ACURA MDX E-AWD-31TRX6302.book 623 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

Index
675
Index
Index
A
AAC................................................... 275, 300
ABS (Anti-lock Brake System) .................. 524
AC Power Outlet ...................................... 217
Accessories and Modifications ................ 611
Accessory Power Sockets ......................... 216
Acoustic Vehicle Alerting System ............ 473
AcuraLink® .............................................. 438
AcuraWatch
TM............................................ 26
Adaptive Cruise Control (ACC) with Low Speed Follow .......................................... 477
Indicator ................................................. 100
Additives Coolant .................................................. 577
Engine Oil ............................................... 572
Washer ................................................... 581
Additives, Engine Oil ............................... 572
Adjusting Armrest .................................................. 207
Front Seats.............................................. 194
Head Restraints ....................... 201, 203, 204
Headlights .............................................. 582
Mirrors.................................................... 191
Second Row Seats................................... 197
Steering Wheel ....................................... 190
Temperature ........................................... 127
Agile Handling Assist ............................... 508
Air Conditioning System (Climate Control
System) .................................................... 222
Changing the Mode................................ 225 Defrosting the Windshield and
Windows ............................................... 228
Dust and Pollen Filter ............................... 604
Rear Climate Control System ................... 229
Sensors .................................................... 233
Synchronized Mode ................................. 226
Using Automatic Climate Control ............ 222
Air Pressure ....................................... 592, 663
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
After a Collision ......................................... 51
Airbag Care ............................................... 61
Driver’s Knee Airbag .................................. 54
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Indicator .............................................. 59, 93
Passenger Front Airbag Off Indicator ......... 60
Sensors ...................................................... 47
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
AM/FM Radio ............................................ 261
Android Auto ............................................ 310
Anti-lock Brake System (ABS) .................. 524
Indicator .................................................... 93
Apple CarPlay ........................................... 306
Armrest ..................................................... 207
Audio Remote Controls ............................ 241
Audio System ............................................ 236
Adjusting the Sound ................................ 256
Auxiliary Input Jack .................................. 240
Error Messages ........................................ 315 General Information ................................ 323
HDD ........................................................ 278
iPhone............................................. 298, 325
iPod ........................................................ 291
MP3/WMA/AAC .............................. 275, 300
Pandora
®............................................... 298
Reactivating ............................................ 240
Recommended CDs ................................. 324
Recommended Devices............................ 325
Remote Controls ..................................... 241
Security Code .......................................... 240
Theft Protection ...................................... 240
USB Flash Drives .............................. 300, 325
USB Port.................................................. 237
Authorized Manuals ................................ 670
Auto Door Locking/Unlocking ................. 157
Customize ....................................... 137, 378
Auto Engine Stop/Start .............................. 13
Auto High-Beam ....................................... 179
Indicator.................................................... 93
Automatic Brake Hold ............................. 522
Indicator.................................................... 87
Automatic Folding Door Mirror .............. 193
Automatic Intermittent Wipers ............... 183
Automatic Lighting .................................. 176
Auxiliary Console Panel ........................... 343
Auxiliary Input Jack .................................. 240
Average Fuel Economy ............................ 127
Average Speed ......................................... 128
20 ACURA MDX E-AWD-31TRX6302.book 675 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

676
Index
B
Back-Up Light............................................ 585
Battery ....................................................... 600
12-Volt .................................................... 600
12-Volt Battery Charging System
Indicator .......................................... 88, 642
High Voltage ........................................... 517
Jump Starting .......................................... 638
Maintenance (Checking the 12-Volt Battery) ..................................... 600
Maintenance (Replacing).......................... 601
Battery Types .............................................. 12
Belts (Seat) .................................................. 39
Beverage Holders ...................................... 214
Blind spot information System ................ 510
Indicator .................................................. 104
Bluetooth ® Audio ..................................... 303
Bluetooth ® HandsFreeLink ®................... 397
Booster Seats (For Children) ....................... 79
Brake System ............................................. 518
Anti-lock Brake System (ABS) ................... 524
Automatic Brake Hold.............................. 522
Brake Assist System ................................. 525
Fluid ........................................................ 581
Foot Brake ............................................... 521
Indicator ...................................... 84, 85, 644
Parking Brake .......................................... 518
Brake System (Amber)
Indicator .................................................... 85
Brake System (Red) Indicator ............................................ 84, 644 Brightness Control
(Instrument Panel).... 186
Bulb Replacement .................................... 582
Back-Up Light.......................................... 585
Brake Light and Rear Turn Signal Light .... 583
Fog Lights ............................................... 582
Front Turn Signal/Parking, Daytime Running and Front Side Marker Lights ... 582
Headlights ............................................... 582
High-Mount Brake Light .......................... 586
Puddle Lights........................................... 586
Rear License Plate Lights .......................... 586
Side Turn Signal/Emergency Indicator Lights .................................................... 582
Taillights.................................................. 585
Taillights/Rear Side Maker Lights.............. 584
Bulb Specifications ................................... 662
C
CAMERA Button....................................... 548
Car Wash Mode ........................................ 469
Carbon Monoxide Gas ............................... 80
Carrying Cargo ................................. 449, 451
CD Player ................................................... 275
Center Pocket ........................................... 213
Certification Label .................................... 664
Changing Bulbs ........................................ 582
Charging System Indicator ................. 88, 642
Child Safety ................................................. 62
Childproof Door Locks............................. 156 Child Seat
................................................... 62
Booster Seats ............................................ 79
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 72
Larger Children ......................................... 78
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Childproof Door Locks ............................. 156
Cleaning the Exterior ............................... 607
Cleaning the Interior ............................... 605
Client Service Information ....................... 671
Climate Control System ........................... 222
Changing the Mode................................ 225
Defrosting the Windshield and Windows .............................................. 228
Dust and Pollen Filter .............................. 604
Rear Climate Control System................... 229
Sensors ................................................... 233
Synchronized Mode ................................ 226
Using Automatic Climate Control............ 222
Clock ......................................................... 142
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 526
Coat Hook ................................................ 218
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 526
Compact Spare Tire .......................... 615, 663
Console Compartment ............................. 212
Controls .................................................... 141
20 ACURA MDX E-AWD-31TRX6302.book 676 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

678
Index
FiltersDust and Pollen ....................................... 604
Oil ........................................................... 575
Flat Tire ............................................. 615, 623
Floor Mats ................................................. 606
Fluids Brake ....................................................... 581
Dual Clutch Transmission ......................... 580
Engine Coolant ........................................ 577
Windshield Washer .................................. 581
Fog Lights .................................................. 178
Folding Down the Second Row Seat ....... 200
Folding Down the Third Row Seat .......... 206
Foot Brake ................................................. 521
Front Airbags (SRS) ..................................... 50
Front Seats ................................................ 194
Adjusting ................................................. 194
Front Sensor Camera ................................ 475
Fuel ...................................................... 25, 557
Fuel Economy and CO
2 Emissions............. 560
Gauge ..................................................... 123
Instant Fuel Economy ............................... 128
Low Fuel Indicator ..................................... 91
Range ...................................................... 128
Recommendation .................................... 557
Refueling ................................................. 557
Fuel Economy and CO
2 Emissions ............ 560
Fuel Fill Door ....................................... 25, 558
Unable to Unlock ..................................... 658
Fuses .......................................................... 648
Inspecting and Changing ......................... 656 Locations......................... 648, 651, 654, 655
G
Gasoline (Fuel)
Economy ................................................. 560
Gauge ..................................................... 123
Information ............................................. 557
Low Fuel Indicator ..................................... 91
Refueling................................................. 557
Gauges ...................................................... 123
Gear Position Indicator ...................... 89, 467
Gear Shift Positions
Dual Clutch Transmission ........................ 465
Glass (care) ................................................ 608
Glove Box .................................................. 211
H
Handling the Unexpected ........................ 613
HandsFreeLink ® (HFL) ............................... 397
Auto Answer ........................................... 413
Automatic Import of Cellular Phonebook
and Call History ..................................... 415
Automatic Transferring............................ 413
Displaying Messages................................ 433
HFL Buttons............................................. 397
HFL Menus .............................................. 400
HFL Status Display ................................... 398
Limitations for Manual Operation ............ 399
Making a Call .......................................... 424 Options During a Call.............................. 430
Phone Setup ........................................... 405
Phonebook Phonetic M
odification........... 419
Receiving a Call....................................... 429
Receiving a Text/E-mail Message ............. 431
Ring Tone ............................................... 414
Roadside Assistance ................................ 437
Selecting a Mail Account......................... 432
Selecting a Text/E-mail Message Account ................................................ 432
Speed Dial .............................................. 416
To Create a Security PIN .......................... 411
To Set Up a Text/E-mail Message Option .................................................. 410
Use Contact Photo .................................. 414
Hard Disk Drive (HDD) Audio .................. 278
Hazard Warning Button .............................. 4
HDMI
TM Port ............................................. 344
Head Restraints ........................ 201, 203, 204
Headlight Washers ................................... 185
Headlights ................................................ 175
Aiming.................................................... 582
Auto High-Beam System ......................... 179
Automatic Operation .............................. 176
Dimming......................................... 175, 178
Operating ............................................... 175
Heated Door Mirrors ............................... 187
Heated Steering Wheel ........................... 219
Heated Windshield .................................. 187
Heater (Steering Wheel) .......................... 219
Heaters (Seat) ................................... 220, 221
20 ACURA MDX E-AWD-31TRX6302.book 678 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

681
Index
Opening/ClosingHood ...................................................... 570
Moonroof ............................................... 170
Power Windows...................................... 168
Tailgate................................................... 158
Operating the Switches Around the Steering Wheel ....................................... 171
Outside Temperature Display ................. 127
Overhead Screen ...................................... 345
Overheating ............................................. 640
P
Paddle Shifters (Sequential Mode) ......... 472
Pandora ®................................................. 298
Panic Mode ............................................... 167
Parking ..................................................... 535
Parking Brake ........................................... 518
Parking Sensor System ............................. 537
Passenger Front Airb ag Off Indicator....... 60
Passing Indicators ..................................... 175
POWER Button ......................................... 171
Power Tailgate ......................................... 159
Power Windows ....................................... 168
Precautions While Driving ....................... 463
Driving Guidelines for Your Utility Vehicle .................................................. 463
Rain ........................................................ 463
Pregnant Women ....................................... 45
Puncture (Tire) ................................. 615, 623
R
Radiator.................................................... 578
Radio (AM/FM) .......................................... 261
Radio (SiriusXM ®) ..................................... 264
Radio Data System (RDS) .......................... 262
Range ........................................................ 128
RDS (Radio Data System) .......................... 262
Readiness Codes (Emissions Testing) ....... 667
Rear Climate Control System ................... 229
From the Front Panel ............................... 229
From the Rear Panel ................................ 232
Rear Defogger/Heated Door Mirror Button ..................................................... 187
Rear Entertainment System (RES) ............ 342
Auxiliary Console Panel ............................ 343
Front Control Panel Operation ................. 356
HDMI
TM Port ............................................ 344
Operating the System .............................. 345
Overhead Screen ..................................... 345
Playable Discs .......................................... 361
Playing a DVD .......................................... 346
Rear Control Panel Operation .................. 346
Wireless Headphones .............................. 342
Rear Seats Second Row Seat ..................................... 197
Third Row Seat ........................................ 206
Rearview Mirror ........................................ 191
Refueling ................................................... 557
Fuel Gauge .............................................. 123
Gasoline .......................................... 557, 662
Low Fuel Indicator ..................................... 91 Regenerative Energy and Regenerative
Braking ...................................................... 12
Regulations ............................... 515, 594, 665
Remote Engine Start with Vehicle Feedback ................................................. 459
Checking Door Lock Status...................... 153
Remote Transmitter ................................. 150
Replacement
Battery .................................... 601, 602, 603
Bulbs ....................................................... 582
Front Wiper Blade Rubber ....................... 587
Fuses ............................... 648, 651, 654, 655
Rear Wiper Blade Rubber......................... 589
Tires ........................................................ 597
Reporting Safety Defects ......................... 666
Resetting a Trip Meter ............................. 127
Reverse Tilt Door Mirror .......................... 192
Right Selector Wheel ....................... 125, 131
Road Departure Mitigation (RDM) ......... 493
On and Off.............................................. 495
S
Safe Driving ................................................ 33
Safety Checklist .......................................... 38
Safety Labels ............................................... 81
Safety Message ............................................. 1
20 ACURA MDX E-AWD-31TRX6302.book 681 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

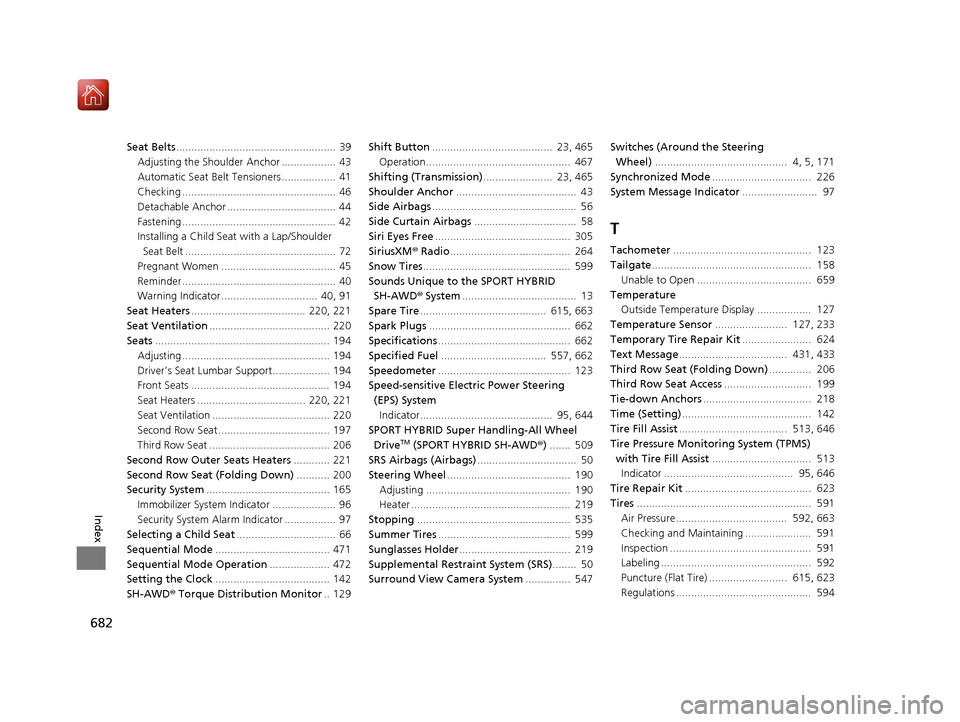

682
Index
Seat Belts..................................................... 39
Adjusting the Shoulder Anchor .................. 43
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 46
Detachable Anchor .................................... 44
Fastening ................................................... 42
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 72
Pregnant Women ...................................... 45
Reminder ................................................... 40
Warning Indicator ................................ 40, 91
Seat Heaters ...................................... 220, 221
Seat Ventilation ........................................ 220
Seats .......................................................... 194
Adjusting ................................................. 194
Driver’s Seat Lumbar Support................... 194
Front Seats .............................................. 194
Seat Heaters .................................... 220, 221
Seat Ventilation ....................................... 220
Second Row Seat ..................................... 197
Third Row Seat ........................................ 206
Second Row Outer Seats Heaters ............ 221
Second Row Seat (Folding Down) ........... 200
Security System ......................................... 165
Immobilizer System Indicator ..................... 96
Security System Alarm Indicator ................. 97
Selecting a Child Seat ................................. 66
Sequential Mode ...................................... 471
Sequential Mode Operation .................... 472
Setting the Clock ...................................... 142
SH-AWD ® Torque Distribution Monitor .. 129Shift Button
........................................ 23, 465
Operation................................................ 467
Shifting (Transmission) ....................... 23, 465
Shoulder Anchor ........................................ 43
Side Airbags ................................................ 56
Side Curtain Airbags .................................. 58
Siri Eyes Free ............................................. 305
SiriusXM ® Radio ........................................ 264
Snow Tires ................................................. 599
Sounds Unique to the SPORT HYBRID SH-AWD® System...................................... 13
Spare Tire .......................................... 615, 663
Spark Plugs ............................................... 662
Specifications ............................................ 662
Specified Fuel ................................... 557, 662
Speedometer ............................................ 123
Speed-sensitive Electric Power Steering
(EPS) SystemIndicator............................................ 95, 644
SPORT HYBRID Super Handling-All Wheel Drive
TM (SPORT HYBRID SH-AWD® )....... 509
SRS Airbags (Airbags) ................................. 50
Steering Wheel ......................................... 190
Adjusting ................................................ 190
Heater ..................................................... 219
Stopping ................................................... 535
Summer Tires ............................................ 599
Sunglasses Holder ..................................... 219
Supplemental Restraint System (SRS) ........ 50
Surround View Camera System ............... 547Switches (Around the Steering
Wheel) ............................................ 4, 5, 171
Synchronized Mode ................................. 226
System Message Indicator ......................... 97
T
Tachometer.............................................. 123
Tailgate ..................................................... 158
Unable to Open ...................................... 659
Temperature Outside Temperature Display .................. 127
Temperature Sensor ........................ 127, 233
Temporary Tire Repair Kit ....................... 624
Text Message .................................... 431, 433
Third Row Seat (Folding Down) .............. 206
Third Row Seat Access ............................. 199
Tie-down Anchors .................................... 218
Time (Setting) ........................................... 142
Tire Fill Assist .................................... 513, 646
Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist ................................. 513
Indicator ........................................... 95, 646
Tire Repair Kit .......................................... 623
Tires .......................................................... 591
Air Pressure..................................... 592, 663
Checking and Maintaining ...................... 591
Inspection ............................................... 591
Labeling .................................................. 592
Puncture (Flat Tire) .......................... 615, 623
Regulations ............................................. 594
20 ACURA MDX E-AWD-31TRX6302.book 682 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分
