2020 Acura MDX HYBRID clock

584
uuReplacing Light Bulbs uTaillights/Rear Side Marker Lights
Maintenance
4. Turn the socket counter-clockwise and
remove it. Remove the old bulb.
5. Insert a new bulb.
6. Slide the light assembly onto the guide on
the body.
7. Align the pins with the body grommets,
then push in unt il they fully seat.
Taillights/Rear Side Marker Lights
Taillights/rear side marker lights are the LED type. Have an authorized Acura dealer
inspect and replace the light assembly.
Bulb Socket
20 ACURA MDX E-AWD-31TRX6302.book 584 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

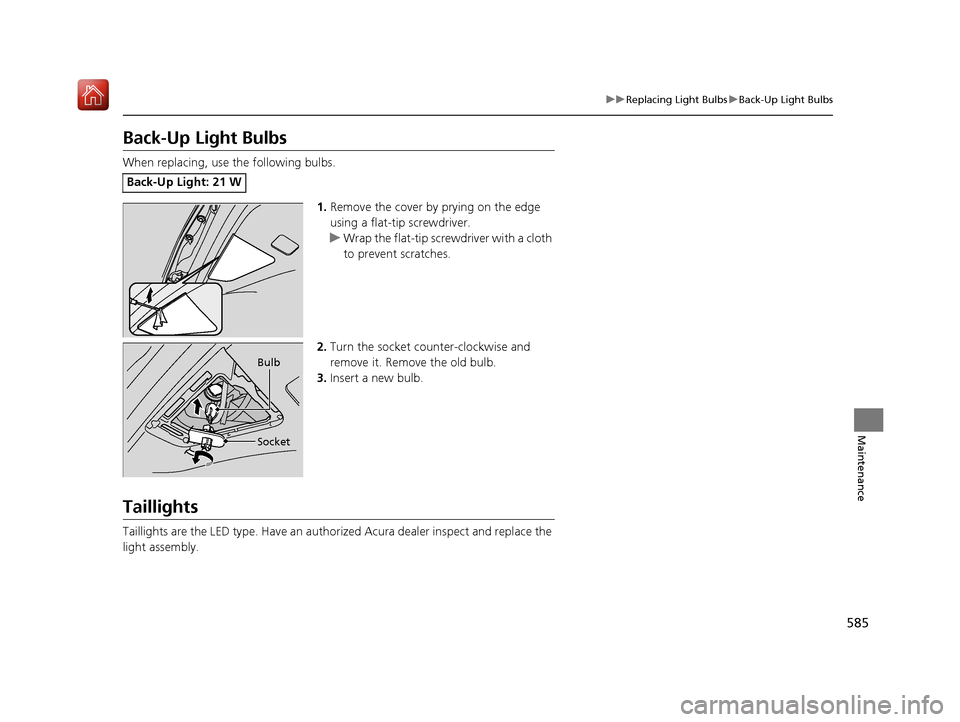

585
uuReplacing Light Bulbs uBack-Up Light Bulbs
Maintenance
Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover by prying on the edge
using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Turn the socket counter-clockwise and
remove it. Remove the old bulb.
3. Insert a new bulb.
Taillights
Taillights are the LED type. Have an author ized Acura dealer inspect and replace the
light assembly.
Back-Up Light: 21 W
Bulb
Socket
20 ACURA MDX E-AWD-31TRX6302.book 585 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

600
Maintenance
12-Volt Battery
Checking the 12-Volt Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the multi-information display (MID) will
display a warning message. If this happens,
have your vehicle inspected by a dealer.
Check the battery terminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 240
•The clock resets.
2 Clock P. 142
Charging the 12-Volt Battery
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (−) cable first, and reconnect it last.
1 12-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Battery
20 ACURA MDX E-AWD-31TRX6302.book 600 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

Continued621
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face up under the hoist.
3. Insert the hoist bracke t into the center hole
of the flat tire.
4. Slowly turn the wheel nut wrench clockwise
to take up the hoist cable slack. Make sure
the bracket is seated in the center hole of
the flat tire.
5. Turn the wheel nut wrench with the jack
handle bar (clockwise) un til the flat tire rests
against the underbody of the vehicle, and
you hear the hoist click.
6. Securely store the jack, wheel nut wrench,
and jack handle bar back in the tool case.
Store the case in the cargo area.
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the jack and tools securely before
driving.
Center Cap
Wheel Nut Wrench Jack Handle Bar
20 ACURA MDX E-AWD-31TRX6302.book 621 ページ ２０２０年２月１１日　火曜日　午後１時
４５分

676
Index
B
Back-Up Light............................................ 585
Battery ....................................................... 600
12-Volt .................................................... 600
12-Volt Battery Charging System
Indicator .......................................... 88, 642
High Voltage ........................................... 517
Jump Starting .......................................... 638
Maintenance (Checking the 12-Volt Battery) ..................................... 600
Maintenance (Replacing).......................... 601
Battery Types .............................................. 12
Belts (Seat) .................................................. 39
Beverage Holders ...................................... 214
Blind spot information System ................ 510
Indicator .................................................. 104
Bluetooth ® Audio ..................................... 303
Bluetooth ® HandsFreeLink ®................... 397
Booster Seats (For Children) ....................... 79
Brake System ............................................. 518
Anti-lock Brake System (ABS) ................... 524
Automatic Brake Hold.............................. 522
Brake Assist System ................................. 525
Fluid ........................................................ 581
Foot Brake ............................................... 521
Indicator ...................................... 84, 85, 644
Parking Brake .......................................... 518
Brake System (Amber)
Indicator .................................................... 85
Brake System (Red) Indicator ............................................ 84, 644 Brightness Control
(Instrument Panel).... 186
Bulb Replacement .................................... 582
Back-Up Light.......................................... 585
Brake Light and Rear Turn Signal Light .... 583
Fog Lights ............................................... 582
Front Turn Signal/Parking, Daytime Running and Front Side Marker Lights ... 582
Headlights ............................................... 582
High-Mount Brake Light .......................... 586
Puddle Lights........................................... 586
Rear License Plate Lights .......................... 586
Side Turn Signal/Emergency Indicator Lights .................................................... 582
Taillights.................................................. 585
Taillights/Rear Side Maker Lights.............. 584
Bulb Specifications ................................... 662
C
CAMERA Button....................................... 548
Car Wash Mode ........................................ 469
Carbon Monoxide Gas ............................... 80
Carrying Cargo ................................. 449, 451
CD Player ................................................... 275
Center Pocket ........................................... 213
Certification Label .................................... 664
Changing Bulbs ........................................ 582
Charging System Indicator ................. 88, 642
Child Safety ................................................. 62
Childproof Door Locks............................. 156 Child Seat
................................................... 62
Booster Seats ............................................ 79
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 72
Larger Children ......................................... 78
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Childproof Door Locks ............................. 156
Cleaning the Exterior ............................... 607
Cleaning the Interior ............................... 605
Client Service Information ....................... 671
Climate Control System ........................... 222
Changing the Mode................................ 225
Defrosting the Windshield and Windows .............................................. 228
Dust and Pollen Filter .............................. 604
Rear Climate Control System................... 229
Sensors ................................................... 233
Synchronized Mode ................................ 226
Using Automatic Climate Control............ 222
Clock ......................................................... 142
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 526
Coat Hook ................................................ 218
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 526
Compact Spare Tire .......................... 615, 663
Console Compartment ............................. 212
Controls .................................................... 141
20 ACURA MDX E-AWD-31TRX6302.book 676 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

682
Index
Seat Belts..................................................... 39
Adjusting the Shoulder Anchor .................. 43
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 46
Detachable Anchor .................................... 44
Fastening ................................................... 42
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 72
Pregnant Women ...................................... 45
Reminder ................................................... 40
Warning Indicator ................................ 40, 91
Seat Heaters ...................................... 220, 221
Seat Ventilation ........................................ 220
Seats .......................................................... 194
Adjusting ................................................. 194
Driver’s Seat Lumbar Support................... 194
Front Seats .............................................. 194
Seat Heaters .................................... 220, 221
Seat Ventilation ....................................... 220
Second Row Seat ..................................... 197
Third Row Seat ........................................ 206
Second Row Outer Seats Heaters ............ 221
Second Row Seat (Folding Down) ........... 200
Security System ......................................... 165
Immobilizer System Indicator ..................... 96
Security System Alarm Indicator ................. 97
Selecting a Child Seat ................................. 66
Sequential Mode ...................................... 471
Sequential Mode Operation .................... 472
Setting the Clock ...................................... 142
SH-AWD ® Torque Distribution Monitor .. 129Shift Button
........................................ 23, 465
Operation................................................ 467
Shifting (Transmission) ....................... 23, 465
Shoulder Anchor ........................................ 43
Side Airbags ................................................ 56
Side Curtain Airbags .................................. 58
Siri Eyes Free ............................................. 305
SiriusXM ® Radio ........................................ 264
Snow Tires ................................................. 599
Sounds Unique to the SPORT HYBRID SH-AWD® System...................................... 13
Spare Tire .......................................... 615, 663
Spark Plugs ............................................... 662
Specifications ............................................ 662
Specified Fuel ................................... 557, 662
Speedometer ............................................ 123
Speed-sensitive Electric Power Steering
(EPS) SystemIndicator............................................ 95, 644
SPORT HYBRID Super Handling-All Wheel Drive
TM (SPORT HYBRID SH-AWD® )....... 509
SRS Airbags (Airbags) ................................. 50
Steering Wheel ......................................... 190
Adjusting ................................................ 190
Heater ..................................................... 219
Stopping ................................................... 535
Summer Tires ............................................ 599
Sunglasses Holder ..................................... 219
Supplemental Restraint System (SRS) ........ 50
Surround View Camera System ............... 547Switches (Around the Steering
Wheel) ............................................ 4, 5, 171
Synchronized Mode ................................. 226
System Message Indicator ......................... 97
T
Tachometer.............................................. 123
Tailgate ..................................................... 158
Unable to Open ...................................... 659
Temperature Outside Temperature Display .................. 127
Temperature Sensor ........................ 127, 233
Temporary Tire Repair Kit ....................... 624
Text Message .................................... 431, 433
Third Row Seat (Folding Down) .............. 206
Third Row Seat Access ............................. 199
Tie-down Anchors .................................... 218
Time (Setting) ........................................... 142
Tire Fill Assist .................................... 513, 646
Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist ................................. 513
Indicator ........................................... 95, 646
Tire Repair Kit .......................................... 623
Tires .......................................................... 591
Air Pressure..................................... 592, 663
Checking and Maintaining ...................... 591
Inspection ............................................... 591
Labeling .................................................. 592
Puncture (Flat Tire) .......................... 615, 623
Regulations ............................................. 594
20 ACURA MDX E-AWD-31TRX6302.book 682 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分
