2020 Acura MDX HYBRID rear entertainment

343
uuRear Entertainment System (RES)*uAuxiliary Console Panel
Features
Auxiliary Console Panel
Auxiliary input jacks and headphone connec tors for the rear entertainment system
are on the back of the front console compartment. V = Video jack
L = Left audio jack
R = Right audio jack
■Auxiliary input jacks
The system will accept auxiliary inputs from standard video games and video
equipment. Some video game power s upplies may cause poor picture quality.
■Headphone connectors
The headphones can also be used by connecting to the auxiliary console panel.
There are two headphone connectors for th e rear passengers. Each connector has
its own volume control.
Headphone Connectors
Auxiliary
Input
Jacks
Volume
Control
Knob
20 ACURA MDX E-AWD-31TRX6302.book 343 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

344
uuRear Entertainment System (RES)*uHDMITM Port
Features
HDMITM Port
There is an HDMI port on the back of th e front console compartment. The system
will accept HDMI input from video games and video equipment which are equipped
with an HDMI port. Open the outlet cover and insert the cable.1HDMITM Port
•Do not leave the HDMI connected device in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend keeping y our data backed up
before using the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
20 ACURA MDX E-AWD-31TRX6302.book 344 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

345
uuRear Entertainment System (RES)*uOverhead Screen
Features
Overhead Screen
Press the open button to open and pull down
the screen.
Operating the System
To operate the system, set the power mode to ON or ACCESSORY. Press the REAR
(power) button to turn on the system.
1 Overhead Screen
You can use the rear control panel as a remote. Press
the release button to detach it.
Open Button
Overhead Screen
REAR (Power) Button
20 ACURA MDX E-AWD-31TRX6302.book 345 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

346
uuRear Entertainment System (RES)*uRear Control Panel Operation
Features
Rear Control Panel Operation
The rear passengers can operate the system with the rear control panel.
(Play/Pause) Button
Press to play or pause the playback.TITLE SCROLL Button
Press to display the track title, artist, and other text information.MENU Button
Press to display the audio menu.
SETUP Button
Press to display the setup items.
CANCEL Button
Press to go back to the previous display or operation.
CATEGORY Bar
Press to change the category (SiriusXM ®).
DUAL Button
Press to change the screen mode to dual. SWAP Button
Press to swap left side screen and right side screen.
(Power) Button
Press to turn the system
on or off (when rear
power is turned on).
SINGLE Button
Press to change the screen mode to single.
(Light-up) Button
Press to illuminate the
buttons on the rear
control panel.
TUNE/SKIP Bar
Press or to search up and down the
selected band for a station with a strong signal
(FM/AM).
Press or to change tracks. Press and
hold to move rapidly within a track/file (Disc/
USB/DVD).
CH/FOLDER Bar
Press to change the channel (Radio) or
folder (Disc/USB). SOURCE Button
Press to select the audio source. Interface Dial,
3/4 //
(Directional) Buttons, and ENTER
Button
Rotate the interface dial or press
directional button to select items.
Press the ENTER button to make a
selection.
DVD bar
Press to change the DVD mode.
AUX bar
Press to change the input source
toggling through the auxiliary
input jack(s), HDMI port and USB
port (2.5A).
20 ACURA MDX E-AWD-31TRX6302.book 346 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

Continued347
uuRear Entertainment System (RES)*uRear Control Panel Operation
Features
1. Press the REAR (power) button on the
front control panel.
2. Press the SOURCE button on the rear
control panel.
3. Select the audio source. Press the ENTER
button.
u You can also change the audio source by
the front control panel.
2 Front Control Panel Operation P. 356
4.Select a station, channel, track, or chapter
using the CH/FOLDER , TUNE/SKIP, or
CATEGORY bars.
■Selecting the Audio Source1 Rear Control Panel Operation
In the procedures of this section, “select” means the
following actions:
The rear control panel ca n be detached from the
ceiling unit and used as a remote control.
2 Overhead Screen P. 345
The screen is displayed on the overhead screen.
Rotate the interface
dial or press the
directional buttons on
the rear control panel.
20 ACURA MDX E-AWD-31TRX6302.book 347 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

348
uuRear Entertainment System (RES)*uRear Control Panel Operation
Features
1. Press the MENU button (in DVD mode).
2. Select an item. Press the ENTER button.
The following items are available:
• Top Menu : Displays the top menu of the DVD.
• Menu : Displays the menu of the DVD.
• Play Mode : Displays while a DVD is playin g and changes the DVD’s audio,
subtitle, or angle settings.
2 Setting the play mode P. 349
•Search/NumInput : Skips to a title or chapte r by entering the number.
2Searching a title/chapter P. 350
•Repeat:
(title repeat): Repeats the current title.
(chapter repeat): Repeats the current chapter.
• Pause/Play : Pause or play the playback.
• Stop : Stops the playback.
• Return : Hides the rear audio menu.
■Rear DVD Menu
20 ACURA MDX E-AWD-31TRX6302.book 348 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

349
uuRear Entertainment System (RES)*uRear Control Panel Operation
Continued
Features
■Setting the play mode
1.Press the MENU button (in DVD mode).
2. Select Play Mode . Press the ENTER button.
3. Select an item. Press the ENTER button.
4. Select an option. Press the ENTER button.
The following items are available:
• Audio : Selects the language of the DVD audio.
• Subtitle : Selects the language of the DVD subtitle.
• Angle : Selects the angle of a scene shot with multiple cameras.
20 ACURA MDX E-AWD-31TRX6302.book 349 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

350
uuRear Entertainment System (RES)*uRear Control Panel Operation
Features

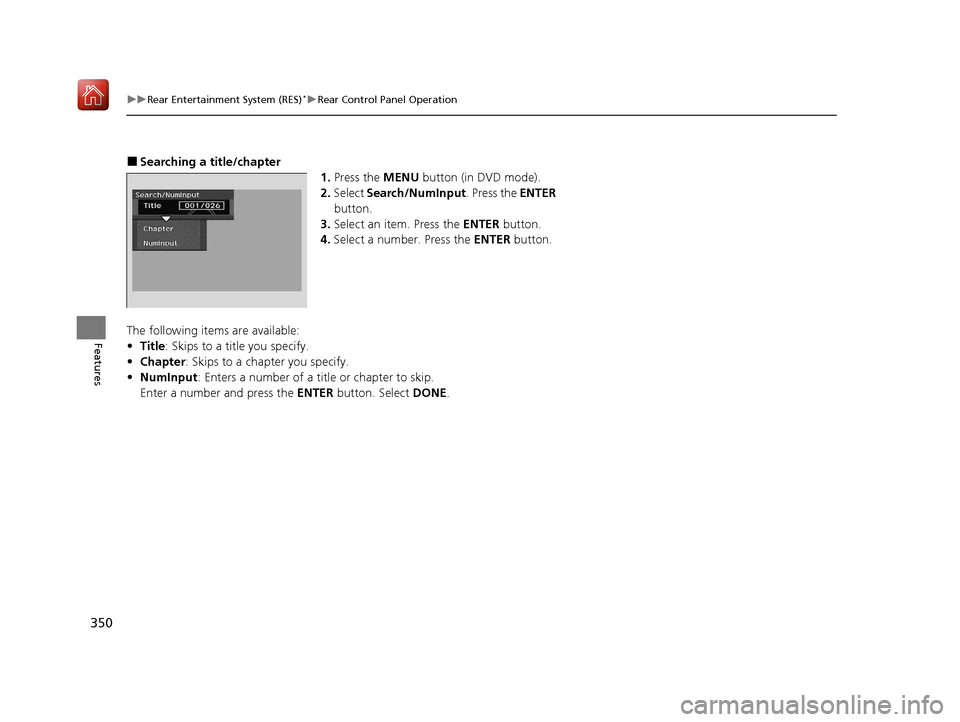

■Searching a title/chapter
1.Press the MENU button (in DVD mode).
2. Select Search/NumInput . Press the ENTER
button.
3. Select an item. Press the ENTER button.
4. Select a number. Press the ENTER button.
The following items are available:
• Title : Skips to a title you specify.
• Chapter : Skips to a chapter you specify.
• NumInput : Enters a number of a title or chapter to skip.
Enter a number and press the ENTER button. Select DONE.
