2020 Acura ILX Refueling

Contents
Child Safety P. 52Exhaust Gas Hazard P. 65Safety Labels P. 66
Opening and Closing the Trunk P. 124 Security System P. 128 Opening and Closing the Windows P. 131
Operating the Switches Around the Steering Wheel P. 135 Adjusting the Mirrors P. 152
Interior Lights/Interior Convenience It ems P. 164 Climate Control System P. 171
Audio Error Messages P. 275General Information on the Audio System P. 286
Bluetooth ® HandsFreeLink ® P. 339, 368 AcuraLink ®* P. 410
When Driving P. 426 AcuraWatchTM P. 446Braking P. 492
Refueling P. 503 Fuel Economy and CO
2 Emissions P. 505
Maintenance Under the Hood P. 516 Replacing Light Bulbs P. 527
Checking and Maintaining Tires P. 534 Battery P. 543 Remote Transmitter Care P. 544
Accessories and Modifications P. 553
Engine Does Not Start P. 579Jump Starting P. 582 Shift Lever Does Not Move P. 585
Fuses P. 592 Emergency Towing P. 595
Devices that Emit Radio Waves P. 601 Reporting Safety Defects P. 602 Emissions Testing P. 603
Client Service Information P. 608
Quick Reference GuideP. 4
Safe DrivingP. 27
Instrument PanelP. 67
ControlsP. 105
FeaturesP. 175
DrivingP. 419
MaintenanceP. 507
Handling the UnexpectedP. 555
InformationP. 597
IndexP. 612
20 ACURA ILX-31TX66710.book 3 ページ ２０２０年４月１６日　木曜日　午後８時４６分

19
Quick Reference Guide
CMBSTM On and Off
(P449)
●When a possible collision is likely
unavoidable, the CMBSTM can help you to
reduce the vehicle speed and the severity
of the collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, press and
hold the button until you hear a beep.
VSA ® On and Off (P438)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
Tire Pressure Monitoring
System (TPMS)
(P442)
●The TPMS monitors tire pressure.●The TPMS is turned on automatically
every time you start the engine.
Refueling (P503)
aPush the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
Fuel recommendation: Unleaded premium gasoline, pump octane number 91 or
higher
Fuel tank capacity: 13.2 US gal (50 L)
20 ACURA ILX-31TX66710.book 19 ページ ２０２０年４月１６日　木曜日　午後８時４６分

419
Driving
This chapter discusses driving and refueling.
Before Driving................................... 420
Maximum Load Limit........................ 423
Towing a Trailer ................................ 425
When Driving Starting the Engine .......................... 426
Dual Clutch Transmission ................. 432
Shifting ............................................ 433
Vehicle Stability AssistTM (VSA ®), aka Electronic
Stability Control (ESC), System ............... 437
Blind spot information System*........... 439
Tire Pressure Monitoring System (TPMS) .. 442
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 444
AcuraWatch
TM................................... 446
Collision Mitigati on Braking SystemTM
(CMBSTM) ....................................... 449
Adaptive Cruise Control (ACC)......... 459
Lane Keeping Assist System (LKAS).... 474
Road Departure Mitigation (RDM) System . 484
Front Sensor Camera ....................... 489
Radar Sensor.................................... 491
Braking Brake System ................................... 492 Anti-lock Brake System (ABS) ........... 494
Parking Your Vehicle When Stopped ................................ 496
Cross Traffic Monitor
*..................... 498
Multi-View Rear Camera .................. 501
Refueling Fuel Information .............................. 503
How to Refuel ................................. 504
Fuel Economy and CO
2 Emissions .... 505
Improving Fuel Economy and Reducing CO
2 Emissions ................................ 505
* Not available on all models
20 ACURA ILX-31TX66710.book 419 ページ ２０２０年４月１６日　木曜日　午後８時４６分

503
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of a lower octane gasoline can cause oc casional metallic knocking noise in the
engine and will result in decreased engine performance.
Use of a gasoline with a pump octane less than 87 can lead to engine damage.
■Top tier detergent gasoline
Because the level of detergency and additi ves in gasoline vary in the market, Acura
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of de tergent additives and be free of metallic
additives. The proper level of detergent ad ditives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit Acura Owners at owners.acura.com. In
Canada, visit www.acura.ca for additional informati on on gasoline. For more
information on top tier gasoline, visit www.toptiergas.com.
■Fuel tank capacity: 13.2 US gal (50 L)
Unleaded premium gasoline, pump octane number 91 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.
20 ACURA ILX-31TX66710.book 503 ページ ２０２０年４月１６日　木曜日　午後８時４６分

504
uuRefueling uHow to Refuel
Driving
How to Refuel
1. Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Turn off the engine.
3. Push on the fuel fill door release handle at
the foot of the driver’s seat.
u The fuel fill door opens.
4. Remove the fuel fill cap slowly. If you hear a
release of air, wait until this stops, then turn
the knob slowly to open the fuel fill cap.
5. Place the fuel fill cap in the holder.
6. Insert the fuel fill er nozzle fully.
u When the tank is full, the filler nozzle will
click off automatically . This leaves space
in the fuel tank in case the fuel expands
with a change in the temperature.
7. After filling, replace the fuel fill cap,
tightening it until you hear it click at least
once.
u Shut the fuel fill door by hand.1How to Refuel
If the filler nozzle keeps tu rning off when the tank is
not full, there may be a pr oblem with the pump’s fuel
vapor recovery system. Try fi lling at another pump. If
this does not fix the problem, consult a dealer.
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel do es not overflow as a result
of changes in air temperature.
Do not continue to add fuel after the filler nozzle has
automatically stopped. Addi tional fuel can exceed
the full tank capacity.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Push
Cap
Cap
Holder
20 ACURA ILX-31TX66710.book 504 ページ ２０２０年４月１６日　木曜日　午後８時４６分

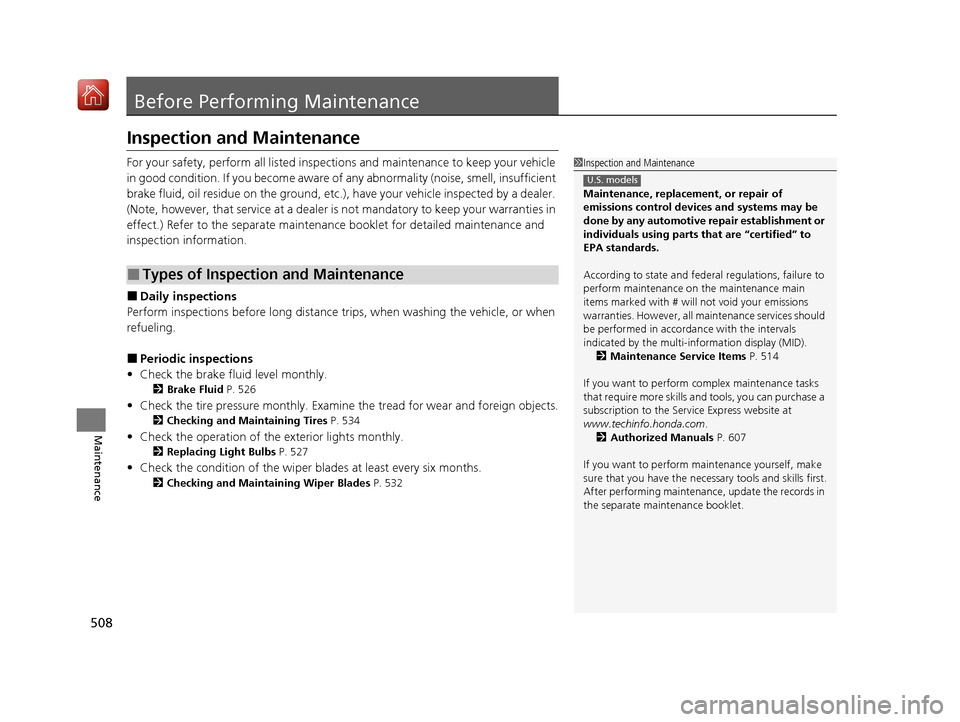

508
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of an y abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintena nce booklet for detailed maintenance and
inspection information.
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 526
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 534
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 527
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 532
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the multi-information display (MID).
2 Maintenance Service Items P. 514
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 607
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenanc e, update the records in
the separate maintenance booklet.
U.S. models
20 ACURA ILX-31TX66710.book 508 ページ ２０２０年４月１６日　木曜日　午後８時４６分

614
Index
Doors......................................................... 108
Auto Door Locking .................................. 123
Auto Door Unlocking ............................... 123
Door Open Indicator .................................. 31
Door Open Message .................................. 83
Keys ........................................................ 108
Locking/Unlocking the Doors from the Inside ..................................................... 120
Locking/Unlocking the Doors from the Outside .................................................. 111
Lockout Prevention System ...................... 118
DOT Tire Quality Grading ........................ 537
Driving ....................................................... 419
Braking .................................................... 492
Dual Clutch Transmission ......................... 432
Shifting Gear ........................................... 433
Starting the Engine .................................. 426
Driving Position Memory System ............. 150
Dual Clutch Transmission ......................... 432
Creeping ................................................. 432
Fluid ................................................ 525, 599
Kickdown ................................................ 432
Operating the Shift Lever ................... 18, 433
Shift Lever Does Not Move....................... 585
Shifting.................................................... 433
E
Elapsed Time ............................................... 93
Electric Power Steering System (EPS)
Indicator ............................................ 72, 590 Electronic Stability Control (ESC)
............. 437
Emergency ................................................ 595
Emissions Testing (Readiness Codes) ....... 603
Engine ....................................................... 600
Coolant ................................................... 523
Jump Starting .......................................... 582
Oil ........................................................... 518
Remote Engine Start................................ 428
Starting ................................................... 426
Switch Buzzer.......................................... 135
Engine Coolant ......................................... 523
Adding to the Radiator ............................ 524
Adding to the Reserve Tank..................... 523
Overheating ............................................ 586
Temperature Gauge .................................. 88
Engine Oil ................................................. 518
Adding .................................................... 520
Checking................................................. 519
Displaying Oil Life .................................... 512
Low Oil Pressure Indicator ................. 69, 588
Recommended Engine Oil ....................... 518
ENGINE START/STOP Button .................... 135
EPS (Electric Power Steering) System ............................................... 72, 590
Exhaust Gas Hazard (Carbon Monoxide) .. 65
Exterior Care (Cleaning) ........................... 550
Exterior Mirrors ........................................ 153F
Features.................................................... 175 Filters
Oil .......................................................... 521
Flat Tire ..................................................... 557
Floor Mats ................................................ 548
Fluids
Brake ...................................................... 526
Dual Clutch Transmission ........................ 525
Engine Coolant ....................................... 523
Windshield Washer ................................. 526
Fog Light Indicator .................................... 74
Folding Down the Rear Seat ................... 162
Foot Brake ................................................ 493
Front Airbags (SRS) .................................... 42
Front Seats ................................................ 154
Adjusting ................................................ 154
Front Sensor Camera ............................... 489
Fuel ..................................................... 19, 503
Fuel Economy and CO
2 Emissions ............ 505
Gauge ...................................................... 88
Instant Fuel Economy ................................ 93
Low Fuel Indicator ..................................... 71
Range ....................................................... 93
Recommendation.................................... 503
Refueling ................................................ 503
Fuel Economy and CO
2 Emissions ............ 505
Fuel Fill Cap ........................................ 19, 504
Message ................................................. 589
Fuel Fill Door ...................................... 19, 504
Fuses ......................................................... 592
Inspecting and Changing ........................ 594
Locations ........................................ 592, 593
20 ACURA ILX-31TX66710.book 614 ページ ２０２０年４月１６日　木曜日　午後８時４６分

615
Index
G
Gasoline (Fuel)Economy................................................. 505
Gauge ...................................................... 88
Information............................................. 503
Instant Fuel Economy ................................ 93
Low Fuel Indicator..................................... 71
Refueling ................................................ 503
Gauges ........................................................ 88
Gear Position Indicator .............................. 69
Glass (care) ............................................... 551
Glove Box ................................................. 166
H
Handling the Unexpected ....................... 555
HandsFreeLink ® (HFL) ...................... 339, 368
Auto Answer .......................................... 385
Automatic Import of Cellular Phonebook and Call History .......... 355, 387
Automatic Transferring ................... 353, 385
Caller’s ID Information ............................ 353
Displaying Messages ....................... 364, 405
HFL Buttons .................................... 339, 368
HFL Menus...................................... 341, 371
HFL Status Display ........................... 340, 369
Limitations for Manual Operation.... 340, 370
Making a Call ................................. 358, 396
Options During a Call...................... 362, 402
Phone Setup ................................... 346, 376
Phonebook Phonetic Modification........... 391 Receiving a Call ............................... 361, 401
Receiving a Text Message ........................ 363
Receiving a Text/E-mail Message .............. 403
Ring Tone ................................................ 386
Roadside Assistance ................................. 409
Selecting a Text/E-mail Message
Account................................................. 404
Speed Dial ....................................... 356, 388
Text Message .................................. 351, 363
To Clear the System ................................. 354
To Create a Security PIN .................. 352, 383
To Set Up a Text Message Notice Option ................................................... 351
To Set Up a Text/E-mail Message Option .. 381
Use Contact Photo .................................. 386
Hard Disk Drive (HDD) Audio .................. 238
Hazard Warning Button ............................... 4
Head Restraints ......................................... 158
Headlights ................................................. 139
Auto High-Beam System .......................... 143
Automatic Operation ............................... 140
Dimming ......................................... 139, 142
Operating ................................................ 139
Heaters (Seat) ........................................... 170
HFL (HandsFreeLink ®)....................... 339, 368
High-Beam Indicator .................................. 74
Hill Start Assist System ............................. 430
HomeLink® Universal Transceiver ............ 336
Honda App License Agreement ............... 290
I
Identification Numbers............................ 600
Engine and Transmission ......................... 600
Vehicle Identification ............................... 600
Illumination Control ................................. 148
Knob ....................................................... 148
Immobilizer System .................................. 128
Indicator.................................................... 75
20 ACURA ILX-31TX66710.book 615 ページ ２０２０年４月１６日　木曜日　午後８時４６分
