2019 YAMAHA YXZ1000R engine

8-20
8
4. Start the engine, warm it up for severalminutes, and then turn it off.
5. Remove the engine oil tank filler cap and the cylinder head cap.
6. Place an oil pan under the oil tank to col-lect the used engine oil.1. Engine oil tank cover
2. Bolt
1
2
1. Engine oil tank filler cap
1. Cylinder head cap
1
1
UB5H7AE0.book Page 20 Wednesday, July 4, 2018 1:37 PM

8-21
8

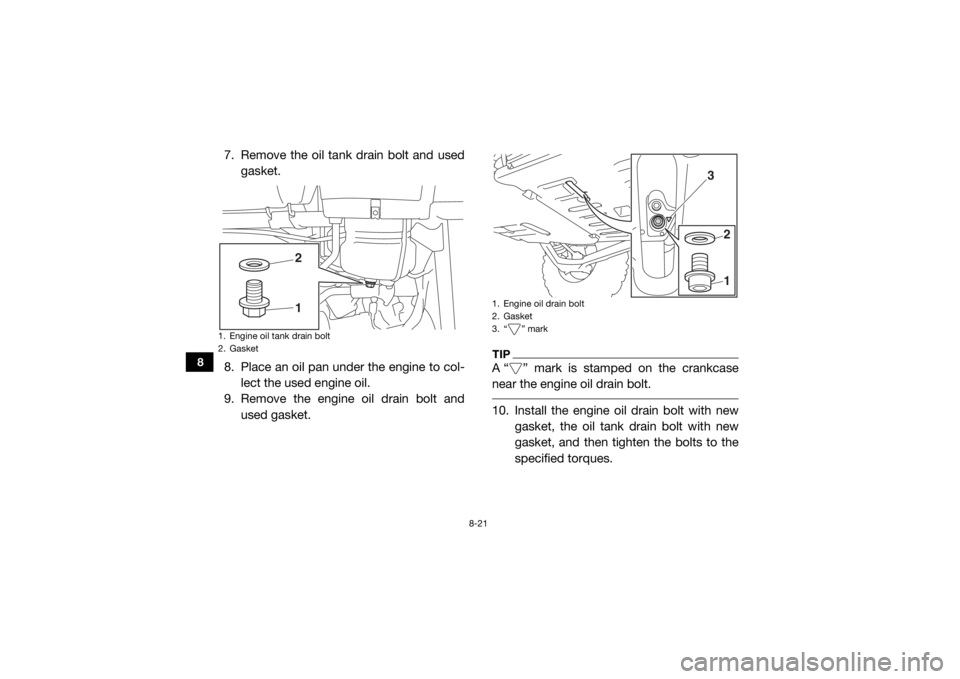

7. Remove the oil tank drain bolt and usedgasket.
8. Place an oil pan under the engine to col- lect the used engine oil.
9. Remove the engine oil drain bolt and used gasket.
TIPA “ ” mark is stamped on the crankcase
near the engine oil drain bolt. 10. Install the engine oil drain bolt with new gasket, the oil tank drain bolt with new
gasket, and then tighten the bolts to the
specified torques.
1. Engine oil tank drain bolt
2. Gasket
2
1
1. Engine oil drain bolt
2. Gasket
3. “ ” mark
1 2
3
UB5H7AE0.book Page 21 Wednesday, July 4, 2018 1:37 PM

8-22
8
11. Add 2.00 L (2.11 US qt, 1.76 Imp.qt) ofthe recommended engine oil to the oil
tank.
12. Check the O-ring for damage, and re- place it if necessary. 13. Install and tighten the engine oil tank filler
cap and the cylinder head cap.
14. Start the engine, warm it up for several minutes, and then turn it off.
15. Remove the engine oil tank filler cap, and then add sufficient oil of the recommend-
ed type to raise it to the maximum level
mark on the dipstick.Tightening torques:Engine oil drain bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
Engine oil tank drain bolt: 16 N·m (1.6 kgf·m, 12 lb·ft)
1. Engine oil tank filler cap
2. O-ring
3. Cylinder head cap
3
2
1
2
UB5H7AE0.book Page 22 Wednesday, July 4, 2018 1:37 PM

8-23
8
TIPBe sure to wipe off spilled oil on any parts af-
ter the engine and exhaust system have
cooled down. 16. Install and tighten the engine oil tank fillercap.
17. Start the engine and let it idle for several minutes. During this time, check for oil
leakage. If any oil leaks are found, stop
the engine and check for the cause.
18. Stop the engine, wait at least ten minutes, and then check the oil level one last time.
19. Install the engine oil tank cover by install- ing the bolts.
20. Install the panel.
To change the engine oil and oil filter
1. Park the vehicle on a level surface.
2. Loosen the left and right side panels by removing the bolt as shown. 3. Remove the rear bottom panel by remov-
ing the bolts.
1. Left side panel
2. Right side panel
3. Bolt
3
1
3
2
UB5H7AE0.book Page 23 Wednesday, July 4, 2018 1:37 PM

8-24
8
4. Remove the bolts, and then slide the cen-ter bottom panel rearward to remove it. 5. Follow steps 2–9 of the “To change the
engine oil” section for the oil draining pro-
cedure.
6. Remove the oil filter cartridge with an oil filter wrench. Make sure the O-ring is re-
moved together with the oil filter car-
tridge. If the O-ring remains attached to
the crankcase, oil leakage may occur.1. Rear bottom panel
2. Bolt
2
1
2
2
1. Center bottom panel
2. Bolt
2
2
2
2
2
1
UB5H7AE0.book Page 24 Wednesday, July 4, 2018 1:37 PM

8-25
8
TIPAn oil filter wrench is available from a Yamaha
dealer. 7. Apply a light coat of clean engine oil to
the O-ring of the new oil filter cartridge.TIPMake sure that the O-ring is properly seated.
8. Install the new oil filter cartridge, and thentighten to the specified torque.
1. Oil filter cartridge
2. Oil filter wrench
2
1
1. O-ringTightening torque:Oil filter cartridge:17 N·m (1.7 kgf·m, 13 lb·ft)
1
UB5H7AE0.book Page 25 Wednesday, July 4, 2018 1:37 PM

8-26
8
9. Follow steps 10–20 of the “To change theengine oil” section for the oil filling proce-
dure.
10. Slide the front portion of the center bot- tom panel into place as shown, and then
hook the left and right sides of the center
bottom panel into place.
11. Install the center bottom panel bolts, andthen tighten them to the specified torque.1. Torque wrench
1
1. Center bottom panel
1. Center bottom panel
1
1
UB5H7AE0.book Page 26 Wednesday, July 4, 2018 1:37 PM

8-31
8
6. Check the O-ring for damage, and re-place it if necessary.
7. Refill the transmission with the specified amount of the recommended oil.
8. Install the transmission oil filler cap.
9. Start the engine and let it idle while checking for oil leakage.
10. Stop the engine and check the oil level one last time.EBU36053Final gear oilCheck the oil level and change the final gear
oil at the intervals specified in the general
maintenance and lubrication chart.
NOTICEECB03590When checking or changing the final gear
oil, make sure that no foreign material en-
ters the final gear case. If necessary, clean
the final gear oil filler bolt and surrounding
area. TIPIf the recommended gear oil is not available,
SAE 80W-90 API GL-4 or GL-5 hypoid gear
oil may be used instead. Checking the final gear oil level1. Park the vehicle on a level surface.
Tightening torque: Transmission oil drain bolt:20 N·m (2.0 kgf·m, 15 lb·ft)
Recommended oil:SAE 80 API GL-4 Hypoid gear oil
Oil quantity: 0.47 L (0.50 US qt, 0.41 Imp.qt)
UB5H7AE0.book Page 31 Wednesday, July 4, 2018 1:37 PM
