To install the seat
Insert the projections on the front of the seat into
the seat holders, and then push down on the seat
at the rear to lock it in place. Make sure that the
seat is securely fitted.
EBU30054Front shock absorbers The shock absorber spring preload, rebound
damping force, and compression damping force
(fast and slow compression damping) can be ad-
justed.
WARNING
EWB02492
Suspension components become hot during
operation. Never touch the compression
damping force adjusting bolt and screw, the
rebound damping force adjusting screw or
the oil reservoir with your bare hand or skin
until suspension components have cooled.
 Always adjust the shock absorber assem-
blies on the left and right side to the same
setting. Uneven adjustment can cause poor
handling and loss of stability, which could
lead to an accident. Notes on adjusting the suspension
A special wrench can be obtained at a Yamaha
dealer to make the spring preload adjustment.
 When adjusting the damping force settings, turn
the adjuster in direction (a) until it stops, and
then count the turns or clicks in direction (b).
 Although a damping force adjuster may turn or
click beyond the stated minimum settings, such
adjustments are ineffective and may damage
the suspension.

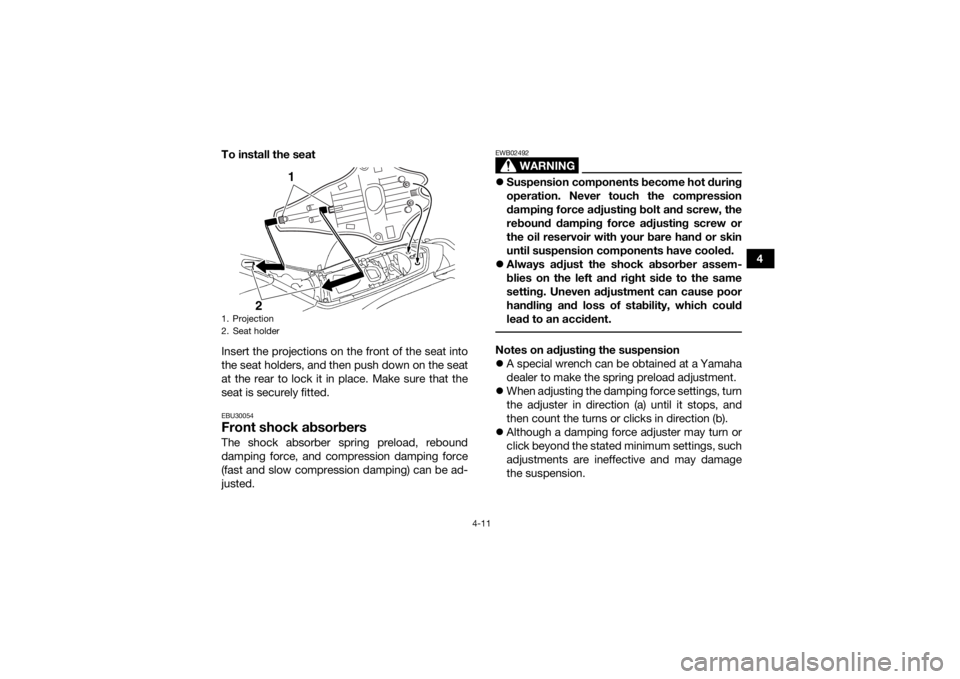

1. Projection
2. Seat holder
1
2
UBW262E0.book Page 11 Tuesday, April 3, 2018 10:59 AM

4-15
4
WARNING
EWB00411These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and un-
derstand the following information before han-
dling the shock absorber assemblies.
Do not tamper with or attempt to open the
cylinder assemblies.
 Do not subject the shock absorber assem-
blies to an open flame or other high heat
source. This may cause the unit to explode
due to excessive gas pressure.
 Do not deform or damage the cylinders in
any way. Cylinder damage will result in poor
damping performance.
 Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.
EBU30145Rear shock absorbersThe shock absorber spring preload, rebound
damping force, and compression damping force
(fast and slow compression damping) can be ad-
justed.
WARNING
EWB02681Suspension components become hot during
operation. Never touch the compression
damping force adjusting bolt and screw, the
1. Slow compression damping force adjusting screwSlow compression damping force settings:
Minimum (soft):20 click(s) in direction (b)
Standard: 7 click(s) in direction (b)
Maximum (hard): 1 click(s) in direction (b)
(a)
(b)
1
UBW262E0.book Page 15 Tuesday, April 3, 2018 10:59 AM

8-50
8
EBU27484Installing a wheel1. Install the wheel with the arrow mark pointingin the forward rotating direction of the wheel,
and then install the wheel nuts.
2. Lower the ATV to the ground.
3. Tighten the wheel nuts to the specified torques.
EBU25741TroubleshootingAlthough Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the
fuel, compression, or ignition systems, for exam-
ple, can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vi-
tal systems yourself. However, should your ATV
require any repair, take it to a Yamaha dealer,
whose skilled technicians have the necessary
tools, experience, and know-how to service the
ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
1. Arrow mark
2. Forward rotating direction
3. Wheel nut
2
3
3
Tightening torques: Front wheel nut:45 N·m (4.5 kgf·m, 33 lb·ft)
Rear wheel nut: 45 N·m (4.5 kgf·m, 33 lb·ft)
UBW262E0.book Page 50 Tuesday, April 3, 2018 10:59 AM

10-1
10
EBU25962
SPECIFICATIONS
Dimensions:Overall length:1795 mm (70.7 in)
Overall width: 1240 mm (48.8 in)
Overall height:
1065 mm (41.9 in)
Seat height: 810 mm (31.9 in)
Wheelbase: 1270 mm (50.0 in)
Ground clearance:
235 mm (9.3 in)
Minimum turning radius: 3.6 m (11.81 ft)
Maximum water depth: 35 cm (14 in)Weight:Curb weight:184.0 kg (406 lb)Loading:Maximum loading limit:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)Noise and vibration level:Noise level (77/311/EEC):85.9 dB(A) at 3750 r/min Uncertainty of measurement:
3.0 dB(A)
A-weighted sound power level: 99.0 dB(A) at 3750 r/min
Uncertainty of measurement: 3.0 dB(A)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s²
Uncertainty of measurement: 0.1 m/s²
Vibration on handle (EN1032, ISO5008): 2.9 m/s²
Uncertainty of measurement:
0.8 m/s²
Engine:Combustion cycle:4-stroke
Cooling system:
Liquid cooled
Valve train: DOHC
Number of cylinders: Single cylinder
Displacement:
449 cm³
Bore × stroke:
95.0 × 63.4 mm (3.74 × 2.50 in)
Compression ratio: 11.8 : 1
