EBU19185Auxiliary DC jackA 12-V accessory, such as a work light or radio
with the proper adapter, can be used when the en-
gine is running and the headlights are turned off.1. Start the engine. (See page 6-1.)
2. Turn the headlights off. (See page 4-7.)
3. Turn the accessory off.
4. Open the auxiliary DC jack cap.
5. Insert the accessory power plug into the jack. 6. Turn the accessory on.
TIP
When inserting or removing the accessory pow-
er plug, turn the accessory off.
 When the auxiliary DC jack is not being used,
cover it with the cap. NOTICEECB00121Do not use accessories requiring more than
the above maximum capacity. This may
overload the circuit and cause the fuse to
blow.
 If accessories are used without the engine
running or with the headlights turned on, the
battery will lose its charge and engine start-
ing may become difficult.
 Do not use an automotive cigarette lighter or
other accessories with a plug that gets hot
because the jack can be damaged. EBU37290Winch pre-wiringThis vehicle is equipped with pre-wiring leads for
a winch. Consult your Yamaha dealer for details.
1. Auxiliary DC jack cap
2. Auxiliary DC jackAuxiliary DC jack maximum capacity:
10 A (120 W)
1
2
UBB561E0.book Page 18 Monday, March 26, 2018 11:15 AM

8-55
83. Install the battery holding plate by installing
the bolts.
4. Install the seat. (See page 4-13.)
TIP Make sure the positive and negative battery
leads are installed as shown.
 Fully charge the battery before installing it.
EBU30805Replacing a fuseFor non-EPS models
1. Positive battery lead (red)
2. Negative battery lead (black)
2
1
1. Fuel injection system spare fuse
2. Fuel injection system fuse
3. Main fuse
4. Fuse box
1
2
3
4
UBB561E0.book Page 55 Monday, March 26, 2018 11:15 AM

8-56
8
For EPS models

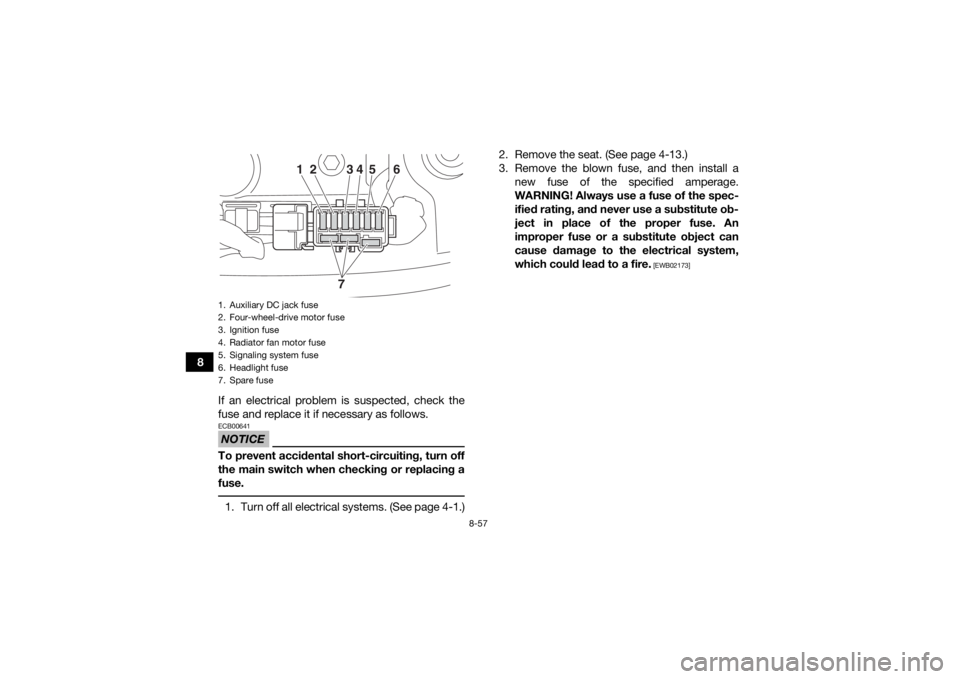

1. Auxiliary DC jack fuse
2. Four-wheel-drive motor fuse
3. Ignition fuse
4. Radiator fan motor fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
1
2
34
5
6
7
1. Fuel injection system spare fuse
2. Fuel injection system fuse
3. Main fuse
4. EPS fuse
5. Fuse box
1
2
3
4
5
UBB561E0.book Page 56 Monday, March 26, 2018 11:15 AM

8-57
8If an electrical problem is suspected, check the
fuse and replace it if necessary as follows.
NOTICEECB00641To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse. 1. Turn off all electrical systems. (See page 4-1.) 2. Remove the seat. (See page 4-13.)
3. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec-
ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02173]
1. Auxiliary DC jack fuse
2. Four-wheel-drive motor fuse
3. Ignition fuse
4. Radiator fan motor fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
1
2
34
5
6
7
UBB561E0.book Page 57 Monday, March 26, 2018 11:15 AM

8-58
8
4. Turn on the main switch, start the engine, and then turn on the circuit in question.
5. If the fuse immediately blows again, have a Yamaha dealer check the vehicle.
EBU34223Replacing a headlight bulbIf a headlight bulb burns out, replace it with the
specified bulb as follows.
Left and right headlight bulbs1. Remove the cover at the rear of the headlight by pulling it off.
2. Remove the bulb cover by pulling it off.
Specified fuses:
Main fuse:40.0 A
Headlight fuse: 15.0 A
Ignition fuse: 10.0 A
Four-wheel-drive motor fuse: 3.0 A
Signaling system fuse: 10.0 A
Radiator fan motor fuse: 20.0 A
Auxiliary DC jack fuse: 10.0 A
Fuel injection system fuse: 10.0 A
EPS fuse: 40.0 A (YFM45KPHK, YFM45KPLK,
YFM45KPXK)1. Cover at the rear of the headlight
1
UBB561E0.book Page 58 Monday, March 26, 2018 11:15 AM

10-5
10
Electrical system:System voltage:12 V
Ignition system:
TCI
Charging system: AC magnetoBattery:Model:
YTX20L-BS
Voltage, capacity: 12 V, 18.0 AhLights:Headlight:
T19L, 30.0 W/30.0 W
Handlebar-mounted light: T15H, 35.0 W/36.5 W (YFM45KPHK, YFM45KPLK,
YFM45KPXK)
Brake/tail light: 21.0 W/5.0 W
Meter lighting: LED
Neutral indicator light:
LED
Reverse indicator light: LED
Coolant temperature warning light: LED
Parking brake indicator light:
LED
Four-wheel-drive indicator light: LED Engine trouble warning light:
LED
EPS warning light: LED (YFM45KPHK, YFM45KPLK, YFM45KPXK)
Fuses:Main fuse:40.0 A
Headlight fuse: 15.0 A
Signaling system fuse:
10.0 A
Ignition fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Fuel injection system fuse:
10.0 A
Four-wheel-drive motor fuse: 3.0 A
Radiator fan motor fuse: 20.0 A
EPS fuse:
40.0 A (YFM45KPHK, YFM45KPLK, YFM45KPXK)EBU30403Noise and vibration levels statement (for Eu-
rope)
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
