Instrument and control functions
3-40
3
EAU49705

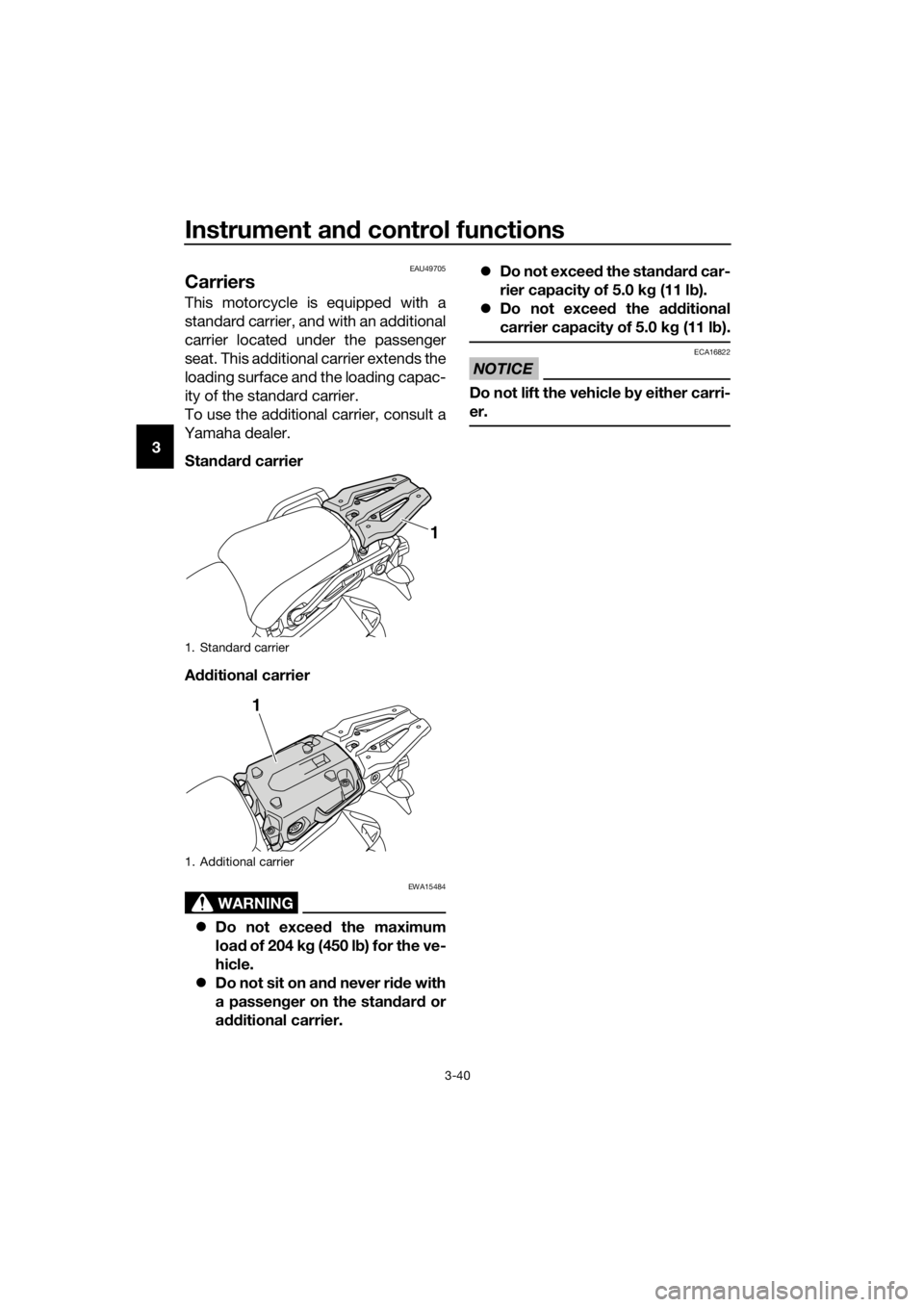

Carriers
This motorcycle is equipped with a
standard carrier, and with an additional
carrier located under the passenger
seat. This additional carrier extends the
loading surface and the loading capac-
ity of the standard carrier.
To use the additional carrier, consult a
Yamaha dealer.
Stan dar d carrier
A dditional carrier
WARNING
EWA15484
Do not exceed the maximum
loa d of 204 k g (450 l b) for the ve-
hicle.
Do not sit on an d never ri de with
a passen ger on the stan dar d or
a dditional carrier.
Do not exceed the standar d car-
rier capacity of 5.0 k g (11 l b).
Do not exceed the additional
carrier capacity of 5.0 kg (11 lb).
NOTICE
ECA16822
Do not lift the vehicle b y either carri-
er.
1. Standard carrier
1. Additional carrier
1
1
UBP9E1E0.book Page 40 Friday, September 7, 2018 10:01 AM
Specifications
8-2
8
Rear tire:
Type:Tubeless
Size:
150/70R17M/C 69V
Manufacturer/model: BRIDGESTONE/BW502
Loa din g:
Maximum load:
204 kg (450 lb)
(Total weight of rider, passenger, cargo
and accessories)
Unifie d b rake system:
Operation:
Activated by front brake
Front brake:
Type:
Hydraulic dual disc brake
Rear brake:
Type:
Hydraulic single disc brake
Front suspension:
Type:Telescopic fork
Rear suspension:
Type:Swingarm (link suspension)
Electrical system:
System voltage:
12 V
Battery:
Model:YTZ12S
Voltage, capacity:
12 V, 11.0 Ah (10 HR)
Hea dlig ht:
Bulb type:
Halogen bulb
Bul b watta ge:
Headlight:
H7, 55.0 W
Brake/tail light: LED
Front turn signal light:
LED
Rear turn signal light: LED
Auxiliary light: 5.0 W License plate light:
5.0 W
