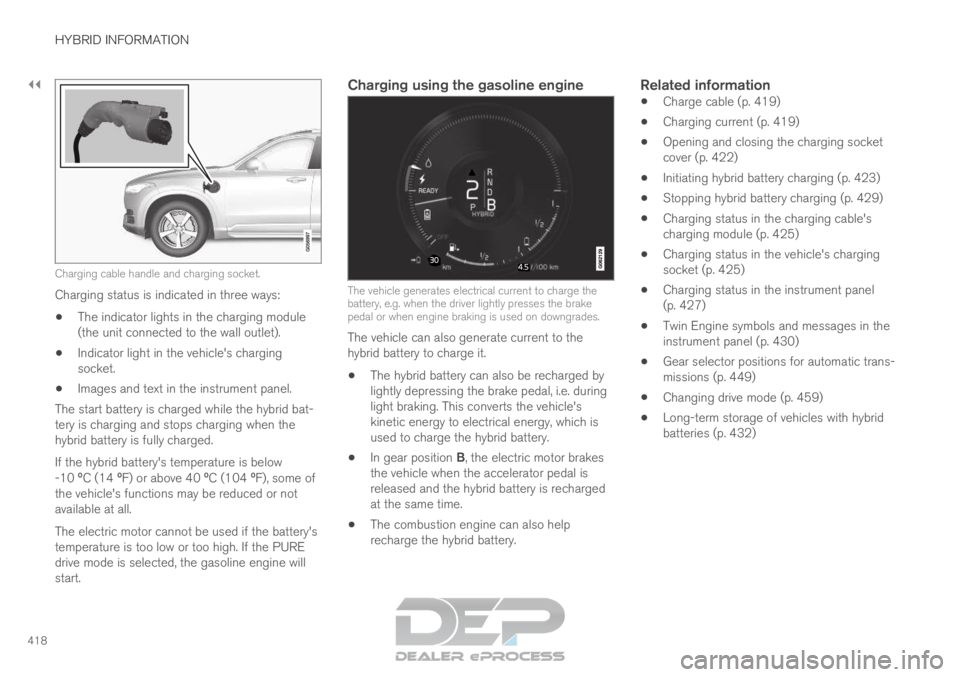

Charging cable handle and charging socket.
Charging status is indicated in three ways:
The indicator lights in the charging module
(the unit connected to the wall outlet).
Indicator light in the vehicle's charging
socket.
Images and text in the instrument panel.
The start battery is charged while the hybrid bat-
tery is charging and stops charging when the
hybrid battery is fully charged.
If the hybrid battery's temperature is below
-10 ºC (14 ºF) or above 40 ºC (104 ºF), some of
the vehicle's functions may be reduced or not
available at all.
The electric motor cannot be used if the battery's
temperature is too low or too high. If the PURE
drive mode is selected, the gasoline engine will
start.
Charging using the gasoline engine The vehicle generates electrical current to charge the
battery, e.g. when the driver lightly presses the brake
pedal or when engine braking is used on downgrades.
The vehicle can also generate current to the
hybrid battery to charge it.
The hybrid battery can also be recharged by
lightly depressing the brake pedal, i.e. during
light braking. This converts the vehicle's
kinetic energy to electrical energy, which is
used to charge the hybrid battery.
In gear position B, the electric motor brakes
the vehicle when the accelerator pedal is
released and the hybrid battery is recharged
at the same time.
The combustion engine can also help
recharge the hybrid battery.Related information
Charge cable (p. 419)
Charging current (p. 419)
Opening and closing the charging socket
cover (p. 422)
Initiating hybrid battery charging (p. 423)
Stopping hybrid battery charging (p. 429)
Charging status in the charging cable's
charging module (p. 425)
Charging status in the vehicle's charging
socket (p. 425)
Charging status in the instrument panel
(p. 427)
Twin Engine symbols and messages in the
instrument panel (p. 430)
Gear selector positions for automatic trans-
missions (p. 449)
Changing drive mode (p. 459)
Long-term storage of vehicles with hybrid
batteries (p. 432)

HYBRID INFORMATION
}}
419
Charging current
Charging current is used to charge the hybrid
battery and precondition the vehicle. Charging is
performed by connecting a charging cable
between the vehicle's charging socket and a
120/240 V electrical socket (alternating cur-
rent).
When the charging cable is activated, a message
will be displayed in the instrument panel and an
indicator light in the vehicle's charging socket will
illuminate. Charging current is primarily used for
battery charging, but is also used for precondi-
tioning. The vehicle's start battery is charged
along with the hybrid battery.
CAUTION
Never detach the charging cable from the
120/240 V outlet (AC, alternating current)
while charging is in progress – the
120/240 V outlet could be damaged in such
circumstances. Always interrupt charging first
and then disconnect the charging cable – first
from the vehicle's charging socket and then
from the 120/240 V outlet.
NOTE
In extremely cold or hot weather, part of
the charging current is used to heat/cool
the hybrid battery and the passenger
compartment, resulting in a longer charg-
ing time.
The charging time is longer if precondi-
tioning has been selected. The time
required depends primarily on the ambi-
ent temperature.
FuseThere are normally several 120/240 V power
consumers in one fuse circuit, which means that
more than one power consumer (e.g. lighting,
vacuum cleaner, electric drill, etc.) may use the
same fuse.
Related information
Charge cable (p. 419)
Charging status in the instrument panel
(p. 427)
Charging status in the vehicle's charging
socket (p. 425)
Starting and stopping preconditioning
(p. 233)
Stopping hybrid battery charging (p. 429) Charge cable
The charging cable is used to recharge your
vehicle's hybrid battery.
The charging cable is stored in a storage compartment
under the cargo compartment floor.
WARNING
Only use the charging cable provided with
your vehicle or a replacement cable pur-
chased from a Volvo retailer.
Specifications, charging cable
Compliance

SAE J1772
Ambient tempera-
ture -32 ºC to 50 ºC (-25 º
F
till 122 ºF)

||HYBRID INFORMATION
424
Open the charger door and remove the
charging socket's protective cover. Push the
charging handle all the way into the vehicle's
socket.
3.

The charging cable handle will lock into
place and charging will begin within
5 seconds. When charging starts, the green
LED light in the charging socket will begin to
flash. The approximate remaining charging
time or the charging status will be displayed
in the instrument panel.
Charging may be temporarily interrupted if
the vehicle is unlocked:
and a door is open ‒ charging will restart
within a few minutes.
if no door is opened ‒ the vehicle will
automatically relock. Charging will resume
after 1 minute.
CAUTION Never detach the charging cable from the
120/240 V outlet (AC, alternating current)
while charging is in progress – the
120/240 V outlet could be damaged in such
circumstances. Always interrupt charging first
and then disconnect the charging cable – first
from the vehicle's charging socket and then
from the 120/240 V outlet.
During charging, condensation from the air con-
ditioning may form under the vehicle. This is nor-
mal and is caused by the hybrid battery cooling.
Related information

Charging the hybrid battery (p. 417)
Opening and closing the charging socket
cover (p. 422)
Charging status in the vehicle's charging
socket (p. 425)
Charging status in the instrument panel
(p. 427)
Charging status in the charging cable's
charging module (p. 425)
Stopping hybrid battery charging (p. 429)

HYBRID INFORMATION
}}
425
Charging status in the vehicle's
charging socket
The charging status is indicated by an LED light
in the charging socket. Location of the LED indicator light in the vehicle's
charging socket.
The LED indicator light shows the current charge
status during charging. If the LED indicator light
is not illuminated, check to make sure the cable
is securely connected in the wall outlet and in the
outlet in the vehicle. A white, red or yellow light
illuminates when the passenger compartment
lighting is activated and will remain illuminated for
a short time after the passenger compartment
lighting has gone out. LED indicator
light's color
Meaning
White

Courtesy light.
Yellow Wait modeA
– waiting for
charging to start.
Flashing green Charging is in progress B
.
Green Charging completed C
.
Red Malfunction. A
E.g. after a door has been opened or if the charging cable han-
dle is not locked in place.
B The more slowly the light flashes, the closer the battery is to
being fully charged.
C The light will go out after a short time.
Related information
Charging the hybrid battery (p. 417)
Charging status in the instrument panel
(p. 427)
Charging status in the charging cable's
charging module (p. 425)
Stopping hybrid battery charging (p. 429) Charging status in the charging
cable's charging module
The red and blue lights in the charging module
indicate the status of ongoing and completed
charging. Charge module: 1. Red warning light, 2. Blue status indi-
cator
When the charge module is initially plugged into
a wall outlet, the red warning light will flash once
to indicate that a startup safety check has been
performed. When the safety check has been
completed, the blue status indicator will glow
steadily and the red warning light will be off. The
charger is now ready to be used. If the red warn-
ing light continues to flash or glows steadily, a
fault has been detected and the charger will not
deliver power to the vehicle. Contact a Volvo
retailer or a certified Volvo service technician.

||HYBRID INFORMATION
428
NOTE
If the instrument panel is not used, it will go
dark after a period of time. To reactivate the
display:

depress the brake pedal,
open one of the doors, or
put the ignition in mode I by turning the
START knob clockwise and then releas-
ing.
Related information
Charging the hybrid battery (p. 417)
Twin Engine symbols and messages in the
instrument panel (p. 430)
Charging status in the vehicle's charging
socket (p. 425)
Charging status in the charging cable's
charging module (p. 425)
Stopping hybrid battery charging (p. 429)

HYBRID INFORMATION
431Symbol
Message MeaningHybrid system failure
Service required
The hybrid system is not functioning. Contact a workshop
A
to have the system checked as soon as
possible. Charge cable
Remove before start
Displayed when the driver attempts to start the vehicle with the chargin\
g cable still connected.
Remove the charging cable and close the charger cover.Charge cable
Removed? Turn and hold start knob
7s
Displayed when the driver again attempts to start the vehicle with the c\
harging cable connected.
Disconnect the charging cable or verify that the cable is completely dis\
connected and the charger
cover is closed.A
An authorized Volvo workshop is recommended.
Related information
Initiating hybrid battery charging (p. 423)
Stopping hybrid battery charging (p. 429)
Charging the hybrid battery (p. 417)
Warning symbols in the instrument panel
(p. 97)
Indicator symbols in the instrument panel
(p. 94)
Hybrid gauge (p. 87)
Hybrid gauge (p. 88)

STARTING AND DRIVING
441
Brake Assist System
The brake enhancing system, Brake Assist
System (BAS

), helps increase braking force and
thereby reduce braking distance.
The system monitors the driver's braking habits
and increases braking force when necessary.
Braking force can be increased up to the point at
which the ABS intervenes. The function is deacti-
vated when pressure on the brake pedal is
decreased.
Related information
Brakes (p. 439) Braking on wet roads
Prolonged driving in heavy rain without braking
may cause braking effect to be slightly delayed
the first time the brakes are applied.
This may also occur after washing the vehicle. It
will then be necessary to apply greater pressure
to the brake pedal. You should therefore maintain
a greater distance to the vehicle ahead.
Firmly apply the brakes after washing the vehicle
or driving on wet roads. This helps warm up the
brake discs, enabling them to dry more quickly
and protecting them against corrosion. Consider
the current traffic situation when braking.
Related information
Brakes (p. 439)
Braking on salted roads (p. 441) Braking on salted roads
When driving on salted roads, a layer of salt may
form on the brake discs and brake pads.
This could increase stopping distance. Maintain
an extra large safety distance to the vehicle
ahead. Make sure to also:
Apply the brakes from time to time to help
remove salt. Make sure braking does not
pose a risk to any other road users.
Gently apply the brakes when you have fin-
ished driving and before driving again.
Related information
Brakes (p. 439)
Braking on wet roads (p. 441)

STARTING AND DRIVING

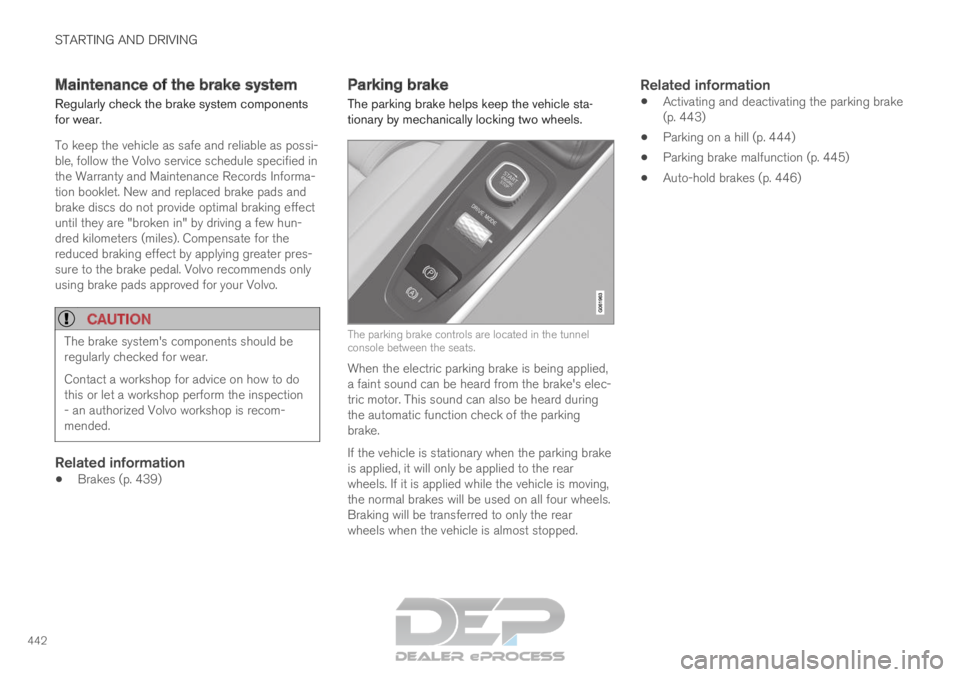

442Maintenance of the brake system
Regularly check the brake system components
for wear.
To keep the vehicle as safe and reliable as possi-
ble, follow the Volvo service schedule specified in
the Warranty and Maintenance Records Informa-
tion booklet. New and replaced brake pads and
brake discs do not provide optimal braking effect
until they are "broken in" by driving a few hun-
dred kilometers (miles). Compensate for the
reduced braking effect by applying greater pres-
sure to the brake pedal. Volvo recommends only
using brake pads approved for your Volvo.
CAUTION The brake system's components should be
regularly checked for wear.
Contact a workshop for advice on how to do
this or let a workshop perform the inspection
- an authorized Volvo workshop is recom-
mended.
Related information

Brakes (p. 439) Parking brake
The parking brake helps keep the vehicle sta-
tionary by mechanically locking two wheels.
The parking brake controls are located in the tunnel
console between the seats.
When the electric parking brake is being applied,
a faint sound can be heard from the brake's elec-
tric motor. This sound can also be heard during
the automatic function check of the parking
brake.
If the vehicle is stationary when the parking brake
is applied, it will only be applied to the rear
wheels. If it is applied while the vehicle is moving,
the normal brakes will be used on all four wheels.
Braking will be transferred to only the rear
wheels when the vehicle is almost stopped.
Related information
Activating and deactivating the parking brake
(p. 443)
Parking on a hill (p. 444)
Parking brake malfunction (p. 445)
Auto-hold brakes (p. 446)
