2019 VOLVO XC60 TWIN ENGINE engine

MAINTENANCE AND SERVICE
621
Engine oil
For the recommended service intervals and war-ranties to be applied, an approved engine oilmust be used.
Volvo recommends:
If the engine oil is not checked regularly and thelevel becomes low, this could cause seriousengine damage.

CAUTION
To satisfy the requirements for the engine'sservice intervals, all engines are factory-filledwith a specially adapted synthetic engine oil.Great care has been put into the choice of oil,with consideration given to service life, starta-bility, fuel consumption and environmentalimpact.
For the recommended service intervals toapply, an approved engine oil must be used.Only use the prescribed oil grade to top off orchange the oil. Otherwise, there is a risk ofthe vehicle's service life, startability, fuel con-sumption and environmental impact beingaffected.
Failure to use engine oil of the prescribedgrade and viscosity could cause damage toengine-related components. Volvo Car Corpo-ration disclaims warranty liability for such typeof damage.
Volvo recommends entrusting oil changes toan authorized Volvo workshop.
Volvo uses different systems to warn if the oillevel is too low/high or the oil pressure is low. Onengine variants with an oil pressure sensor, a
warning symbol is displayed in the instrument
panel when oil pressure is low . On engine
variants with an oil level sensor, the warn-ing symbol in the instrument panel and displaymessages are used to alert the driver. Someengine variants have both systems. Contact aVolvo retailer for more information.
Change the engine oil and oil filter according tothe schedule specified in the Warranty and Main-tenance Records Information booklet. Oils of ahigher grade than that specified may be used. Ifthe vehicle is driven in adverse conditions, Volvorecommends using an oil with a higher gradethan that specified.

Related information
Checking and filling engine oil (p. 622)
Engine oil specifications (p. 670)

MAINTENANCE AND SERVICE
622
Checking and filling engine oil
The engine oil level is monitored by an electronicoil level sensor.
Filler pipe13.
It may be necessary to top up engine oil betweenregularly scheduled services.
No action is necessary with regard to engine oillevel until a message appears in the instrumentpanel.

WARNING
If this symbol is shown togetherwith the message Engine oil levelService required, visit a workshop– an authorized Volvo workshop isrecommended. The oil level may be too high.
CAUTION
If this symbol is shown togetherwith a message about low oil level,for example Engine oil level lowRefill 1 liter, fill only with the indi-cated volume, e.g. 1 liter (1 quart).

WARNING
Do not spill oil on the hot exhaust pipes asthis could cause a fire.

Viewing oil level in the center display
The oil level can be viewed using the electronicoil level gauge in the center display once thevehicle has been started. The oil level should bechecked regularly.
1.Open the Car Status app from App view inthe center display.
2.Tap Status to display the oil level.
Oil level graphic in the center display.

NOTE
The system cannot directly detect changeswhen the oil is filled or drained. The vehiclemust have been driven approximately 30 km(20 miles) and have been stationary5 minutes on a level surface and with theengine off before the correct oil level will bedisplayed.
13Engines with an electronic oil level sensor do not have a dipstick.

MAINTENANCE AND SERVICE
}}
623

NOTE
If the conditions for measuring oil level arenot properly fulfilled (time after engine shut-down, vehicle inclination, ambient tempera-ture, etc.) the message No value availablewill be shown in the center display. This doesnot mean that anything is wrong in the vehi-cle systems.

Related information
Engine oil (p. 621)
Engine oil specifications (p. 670)
Ignition modes (p. 433)
Vehicle status (p. 612)
Refilling coolant
Coolant helps keep the combustion engine atthe right operating temperature. The heat trans-ferred from the engine to the coolant can beused to warm the passenger compartment.
When refilling coolant, follow the instructions onthe package. Never fill the cooling system withonly water. The risk of freezing is increased withtoo low or too high amounts of coolant.
If there is coolant under the vehicle, smoke fromthe cooling system, or if more than 2 liters (about2 quarts) of coolant has been added to the sys-tem, there could be something wrong with thecooling system and starting the vehicle coulddamage the engine. Call a tow truck and do notattempt to start the engine.

WARNING
The coolant may be very hot. Never unscrewthe cap when the coolant is hot. If coolantmust be filled, unscrew the expansion tankcap slowly to relieve overpressure.
Coolant expansion tank, left-hand drive vehicle.

||
MAINTENANCE AND SERVICE
* Option/accessory.624
Unscrew the cover in the plastic covering.
Unscrew the expansion tank cap and fillcoolant as needed. The level should notexceed the yellow MAX mark inside theexpansion tank.
Put the components back in place in the reverseorder.

CAUTION
Do not ingest the contents. May causedamage to organs (kidneys).
Use premixed coolant according to Vol-vo's recommendations. If concentratedcoolant is used, make sure that the cool-ant mixture is 50% coolant and 50%water of acceptable quality.
Do not mix different types of coolant.
To help ensure sufficient corrosion pro-tection in the system, only use new cool-ant when replacing larger components inthe cooling system.
Never run the engine unless the coolingsystem is properly filled. An improperlyfilled cooling system could lead to hightemperatures and cracks in the cylinderheads.
High levels of chlorine, chlorides andother salts may cause corrosion in thecooling system.
Related information
Engine compartment overview (p. 620)
Coolant specifications (p. 671)
Replacing bulbs
Halogen headlights are not available on all mod-els and markets. Contact a Volvo retailer formore information.
LED14 bulbs must be replaced by a workshop.An authorized Volvo workshop is recommended.

NOTE
For information on lights not mentioned inthis article, contact a Volvo dealer or a certi-fied Volvo service technician.

NOTE
Exterior lighting such as headlights and tail-lights may develop temporary condensationon the inside of the lens. This is normal. Allexterior lighting is designed to resist this.Condensation is normally vented out of thelamp housing once the light has been lit forsome period of time.

NOTE
Bulbs for active curve lighting* contain tracesof mercury and should therefore always besubmitted to a certified Volvo service techni-cian.

MAINTENANCE AND SERVICE
}}
625
Start battery
The vehicle has a single-pole electrical systemthat uses the chassis and engine mount as con-ductors.
The start battery is used to start the electricalsystem and power electrical equipment in thevehicle. The hybrid battery is used to start thecombustion engine.
The start battery should only be replaced by a
workshop15.
The start battery is a 12 V AGM (Absorbed GlassMat) battery, dimensioned for regenerative charg-ing and to support the function of the vehicle'svarious systems.
The service life and performance of the start bat-tery are affected by factors such as driving style,driving conditions, climate, battery discharges,number of starts, etc.
Never disconnect the start battery while theengine is running.
Make sure the cables to the start battery arecorrectly connected and the clamps aresecurely tightened.

WARNING
Batteries generate hydrogen gas, whichis flammable and explosive.
Do not connect the jumper cable to anypart of the fuel system or to any movingparts. Avoid touching hot manifolds.
Battery fluid contains sulfuric acid. Do notallow battery fluid to contact eyes, skin,fabrics or painted surfaces.
If contact occurs, flush the affected areaimmediately with water. Obtain medicalhelp immediately if eyes are affected.
Never expose the battery to open flameor electric spark. Do not smoke near thebattery. Failure to follow the instructionsfor jump starting can lead to injury.

Connection points
WARNING
PROPOSITION 65 WARNING
Battery posts, terminals, and related accesso-ries contain lead and lead compounds, chemi-cals known to the state of California to causecancer and reproductive harm. Wash handsafter handling.
Use the vehicle's connection points in the enginecompartment to connect an external start batteryor battery charger.
The battery terminals on the car's start battery inthe luggage/cargo area must not be used.
Positive connection point
Negative connection point
14LED (Light Emitting Diode)15An authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE
629
Hybrid battery
The vehicle's electric motor is powered by arechargeable, maintenance-free, lithium-ionhybrid battery.

NOTE
The vehicle cannot be started if the hybridbattery is discharged.

NOTE
If both the starter battery and the hybrid bat-tery are discharged, both batteries must becharged. In such cases, it is not possible tocharge only the hybrid battery first.
The starter battery must have a certain levelof charge for it to be possible to charge thehybrid battery.

WARNING
Hybrid battery replacement may only be per-formed by a workshop – an authorized Volvoworkshop is recommended.

Coolant
The hybrid battery's cooling system has its ownexpansion tank.
CAUTION
Filling the hybrid battery coolant should onlybe performed by a workshop – an authorizedVolvo workshop is recommended.

Specifications for hybrid battery
Type: Lithium-ion
Power reserve: 10.4 kWh.

NOTE
The capacity of the hybrid battery decreaseswith age and use, which could result inincreased use of the combustion engine,leading to higher fuel consumption andreduced electric motor range.
Related information
Battery symbols (p. 630)
Start battery (p. 625)
Charging the hybrid battery (p. 413)

MAINTENANCE AND SERVICE
631

Location of fuseboxes
The illustration is generic - appearance may vary accord-ing to vehicle model.
Engine compartment
Under the glove compartment
Trunk/cargo compartment

Related information
Replacing fuses (p. 631)
Fuses in the cargo compartment (p. 639)
Fuses in the engine compartment (p. 632)
Fuses under the glove compartment(p. 636)
Replacing fuses
All electrical functions and components are pro-tected by a number of fuses in order to protectthe vehicle's electrical system from damage byshort circuiting or overloading.
1. Refer to the fuse diagram to locate the fuse.
2.Pull out the fuse and examine it from theside to determine if the curved metal wire inthe fuse is intact.
3. If the wire is broken, replace the fuse with anew fuse of the same color and amperage.
WARNING
Never use a foreign object or a fuse with ahigher amperage than that specified toreplace a fuse. This could cause significantdamage to the electrical system and possiblylead to a fire.

WARNING
Contact an authorized Volvo workshop forassistance replacing fuses not listed in theOwner's Manual. If performed incorrectly, sig-nificant damage can be caused to the electri-cal system.

Related information
Fuses and fuseboxes (p. 630)
Fuses in the cargo compartment (p. 639)
Fuses in the engine compartment (p. 632)
Fuses under the glove compartment(p. 636)

MAINTENANCE AND SERVICE
632

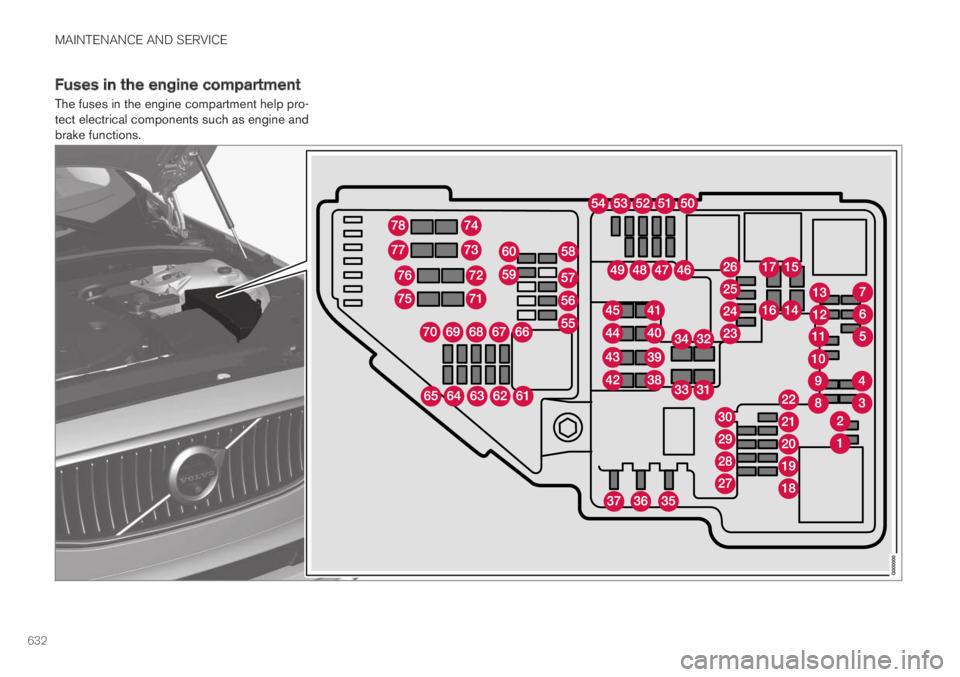

Fuses in the engine compartment
The fuses in the engine compartment help pro-tect electrical components such as engine andbrake functions.
