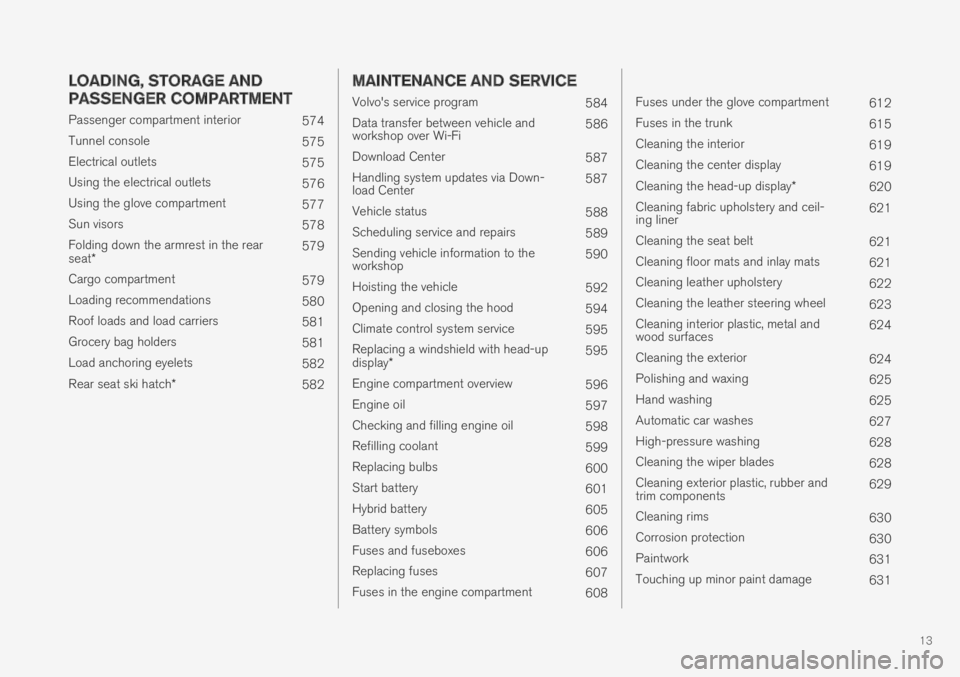

13
LOADING, STORAGE AND
PASSENGER COMPARTMENT
Passenger compartment interior574
Tunnel console575
Electrical outlets575
Using the electrical outlets576
Using the glove compartment577
Sun visors578
Folding down the armrest in the rearseat*579
Cargo compartment579
Loading recommendations580
Roof loads and load carriers581
Grocery bag holders581
Load anchoring eyelets582
Rear seat ski hatch*582
MAINTENANCE AND SERVICE
Volvo's service program584
Data transfer between vehicle andworkshop over Wi-Fi586
Download Center587
Handling system updates via Down-load Center587
Vehicle status588
Scheduling service and repairs589
Sending vehicle information to theworkshop590
Hoisting the vehicle592
Opening and closing the hood594
Climate control system service595
Replacing a windshield with head-updisplay*595
Engine compartment overview596
Engine oil597
Checking and filling engine oil598
Refilling coolant599
Replacing bulbs600
Start battery601
Hybrid battery605
Battery symbols606
Fuses and fuseboxes606
Replacing fuses607
Fuses in the engine compartment608
Fuses under the glove compartment612
Fuses in the trunk615
Cleaning the interior619
Cleaning the center display619
Cleaning the head-up display*620
Cleaning fabric upholstery and ceil-ing liner621
Cleaning the seat belt621
Cleaning floor mats and inlay mats621
Cleaning leather upholstery622
Cleaning the leather steering wheel623
Cleaning interior plastic, metal andwood surfaces624
Cleaning the exterior624
Polishing and waxing625
Hand washing625
Automatic car washes627
High-pressure washing628
Cleaning the wiper blades628
Cleaning exterior plastic, rubber andtrim components629
Cleaning rims630
Corrosion protection630
Paintwork631
Touching up minor paint damage631
MAINTENANCE AND SERVICE
596
Engine compartment overview
This overview shows some service-related com-ponents.
Some of the components included in the vehi-cle's electric drive system are located in theengine compartment. Exercise caution whenaccessing the engine compartment and onlytouch what is required for normal maintenance.
WARNING
Orange wiring may only be handled by quali-fied personnel.
WARNING
Several components in the vehicle work withhigh voltage that can be hazardous in case ofan incorrect procedure.
Do not touch anything that is not clearlydescribed in this Owner's Manual.
Be careful when checking/filling fluids inthe engine compartment.
The layout of the engine compartment may vary depend-ing on model and engine variant.
Coolant expansion tank
Brake fluid reservoir (located on the driver'sside)
Washer fluid filler pipe12
Fusebox
Air filter
Engine oil filler pipe
WARNING
Bear in mind that the cooling fan (located atthe front of the engine compartment behindthe radiator) may start or continue runningautomatically up to about 6 minutes after theengine is turned off.
Always entrust engine washing to a workshop– an authorized Volvo workshop is recom-mended. If the engine is hot, there is a risk offire.
WARNING
The ignition system works with extremely highand dangerous voltages. The vehicle electricalsystem should always be in ignition mode 0when work in being performed in the enginecompartment.
Do not touch any spark plugs or ignition coilswhen the vehicle electrical system is in igni-tion mode II or when the engine is warm.
Related information
Opening and closing the hood (p. 594)
Filling washer fluid (p. 635)
Refilling coolant (p. 599)
Fuses in the engine compartment (p. 608)
Checking and filling engine oil (p. 598)
Ignition modes (p. 429)
12Fill the washer fluid at regular intervals, e.g. when refueling.
MAINTENANCE AND SERVICE
606
Battery symbols
There are warning symbols and information onthe batteries.
Wear protective goggles.
See the Owner's Manual foradditional information.
Keep batteries away fromchildren.
Batteries contain corrosiveacid.
Avoid smoking, openflames, and/or sparks.
Risk of explosion.
Recycle properly.
NOTE
A used start battery contains lead and mustbe recycled in an environmentally responsiblemanner.
Related information
Start battery (p. 601)
Hybrid battery (p. 605)
Fuses and fuseboxes
All electrical functions and components are pro-tected by a number of fuses in order to protectthe vehicle's electrical system from damage byshort circuiting or overloading.
WARNING
Never use a foreign object or a fuse with ahigher amperage than that specified toreplace a fuse. This could cause significantdamage to the electrical system and possiblylead to a fire.
WARNING
Orange wiring may only be handled by quali-fied personnel.
WARNING
Several components in the vehicle work withhigh voltage that can be hazardous in case ofan incorrect procedure.
Do not touch anything that is not clearlydescribed in this Owner's Manual.
If any electrical component or function is notresponding, the component may have blown afuse due to temporary overload. If the same fuseblows repeatedly, there may be a problem withthe component. Volvo recommends contacting anauthorized Volvo workshop to have the compo-nent checked.
MAINTENANCE AND SERVICE
607
Location of fuseboxes
The illustration is generic - appearance may vary accord-ing to vehicle model.
Engine compartment
Under the glove compartment
Trunk/cargo compartment
Related information
Replacing fuses (p. 607)
Fuses in the trunk (p. 615)
Fuses in the engine compartment (p. 608)
Fuses under the glove compartment(p. 612)
Replacing fuses
All electrical functions and components are pro-tected by a number of fuses in order to protectthe vehicle's electrical system from damage byshort circuiting or overloading.
1. Refer to the fuse diagram to locate the fuse.
2. Pull out the fuse and examine it from theside to determine if the curved metal wire inthe fuse is intact.
3.If the wire is broken, replace the fuse with anew fuse of the same color and amperage.
WARNING
Never use a foreign object or a fuse with ahigher amperage than that specified toreplace a fuse. This could cause significantdamage to the electrical system and possiblylead to a fire.
WARNING
Contact an authorized Volvo workshop forassistance replacing fuses not listed in theOwner's Manual. If performed incorrectly, sig-nificant damage can be caused to the electri-cal system.
Related information
Fuses and fuseboxes (p. 606)
Fuses in the trunk (p. 615)
Fuses in the engine compartment (p. 608)
Fuses under the glove compartment(p. 612)
MAINTENANCE AND SERVICE
}}
* Option/accessory.609
Fuse pliers are provided on the inside of the fusebox cover to assist in removing and insertingfuses.
There are also spaces for several extra fuses inthe fusebox.
Positions
There is a decal with a diagram of the locationsof the fuses on the inside of the cover.
Fuses 1–13, 18–30, 35–37 and 46–70 are"Micro" fuses.
Fuses 14–17, 31–34, 38–45 and 71–78 are"MCase" fuses and should only be replaced
by a workshop16.
FunctionAmpere
––
––
––
Control module for actuatorfor engaging/changing gears,automatic transmission
5
High-voltage coolant heatercontrol module5
FunctionAmpere
Control module for A/C; heatexchanger cut-off valve; cut-off valve for coolant throughthe climate system
5
Hybrid battery control module;high-voltage converter forcombined high-voltage gener-ator/starter motor with 500V–12 V voltage converter
5
––
Converter for controlling feedto rear axle electric motor10
Hybrid battery control module;high-voltage converter forcombined high-voltage gener-ator/starter motor with 500V–12 V voltage converter
10
Charge module5
Cut-off valve for hybrid batterycoolant; coolant pump 1 forhybrid battery
10
Coolant pump for electric drivesystem10
FunctionAmpere
Hybrid component cooling fan 25
––
––
––
––
––
––
––
––
Front USB port in tunnel con-sole, front*5
12 V outlet in tunnel console,front15
12 V outlet in tunnel console
between second-row seatsA
12 V outlet in tunnel console,
between rear seatsB; USBports in tunnel console
between rear seatsB
15
16An authorized Volvo workshop is recommended.
MAINTENANCE AND SERVICE
611
FunctionAmpere
Heated oxygen sensor, front;heated oxygen sensor, rear15
Oil pump solenoid; A/C mag-netic coupling; heated oxygensensor (center)
15
––
Engine control module20
Ignition coils; spark plugs 15
––
––
Transmission oil pump controlmodule30
Vacuum pump control module 40
Transmission actuator25
––
––
––
ANot ExcellenceBExcellenceCLED (Light Emitting Diode)
Related information
Fuses and fuseboxes (p. 606)
Replacing fuses (p. 607)
MAINTENANCE AND SERVICE
}}
* Option/accessory.613
Fuse pliers are provided on the inside of the fusebox cover to assist in removing and insertingfuses.
There are also spaces for several extra fuses inthe distribution box in the engine compart-ment.
Positions
Fuses 1, 3-21, 23-36, 39-53 and 55-59 are"Micro" fuses.
Fuses 2-22, 37-38 and 54 are "MCase"fuses and should only be replaced by a work-
shop17.
FunctionAmpere
––
––
––
Movement sensor*5
Instrument panel5
Center console buttons5
Sun sensor5
FunctionAmpere
Sensus control module20
––
Steering wheel module5
Module for start knob andparking brake controls5
Heated steering wheel* mod-ule15
––
––
––
––
Climate system control mod-ule10
––
Data link connector OBD-II 10
Center display5
Climate system blower module(front)40
FunctionAmpere
USB HUB5
Instrument lighting; Interiorlighting; Rearview mirror auto-dim function*; Rain and lightsensors*; Rear tunnel consolekeypad, rear seat*; Power frontseats*; Rear door control pan-els; Climate system blowermodule left/right
7.5
Control module for driver sup-port functions5
Panoramic roof with sun cur-tain*20
Head-up display*5
Passenger compartment light-ing5
––
Ceiling console display (seatbelt reminder/front passengerside airbag indicator)
5
––
Humidity sensor5
17An authorized Volvo workshop is recommended.
||
MAINTENANCE AND SERVICE
* Option/accessory.614
FunctionAmpere
Door module in right-side reardoor
Power right rear seatA
20
Fuses in the trunk/cargo com-partment10
Control module for Internet-connected vehicle; Controlmodule for Volvo On Call
5
Door module in left-side reardoor
Power left rear seatB
20
Audio control module (ampli-fier) (certain models only)40
––
Multi-band antenna module 5
Front seat massage function*5
––
Rear door sun curtain modules 15
Fuel pump control module 15
FunctionAmpere
Relay windings for distributionbox in engine compartment;Relay windings for transmis-sion oil pump
5
––
Driver's seat heating15
Front passenger's seat heat-ing15
Coolant pump10
––
Power driver's seat*20
Active chassis control module*20
––
Sensus control module10
––
Climate system blower module(rear)10
Power front passenger seat*20
FunctionAmpere
Display for rear seat conven-
ience functionsA; On-boarddiagnostics (OBD II) in tunnel
console between rear seatsA;
Extra movement sensorA
5A
TV* (certain markets only)5
Primary fuse for fuses 9, 53and 5815
AExcellenceBExcellence
Related information
Fuses and fuseboxes (p. 606)
Replacing fuses (p. 607)
