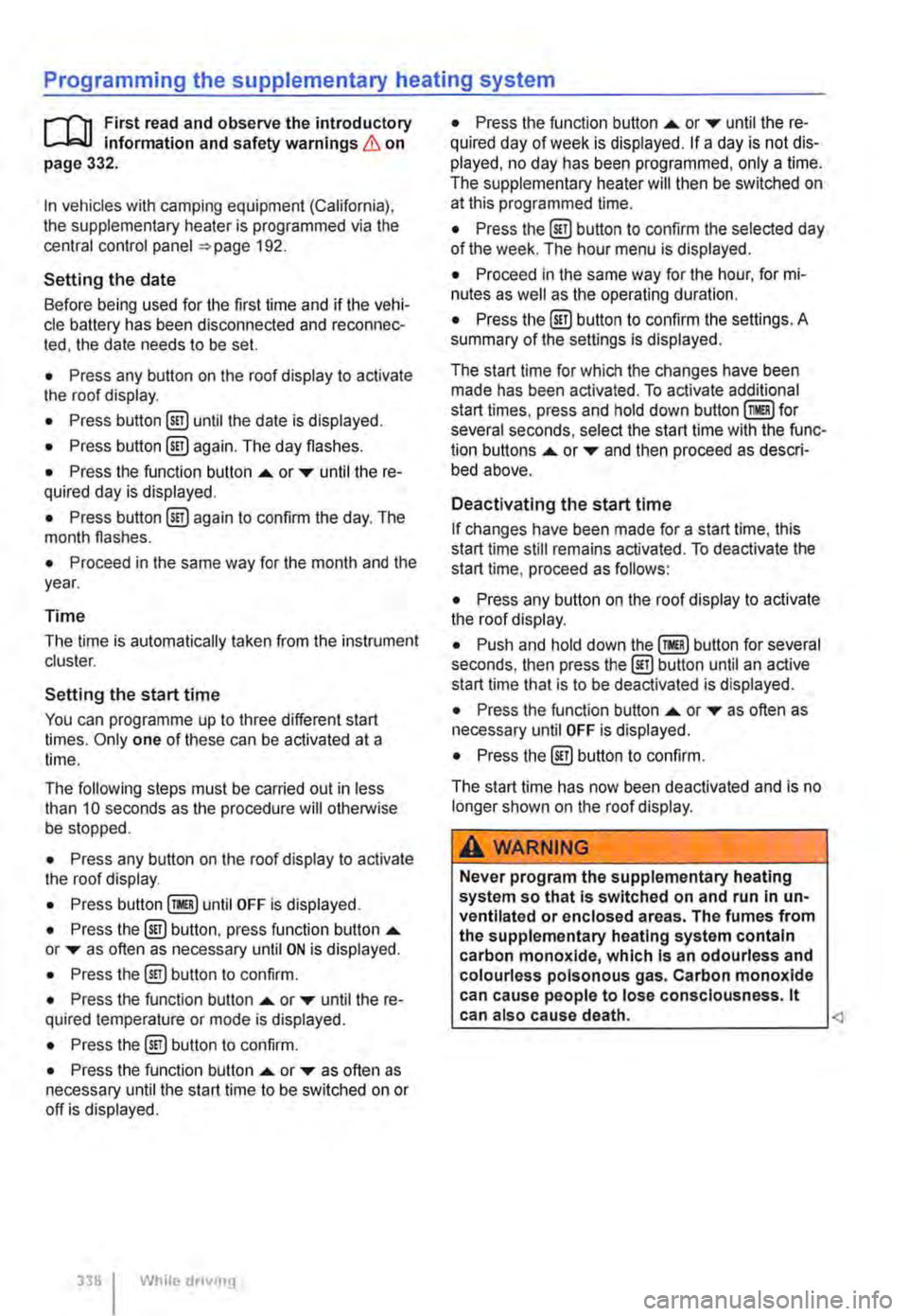

Programming the supplementary heating system
r('n First read and observe the introductory L-Wl Information and safety warnings & on page 332.
In vehicles with camping equipment (California), the supplementary heater is programmed via the central control panel =>page 192.
Setting the date
Before being used for the first time and if the vehi-cle battery has been disconnected and reconnec-ted, the date needs to be set.
• Press any button on the roof display to activate the roof display.
• Press button @!) until the date is displayed.
• Press button @!) again. The day flashes.
• Press the function button .... or T until the re-quired day is displayed.
• Press button @!) again to confirm the day. The month flashes.
• Proceed in the same way for the month and the year.
Time
The time is automatically taken from the instrument cluster.
Setting the start time
You can programme up to three different start times. Only one of these can be activated at a time.
The following steps must be carried out in less than 10 seconds as the procedure will otherwise be stopped.
• Press any button on the roof display to activate the roof display.
• Press until OFF is displayed.
• Press the @) button, press function button .... or T as often as necessary until ON is displayed.
• Press the@) button to confirm.
• Press the function button .... or T until the re-quired temperature or mode is displayed.
• Press the @!) button to confirm.
• Press the function button .... or T as often as necessary until the start time to be switched on or off is displayed.
338 I While dnvmg
• Press the function button .... or T until the re-quired day of week is displayed. If a day is not dis-played, no day has been programmed, only a time. The supplementary heater will then be switched on at this programmed time.
• Press the @) button to confirm the selected day of the week. The hour menu is displayed.
• Proceed in the same way for the hour, for mi-nutes as well as the operating duration.
• Press the @) button to confirm the settings. A summary of the settings is displayed.
The start time for which the changes have been made has been activated. To activate additional start times, press and hold down for several seconds, select the start time with the func-tion buttons .... or T and then proceed as descri-bed above.
Deactivating the start time
If changes have been made for a start time, this start time still remains activated. To deactivate the start time, proceed as follows:
• Press any button on the roof display to activate the roof display.
• Push and hold down button for several seconds, then press the@) button until an active start time that is to be deactivated is displayed.
• Press the function button .... or T as often as necessary until OFF is displayed.
• Press the @) button to confirm.
The start time has now been deactivated and is no longer shown on the roof display.
A WARNING
Never program the supplementary heating system so that Is switched on and run In un-ventllated or enclosed areas. The fumes from the supplementary heating system contain carbon monoxide, which Is an odourless and colourless poisonous gas. Carbon monoxide can cause people to lose consciousness. lt can also cause death.

If and when
Practical tips
Frequently asked questions
If you suspect that a vehicle fault has arisen or your vehicle has been damaged, read and observe the following information before contacting a Volkswagen Commercial Vehicles dealership or
qualified workshop. You may also find useful infor-mation in the index under the headings "Things to note" or "Checklist".
To note Some possible causes Possible solution
Vehicle battery is discharged. -How to jump start =>page 443. -Recharge vehicle battery 362.
Engine does not start. The incorrect vehicle key is be-Use a valid vehicle key 36. ing used.
Fuel level is too low. Fill the tank 340.
Supplementary heating system Switch off the supplementary heating
Smoke is coming from the is running. system 332. wing. Supplementary heater is run-No solution 345. ning.
-Battery in the remote control -Replace the battery 36. Vehicle cannot be locked or key is flat. -Move closer to the vehicle. unlocked with the remote -Located too far away from the -Synchronise the vehicle key =>page 36. vehicle. control key. -Buttons were pressed outside -Lock or unlock the vehicle manually
the range. 413.
Cold engine. brake assist sys-Refer to the index under entries for Unusual noises. tems, supplementary heating "Noises". system.
Assist systems are active. Refer to the index under entries for "As-sist systems". Unusual handling. DSG® dual clutch gearbox is too Stop the vehicle immediately hot. 266.
Front seats cannot be ad-Vehicle battery is discharged. Recharge vehicle battery 362.
justed electrically. Fuse blown. Check fuse and replace as necessary 429.
The vehicle has no vehicle No direct solutions possible as it depends
jack, spare wheel or break-Equipment depends on type of on the equipment level. Contact a Volks-vehicle. wagen Commercial Vehicles dealership if down set. necessary 416.
-Windows or sliding roof are open. The interior monitoring sys--Item attached to the interior Remove any objects that could trigger a tem triggers a false alarm. mirror is moving. false alarm 44. -A mobile telephone is vibrating inside the vehicle.
Functions are not working Settings have been made in the Check and if necessary reset back to fac-as described in the owner's manual. Volkswagen information system. tory settings 24.
410 I If and when

Electrical consumer . . . . . . . . . . . . . . . . . . 244
Electrical consum-ers ....... 145,164,242,244,331,339,412 Business . . . . . . . . . . . . . . . . . . . . 186
Electrical equipment . . . . . . . . . . . . . . . . . . 164
Electrical sockets . . . . . . . . . . . . . . . . . . . . 163
Electric lumbar support adjustment . . . . . . 66
Electric pop-up roof, California . . . . . . . . . 221 Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . 223 Opening . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Electric sliding doors Disabling . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Opening and closing . . . . . . . . . . . . . . . . . 47 Roll-back function . . . . . . . . . . . . . . . . . . . 48 Electric windows . . . . . . . . . . . . . . . . . . . . . . 55 Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Convenience closing . . . . . . . . . . . . . . . . . 57 Convenience opening . . . . . . . . . . . . . . . . 57 Fault .........................•.... 57 One-touch function . . . . . . . . . . . . . . . . . . . 56 Opening ........................... 56 Roll-back function . . . . . . . . . . . . . . • . . . . 57
Electrolyte . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Electronic differential lock (EDL) . . . . . . . . 275
Electronic Immobilizer . . . . . . . . . . . . . . . . 260
Electronic stability control (ESC) . . . . . . . . 274
Emergency ........................... 411 Breakdown . . . . . . . . . . . . . . . . . . . . • . . . 412 Checklist . . . . . . . . . . . . . . . . . . . . . . . . . 412 Fire extinguisher . . . . . . . . . . . . . . . . . . . 413 First aid kit . . . . . . . . . . . . . . . . . . . . . . . . 413 Hazard warning lights . . . . . . . . . . . . . . . 412 Making you and your vehicle safe 412 Warning triangle . . . . . . . . . . . . . . 413
Emergency brake . . . . . . . . . . . . . . . . . . . . 412
Emergency brake lights . . . . . . . . . . . 412 Emergency breakaway cable . . . . . . . 141, 145
Emission control system for diesel vehi-cles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Engine Noises . . . . . . . . . . . . . . . . . . . . . . . • . . . 259 Not running smoothly . . . . . . . . . . . . • . . . 343 Running in . . . . . . . . . . . . . . . . . . . . 394
Engine and ignition . . . . . . . . . . . . . . . . . . . 257 12-volt sockets . . . . . . • . . . . . . . . . . 164, 243 Ignition lock . . . . . . . . . . . . . . . . . . . . . . . 258 Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . 260 Non-authorised vehicle key . . . . . . . . . . . 258 Preheating . . . . . . . . . . . . . . . . . . . 258 Starting the engine . . . . . . . . . . . . . . . . . . 258 Stopping the engine . . . . . . . . . . . . . . . . 259 Engine and transmission guard . . . . . . . . . . 33
Engine code Finding . . . . . . . . . . . . . . . . . . . . . . . . . . . 451
Engine compartment ................. . Cleaning ........................ . Coolant .......................... . Engine oil ........................ . Plenum chamber .................. . Preparation ...................... . Vehicle battery .................... . Engine coolant see Coolant ................. .
Engine fault ................... .
Engine idling speed increased ........................ . Engine management system .....•..... Indicator lamp .................... .
Engine oil .....................•..... Changing ........................ . Checking the engine oil level ......... . Consumption ................•..... Dipstick ......................... . Filler opening ..................... . Indicator lamp .................... . Refilling ......................... . Specification ...................... . Warning lamp ..................... .
Engine specifications ................ . Entering password Rear-seat telephony ......... .
Entering PIN code Rear-seat telephony ................ . Equipment Business ........................ . California ........................ . Multivan ... .
ESC ....... . ESP
350 387 358 353 387 352 362
358
407
366 407 407
353 357 356 357 356 356 354 356 354 354
450
190
190
180 192 175
274
see Electronic stability control (ESC) . . . . 274 Event data recorder . . . . . . . . . . . . . . . . . . . 399
Event memory Connector . . . . . . . . . . . . . . . . . . . . . . . 399 Reading . . . . . . . . . . . . . . . . . . . . . . . . . . 399 Exhaust purification system . . . . . . . . . . . 407 Indicator lamp . . . . . . . . . . . . . . . . . . . . . 407 Exterior mirrors . . . . . . . . . . . . . . . . . . . . 123 Aerial . . . . . . . . . . . . . . . . . . . . . . . . 124,406 Automatic anti-dazzle . . . . . . . . . . . . . . 123 Driving with a trailer . . . . . . . . . . . . . . . . 142 .............. ·····•········ Folding in . . . . . . . . . . . . . . . . . . . . . . . . . 123 Vehicle care . . . . . . . . . . . . . . . . . . . . . . . 382
Exterior views . . . . . . . . . . . . . . . . . • . . . . . . . 5
External aerial . . . . . . . . . . . . . . . . . . . . . . . 398 External socket 230-volt power supply 245
