2019 TOYOTA TUNDRA check engine light

39Maintenance Log

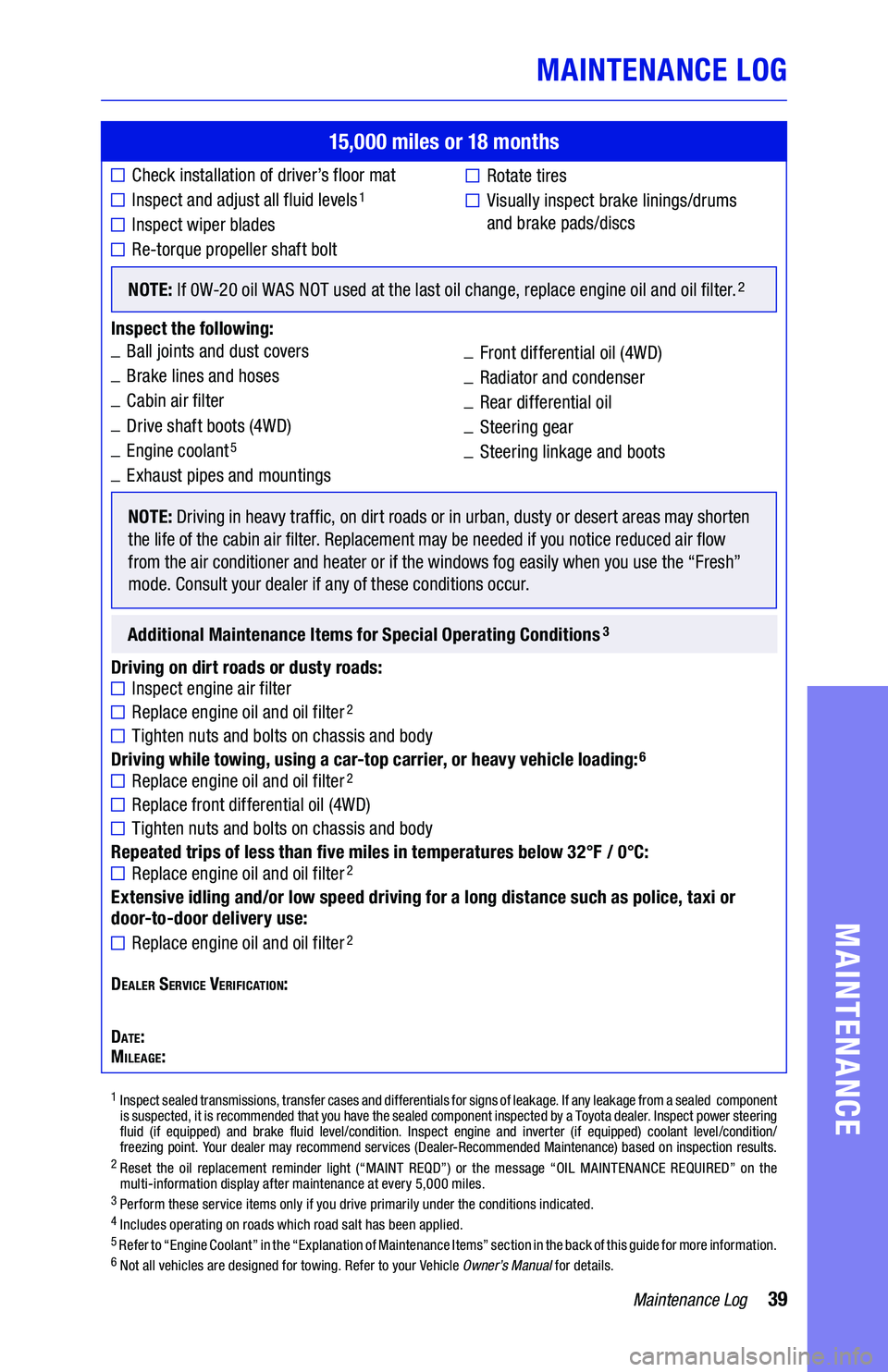

MAINTENANCE LOG
MAINTENANCE
15,000 miles or 18 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _Ball joints and dust covers
_Brake lines and hoses
_Cabin air filter
_Drive shaft boots (4WD)
_Engine coolant5
_Exhaust pipes and mountings
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from the air conditioner and heater or if the windows fog easily when you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Replace front differential oil (4WD)
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (

41Maintenance Log
MAINTENANCE LOG
MAINTENANCE
30,000 miles or 36 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following: _ Automatic transmission for signs of leakage
_Ball joints and dust covers
_Brake lines and hoses
_ Brake linings/drums and brake pads/discs5
_Drive shaft boots (4WD)
_Engine coolant6
_Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:7
Replace front differential oil (4WD)
Replace rear differential oil
Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (

43Maintenance Log
MAINTENANCE LOG
MAINTENANCE
45,000 miles or 54 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2 Inspect the following: _Ball joints and dust covers _Brake lines and hoses _Cabin air filter _Drive shaft boots (4WD) _Engine coolant5
_Exhaust pipes and mountings
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from the air conditioner and heater or if the windows fog easily when you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Replace front differential oil (4WD)
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (

45Maintenance Log
MAINTENANCE LOG
MAINTENANCE
60,000 miles or 72 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
Inspect the following: _ Automatic transmission for signs of leakage
_Ball joints and dust covers
_Brake lines and hoses
_ Brake linings/drums and brake pads/discs5
_Drive belts6
_Drive shaft boots (4WD)
_Engine coolant7
_Exhaust pipes and mountings

Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:8
Replace automatic transmission fluid
Replace front differential oil (4WD)
Replace rear differential oil
Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (

47Maintenance Log
MAINTENANCE LOG
MAINTENANCE
75,000 miles or 90 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2 Inspect the following: _Ball joints and dust covers _ Exhaust pipes and mountings _Brake lines and hoses _ Front differential oil (4WD) _Cabin air filter _ Radiator and condenser _Drive belts _ Rear differential oil _Drive shaft boots (4WD) _ Steering gear _Engine coolant5 _ Steering linkage and boots
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from the air conditioner and heater or if the windows fog easily when you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Replace front differential oil (4WD)
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (

49Maintenance Log
MAINTENANCE LOG
MAINTENANCE
90,000 miles or 108 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following: _ Automatic transmission for signs of leakage
_Ball joints and dust covers
_Brake lines and hoses
_ Brake linings/drums and brake pads/discs5
_Drive belts
_Drive shaft boots (4WD)
_Engine coolant6
_Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:7
Replace front differential oil (4WD)
Replace rear differential oil
Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (

51Maintenance Log
MAINTENANCE LOG
MAINTENANCE
105,000 miles or 126 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
NOTE: 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _Ball joints and dust covers _ Exhaust pipes and mountings _Brake lines and hoses _ Front differential oil (4WD) _Cabin air filter _ Radiator and condenser _Drive belts _ Rear differential oil _Drive shaft boots (4WD) _ Steering gear _Engine coolant6 _ Steering linkage and boots
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from the air conditioner and heater or if the windows fog easily when you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:7
Replace engine oil and oil filter2
Replace front differential oil (4WD)
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (

53Maintenance Log
MAINTENANCE LOG
MAINTENANCE
120,000 miles or 144 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft boltReplace cabin air filter
Inspect the following: _ Automatic transmission for signs of leakage
_Ball joints and dust covers
_Brake lines and hoses
_ Brake linings/drums and brake pads/discs6
_Drive belts
_Drive shaft boots (4WD)
_Engine coolant7
_Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:8
Replace automatic transmission fluid
Replace front differential oil (4WD)
Replace rear differential oil
Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (
