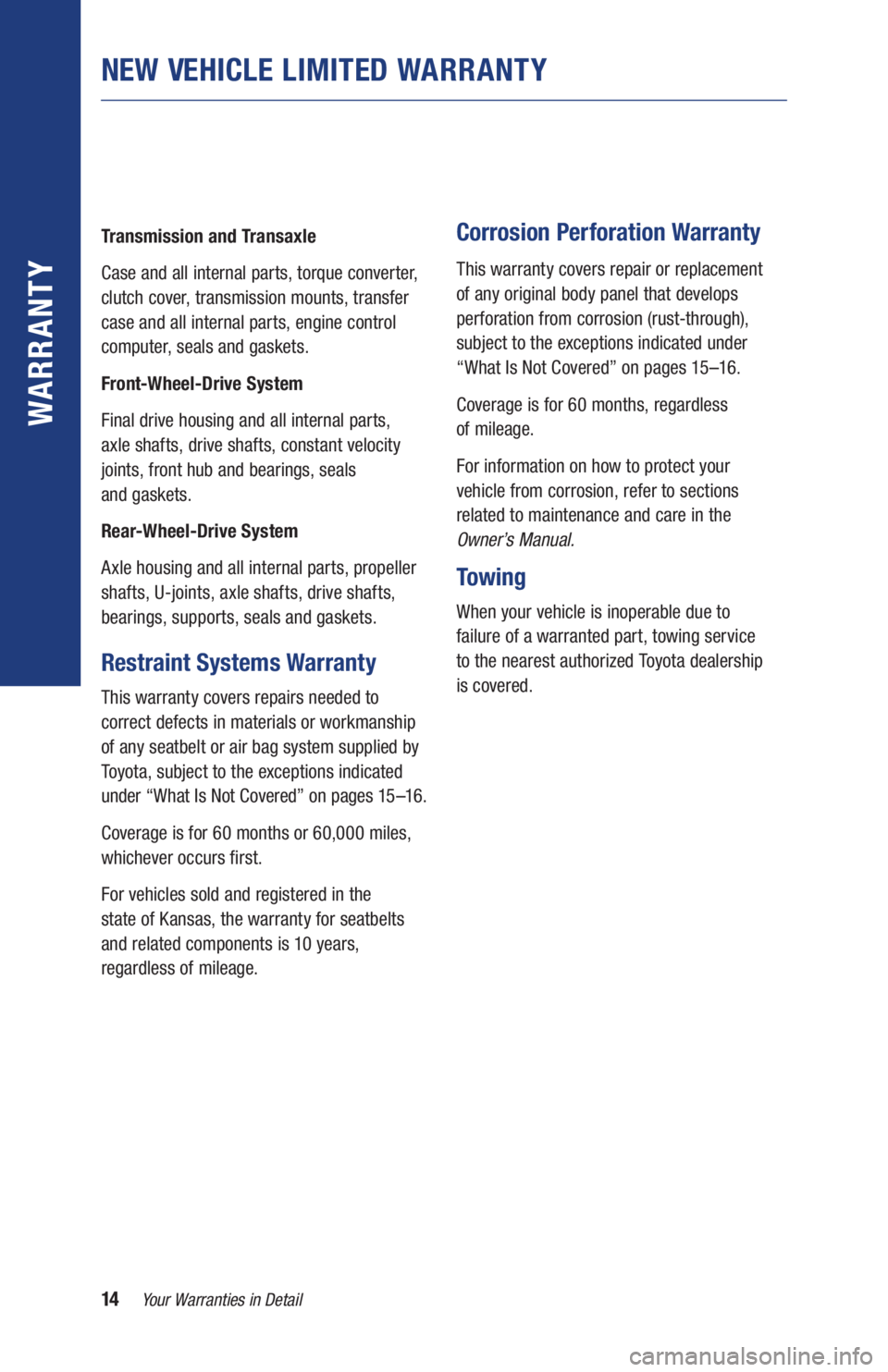

14Your Warranties in Detail
WARR ANT Y
Transmission and Transaxle
Case and all internal parts, torque converter,
clutch cover, transmission mounts, transfer
case and all internal parts, engine control
computer, seals and gaskets.
Front-Wheel-Drive System
Final drive housing and all internal parts,
axle shafts, drive shafts, constant velocity
joints, front hub and bearings, seals
and gaskets.
Rear-Wheel-Drive System
A xle housing and all internal parts, propeller
shafts, U-joints, axle shafts, drive shafts,
bearings, supports, seals and gaskets.
Restraint Systems Warranty
This warranty covers repairs needed to
correct defects in materials or workmanship
of any seatbelt or air bag system supplied by
Toyota, subject to the exceptions indicated
under “What Is Not Covered” on pages 15–16.
Coverage is for 60 months or 60,000 miles,
whichever occurs first.
For vehicles sold and registered in the
state of Kansas, the warranty for seatbelts
and related components is 10 years,
regardless of mileage.



Corrosion Perforation Warranty
This warranty covers repair or replacement
of any original body panel that develops
perforation from corrosion (rust-through),
subject to the exceptions indicated under
“What Is Not Covered” on pages 15–16.
Coverage is for 60 months, regardless
of mileage.
For information on how to protect your
vehicle from corrosion, refer to sections
related to maintenance and care in the
Owner’s Manual.
To w i n g
When your vehicle is inoperable due to
failure of a warranted part, towing service
to the nearest authorized Toyota dealership
is covered.
NEW VEHICLE LIMITED WARRANTY

39Maintenance Log
MAINTENANCE LOG
MAINTENANCE
15,000 miles or 18 months
Add Toyota EFI Tank Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs

NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_
Ball joints and dust covers _
Exhaust pipes and mountings
_
Brake lines and hoses _
Radiator, condenser and/or intercooler
_
Cabin air filter _
Steering gear
_
Drive shaft boots _
Steering linkage and boots
_
Engine/Inverter coolant
4




Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:
Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2

DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated.4
Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
5
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.

41Maintenance Log
MAINTENANCE LOG
MAINTENANCE
30,000 miles or 36 months
Add Toyota EFI Tank Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following:
_
Automatic transmission for signs of leakage
_
Ball joints and dust covers
_
Brake lines and hoses
_
Brake linings/drums and
brake pads/discs
4
_
Drive shaft boots
_
Engine/Inverter coolant
5
_
Exhaust pipes and mountings
_Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter




1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated. 4 Inspect thickness measurement and disc runout.5

Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
6
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
_
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_
Fuel tank cap gasket
_
Radiator, condenser and/or intercooler
_
Rear differential oil
_
Steering gear
_
Steering linkage and boots

43Maintenance Log
MAINTENANCE LOG
MAINTENANCE
45,000 miles or 54 months
Add Toyota EFI Tank Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_
Ball joints and dust covers _
Exhaust pipes and mountings
_
Brake lines and hoses _
Radiator, condenser and/or intercooler
_
Cabin air filter _
Steering gear
_
Drive shaft boots _
Steering linkage and boots
_
Engine/Inverter coolant
4



Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated.

4 Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
5
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.

45Maintenance Log
MAINTENANCE LOG
MAINTENANCE
60,000 miles or 72 months
Add Toyota EFI Tank Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following:
_
Automatic transmission for signs of leakage
_
Ball joints and dust covers
_
Brake lines and hoses
_
Brake linings/drums and
brake pads/discs
4
_
Drive shaft boots
_
Engine/Inverter coolant
5
_
Exhaust pipes and mountings

Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace automatic transmission fluid
Replace rear differential oil
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter

1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated. 4 Inspect thickness measurement and disc runout.5 Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
6
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
_
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_
Fuel tank cap gasket
_
Radiator, condenser and/or intercooler
_
Rear differential oil
_
Steering gear
_
Steering linkage and boots
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

47Maintenance Log
75,000 miles or 90 months
Add Toyota EFI Tank Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_
Ball joints and dust covers _
Exhaust pipes and mountings
_
Brake lines and hoses _
Radiator, condenser and/or intercooler
_
Cabin air filter _
Steering gear
_
Drive shaft boots _
Steering linkage and boots
_
Engine/Inverter coolant
4






Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.
MAINTENANCE LOG
MAINTENANCE
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated.4
Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
5
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

49Maintenance Log
MAINTENANCE LOG
MAINTENANCE
90,000 miles or 108 months
Add Toyota EFI Tank Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following:
_
Automatic transmission for signs of leakage
_
Ball joints and dust covers
_
Brake lines and hoses
_
Brake linings/drums and brake pads/discs
4
_
Drive shaft boots
_
Engine/Inverter coolant
5
_
Exhaust pipes and mountings


Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter

_
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_
Fuel tank cap gasket
_
Radiator, condenser and/or intercooler
_
Rear differential oil
_
Steering gear
_
Steering linkage and boots
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated. 4 Inspect thickness measurement and disc runout.5

Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
6
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

51Maintenance Log
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated.4 Initial engine coolant replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter
Initial inverter coolant replacement at 150,000 miles/180 months. Replace every 50,000 miles/60 months thereafter. Refer
to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
5

Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
6
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
105,000 miles or 126 months
Add Toyota EFI Tank Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_
Ball joints and dust covers _
Exhaust pipes and mountings
_
Brake lines and hoses _
Radiator, condenser and/or intercooler
_
Cabin air filter _
Steering gear
_
Drive shaft boots _
Steering linkage and boots
_
Engine/Inverter coolant
5





Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2

DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.
MAINTENANCE LOG
MAINTENANCE
