2019 TOYOTA PROACE VERSO warning light

243
Deactivation / Activation of
the alert and the braking
By default, the function is automatically activated at every engine start.The deactivation or activation of the function is done in the vehicle configuration menu.
With the audio system
In the "Personalisation-configuration" menu, activate/deactivate "Auto. emergency braking".
Autonomous emergency braking system with Pedestrian Detection
If the driver does not brake sufficiently to avoid an accident, this system will complete the braking.This emergency braking system will not act if you press the brake pedal.
With the touch screen
In the vehicle settings menu, activate/deactivate "Collision risk alert and automatic
braking".
In the event of a fault, you are alerted by the illumination of this warning lamp, accompanied by an audible signal and a message.Contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
Operating fault
There may be inter ference in the operation of the camera or it not work at all in the following situations:- poor visibility (inadequate street lighting, falling snow or rain, fog, ...),- dazzle (headlamps of an approaching vehicle on the other side of the road, low sun, reflection on a wet road, leaving a tunnel, alternating between light and shade, ...),- the area in front of the windscreen: dirty, misty, frosty, snow-covered, damaged or covered by a sticker.The operation of the radar, located in the front bumper, may be disturbed in certain weather conditions: with accumulations of snow, ice, mud, ...
6
Driving

246

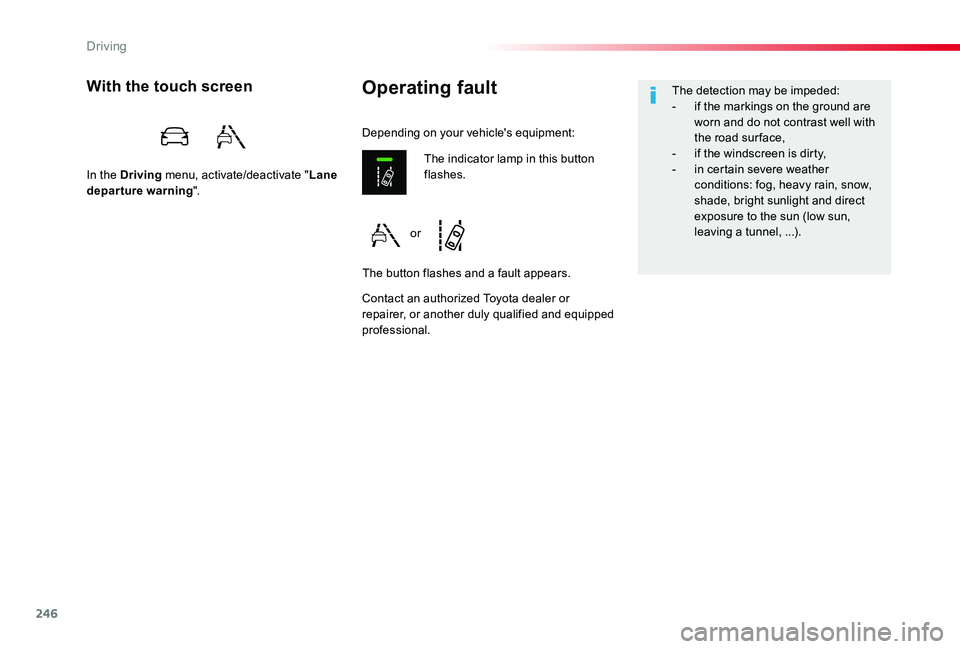

Operating faultWith the touch screen
In the Driving menu, activate/deactivate "Lane departure warning".
Contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
The indicator lamp in this button flashes.
The button flashes and a fault appears.
Depending on your vehicle's equipment:
The detection may be impeded:- if the markings on the ground are worn and do not contrast well with the road sur face,- if the windscreen is dirty,- in certain severe weather conditions: fog, heavy rain, snow, shade, bright sunlight and direct exposure to the sun (low sun, leaving a tunnel, ...).or
Driving

248

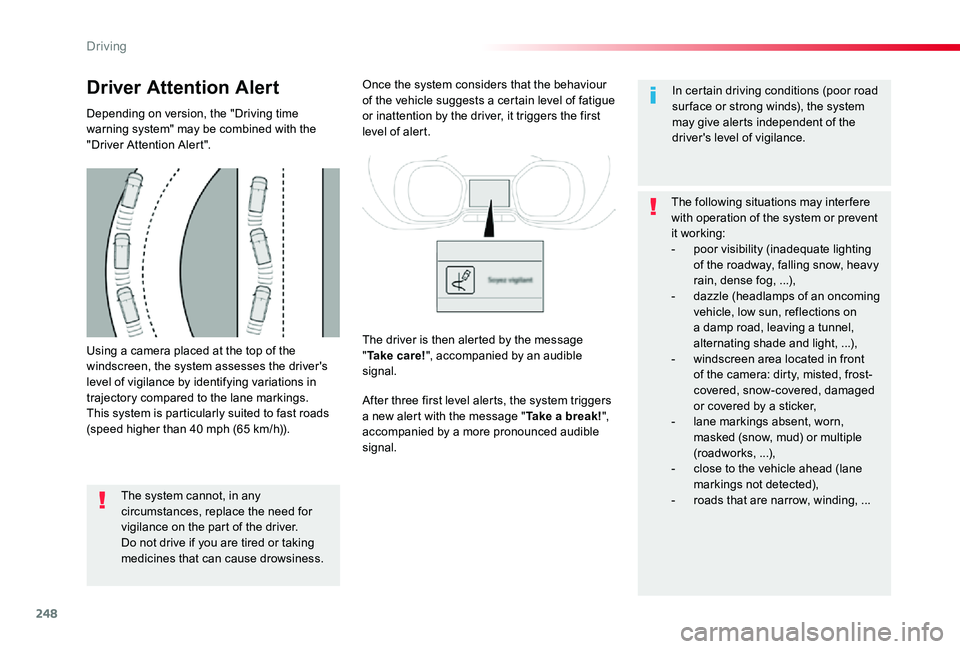

Using a camera placed at the top of the windscreen, the system assesses the driver's level of vigilance by identifying variations in trajectory compared to the lane markings.This system is particularly suited to fast roads (speed higher than 40 mph (65 km/h)).
Driver Attention Alert
Depending on version, the "Driving time warning system" may be combined with the "Driver Attention Alert".
The system cannot, in any circumstances, replace the need for vigilance on the part of the driver.Do not drive if you are tired or taking medicines that can cause drowsiness.
Once the system considers that the behaviour of the vehicle suggests a certain level of fatigue or inattention by the driver, it triggers the first level of alert.
After three first level alerts, the system triggers a new alert with the message "Take a break!", accompanied by a more pronounced audible
signal.
In certain driving conditions (poor road sur face or strong winds), the system may give alerts independent of the driver's level of vigilance.
The following situations may interfere with operation of the system or prevent it working:- poor visibility (inadequate lighting of the roadway, falling snow, heavy rain, dense fog, ...),- dazzle (headlamps of an oncoming vehicle, low sun, reflections on a damp road, leaving a tunnel, alternating shade and light, ...),- windscreen area located in front of the camera: dirty, misted, frost-covered, snow-covered, damaged or covered by a sticker,- lane markings absent, worn, masked (snow, mud) or multiple
(roadworks, ...),- close to the vehicle ahead (lane markings not detected),- roads that are narrow, winding, ...
The driver is then alerted by the message "Ta k e c a r e !", accompanied by an audible signal.
Driving

249
Blind spot monitoring system
A warning lamp appears in the door mirror on the side in question:- immediately, when being overtaken,- after a delay of about one second, when overtaking a vehicle slowly.
This driving assistance system warns the driver of the presence of another vehicle in the blind spot angle of their vehicle (areas masked from the driver's field of vision), as soon as this presents a potential danger.
The alert is given by a warning lamp which comes on in the door mirror on the side in question as soon as a vehicle - car, lorry, bicycle - is detected and the following conditions are fulfilled:- all the vehicles must be moving in the same direction and on adjacent lanes,- the speed of your vehicle is between 7 and 87 mph (12 and 140 km/h),- when you overtake a vehicle with a speed difference of less than 6 mph (10 km/h),- when a vehicle overtakes you with a speed difference of less than 15 mph (25 km/h),- the traffic must be flowing normally,- in the case of an overtaking manoeuvre, if this is prolonged and the vehicle being overtaken returns to the blind spot,- you are driving on a straight or slightly curved road,- your vehicle is not pulling a trailer, a caravan...
This system is designed to improve safety when driving and is in no circumstances a substitute for the use of the interior rear view mirror and door mirrors. It is the driver's responsibility to constantly check the traffic, to assess the distances and relative speeds of other vehicles and to predict their movements before deciding whether to change lane.The blind spot sensor system does not replace the need for vigilance on the part of the driver.
6
Driving

267
Accessories
A wide range of accessories and genuine parts is available from the Toyota dealer network.These accessories and parts are all suitable for your vehicle and benefit from Toyota's recommendation and warranty.
"Comfort"
Door deflectors, cigarette lighter, boot dividers, coat hanger fixed to head restraint, front and rear parking sensors, styling mudflaps, boot management system, ...
"Transport solutions"
Boot liners, roof bars, bicycle carrier on roof bars, ski carrier, roof box, towbar harness, ...Tow bar, which must be fitted by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
"Styling"
Wheel trims, wheel caps, door sills, gear lever knobs, ...
"Security and safety"
Anti-theft alarm, window engraving, wheel security bolts, child seats, breathalyzer, first aid kit, warning triangle, high visibility jacket, stolen vehicle tracking system, fleet management unit,
snow chains, tyre snow socks, front foglamps kit, ...
"Protection"
Mats*, seat covers compatible with lateral airbags, mud flaps, side protection rubbing strips, bumper protectors, loading area protection (on wood or plastic), rear sill finishers, rear mat, ...
The fitting of electrical equipment or accessories which are not recommended by Toyota may result in a failure of your vehicle's electronic system and excessive electrical consumption.
Contact a Toyota dealer for information on the range of recommended equipment and accessories.
Installation of radio communication transmitters
Before installing any after-market
radio communication transmitter, you can contact a Toyota dealer for the specification of transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive (2004/104/EC).
Depending on the legislation in force in the country, certain safety equipment may be compulsory: high visibility safety vests, warning triangles, breathalyzers, spare bulbs, spare fuses, fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.* To avoid any risk of jamming of the pedals:- ensure that the mat is positioned and secured correctly,- never fit one mat on top of another.
7
Practical information

497
Child lock, electric, manual ........................................................19 0Child lock on rear windows ...........................191Children ..................................167, 170, 173 -191Children (safety) ............................................19 0Child seats, conventional .......................179-18 2Child seats, ISOFIX ..............................18 4-18 6Closing the boot ..................................76, 79, 81Closing the doors ......................................65-78Coat hook ......................................................115Compressor, tyre inflation .......................................................285Connection, Bluetooth .....370, 396-398, 426, 452-454, 488Connection, MirrorLink ............................372, 3 74, 428, 430Connection, Wi-Fi network .....................................371, 427Connectivity ..........................................368, 424Control, emergency boot release ..................................................81Control, back-up door .........................................................50, 60Control, heated seats ................................91, 94Control stalk, lighting ....................................14 4Control stalk, wipers .....................................15 4Courtesy lamp, front .....................140, 307, 310Courtesy lamp, rear ......................140, 307, 310Courtesy lamps .............................140, 307, 310Cover, load space .................................115, 11 8
DAB (Digital Audio Broadcasting) - Digital radio ...........................................386, 442, 480Date (setting) ...................................44, 410, 466Daytime running lamps .........14 4, 147, 299-301Deactivating the passenger airbag .......170, 176Deactivation of DSC (ESC) ...........................161Deadlocking .......................................48, 53, 58Demisting, defrosting, front ..........................................131Demisting, defrosting, rear ..............................................................132Diagnostic system, engine ..............................19Dials ..........................................................13, 14Diesel ............................................................263Dimensions ...................................................323Dipstick ....................................................32, 273Direction indicators ...........14 6, 299, 302, 303, 305, 308Display, head-up ...........................................218Display screen, instrument panel .....13, 14, 204Door pockets .................................................112Doors ...............................................................65Doors, rear ......................................................79Doors, rear wing door ......5 7, 58, 61, 79, 80, 305, 306Driver Attention Alert ............................247, 248
EBA ...............................................................159Eco-driving (advice) ........................................11Electronic brake force distribution (EBFD) .....................................159Emergency call .....................................15 8, 328Emergency warning lamps ...................15 8, 282Emissions control system, SCR .............25, 278Energy economy mode .................................266Engine compartment ....................................272Engine, Diesel ........19, 263, 272, 322, 325, 326Environment ........................11, 51, 62, 132, 133, 13 4, 13 8, 209, 258, 275, 280, 316ESC (electronic stability control) ..................23, 159
D
E
Cruise control ................................................228 Cruise control, dynamic ......................................................232Cruise control by Road Sign Assist ..............223Cup holder .....................................................115
Driver’s attention warning .............................247Driver's door open warning .......................18, 72Driving abroad...............................................14 6Driving economically.......................................11Driving time warning .............................247, 248Dynamic stability control (DSC) ............................................23, 159, 161
.
Alphabetical index

500
Reversing camera .........................................255Reversing camera (on interior mirror) .......................................254Reversing lamp ....................................305, 308Road Sign Assist ...........................................221Roof bars .......................................................268Roof rack .......................................................268Running out of fuel (Diesel) ..........................322
Safety, children ................................167, 170, 173 -191Saturation of the Diesel Particle Filter (DPF) ..........................................................276Screen, instrument panel ..........................38, 39Screen menu map .......................342, 344, 346, 348, 350, 352, 360, 362, 364, 368, 3 74, 376, 378, 380, 382, 390, 392, 394, 402, 404, 406, 424, 430, 432, 434, 436, 438, 446, 448, 450, 458, 460, 462Screen, menus ..............................335, 423, 477Screenwash ..................................................15 6Screenwash, rear ..........................................15 5SCR (Selective Catalytic Reduction) ............278Seat and bench seat, rear, fixed .............98, 109Seat and bench seat, rear, on rails .......................................101, 109Seat belts ...............................16 4-167, 179, 18 0Seat belts, rear ..............................................165Seat, bench front, 2-seat ........................93, 165Seats, electric .................................................90
S
Pads, brake ...................................................277Paint colour code ..........................................327Parcel shelf, rear ...........................................11 8Parking brake ..................................16, 201, 277Parking sensors, audible and visual ....................................................253Plates, identification......................................327Player, Apple® ..............................389, 445, 485Player, MP3 CD .............................................484Player, USB ..................................388, 444, 482Port, USB .............................113, 388, 444, 482Pressures, tyres ........................... 290, 297, 327Pre-tensioning seat belts ..............................16 4Priming the fuel system ................................322Profiles .................................................408, 464Protecting children ..................167, 170, 173 -191Puncture ........................................................285
PR
Radio ............................................384, 440, 478Radio, digital (Digital Audio Broadcasting - DAB) ..................386, 442, 480Radio Media ..........................................378, 434Range ..............................................................40Range, AdBlue ................................................33RDS ...............................................385, 4 41, 478Rear screen, demisting .................................13 3Rear screen, opening .....................................82Recharging the battery .................................318Recirculation, air ...................................125, 13 0Reduction of electrical load .............................................................266Regeneration of the Diesel Particle Filter (DPF) ..................276Reinitialisation of the Tyre Pressure Warning System (TPWS) ...........................259Reinitialising the remote control .....................................................51, 62Reminder, key in ignition ...............................197Reminder, lighting on ....................................14 6Remote control .....................................................45-65Removing a wheel ........................................294Removing the mat .........................................11 0Replacing bulbs ...........................................................298Replacing fuses ............................................311Replacing the air filter ...................................276Replacing the oil filter ...................................276Replacing the passenger compartment filter ......................................276Reser voir, headlamp wash ...........................275Reservoir, screenwash .................................275Resetting the service indicator ........................................................31Resetting the trip recorder ........................................................36Rev counter ...............................................13, 14
Alphabetical index

502
Warning lamp, Stop ........................................16Washer jets, heated ..............................131, 157Weights .................................................324-326Welcome lighting...........................................149Wheel, spare ........................258, 284, 291, 292Windows, rear ...............................................11 8Windscreen, heated ..............................131, 157Wiper blades (changing) .......................157, 269Wiper, rear.............................................15 5, 15 6Wipers .............................................27, 15 4, 15 5Wipers, automatic rain sensitive ...........15 4, 15 5
Unlocking the doors ..................................69, 71Updating the date ............................44, 410, 466Updating the time ............................44, 411, 467USB ......................................113, 388, 444, 482
Ventilation .............................125, 127, 13 4, 13 5Voice commands ..................................336-3 41
Warning and indicator lamps ....................15-28Warning lamp, braking system .......................16Warning lamp, Diesel engine pre-heater .....................................................19Warning lamp, door(s) open ...........................18Warning lamp, driver's seat belt not fastened ......................................................166Warning lamps ................................................15Warning lamp, SCR emissions control system ...........................................................25Warning lamp, seat belts ..............................166Warning lamp, Ser vice....................................26
V
W
Alphabetical index
