Warning / indicator lampStateCauseAction / Observations
Automatic wipingfixed.The wiper control has been pushed down.Automatic front wiping is activated.To deactivate automatic wiping, operate the control stalk downwards or put the stalk into another position.
Automatic headlamp dipping
fixed.The lighting control stalk is in the "AUTO" position, and the function has been activated.The main beam headlamps come on if the exterior lighting and driving conditions permit.
The camera, located at the top of the windscreen, manages the operation of main beam, depending on the ambient lighting and driving conditions.For more information on Automatic headlamp dipping, refer to the corresponding section.
Stop & Star tfixed.When the vehicle stops (red lights, traffic jams, ...) the Stop & Start system has put the engine into STOP mode.
The warning lamp goes off and the engine restarts automatically in START mode, as soon as you want to move off.
flashes for a few seconds, then goes of f.
STOP mode is temporarily unavailable,orSTART mode is invoked automatically.
For more information on Stop & Star t, refer to the corresponding section.
Blind spot monitoring system
fixed.The blind spot monitoring system has been activated.For more information on the Blind spot monitoring system, refer to the corresponding section.
1
Instruments

29
With the engine running, when the needle is:
- in zone A, the temperature of the engine coolant is correct,- in zone B, the temperature of the engine coolant is too high; the maximum temperature and the central STOP warning lamps come on, accompanied by an audible signal and a warning message in the touch screen.You MUST stop as soon as it is safe to do so.Wait a few minutes before switching off the engine.Contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
After driving for a few minutes, the temperature and pressure in the cooling system increase.To top-up the level:F wait at least one hour for the engine to cool,F unscrew the cap two turns to allow the pressure to drop,F when the pressure has dropped, remove the cap,F top-up the level to the "MA X" mark.
Be aware of the risk of burns when topping-up the cooling system. Do not
fill above the maximum level (indicated on the header tank).
Engine coolant temperatureService indicator
System which informs the driver when the next ser vice is due, in accordance with the manufacturer's servicing schedule.
The point at which the next ser vice is due is calculated from the last indicator zero reset, depending on the distance travelled and the time elapsed since the last ser vice.
For Diesel versions, the degree of deterioration of the engine oil is also taken into account (depending on the country of sale).
Checking the level
1
Instruments

31
The distance remaining may be weighted by the time factor, depending on the driving conditions.Therefore, the spanner may also come on if you have exceeded the period since the last ser vice, indicated in the manufacturer's service schedule.For Diesel versions, the spanner may also be brought on earlier than expected, depending on the degree of deterioration of the engine oil (depending on the country of sale).The rate of deterioration of the engine oil depends on the driving conditions in which the vehicle is used.
Resetting the service indicatorIf you have to disconnect the battery following this operation, lock the vehicle and wait at least five minutes for the reset to be registered.
You can access the ser vice information at any time.After each service, the service indicator must be reset to zero.If you have carried out the ser vice on your vehicle yourself, switch off the ignition:
Retrieving the service information
F Press and hold this button,
F Switch on the ignition; the distance recorder display begins a countdown,F When the display indicates "=0", release the button; the spanner disappears.
F Press this button.
The ser vice information is displayed for a few seconds, then disappears.
1
Instruments

32

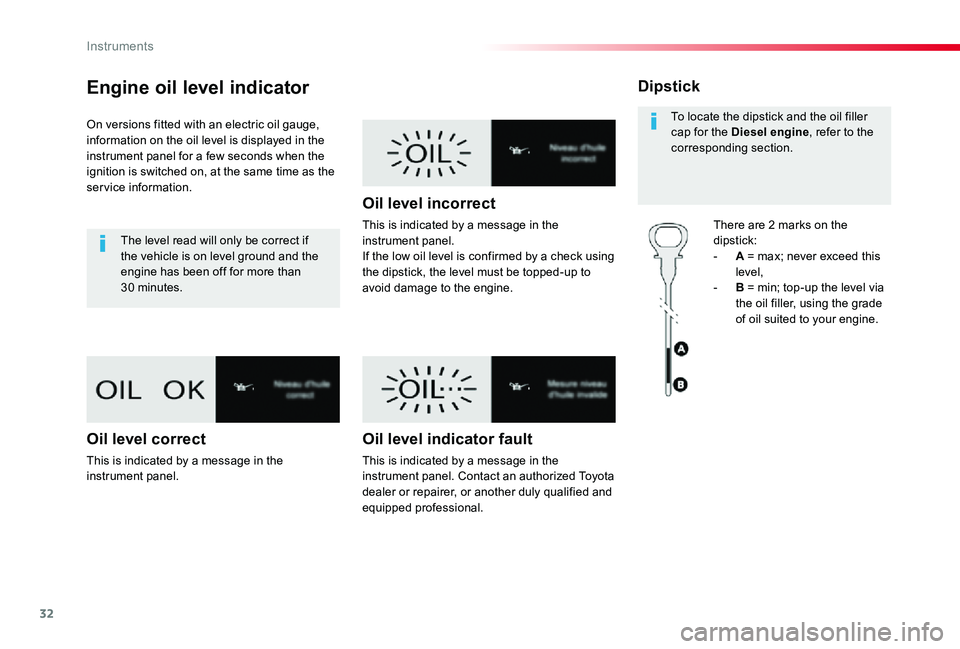

Engine oil level indicator
On versions fitted with an electric oil gauge, information on the oil level is displayed in the instrument panel for a few seconds when the ignition is switched on, at the same time as the service information.
The level read will only be correct if the vehicle is on level ground and the engine has been off for more than 30 minutes.
Oil level correct
This is indicated by a message in the instrument panel.
Oil level incorrect
This is indicated by a message in the instrument panel.If the low oil level is confirmed by a check using the dipstick, the level must be topped-up to avoid damage to the engine.
Oil level indicator fault
This is indicated by a message in the instrument panel. Contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
Dipstick
There are 2 marks on the dipstick:- A = max; never exceed this level,- B = min; top-up the level via the oil filler, using the grade of oil suited to your engine.
To locate the dipstick and the oil filler cap for the Diesel engine, refer to the corresponding section.
Instruments

33

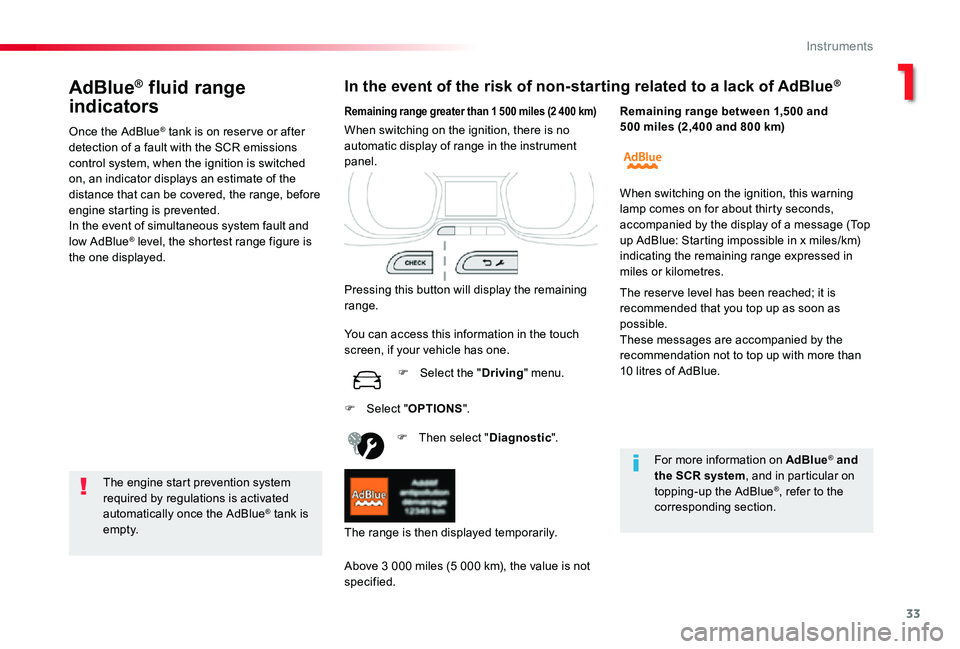

AdBlue® fluid range
indicators
Once the AdBlue® tank is on reser ve or after detection of a fault with the SCR emissions control system, when the ignition is switched on, an indicator displays an estimate of the distance that can be covered, the range, before engine starting is prevented.In the event of simultaneous system fault and low AdBlue® level, the shortest range figure is the one displayed.
In the event of the risk of non-starting related to a lack of AdBlue®
The engine start prevention system required by regulations is activated automatically once the AdBlue® tank is e m pt y.
Remaining range greater than 1 500 miles (2 400 km)
Pressing this button will display the remaining range.
F Then select "Diagnostic".
Above 3 000 miles (5 000 km), the value is not specified.
When switching on the ignition, there is no automatic display of range in the instrument panel.
The range is then displayed temporarily.
You can access this information in the touch screen, if your vehicle has one.
F Select the "Driving" menu.
F Select "OPTIONS".
Remaining range between 1,500 and 500 miles (2,400 and 800 km)
For more information on AdBlue® and the SCR system, and in particular on topping-up the AdBlue®, refer to the corresponding section.
When switching on the ignition, this warning lamp comes on for about thirty seconds, accompanied by the display of a message (Top up AdBlue: Starting impossible in x miles/km)
indicating the remaining range expressed in miles or kilometres.
The reser ve level has been reached; it is recommended that you top up as soon as possible.These messages are accompanied by the recommendation not to top up with more than 10 litres of AdBlue.
1
Instruments

34

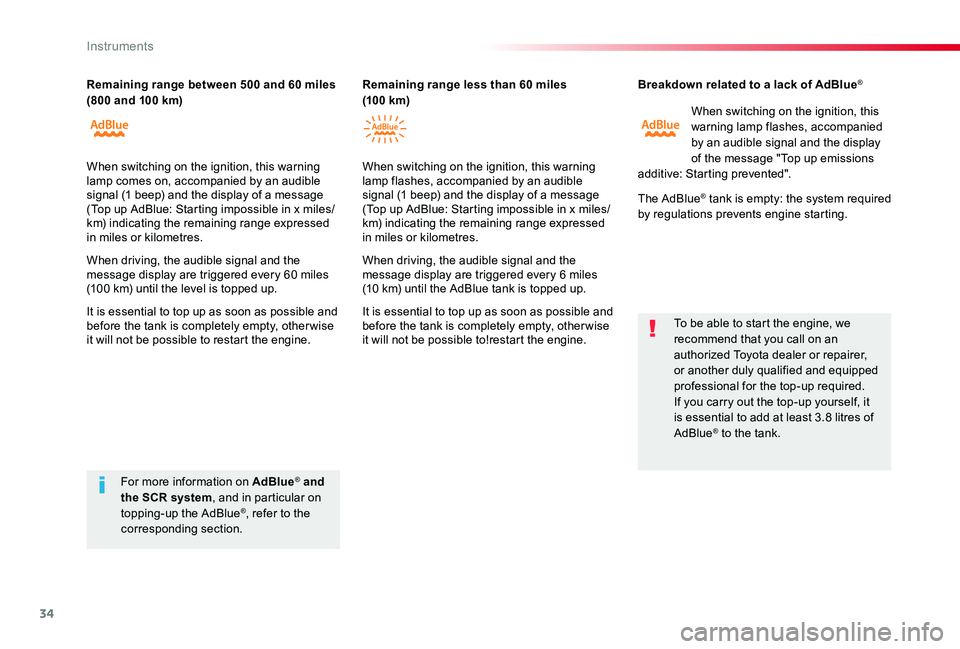

Breakdown related to a lack of AdBlue®
When switching on the ignition, this warning lamp flashes, accompanied by an audible signal and the display of the message "Top up emissions additive: Starting prevented".
The AdBlue® tank is empty: the system required by regulations prevents engine starting.
To be able to start the engine, we recommend that you call on an authorized Toyota dealer or repairer, or another duly qualified and equipped professional for the top-up required.If you carry out the top-up yourself, it is essential to add at least 3.8 litres of AdBlue® to the tank.
For more information on AdBlue® and the SCR system, and in particular on topping-up the AdBlue®, refer to the corresponding section.
Remaining range between 500 and 60 miles (800 and 100 km)Remaining range less than 60 miles (10 0 km)
When switching on the ignition, this warning lamp comes on, accompanied by an audible signal (1 beep) and the display of a message (Top up AdBlue: Starting impossible in x miles/km) indicating the remaining range expressed in miles or kilometres.
When driving, the audible signal and the message display are triggered every 60 miles (100 km) until the level is topped up.
It is essential to top up as soon as possible and before the tank is completely empty, other wise it will not be possible to restart the engine.
When switching on the ignition, this warning lamp flashes, accompanied by an audible signal (1 beep) and the display of a message (Top up AdBlue: Starting impossible in x miles/ km) indicating the remaining range expressed in miles or kilometres.
When driving, the audible signal and the message display are triggered every 6 miles (10 km) until the AdBlue tank is topped up.
It is essential to top up as soon as possible and before the tank is completely empty, other wise it will not be possible to!restart the engine.
Instruments

35
Starting prevented
Every time the ignition is switched on, these warning lamps come on, accompanied by an audible signal and the display of the message "Emissions fault: Starting prevented".
You have exceeded the authorised driving limit: the starting prevention system inhibits engine starting.
To be able to start the engine, you must call on an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.

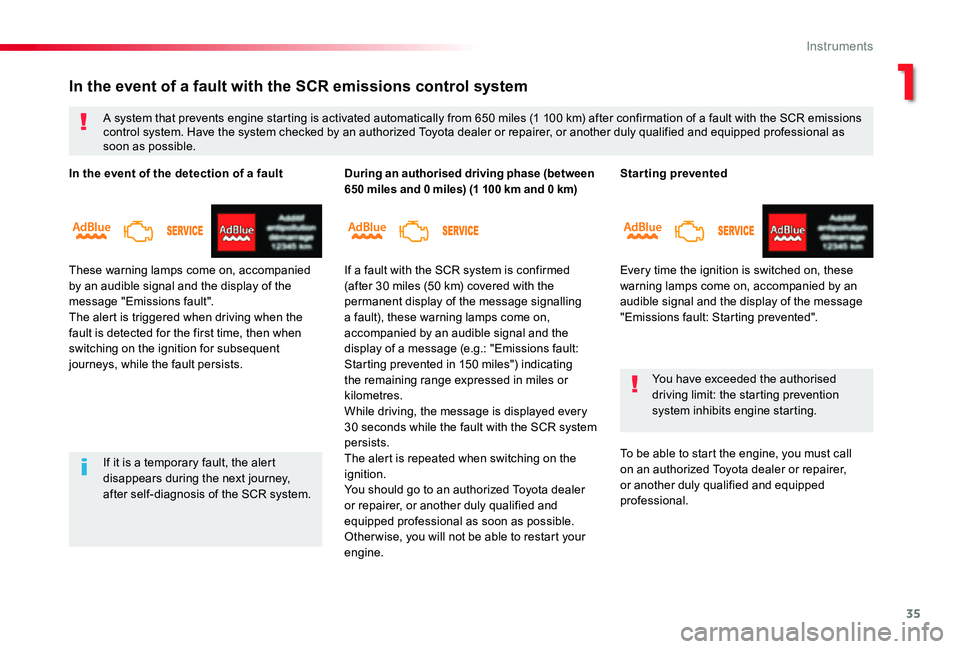

In the event of a fault with the SCR emissions control system
A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions control system. Have the system checked by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional as soon as possible.
If it is a temporary fault, the alert disappears during the next journey, after self-diagnosis of the SCR system.
In the event of the detection of a fault
These warning lamps come on, accompanied by an audible signal and the display of the message "Emissions fault".The alert is triggered when driving when the fault is detected for the first time, then when switching on the ignition for subsequent journeys, while the fault persists.
During an authorised driving phase (between 650 miles and 0 miles) (1 100 km and 0 km)
If a fault with the SCR system is confirmed (after 30 miles (50 km) covered with the permanent display of the message signalling a fault), these warning lamps come on, accompanied by an audible signal and the display of a message (e.g.: "Emissions fault: Starting prevented in 150 miles") indicating the remaining range expressed in miles or kilometres.While driving, the message is displayed every 30 seconds while the fault with the SCR system persists.The alert is repeated when switching on the ignition.You should go to an authorized Toyota dealer or repairer, or another duly qualified and equipped professional as soon as possible.Other wise, you will not be able to restart your
engine.
1
Instruments

45
Unfolding / Folding the key
F Press this button to unfold or fold the key.
If you do not press the button, you risk damaging the remote control.
It allows the central locking or unlocking of the vehicle using the door lock or from a distance.It also allows the vehicle to be located, the fuel filler cap to be removed and refitted and the engine to be started or switched off, as well as providing protection against theft.
Key, remote control
The remote control buttons are not active when the ignition is switched on.
Key
The key allows the central locking or unlocking of the vehicle using the door lock.It also allows the fuel filler cap to be removed and refitted and the engine started or switched off.
