2019 TOYOTA PRIUS PLUS engine coolant

3866-3. Do-it-yourself maintenance
PRIUS +_OM_OM47D30E_(EE)
Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of
their condition, have your vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
WARNING
■ When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■ When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator and condenser
WARNING
■ When the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.
■ When the electric cooling fans are operating
Do not touch the engine compartment.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature
is high. Be sure the power switch is off when working near the electric cool-
ing fans or radiator grille.

4437-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises

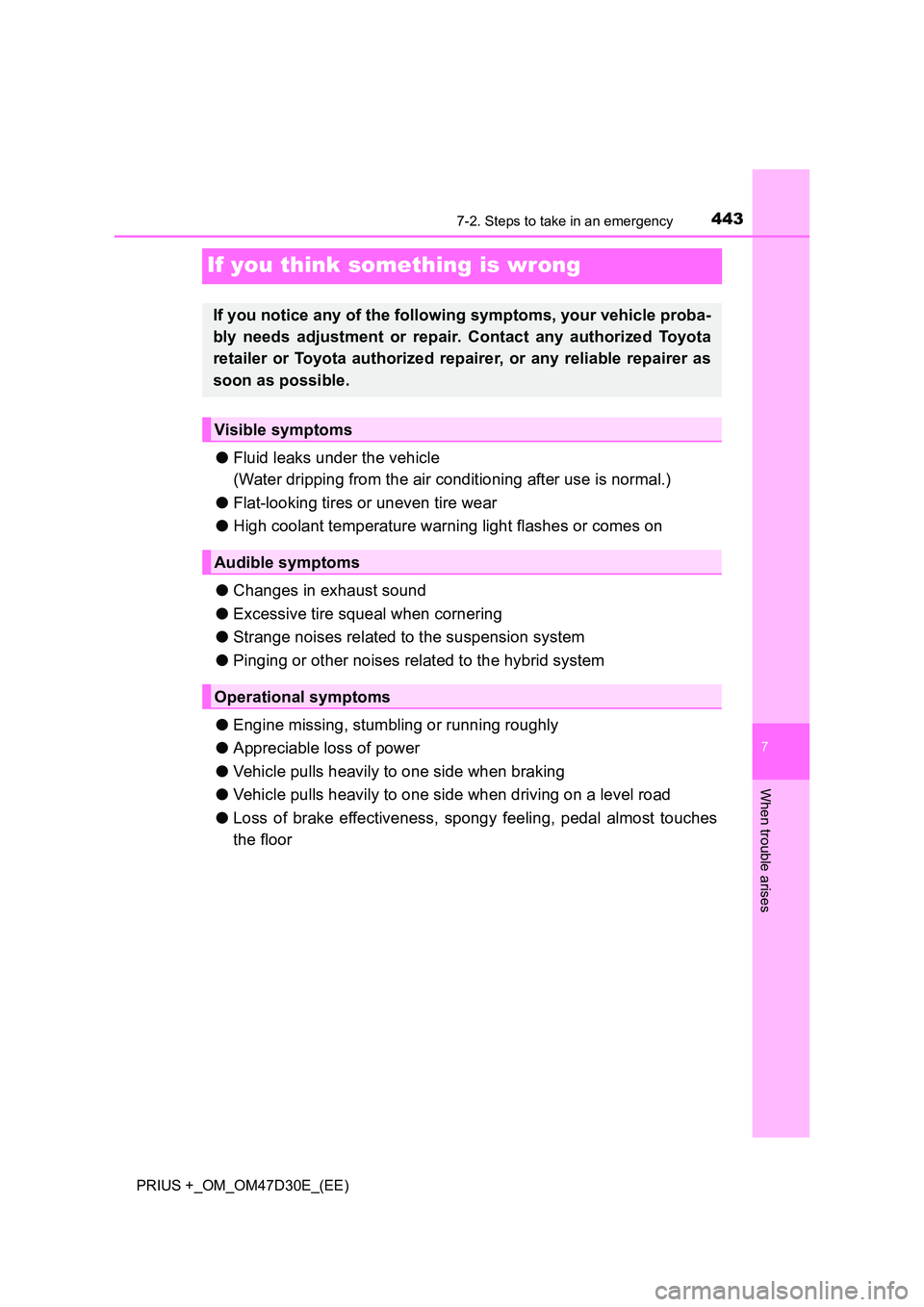

If you think something is wrong
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● High coolant temperature warning light flashes or comes on
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
● Engine missing, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

4497-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises
(If equipped)
Hybrid system overheat warning light (warning buzzer)
Indicates that the hybrid system has overheated
This light may come on when driving under severe operat-
ing conditions, and the output of the hybrid system may
temporarily decrease in order to protect the system. (For
example, when driving up a long steep hill or driving up a
steep hill in reverse.)
 Stop the vehicle in a safe place.
Handling method ( P. 520)
(If equipped)
Cruise control indicator (yellow indicator)
Indicates a malfunction in the cruise control
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
(Only outer frame flashes)(If equipped)
Low hybrid battery (traction battery) warning light
(warning buzzer)
Hybrid battery (traction battery) level becomes low
because the shift position is in N for long time
 Because recharging is not possible when the shift
position is in N, shift the shift position to P when
parking the vehicle for a long time.
High coolant temperature warning light
Changes from a flashing to a solid light when the engine
coolant temperature increases
 Immediately stop the vehicle in a safe place.
( P. 518)
Automatic headlight leveling system warning light
Indicates a malfunction in the automatic headlight leveling
system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Open door warning light (warning buzzer)*3
Indicates that a door is not fully closed
 Check that all the doors are closed.
Low fuel level warning light
Indicates that remaining fuel is approximately 6.0 L (1.6
gal., 1.3 Imp.gal.) or less
 Refuel the vehicle.
Warning lightWarning light/Details/Actions

5217-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises
After stopping the hybrid system and waiting for 5 minutes or
more, start the hybrid system and check for the instrument clus-
ter or multi-information display.
If the hybrid system overheat warning light does not turn off or
the message does not disappear:
Stop the hybrid system and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
If the hybrid system overheat warning light does not come on or
the message is not displayed:
The hybrid system temperature has dropped and the vehicle may
be driven normally.
However, if the warning light comes on again frequently or the message
appears again frequently, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
WARNING
■ When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fan may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the coolant reservoir cap while the hybrid system and radia-
tor are hot.
High temperature steam or coolant could spray out.
6

5227-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)

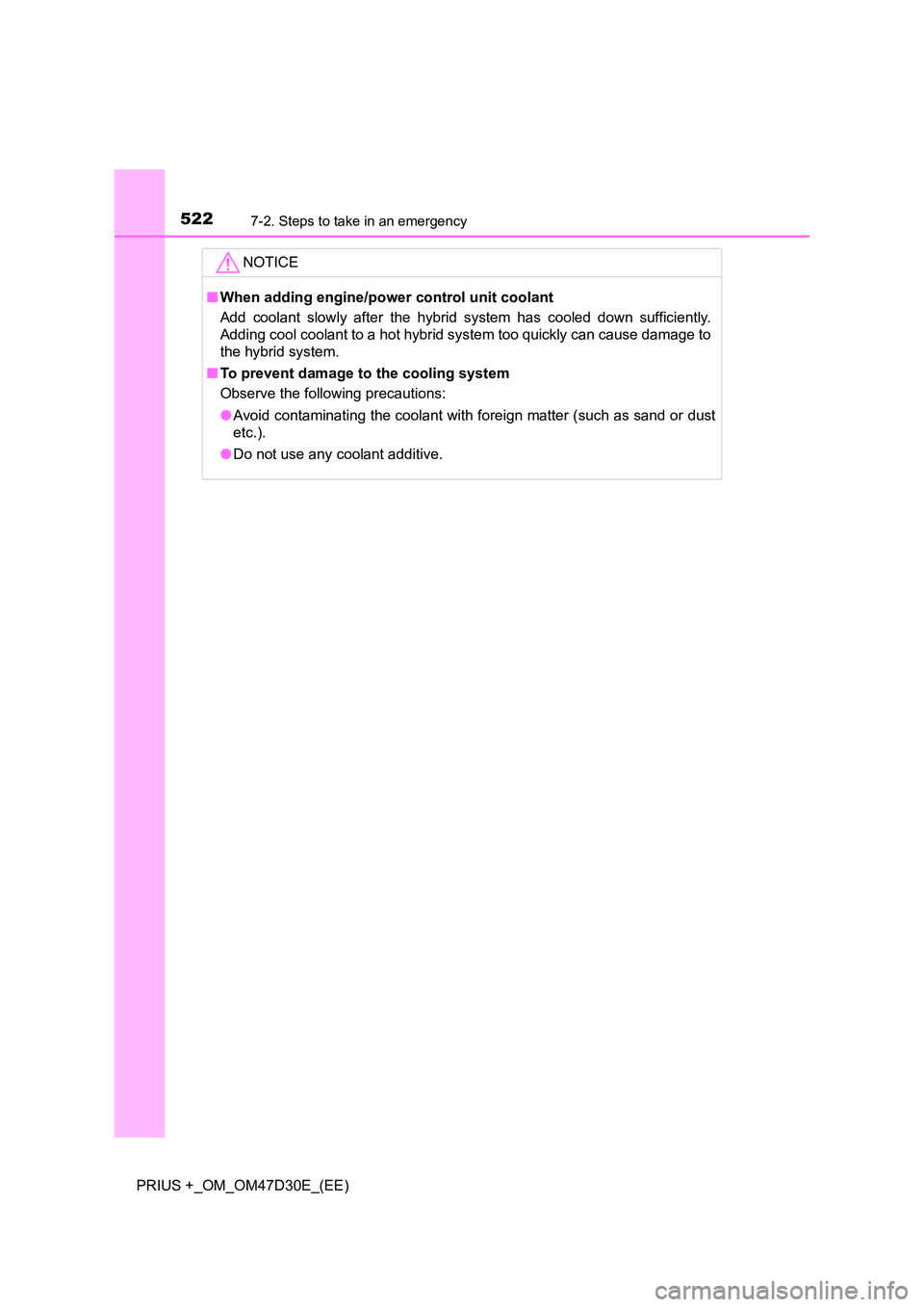

NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently.
Adding cool coolant to a hot hybrid system too quickly can cause damage to
the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.

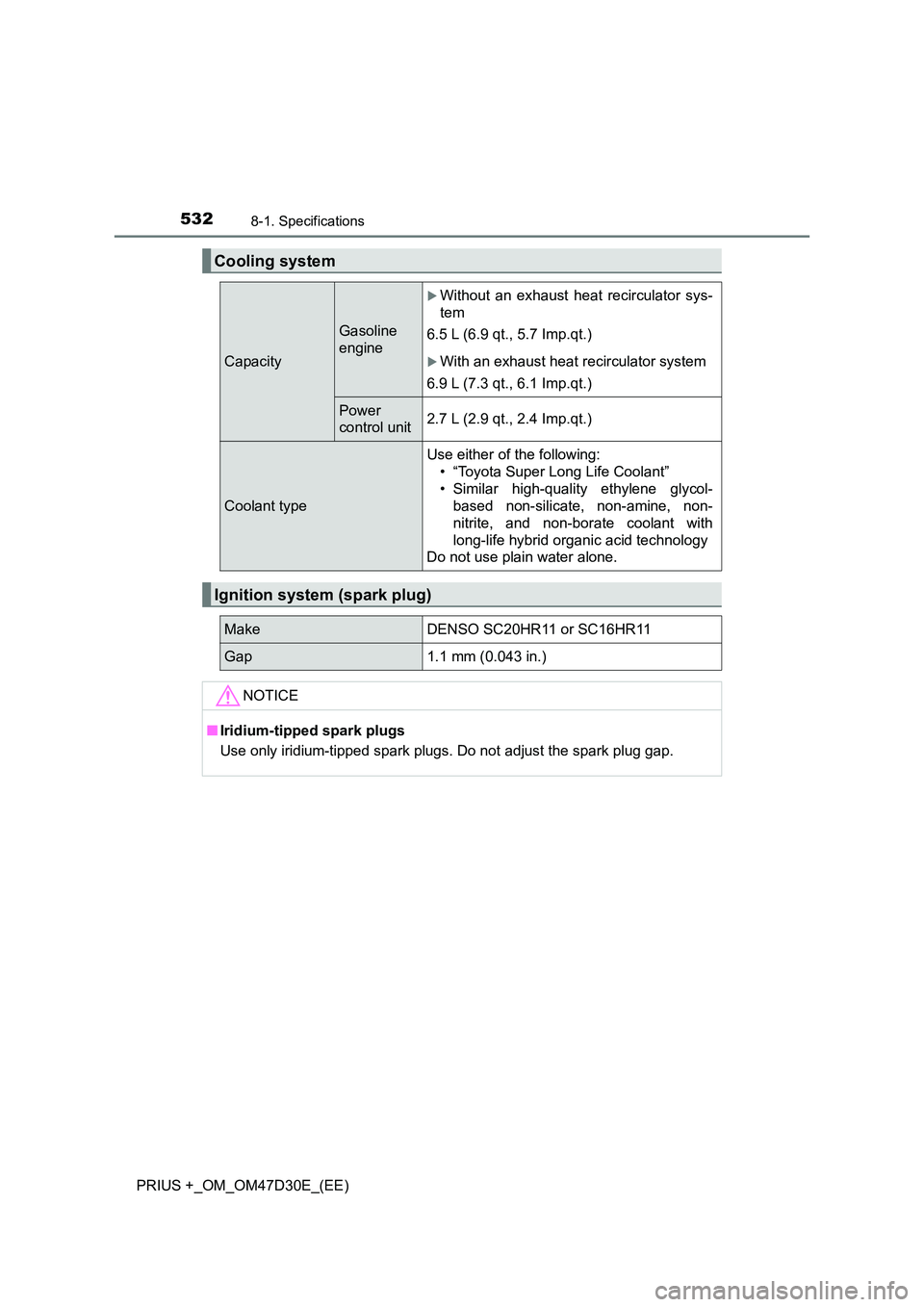

5328-1. Specifications
PRIUS +_OM_OM47D30E_(EE)
Cooling system
Capacity
Gasoline
engine
Without an exhaust heat recirculator sys-
tem
6.5 L (6.9 qt., 5.7 Imp.qt.)
With an exhaust heat recirculator system
6.9 L (7.3 qt., 6.1 Imp.qt.)
Power
control unit2.7 L (2.9 qt., 2.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO SC20HR11 or SC16HR11
Gap1.1 mm (0.043 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

556Alphabetical index
PRIUS +_OM_OM47D30E_(EE)
Emergency, in case of
If a warning buzzer sounds ... 444
If a warning light turns on ...... 444
If a warning message is
displayed ............................ 458
If the 12-volt battery is
discharged .......................... 513
If the electronic key does not
operate properly ................. 511
If the hybrid system will not
start..................................... 509
If the vehicle is trapped in
rising water ......................... 436
If you have a flat tire...... 478, 492
If you lose your keys ............. 143
If you think something is
wrong .................................. 443
If your vehicle becomes
stuck ................................... 523
If your vehicle has to be
stopped in an emergency ... 435
If your vehicle needs to be
towed .................................. 437
If your vehicle overheats ....... 518
Energy monitor ........................ 134Engine
Accessory mode ................... 227
Compartment ........................ 379
Engine switch........................ 224
Exhaust gas precautions ........ 80
Hood ..................................... 375
How to start the hybrid
system ................................ 224
Identification number ............ 528
If the hybrid system will not
start .................................... 509
If your vehicle has to be
stopped in an emergency ... 435
Ignition switch
(power switch) .................... 224
Overheating .......................... 518
Power switch......................... 224
Engine coolant
Capacity ................................ 532
Checking ............................... 385
Preparing and checking
before winter....................... 327
Engine coolant temperature
warning light .......................... 449

561Alphabetical index
PRIUS +_OM_OM47D30E_(EE)
Navigation system*
Odometer .................................. 119
Oil
Engine oil .............................. 529
Opener
Fuel filler door ....................... 258
Hood ..................................... 375
Outside rear view mirrors ....... 206
Adjustment ............................ 206
Folding .................................. 206
Outside rear view mirror
defoggers............................ 335
Outside temperature
display .................................... 337
Overhead console.................... 349
Overheating .............................. 518
Overheating, Engine ................ 518
P position switch ..................... 234
Parking brake
Operation .............................. 240
Parking brake engaged
warning buzzer ................... 451
Parking lock ............................. 234
PCS (Pre-Crash Safety system)
Function ................................ 271
Warning light ......................... 446
Warning message ......... 463, 465Personal lights ......................... 342
Switch ................................... 343
Wattage ................................ 536
Pollen removal mode .............. 335
Power control unit coolant
Capacity ................................ 532
Checking ............................... 385
Preparing and checking
before winter....................... 327
Radiator ................................ 386
Power outlets ........................... 356
Power steering (Electric
Power Steering system) ....... 318
Warning light ......................... 445
Power switch............................ 224
Auto power off function ......... 228
Changing the power
switch modes...................... 227
If your vehicle has to be
stopped in an emergency ... 435
Starting the hybrid
system ................................ 224
Power switch light ................... 342
Power windows
Jam protection function......... 208
Operation .............................. 208
Window lock switch............... 208
Pre-Crash Safety system (PCS)
Function ................................ 271
Warning light ......................... 446
Warning message ......... 463, 465
N
O
P
*: Refer to the “Navigation and multimedia system Owner’s Manual”.
