2019 TOYOTA PRIUS PLUS display

117
2

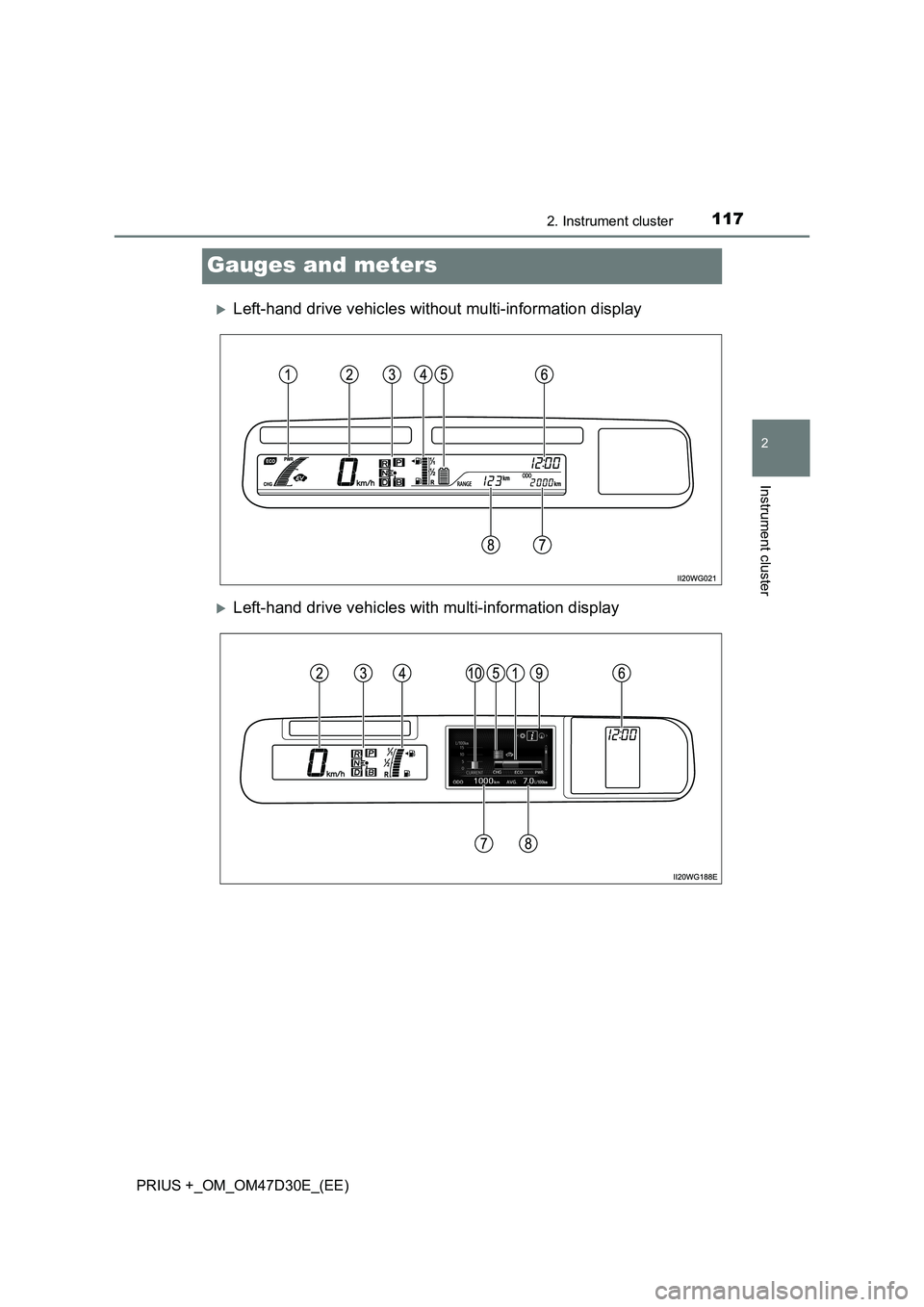

2. Instrument cluster
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Gauges and meters
Left-hand drive vehicles without multi-information display
Left-hand drive vehicles with multi-information display

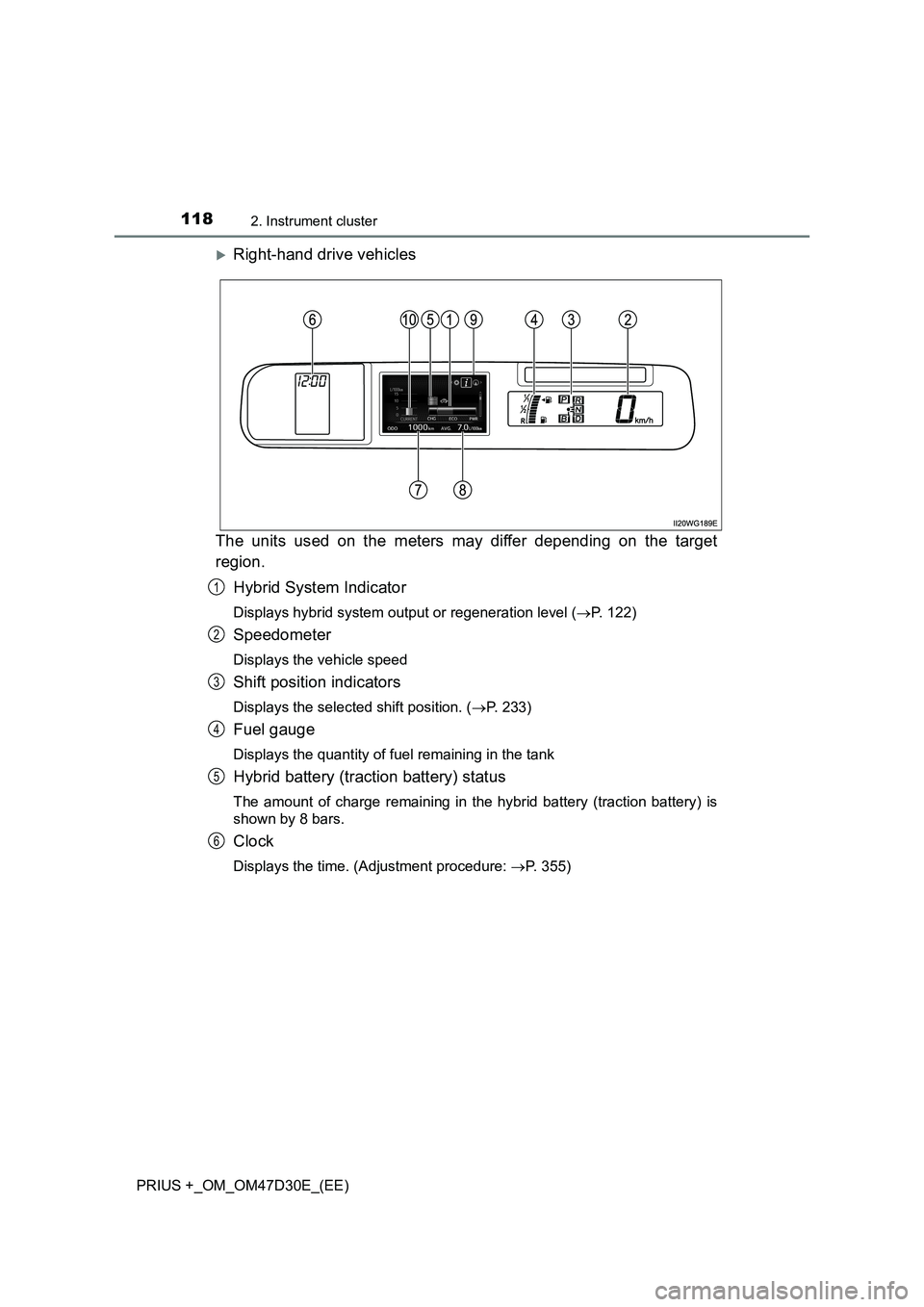

1182. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Right-hand drive vehicles
The units used on the meters may differ depending on the target
region.
Hybrid System Indicator
Displays hybrid system output or regeneration level (P. 122)
Speedometer
Displays the vehicle speed
Shift position indicators
Displays the selected shift position. (P. 233)
Fuel gauge
Displays the quantity of fuel remaining in the tank
Hybrid battery (traction battery) status
The amount of charge remaining in the hybrid battery (traction battery) is
shown by 8 bars.
Clock
Displays the time. (Adjustment procedure: P. 355)
1
2
3
4
5
6

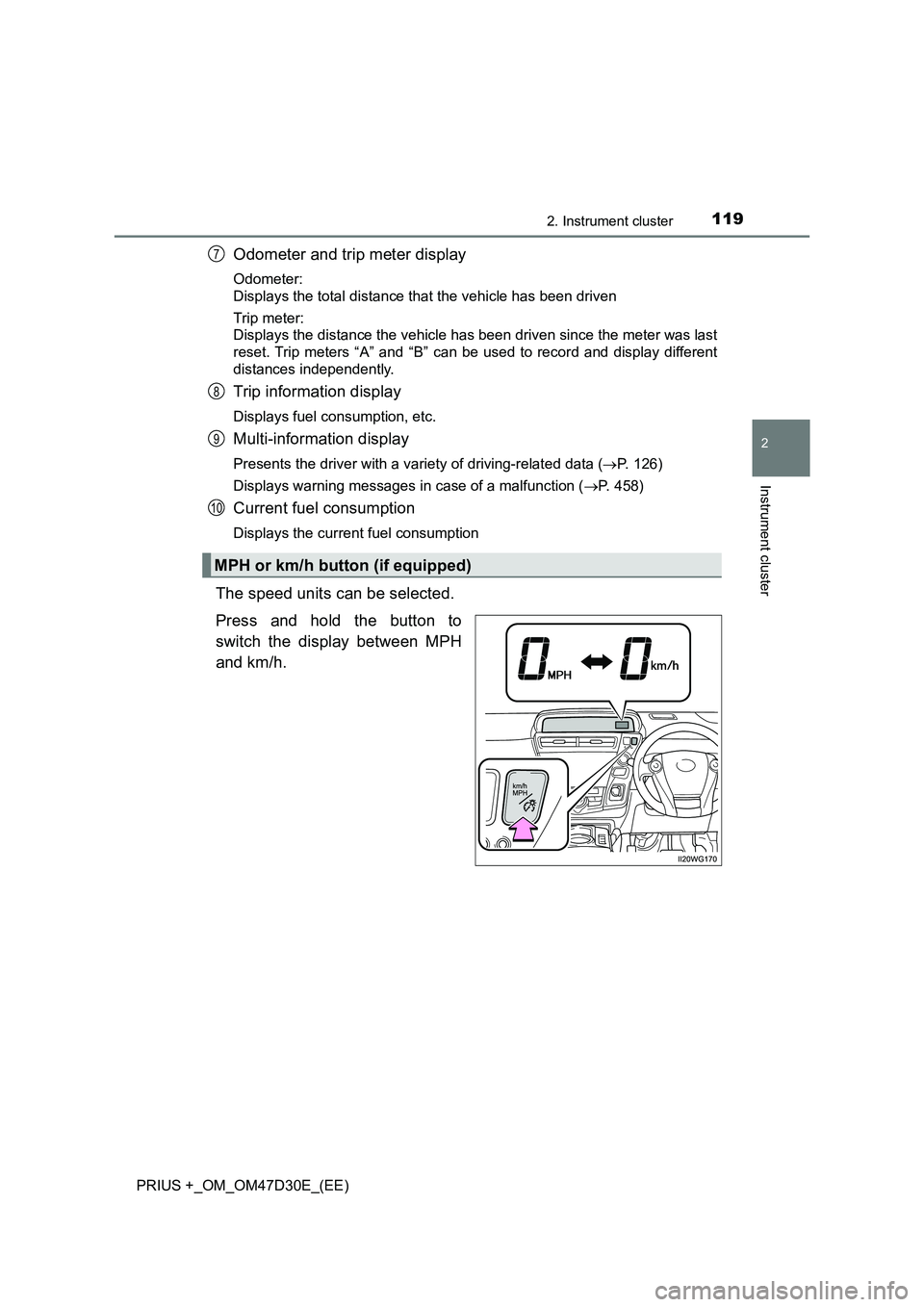

1192. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Odometer and trip meter display
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
Trip information display
Displays fuel consumption, etc.
Multi-information display
Presents the driver with a variety of driving-related data (P. 126)
Displays warning messages in case of a malfunction (P. 458)
Current fuel consumption
Displays the current fuel consumption
The speed units can be selected.
Press and hold the button to
switch the display between MPH
and km/h.
MPH or km/h button (if equipped)
7
8
9
10

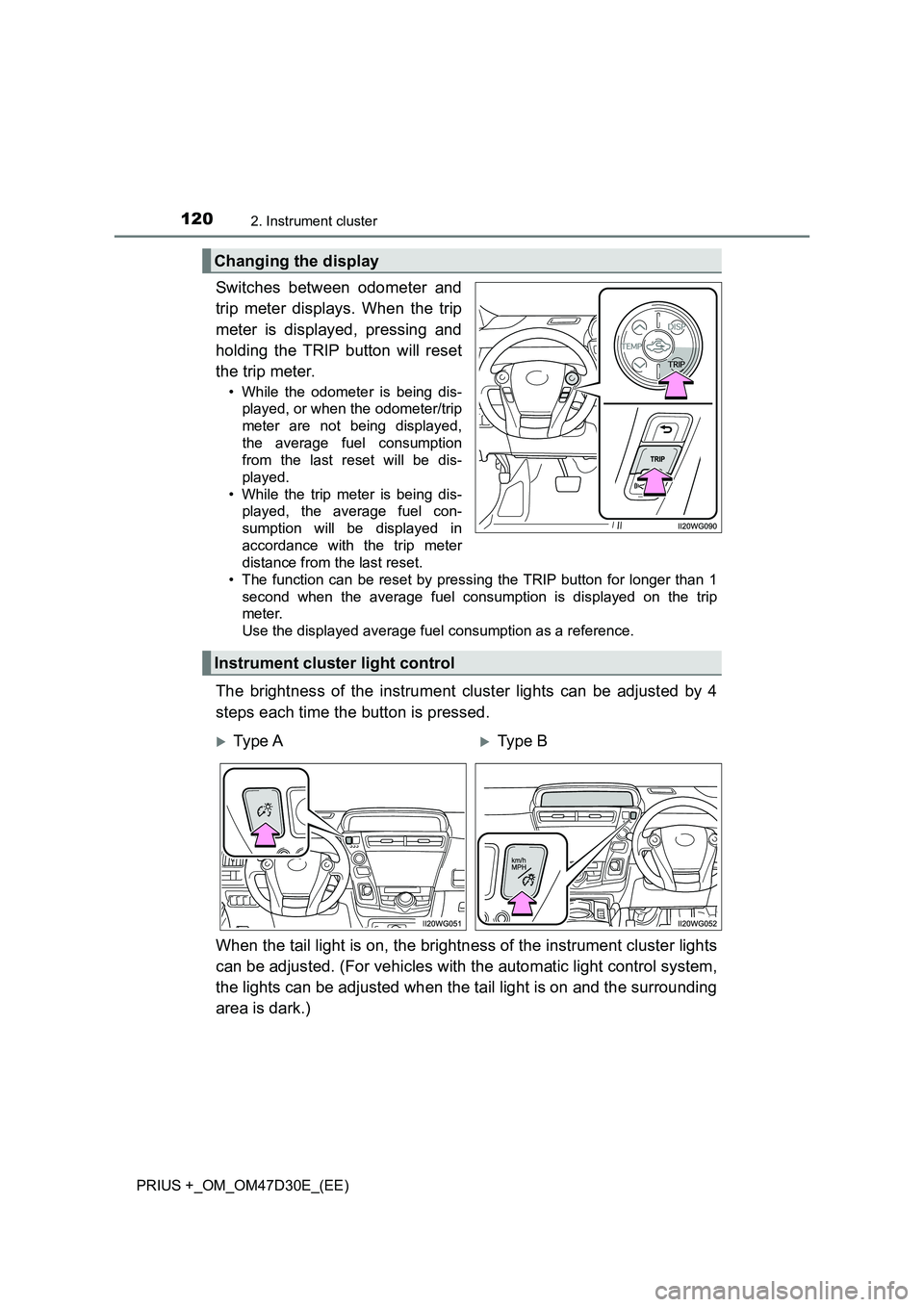

1202. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the TRIP button will reset
the trip meter.
• While the odometer is being dis-
played, or when the odometer/trip
meter are not being displayed,
the average fuel consumption
from the last reset will be dis-
played.
• While the trip meter is being dis-
played, the average fuel con-
sumption will be displayed in
accordance with the trip meter
distance from the last reset.
• The function can be reset by pressing the TRIP button for longer than 1
second when the average fuel consumption is displayed on the trip
meter.
Use the displayed average fuel consumption as a reference.
The brightness of the instrument cluster lights can be adjusted by 4
steps each time the button is pressed.
When the tail light is on, the brightness of the instrument cluster lights
can be adjusted. (For vehicles with the automatic light control system,
the lights can be adjusted when the tail light is on and the surrounding
area is dark.)
Changing the display
Instrument cluster light control
Ty pe AType B

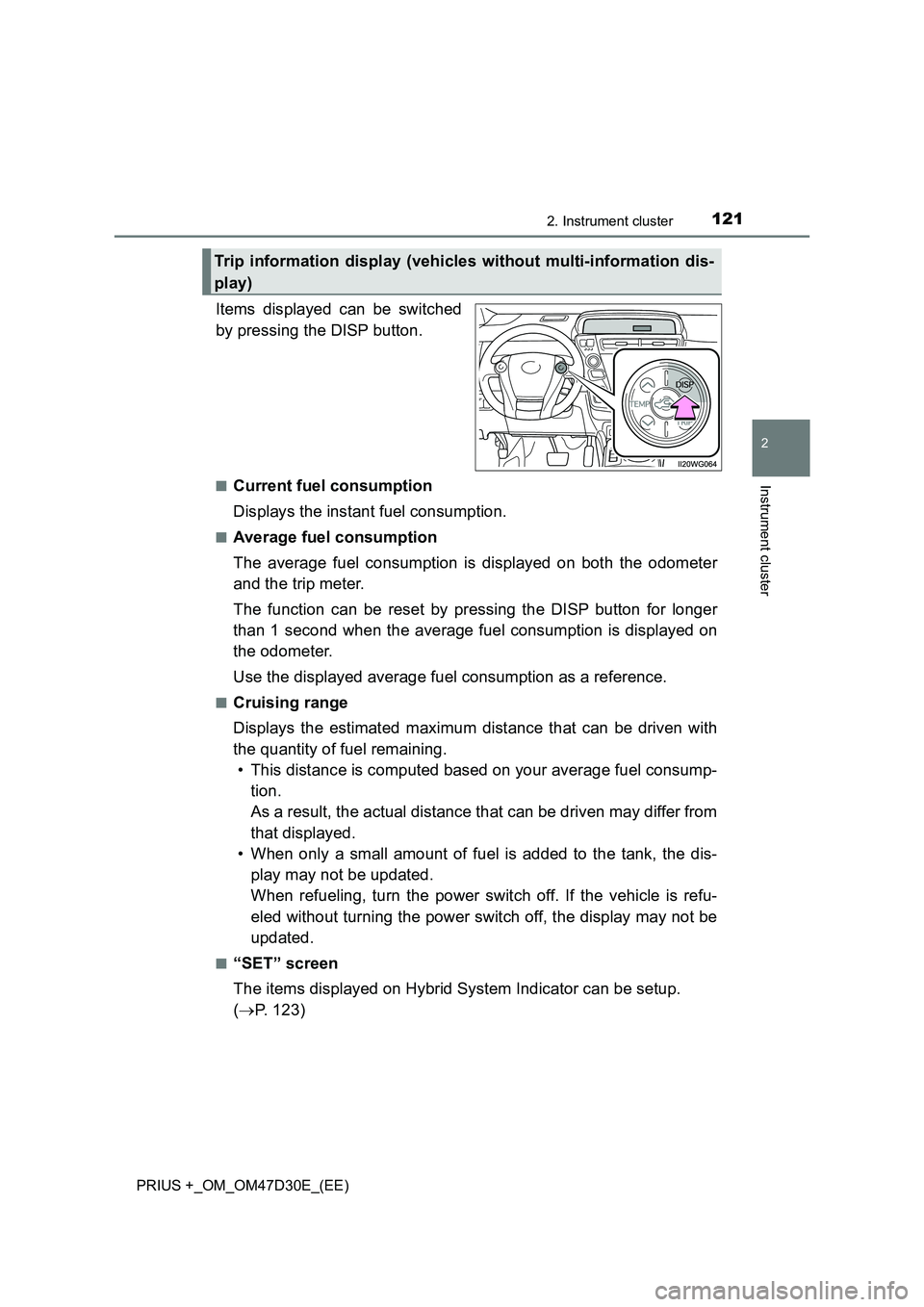

1212. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Items displayed can be switched
by pressing the DISP button.
■Current fuel consumption
Displays the instant fuel consumption.
■Average fuel consumption
The average fuel consumption is displayed on both the odometer
and the trip meter.
The function can be reset by pressing the DISP button for longer
than 1 second when the average fuel consumption is displayed on
the odometer.
Use the displayed average fuel consumption as a reference.
■Cruising range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consump-
tion.
As a result, the actual distance that can be driven may differ from
that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the power switch off. If the vehicle is refu-
eled without turning the power switch off, the display may not be
updated.
■“SET” screen
The items displayed on Hybrid System Indicator can be setup.
(P. 123)
Trip information display (vehicles without multi-information dis-
play)

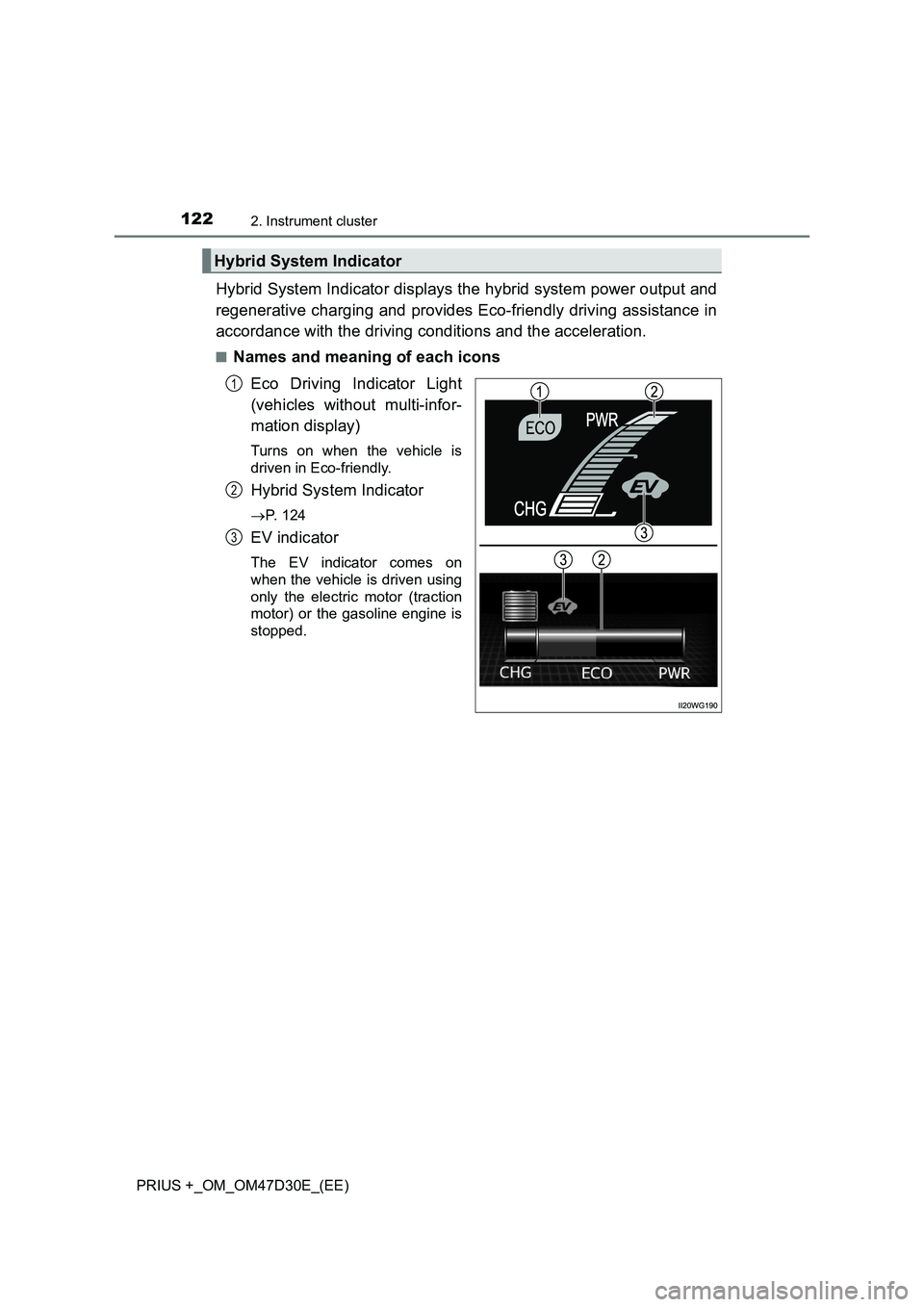

1222. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Hybrid System Indicator displays the hybrid system power output and
regenerative charging and provides Eco-friendly driving assistance in
accordance with the driving conditions and the acceleration.
■Names and meaning of each icons
Eco Driving Indicator Light
(vehicles without multi-infor-
mation display)
Turns on when the vehicle is
driven in Eco-friendly.
Hybrid System Indicator
P. 1 2 4
EV indicator
The EV indicator comes on
when the vehicle is driven using
only the electric motor (traction
motor) or the gasoline engine is
stopped.
Hybrid System Indicator
1
2
3

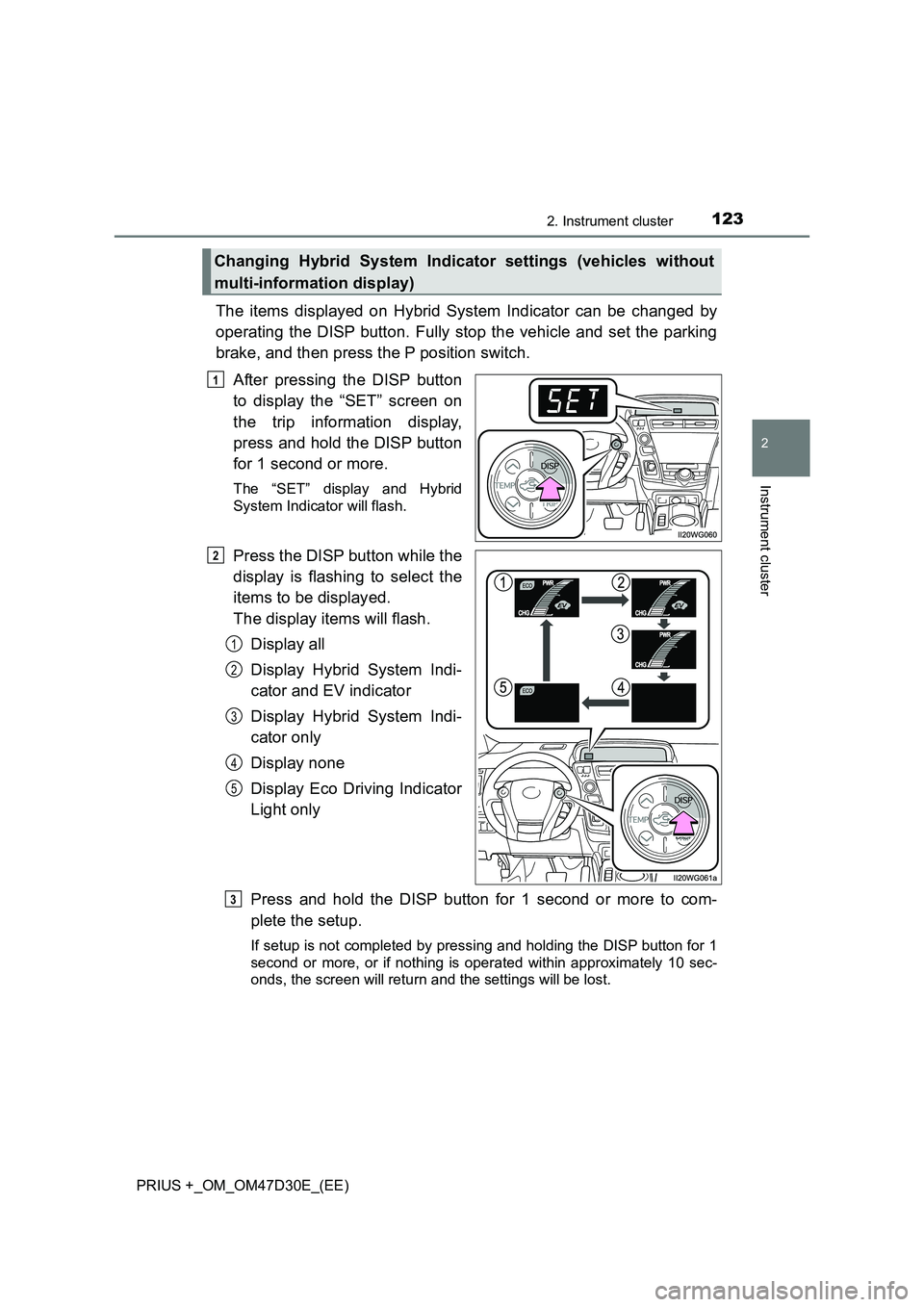

1232. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
The items displayed on Hybrid System Indicator can be changed by
operating the DISP button. Fully stop the vehicle and set the parking
brake, and then press the P position switch.
After pressing the DISP button
to display the “SET” screen on
the trip information display,
press and hold the DISP button
for 1 second or more.
The “SET” display and Hybrid
System Indicator will flash.
Press the DISP button while the
display is flashing to select the
items to be displayed.
The display items will flash.
Display all
Display Hybrid System Indi-
cator and EV indicator
Display Hybrid System Indi-
cator only
Display none
Display Eco Driving Indicator
Light only
Press and hold the DISP button for 1 second or more to com-
plete the setup.
If setup is not completed by pressing and holding the DISP button for 1
second or more, or if nothing is operated within approximately 10 sec-
onds, the screen will return and the settings will be lost.
Changing Hybrid System Indicator settings (vehicles without
multi-information display)
1
2
1
2
3
4
5
3

1242. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
■The meters and display illuminate when
The power switch is in ON mode.
■Hybrid System Indicator
●By keeping the indicator within Eco area, more Eco-friendly driving can be
achieved.
●Charge area indicates regeneration
* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■Eco Driving Indicator Light (vehicles without multi-information display)
When all of the following conditions are satisfied and the Eco-friendly driving,
the light will illuminate:
●Driving with the shift position in D
●Either normal mode or Eco drive mode is selected, and EV drive mode or
power mode are not in use (P. 231, 317)
●The vehicle speed is approximately 130 km/h (80 mph) or below.
Eco Driving Indicator Light can be set to activated or deactivated. (P. 123) Charge area
Shows that energy is being recovered
via the regenerative brake.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
1
2
3
4
