2019 TOYOTA MIRAI display

138
MIRAI_Navi_USA_OM62055U_19MY
1. USEFUL INFORMATION
1. INFORMATION SCREEN
1Press the “MENU” button.
2Select “Info”.
3Select the desired item.Useful information, such as the traffic
incidents, weather, etc., is available on
the information screen.
DISPLAYING INFORMATION
SCREEN
No.FunctionPage
Select to display traf-
fic information.202
Select to display
weather information.139
*Select to display the
vehicle alert history.
*: Vehicles with DCM

139
1. USEFUL INFORMATION
INFORMATION
5
MIRAI_Navi_USA_OM62055U_19MY
2. RECEIVING WEATHER INFORMATION
1Press the “MENU” button.
2Select “Info”.
3Select “Weather” .
4Check that the weather screen is dis-
played.
Weather information can be received
via HD Radio broadcast or DCM (Data
Communication Module).
DISPLAYING WEATHER
SCREEN
No.Function
Select to display the current weather
information. ( P.140)
Select to display a 3-day weather
forecast for the currently displayed
location.
To view the details of a specific day,
select the date.
Select to display the weather infor-
mation for the next 6 hours and 12
hours. (This button is not displayed
when a location is selected from the
“National Cities” list of “National/
Local” .)
Select to display the weather of a
desired location in the recently
checked locations list.
Select to change the displayed
weather location.
A location can be selected from two
different lists: a list of national cities
and a list of local cities. ( P.140)
Select to display Doppler weather
radar information over the map.

140
1. USEFUL INFORMATION
MIRAI_Navi_USA_OM62055U_19MY
1Display the weather screen. (P.139)
2Select “Current” .
3Check the weather information for the
current location.
By selecting “3 Day” or “6/12 Hour”, dif-
ferent types of weathe r information for the
current location will be displayed.
1Display the weather screen. ( P.139)
2Select “National/Local” .
3Select the desired item to be set.
4Select the desired location from the
list.
After selecting a location, the current
weather information will be displayed. By
selecting “3 Day” or “6/12 Hour”, the dif-
ferent type of weather information for the
selected location is displayed.
INFORMATION
● This function is not made available in
some countries or areas.
● The weather for current location might
not show the closest city when it first dis-
plays.
● The weather information is updated
every 5 to 90 minutes. The time elapsed
since the last update is displayed at the
bottom right corner of the screen. If the
weather has been updated less than 5
minutes ago, “Now” will be displayed.
DISPLAYING WEATHER
INFORMATION FOR THE
CURRENT LOCATION
SELECTING A LOCATION
No.Function
Select to display the list of National
cities. When the lis t is displayed, se-
lect the desired area.
Select to display the list of local cit-
ies.

141
1. USEFUL INFORMATION
INFORMATION
5
MIRAI_Navi_USA_OM62055U_19MY
1Select “Yes” when the pop-up mes-
sage appears.
2Check that the weather information is
displayed.
 The time since the information was last
updated is displayed.
 When detailed audio weather information
is available, an icon will be displayed on
the weather map. Select the icon to listen
to the weather information.
WEATHER GUIDANCE
SERVICE
When weather information for areas
around the current position,
destination, or along the set route is
available, important information will be
output through the speakers and a
pop-up message asking if you would
like to view the full weather information
will be displayed.

6
143
1
2
3
4
5
6
7
8
9
MIRAI_Navi_USA_OM62055U_19MY

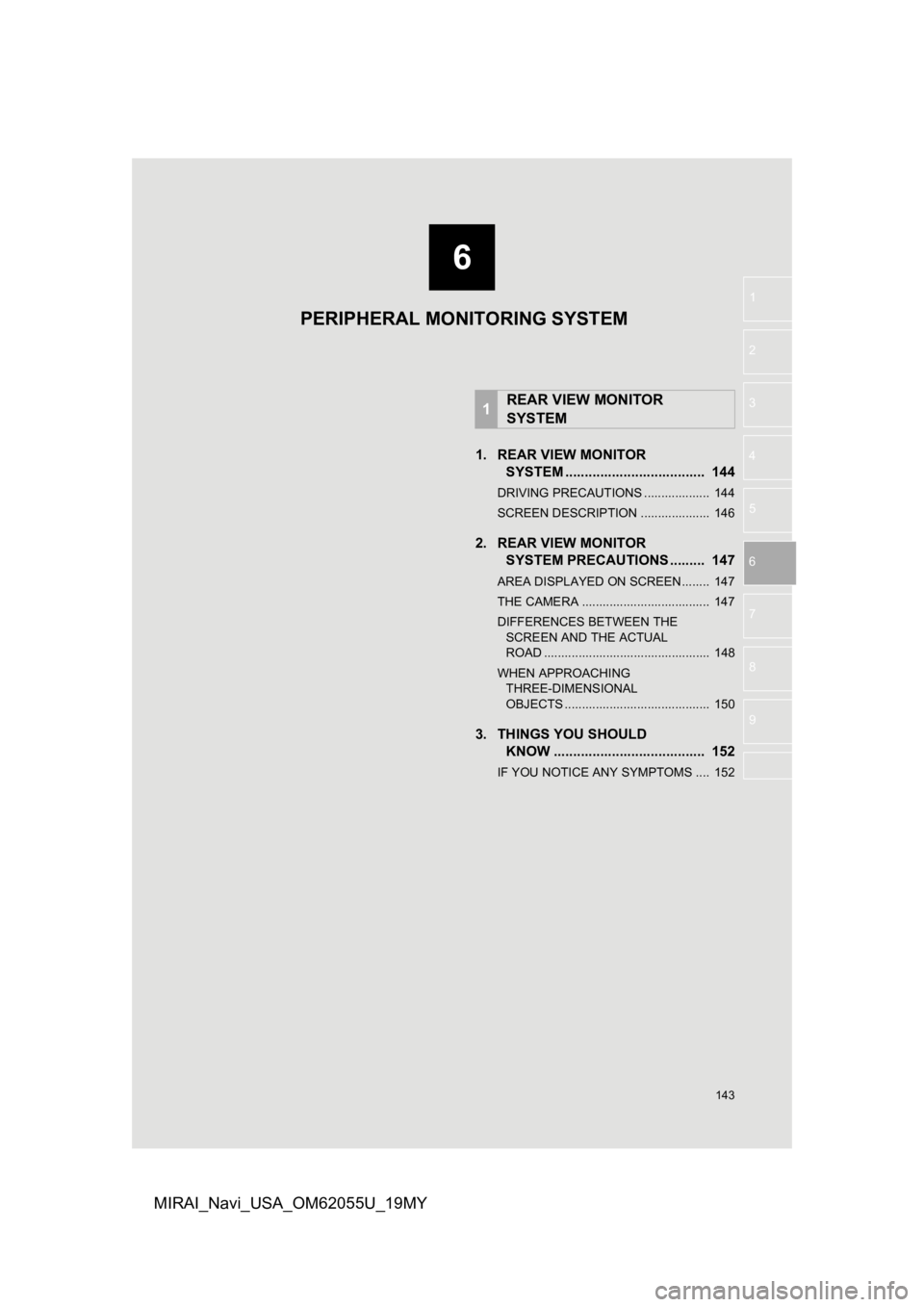

1. REAR VIEW MONITOR SYSTEM .......... ....................... ... 144
DRIVING PRECAUTIONS ................... 144
SCREEN DESCRIPTION .................... 146
2. REAR VIEW MONITOR
SYSTEM PRECAUTIONS ......... 147
AREA DISPLAYED ON SCREEN........ 147
THE CAMERA ..................................... 147
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 148
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 150
3. THINGS YOU SHOULD KNOW ....................................... 152
IF YOU NOTICE ANY SYMPTOMS .... 152
1REAR VIEW MONITOR
SYSTEM
PERIPHERAL MONITORING SYSTEM

144
MIRAI_Navi_USA_OM62055U_19MY
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle with fixed
guide lines on the screen while backing
up, for example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
WA R N I N G
●Never depend on the rear view monitor
system entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● The instructions given are only guide
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the rear view monitor
system.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
● Do not use the rear view monitor system
in the following cases:
• On icy or slick road surfaces, or in
snow
• When using tire chains or emergency tires
• When the trunk is not closed com- pletely
• On roads that are not flat or straight,
such as curves or slopes

145
1. REAR VIEW MONITOR SYSTEM
PERIPHERAL MONITORING SYSTEM
6
MIRAI_Navi_USA_OM62055U_19MY
WA R N I N G
●In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
● If the tire sizes are changed, the position
of the fixed guide lines displayed on the
screen may change.
● The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances.( P.148)

146
1. REAR VIEW MONITOR SYSTEM
MIRAI_Navi_USA_OM62055U_19MY
SCREEN DESCRIPTION
The rear view monitor system screen will be displayed if the shift position is shifted
to the “R” position while the power switch is in ON mode.
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
The displayed width is wi der than the actual vehicle
width.
Vehicle center guide lineThis line indicates the estimated vehicle center on the
ground.
Distance guide lineShows distance behind the vehicle.
 Displays a point approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Distance guide lineShows distance behind the vehicle.
Displays a point approximately 3 ft. (1 m) (blue) from
the edge of the bumper.
CANCELING REAR VIEW MONITOR SYSTEM
The rear view monitor system is canceled when the shift lever is shifted into any
position other than the “R” position.
