2019 SUBARU WRX steering

8

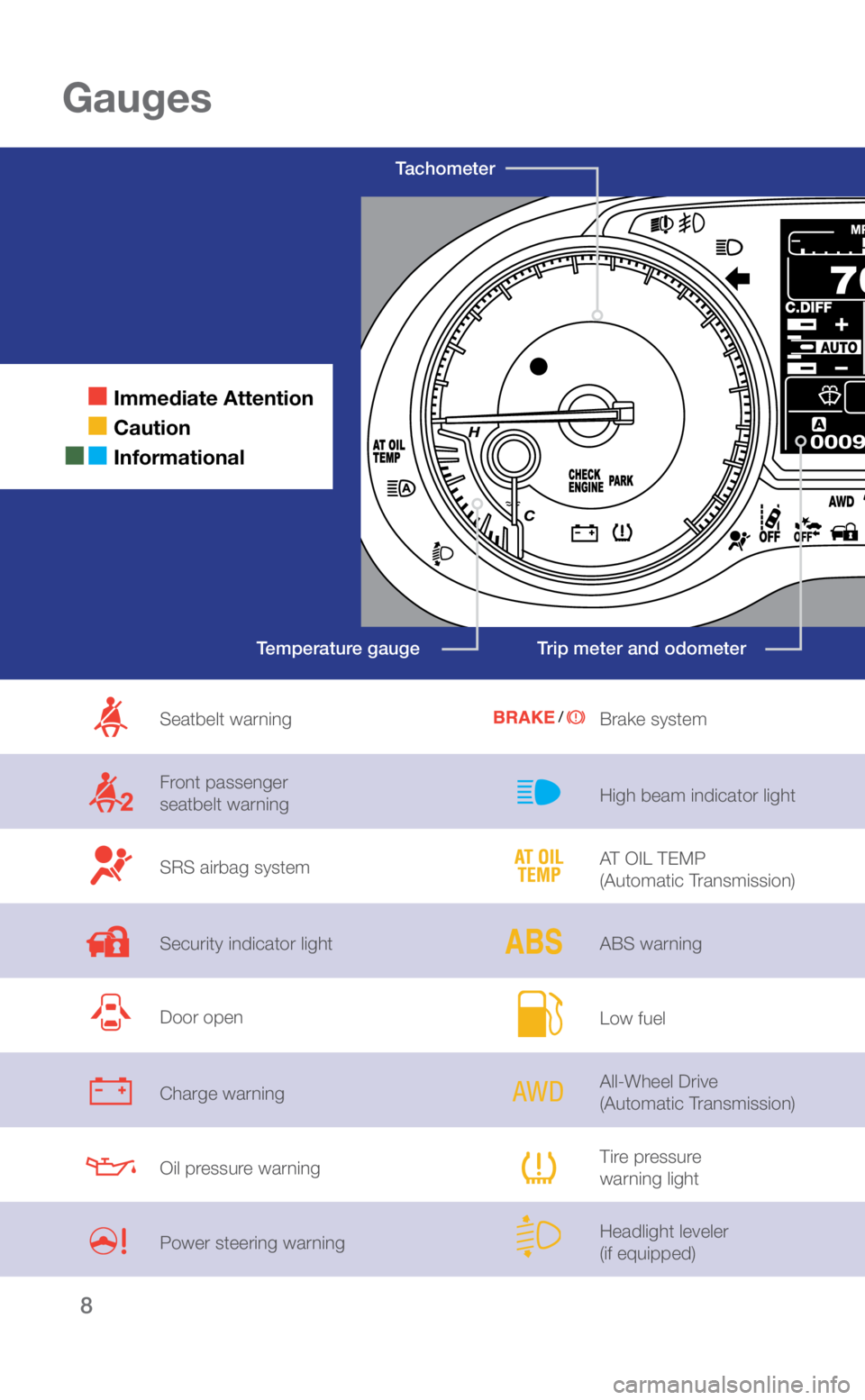

Gauges
Immediate Attention

Caution
Informational
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Door open
Charge warning
Oil pressure warning
Power steering warning Brake system
High beam indicator light
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
Tire pressure
warning light
Headlight leveler
(if equipped)
Trip meter and odometer
Temperature gauge Tachometer
3572136_19b_WRX_WRX_STI_QG_061118.indd 86/11/18 5:06 PM

10
Tilt and Telescopic Steering Column
Pull the lever down firmly to adjust the height and lengthwise positio\
n of the column;
firmly push the lever back up to lock the column in place. Do not adju\
st while driving.
Power Exterior Mirrors
Turn the knob to the “L” side to adjust the left-hand mirror or to the “R” side to adjust the
right-hand mirror. Move the knob in the direction you want to move the mirror. Then return
the knob to the neutral/center position.
Personalize
i/SET Combination Meter Display Controls
Use the i/SET controls to display and switch selected items in the Combination Meter
Display located between the tachometer and speedometer. Please refer to your Owner’s
Manual for details on these controls.
3572136_19b_WRX_WRX_STI_QG_061118.indd 106/11/18 5:07 PM

16
USB Port
The USB port is located in the center console.
You can connect a USB-equipped portable music
player to the USB port and hear the music stored
on it through the vehicle speakers. Press the
“SOURCE” button located on the audio system
repeatedly until the USB mode is selected.
Auxiliary Input Jack
The 3.5mm auxiliary input jack is located in the center console. You can\
connect a portable
music player to the auxiliary jack and hear the music stored on it throu\
gh the vehicle speakers.
Press the “SOURCE” button located on the audio system to select th\
e auxiliary mode.
Controls
Steering Wheel Audio Controls
Voice recognition switch;
please refer to your Starlink Owner’s Manual. Press the button
to turn audio
ON/OFF or to
select the
cursor entry.
Press the button
to return to the
previous screen.
Press the button to select the
desired audio mode – FM, AM,
SXM, CD, AUX, MEDIA. With any of the radio modes
selected, push the switch left or
right to toggle through your presets.
In CD mode, push the switch left or
right to skip forward or back a track.
Push the top (+) of
the switch to increase
volume or the bottom
(–) of the switch to
decrease volume. Press the
button to show
the list screen.
3572136_19b_WRX_WRX_STI_QG_061118.indd 166/11/18 5:07 PM

18
Paddle Shift Control Switches (if equipped)
• Temporary use: Even when the selector is in the
“D” (Drive) position, you can temporarily shift the
gear by pulling the “+” or “–” paddle shift control
switch. The transmission will automatically
switch back to Normal Mode.
• When the selector lever is in Manual Mode,
shift to the next higher gear by pulling the “+” paddle shift cont\
rol switch on the steering
wheel. Pull the “–” paddle shift control switch to shift into the next lower gear.
Manual Shifting Operation
Arrow-shaped lights in the center of the instrument panel show whether an u\
pshift is possible
and whether a downshift is possible.
While Operating
Instrument Panel Switches (lower left)
Please refer to your Owner’s Manual for details on these switches.
1 Traction Mode/Vehicle Dynamics Control OFF Switch
2 Trunk lid opener switch
1
2
3572136_19b_WRX_WRX_STI_QG_061118.indd 186/11/18 5:07 PM

28
102
3
7
1
8
5
4
9
6
Engine Compartment
Additional
Information
Please refer to your Owner’s Manual for more information.
WRX Engine

Note: Callouts apply to both engines.
1 Brake Fluid Reservoir
2 Main Fuse Box
3 Battery
4 Windshield Washer Tank
5 Engine Oil Filler Cap
6 Engine Coolant Reservoir
7 Radiator Cap
8 Engine Oil Dipstick
9 Air Cleaner Element
10 Power Steering Fluid Reservoir
(WRX STI only)
WRX STI Engine
1
2
2
7
3
5
4
6
1
9
8
