Page 5 of 31
3
Power Driver’s Seat (if equipped)
Do not adjust the seat while driving.
1 Forward/Backward,
Angle and Height
Move the switch toward the front
or rear to move the seat forward
or backward. Pull up or push
down on the front of the switch
to adjust the angle of the seat
cushion. Pull up or push down on
the rear of the switch to adjust the
height of the entire seat cushion.
2 Seatback
Move the switch in the
corresponding direction to adjust
the angle of the seatback.
3 Lumbar Support
Press the front part of the switch
to increase lumbar support;
press the rear part of the switch
to decrease lumbar support.
Getting
Started
Memory Driver’s Seat (if equipped)
While pressing the “SET” button, press and hold the desired button
“1” or “2”. A beep sounds when the seat position is registered.
Press button “1” or “2” to retrieve the seat positions.
Seating
3
2
1
3495150_19a_Subaru_Forester_QRG_070318.indd 37/3/18 1:06 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 15 of 31
13
Windshield Wipers
To turn on the wipers, press the wiper control lever down one level for intermittent,
two levels for low, or three levels for high speed. Return the lever to the “OFF”
position to stop the wipers. For a single wipe, move the lever up. To spray washer
fluid, pull and hold the lever toward you. Rotate the dial to adjust the intermittent
wiper speed.
To operate the rear wiper, rotate the end of the knob upward to the intermittent,
continuous, or wash position. When the rear wiper is off, rotate the knob downward
to wash and wipe the rear window.
Daytime Running Lights
Daytime running lights are standard on your vehicle. Only the front daytime running
lights will be automatically turned on when the engine has started, the parking
brake is fully released and the light switch is in the “OFF”, “AUTO” or “\
”
position. The brightness of the illumination of the high beam headlights\
is reduced
by the daytime running light system. You must always switch on your headlights
when it is dark outside by turning the light switch to the “
” position or have the
switch in the “AUTO” position.
1
2
3
INT.
LOW
HIGH
OFF
Controls
3495150_19a_Subaru_Forester_QRG_070318.indd 137/3/18 1:07 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 27 of 31
25

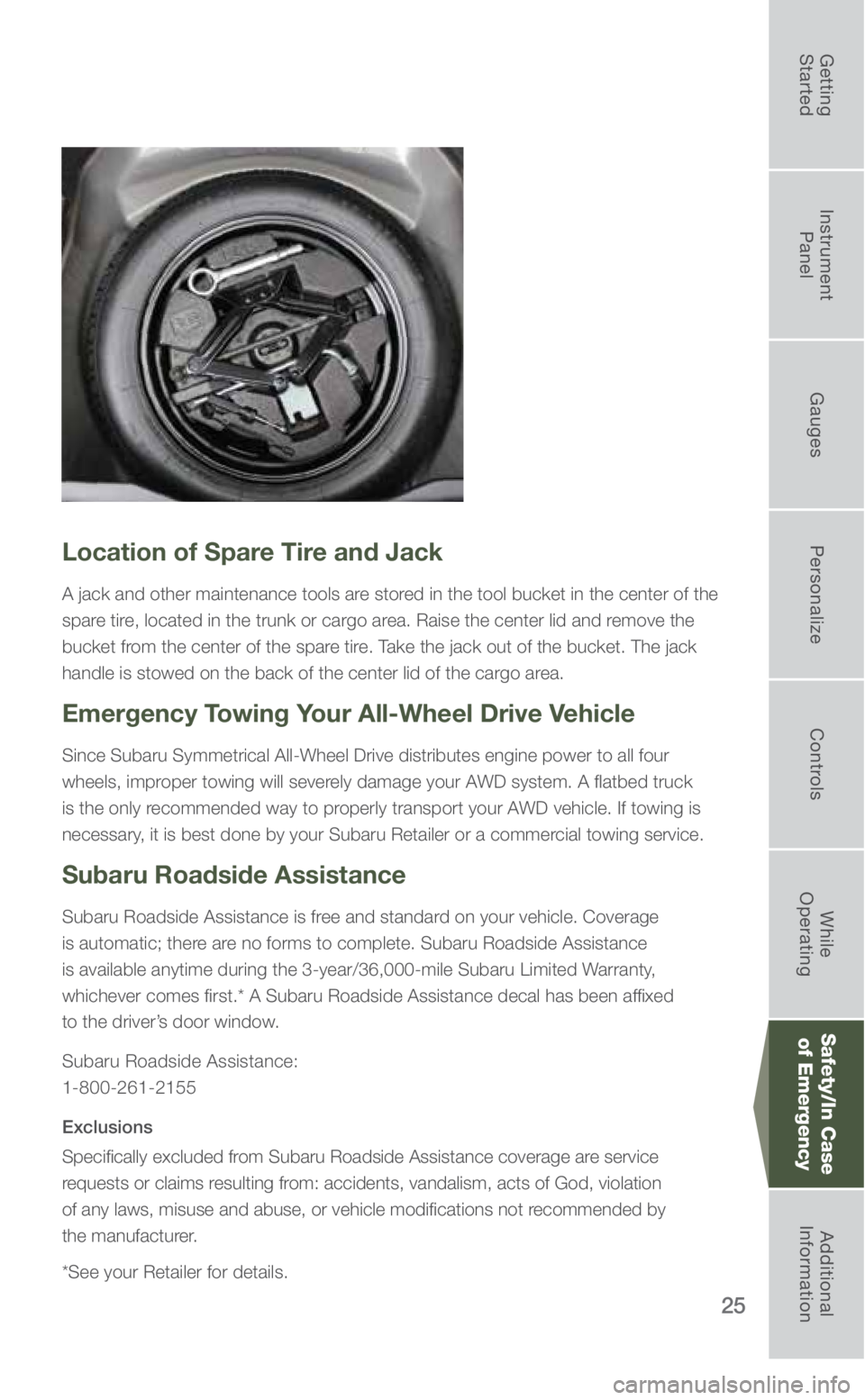

Location of Spare Tire and Jack
A jack and other maintenance tools are stored in the tool bucket in the center of the
spare tire, located in the trunk or cargo area. Raise the center lid and remove the
bucket from the center of the spare tire. Take the jack out of the bucket. The jack
handle is stowed on the back of the center lid of the cargo area.
Emergency Towing Your All-Wheel Drive Vehicle
Since Subaru Symmetrical All-Wheel Drive distributes engine power to all\
four
wheels, improper towing will severely damage your AWD system. A flatbed truck
is the only recommended way to properly transport your AWD vehicle. If towing is
necessary, it is best done by your Subaru Retailer or a commercial towing service.
Subaru Roadside Assistance
Subaru Roadside Assistance is free and standard on your vehicle. Coverage
is automatic; there are no forms to complete. Subaru Roadside Assistance
is available anytime during the 3-year/36,000-mile Subaru Limited Warranty,
whichever comes first.* A Subaru Roadside Assistance decal has been af\
fixed
to the driver’s door window.
Subaru Roadside Assistance:
1-800-261-2155
Exclusions
Specifically excluded from Subaru Roadside Assistance coverage are service
requests or claims resulting from: accidents, vandalism, acts of God, violation
of any laws, misuse and abuse, or vehicle modifications not recommended by
the manufacturer.
*See your Retailer for details.
Safety/In Case of Emergency
3495150_19a_Subaru_Forester_QRG_070318.indd 257/3/18 1:08 PM
