2019 SKODA SCALA ESP

Narrow or staggered vehicle
ACC detects a narrow or staggered vehicle only
when it is in the area covered by the radar.
Lane change by another vehicle
A vehicle that changes to the lane a short distance
away may not be recognized by the ACC in time.
Stationary vehicle
If a vehicle in front turns and there is a stationary ve-
hicle in front of this vehicle, the ACC will not respond
to the stationary vehicle.
Vehicles with special load or special bodies
A load or superstructure that protrudes outside the
vehicle might not be detected by the ACC.
Settings
In the infotainment system, in menu:

Park Assist systems
Park Pilot parking aid Functionality
If an obstacle is detected, the Infotainment will dis-
play a visible message and an audible signal will
sound. The interval between the signals becomes
shorter as the clearance is reduced. At a distance of
less than 30 cm from the obstacle, a continuous tone
sounds.
If the driver does not respond to the warning, the
system triggers automatic emergency braking at
speeds below 8 km/h in order to reduce the impact.
Automatic braking can be activated and deactivated
in the infotainment.
Display
The recorded areas vary according to the equipment.
ARoute controlled at the current steering angleAcoustic signals on/o

Rear view camera
Functionality
When reversing, the area behind the vehicle is dis-
played in the Infotainment screen complete with ori-
entation lines.
The camera is equipped with a cleaning system.
Cleaning takes place automatically when the rear
window is washed.
Orientation lines and functional surfaces
Orientation lines
ADistance about 40 cmBDistance about 100 cmCDistance about 200 cm
The distance between the side lines corresponds ap-
proximately to the vehicle width including mirrors.
Function surfaces
Brightness, contrast and colour settings of the
screenTurns o

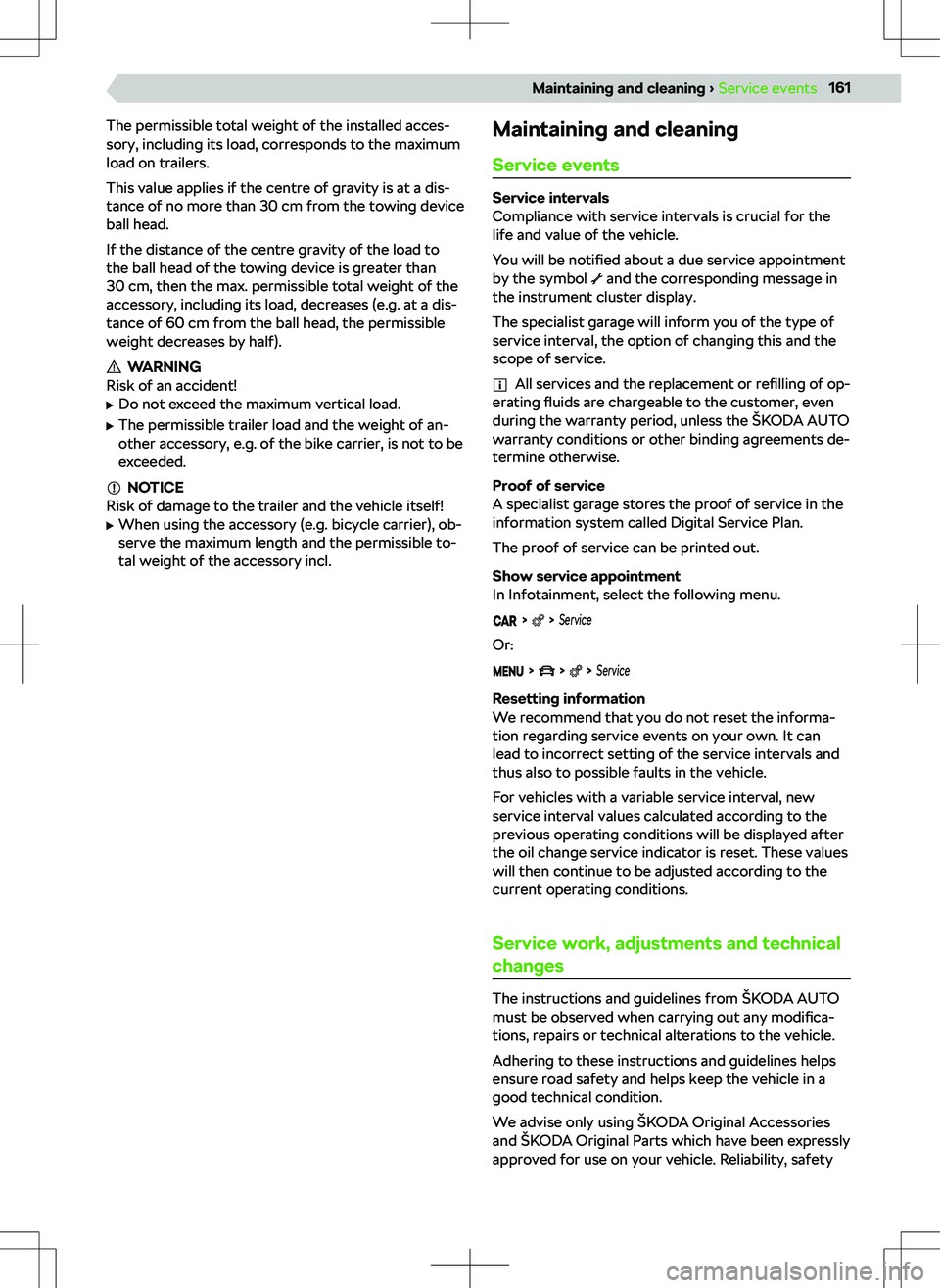

The permissible total weight of the installed acces-
sory, including its load, corresponds to the maximum
load on trailers.
This value applies if the centre of gravity is at a dis-
tance of no more than 30 cm from the towing device
ball head.
If the distance of the centre gravity of the load to
the ball head of the towing device is greater than
30 cm, then the max. permissible total weight of the
accessory, including its load, decreases (e.g. at a dis-
tance of 60 cm from the ball head, the permissible
weight decreases by half).
WARNING
Risk of an accident!

Operating weight
Information about the operating weight
The specification corresponds to the lowest possible
operating weight without additional weight-increas-
ing equipment. This includes 75 kg driver
