2019 SKODA KODIAQ engine

Driver assist systems
Braking and stabilising systems Overview
Electronic Stability Control (ESC)
ESC helps to stabilize the vehicle in borderline situa-
tions (e.g. when the vehicle starts to skid). ESC
brakes the individual wheels to maintain the direc-
tion of travel.
flashes - ESC is engaged
ESC Sport
ESC Sport allows for a sportier driving style.
lit up - ESC Sport is activated
Anti-Slip Regulation (ASR)
ASR helps to stabilize the vehicle when accelerating
or driving on low-grip roads. ASR reduces the drive
power transmitted to the wheels when the wheels
spin.
flashes - ASR is engaged
Anti-lock Braking System (ABS)
ABS helps maintain control of the vehicle during
emergency braking. An ABS intervention is noticea-
ble by pulsating movements of the brake pedal.
Motor Slip Regulation (MSR)
MSR helps to maintain control of the vehicle in the
event of a sudden reduction in speed, e.g. on icy
roads. If the drive wheels lock, MSR increases the
engine speed. As a result, the braking e

Engine, exhaust system and fuelBonnet
Opening the bonnet
Before opening

Using higher octane petrol than 95 RON may result
in improved performance and lower fuel consump-
tion.
In an emergency 91 . 92 or. 93 RON may be used
(low power loss, slightly increased fuel consump-
tion).
Prescribed petrol 98 / (95) RON / ROZ
We recommend using 98 RON petrol.
95 RON petrol may be used as an option (low power
loss, slightly increased fuel consumption).
In an emergency 91 . 92 or. 93 RON may be used
(low power loss, slightly increased fuel consump-
tion).

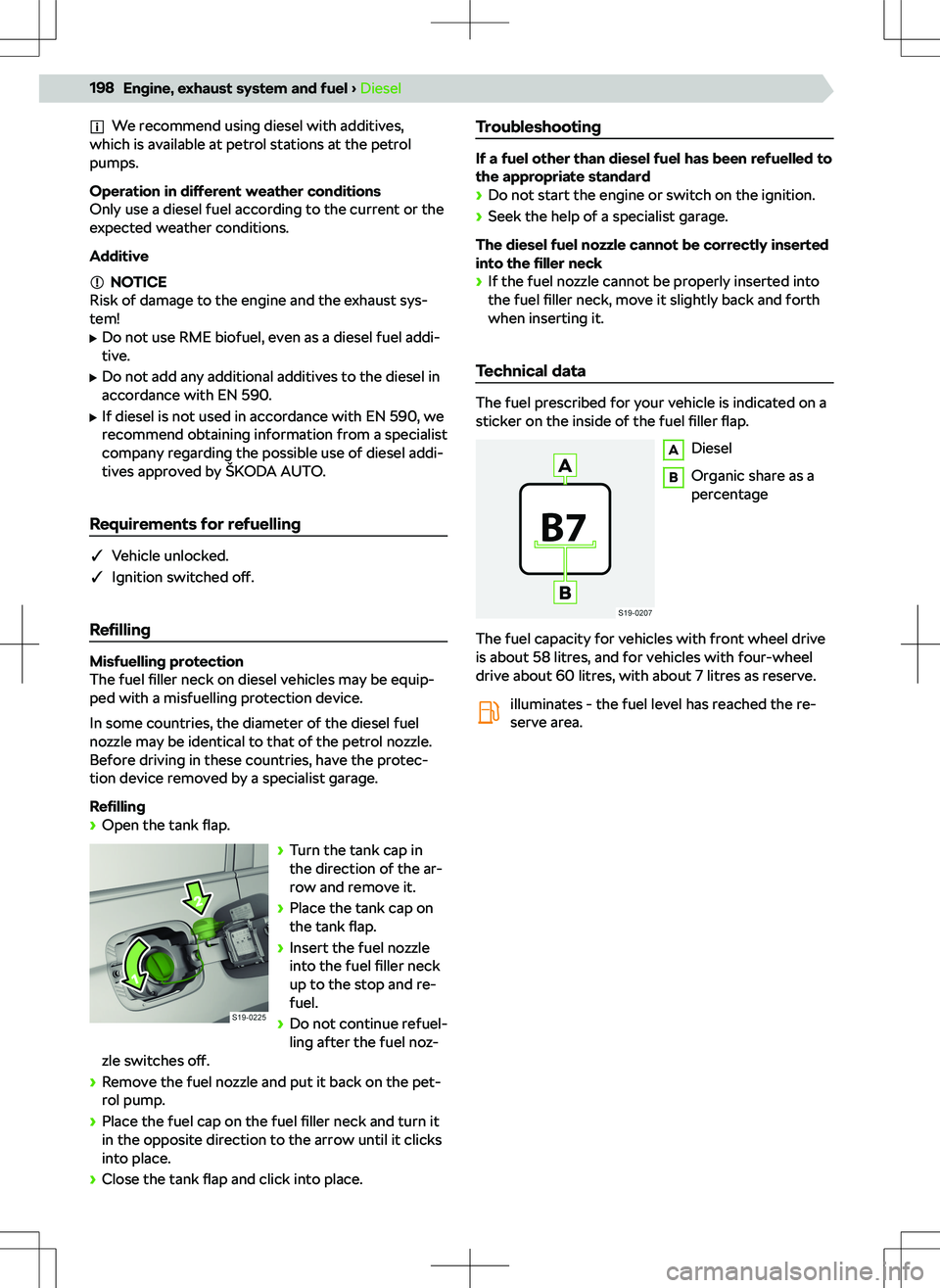

Additive
NOTICE
Risk of damage to the engine and the exhaust sys- tem!

We recommend using diesel with additives,
which is available at petrol stations at the petrol
pumps.
Operation in different weather conditions
Only use a diesel fuel according to the current or the
expected weather conditions.
Additive
NOTICE
Risk of damage to the engine and the exhaust sys- tem!

Fuses in the engine compartment
Overview
Access to the fuses

Or:
Menu item for the service
Engine number
The engine number is embossed on the engine block.
Maximum permissible weights
The maximum permissible weights are listed on the
nameplate.
The type plate is located at the bottom of the middle
body pillar of the vehicle.
AMaximum permissible gross weightBMaximum permissible towed weight (towing ve-
hicle and trailer)CMaximum permissible front axle loadDMaximum permissible rear axle load
Maximum permissible towed weight
The specified value is valid for altitudes up to 1,000
m above sea level.
The engine output falls as the height increases, as
does the ability to climb.
Therefore, for every additional 1,000 m in height (or
part), the maximum permissible towed weight must
be reduced by 10 %.
The towed weight is made up of the actual weights
of the loaded towing vehicle and the loaded trailer.
Payloads
It is possible to calculate the approximate maximum
payload from the di

Engine typeTransmissionOperating weight (kg)Five-seat versionSeven-seat versiona)Automatic dual-clutch transmission.b)Applies to cars with the EU4 emission standard.c)Applies to cars with the EU5 emission standard.
Ask about the exact vehicle weight in a specialist garage.
Vehicle dimensions Dimensions
SpecificationValue (in mm)Five-seat versionSeven-seat versionVehicle height1660/1665 a)1659/1664 a)Vehicle width with folded-in mirrors1882Vehicle width with folded-out mir-
rors2087Ground clearance of the vehicle193/191 b)
/197 a)192/191 b)
/197 a)Vehicle length4697/4699 a)a)
Applies to vehicles with a 2.0 l/176 kW TDI engine.b)Valid for vehicles with four-wheel drive.Engine speci

1.4 l/110 kW TSI enginePower (kW at 1/min)110/5000-6000Highest torque (Nm at 1/min)250/1500-3500Number of cylinders/displacement
(cm 3
)4/1395Vehicle versionFive-seatSeven-seatTransmissionManual
gearbox 4x4DSG a)DSG a)
4x4Manual
gearbox 4x4DSG a)DSG a)
4x4Maximum speed (km/h)198199194196198192With specified gear engaged555555Acceleration 0-100 km/h (s)9.89.710.09.99.910.2a)
Automatic dual-clutch transmission.
1.5 l/110 kW TSI engine
Power (kW at 1/min)110/5000-6000Highest torque (Nm at 1/min)250/1500-3500Number of cylinders/displacement
(cm 3
)4/1498Vehicle versionFive-seatSeven-seatTransmissionManual gearbox
4x4DSG a)Manual gearbox
4x4DSG a)Maximum speed (km/h)200198200198With
specified gear engaged5656Acceleration 0-100 km/h (s)9.89.89.99.8a)
Automatic dual-clutch transmission.
2.0 l/132 kW TSI engine
Power (kW at 1/min)132/3900-6000Highest torque (Nm at 1/min)320/1400-3940Number of cylinders/displacement
(cm 3
)4/1984Vehicle versionFive-seatSeven-seatTransmissionDSG a)
4x4DSG a)
4x4Maximum speed (km/h)207205With specified gear engaged55Acceleration 0-100 km/h (s)8.28.4a)
Automatic dual-clutch transmission.234Technical data and speci
