2019 Seat Mii electric stop start

Operation

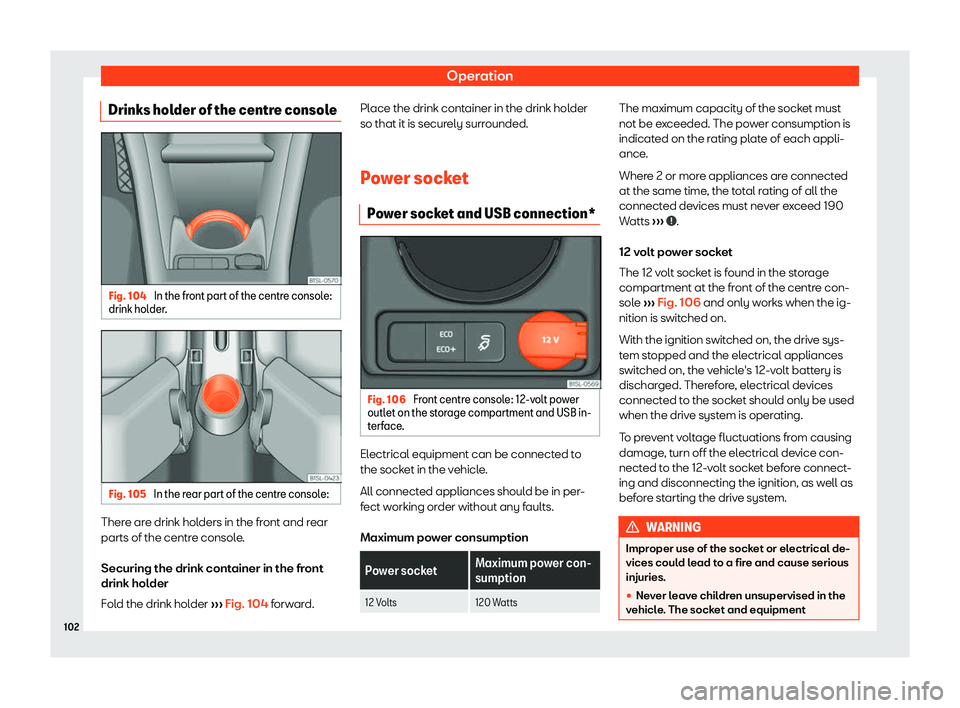

Drinks holder of the centre console Fig. 104
In the front part of the centre console:
drink hol der
. Fig. 105
In the rear part of the centre console: There are drink holders in the front and rear
parts of the centr
e consol

e.
Securing the drink container in the front
drink holder
Fold the drink holder ››› Fig. 104 forward. Place the drink container in the drink holder
so that it is securely surr

ounded.
Power socket Po
wer socket and USB connection* Fig. 106
Front centre console: 12-volt power
outl et on the st

orage compartment and USB in-
terface. Electrical equipment can be connected to
the sock
et in the v

ehicle.
All connected appliances should be in per-
fect working order without any faults.
Maximum power consumption Power socket
Maximum power con-
sumption
12 Volts 120 Watts The maximum capacity of the socket must
not be e
x

ceeded. The power consumption is
indicated on the rating plate of each appli-
ance.
Where 2 or more appliances are connected
at the same time, the total rating of all the
connected devices must never exceed 190
Watts ››› .
12 v olt po

wer socket
The 12 volt socket is found in the storage
compartment at the front of the centre con-
sole ››› Fig. 106 and only works when the ig-
nition is switched on.
With the ignition switched on, the drive sys-
tem stopped and the electrical appliances
switched on, the vehicle's 12-volt battery is
discharged. Therefore, electrical devices
connected to the socket should only be used
when the drive system is operating.
To prevent voltage fluctuations from causing
damage, turn off the electrical device con-
nected to the 12-volt socket before connect-
ing and disconnecting the ignition, as well as
before starting the drive system. WARNING
Improper use of the socket or electrical de-
vices coul d l

ead to a fire and cause serious
injuries.

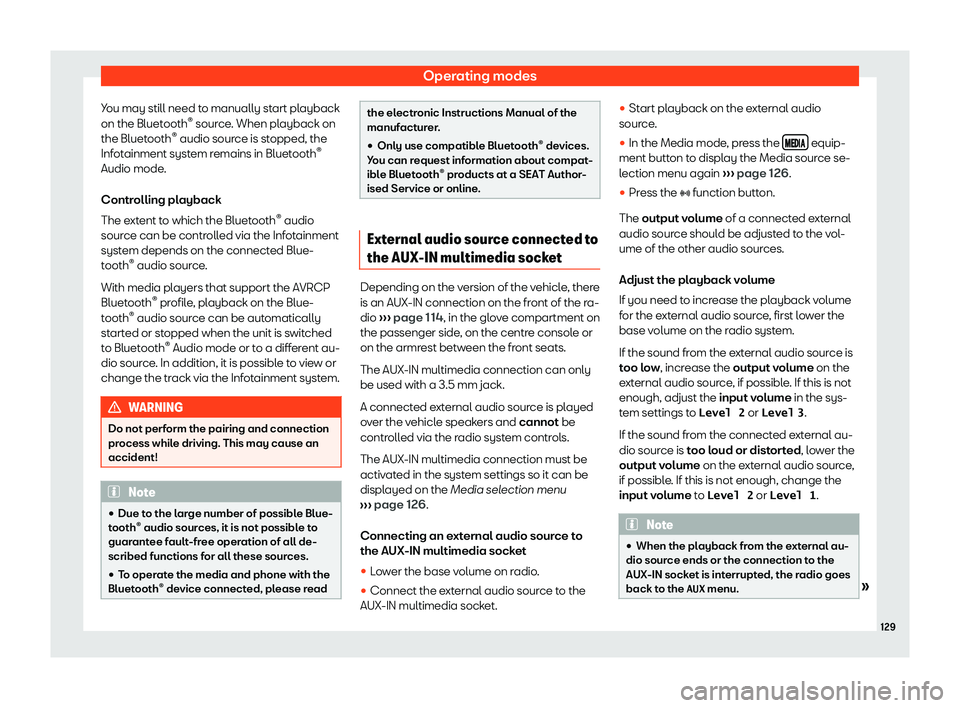

Operating modes
You may still need to manually start playback
on the Bluet ooth®
sour
ce. When playback on
the Bluetooth ®
audio source is stopped, the
Infotainment system remains in Bluetooth ®
Audio mode.
Controlling playback
The extent to which the Bluetooth ®
audio
source can be controlled via the Infotainment
system depends on the connected Blue-
tooth ®
audio source.
With media players that support the AVRCP
Bluetooth ®
profile, playback on the Blue-
tooth ®
audio source can be automatically
started or stopped when the unit is switched
to Bluetooth ®
Audio mode or to a different au-
dio source. In addition, it is possible to view or
change the track via the Infotainment system. WARNING
Do not perform the pairing and connection
pr ocess whil

e driving. This may cause an
accident! Note

Driving

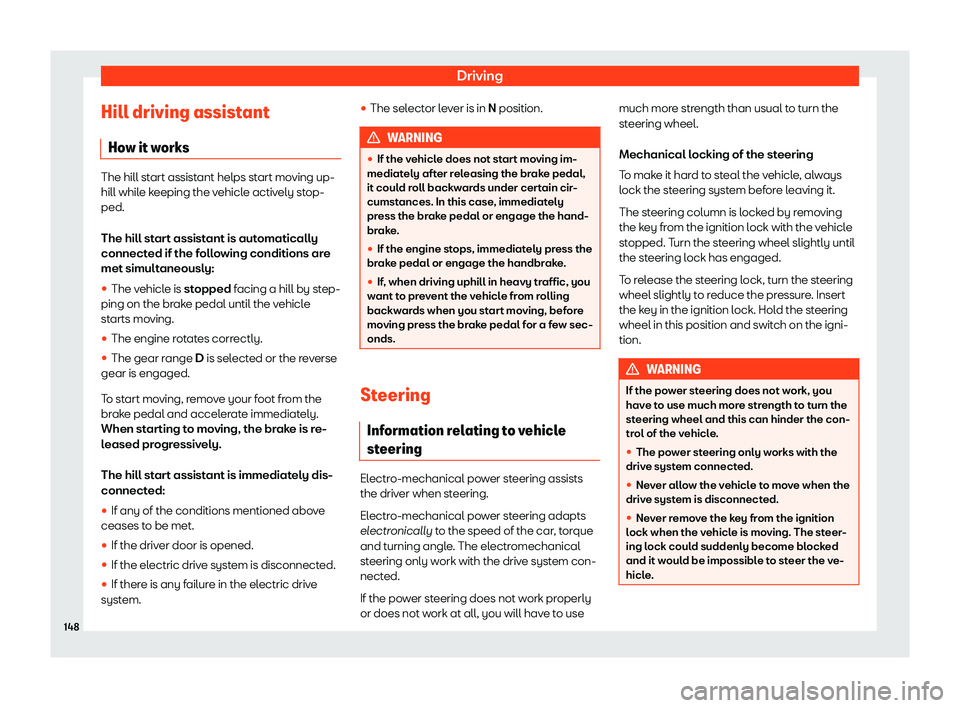

Hill driving assistant Ho w it w
orksThe hill start assistant helps start moving up-
hill whil
e k

eeping the vehicle actively stop-
ped.
The hill start assistant is automatically
connected if the following conditions are
met simultaneously:

Driving
WARNING
Observe the safety warnings ››
› in Con-
tr ol and w
arning lamps on page 70. Brake assist systems
Electronic Stability Control (ESC)*
The ESC helps t
o impr

ove safety. It reduces
the tendency to skid and improves the stabili-
ty and roadholding of the vehicle. The ESC
detects critical handling situations, such as
vehicle understeer or oversteer, or wheelspin
on the driving wheels. It stabilises the vehicle
by braking individual wheels or by reducing
the engine torque. The warning lamp will
flash on the instrument panel when the ESC is
intervening !.
The ESC includes the anti-lock brake system
(ABS), the hydraulic brake assist (HBA), the
traction control system (ASR) and the elec-
tronic differential lock (EDS)
ESC also helps stabilise the vehicle by
changing the torque.
Anti-lock brake system (ABS)
ABS prevents the wheels from locking up un-
der braking until the vehicle has reached a
virtual standstill. You can continue to steer the
vehicle even when the brakes are on full.
Keep your foot on the brake pedal and do not pump the brakes. You will feel the brake pedal
pul
sat

e while the ABS is working.
If the running gear or brake system is modi-
fied, the effectiveness of the ABS could be se-
verely limited.
Hydraulic Brake Assist (HBA)*
The brake assist system can reduce the re-
quired braking distance. The braking force is
automatically boosted if you press the brake
pedal quickly in an emergency. You must
keep pressing the brake pedal until the dan-
ger has passed.
Traction control system (ASR)
In the event of wheelspin, the traction control
system reduces the engine torque to match
the amount of grip available. This helps the
car to start moving, accelerate or climb a
gradient.
Electronic differential lock (EDL)*
When the EDL detects wheelspin, it brakes
the spinning wheel and directs the power to
the other driven wheel. This function is active
up to approximately 100 km/h (62 mph).
To prevent the disc brake of the braked wheel
from overheating, the EDL cuts out automati-
cally if subjected to excessive loads. The ve-
hicle can still be driven. The EDL will switch on
again automatically when the brake has
cooled down. Electronic brake pressure distribution
(EBV)
In all vehicl
es, when the brakes are applied,
the centre of gravity of the vehicle moves for-
ward. As a consequence, there is a danger
that the rear wheels may lock due to their low
traction. The electronic brake pressure distri-
bution controls the brake pressure for the rear
wheels and ensures that this pressure is dis-
tributed optimally between the front and rear
axles. Under normal circumstances it pre-
vents the rear part of the vehicle from skid-
ding due to excessive braking of the rear
wheels. The function of the electronic brake
pressure distribution is incorporated in the
ABS function.
Electromechanical brake servo (eBKV)
With the ignition switched on, the electrome-
chanical brake servo supports the force of
the foot by increasing the pressure that the
driver exerts on the brake pedal. After discon-
necting the ignition, the assistance of the
brake servo is progressively reduced. Once
stopped, immobilise the vehicle to prevent it
from moving ››› page 159.
If the electromechanical brake servo does
not work, the yellow control lamps
