2019 Seat Ateca boot

Fuses and bulbs
Note
Due to the difficulty of accessing fog light
bulbs, have them r epl
aced at a Technical
Service or specialised workshop. Change the rear bulbs
Overvie w of t

ail lightsTail lights on side panel
Turn signal
PY21W NA LL
Side light and brake light P21W LL Tail lights on the rear lid

Left side
Side lights P21W LL
Fog light/side light P21W LL
Reverse light W16W
Right side
Side lights 2x P21W LL
Reverse light W16WThe table corresponds to a right-hand traffic
v
ehicl
e

. The position of lights may vary ac-
cording to the country. Rear bulbs (in the side panel)
Fig. 114
Boot: access to the bolt securing the
t ail light unit. Fig. 115
Retaining tabs on reverse side of tail
light. Follow the steps indicated:
Check which of the bulbs is def ectiv
e

.
Open the rear lid.
1.
2. Remove the lid, levering it with the flat
side of a screw

driver into the recess

Transport and practical equipment

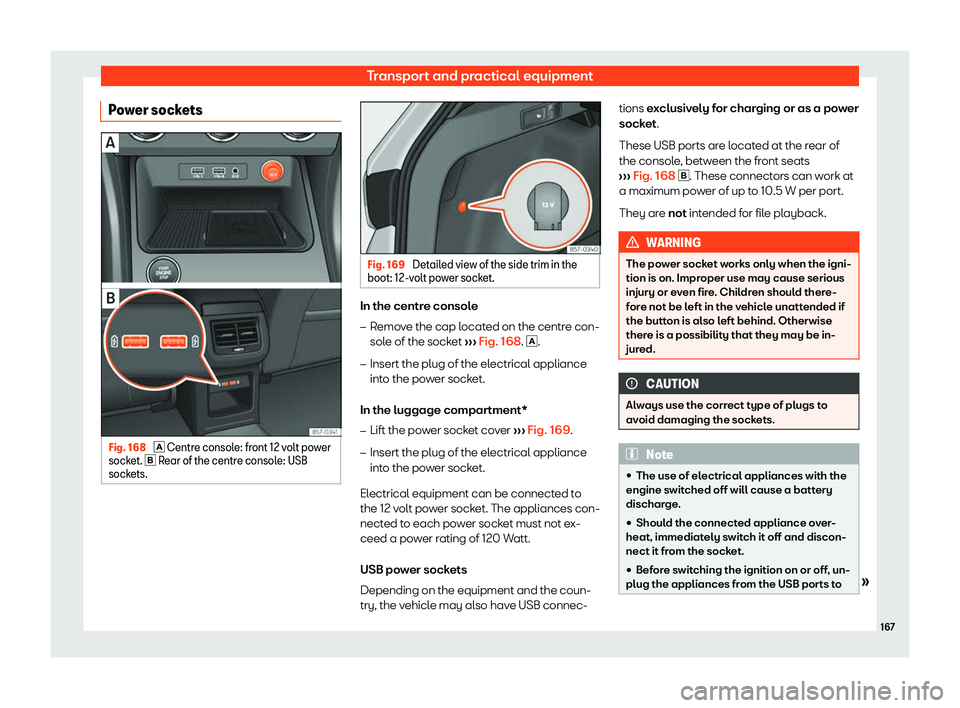

Power sockets Fig. 168
 Centre consol
e: fr ont 12 volt power
socket.  Rear of the centre console: USB
sockets. Fig. 169
Detailed view of the side trim in the
boot: 12-volt po w

er socket. In the centre console

Transport and practical equipment
Luggage compartment shelf Fig. 170
In the boot: removing and installing
the shelf . Fig. 171
In the boot: removing and installing
the shelf . The luggage compartment cover blocks the
vie
w int
o the luggage compartment. R
emoving

Transport and practical equipment
Fig. 181
Variable boot floor: tilted position. Variable floor in high position
