2019 RAM CHASSIS CAB headlights

3
 STEERING WHEEL ......................................................... 53 
Tilt Steering Column ................................................... 53
Heated Steering Wheel — If Equipped ..................... 54
 DRIVER ADJUSTABLE PEDALS — IF EQUIPPED ..... 55
 MIRRORS ............................................................................ 56 
Inside Day/Night Mirror — If Equipped ................. 56
Automatic Dimming Mirror — If Equipped ............ 57
Automatic Dimming Mirror With Rear View Camera
Display — If Equipped ................................................ 58
Outside Mirrors ............................................................ 58
Driver's Outside Automatic Dimming Mirror — If
Equipped......................................................................... 59
Power Mirrors — If Equipped .................................... 59
Power Convex Mirror Switch — If Equipped ........... 60
Trailer Towing Mirrors — If Equipped ..................... 61
Heated Mirrors — If Equipped ................................. 62
Tilt Side Mirrors In Reverse — If Equipped .............. 62
Power Folding Outside Mirrors For Standard And
Trailer Tow — If Equipped .......................................... 63
Illuminated Vanity Mirror — If Equipped ................ 65  EXTERIOR LIGHTS ..........................................................66 
Multifunction Lever ......................................................66 
Headlight Switch ...........................................................66 
Daytime Running Lights (DRL) — If Equipped .....67 
High/Low Beam Switch ...............................................67 
Automatic High Beam Headlamp Control — If
Equipped .........................................................................67 
Flash-To-Pass ................................................................68 
Automatic Headlights — If Equipped ......................68 
Parking Lights And Panel Lights ................................69 
Headlights On With Wipers (Available With
Automatic Headlights Only)........................................69 
Headlight Delay .............................................................69 
Lights-On Reminder......................................................69 
Front Fog Lights — If Equipped .................................70 
Turn Signals ................................................................70 
Lane Change Assist — If Equipped ............................70 
Cargo Lights — If Equipped ........................................71 
Battery Saver...................................................................71
 INTERIOR LIGHTS ............................................................72 
Courtesy Lights ..............................................................72 
Illuminated Entry ..........................................................74
 WINDSHIELD WIPERS AND WASHERS ....................74

Windshield Wipers ......................................................74

Rain Sensing Wipers — If Equipped .........................76

66 GETTING TO KNOW YOUR VEHICLE
EXTERIOR LIGHTS
Multifunction Lever
The multifunction lever is located on the left side of the
steering column.
Multifunction Lever Headlight Switch
The headlight switch is located on the left side of the instru -
ment panel. This switch controls the operation of the head -
lights, parking lights, automatic headlights — if equipped,
instrument panel light dimming, cargo light — if equipped,
and fog lights — if equipped.
Headlight Switch
Rotate the headlight switch clockwise to the first detent for
parking light and instrument panel light operation. Rotate
the headlight switch to the second detent for headlight,
parking light, and instrument panel light operation.

GETTING TO KNOW YOUR VEHICLE 67
Daytime Running Lights (DRL) — If Equipped
The headlights on your vehicle will illuminate when the
engine is started and the transmission is in any gear except
PARK. This provides a constant "lights on" condition until
the ignition is turned OFF. The lights illuminate at less than
half of normal intensity. If the parking brake is applied, the
Daytime Running Lights (DRL) will turn off. Also, if a turn
signal is activated, the DRL lamp on the same side of the
vehicle may turn off for the duration of the turn signal acti -
vation. Once the turn signal is no longer active, the DRL
lamp will illuminate.
NOTE:
If allowed by law in the country in which the vehicle was
purchased, the Daytime Running Lights can be turned on
and off using the Uconnect System, refer to “Uconnect
Settings” in “Multimedia” for further information.
High/Low Beam Switch
Push the multifunction lever toward the instrument panel to
switch the headlights to high beam. Pulling the multifunc -
tion lever back toward the steering wheel will turn the low
beams back on, or shut the high beams off. Automatic High Beam Headlamp Control — If
Equipped
The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automating
high beam control through the use of a digital camera
mounted on the inside rearview mirror. This camera detects
vehicle specific light and automatically switches from high
beams to low beams until the approaching vehicle is out of
view.
NOTE:
• The Automatic High Beam Headlamp Control can be
turned on or off by selecting “ON” under “Auto Dim High
Beams” within your Uconnect settings, as well as turning
the headlight switch to the AUTO position. Refer to
“Uconnect Settings” in “Multimedia” for further informa -
tion.
• Broken, muddy, or obstructed headlights and taillights of
vehicles in the field of view will cause headlights to remain
on longer (closer to the vehicle). Also, dirt, film, and other
obstructions on the windshield or camera lens will cause
the system to function improperly. 2

68 GETTING TO KNOW YOUR VEHICLE
If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed to
ensure proper performance. See a local authorized dealer.
To Activate
1. The Automatic High Beams are enabled through the
Uconnect system. Refer to “Uconnect Settings” in “Multi -
media” for further information.
2. Turn the headlight switch to the AUTO headlight posi -
tion.
3. Push the multifunction lever away from you (toward
front of vehicle) to engage the high beam mode.
NOTE:
The Automatic High Beams will not activate until the vehicle
is at or above 12 mph (20 km/h).
To Deactivate
1. Pull the multifunction lever toward you (or rearward in
vehicle) to manually deactivate the system (normal oper -
ation of low beams).
2. Push back on the multifunction lever to reactivate the
system. The Automatic High Beams can also be deactivated through
the Uconnect system. Refer to “Uconnect Settings” in “Multi -
media” for further information.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This will
cause the high beam headlights to turn on, and remain on,
until the lever is released.
Automatic Headlights — If Equipped
This system automatically turns your headlights on or off
based on ambient light levels. To turn the system on, turn the
headlight switch to the extreme clockwise position aligning
the indicator with the AUTO on the headlight switch. When
the system is on, the Headlight Time Delay feature is also on.
This means your headlights will stay on for up to 90 seconds
after you turn the ignition switch OFF. To turn the Auto -
matic System off, turn the headlight switch counterclockwise
to the O (off) position.
NOTE:
The engine must be running before the headlights will come
on in the Automatic mode.

GETTING TO KNOW YOUR VEHICLE 69
Parking Lights And Panel Lights
To turn on the parking lights and instrument panel lights,
from the O (off) position, rotate the headlight switch clock -
wise to the first detent. To turn off the parking lights, rotate
the headlight switch back to the O (off) position.
Headlights On With Wipers (Available With Automatic
Headlights Only)
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on if
the headlight switch is placed in the AUTO position. In addi -
tion, the headlights will turn off when the wipers are turned
off, if they were turned on by this feature.
NOTE:
This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information. Headlight Delay
To aid in your exit, your vehicle is equipped with a headlight
delay that will leave the headlights on for approximately up
to 90 seconds. This delay is initiated when the ignition is
turned off while the headlight switch is on, and then the
headlight switch is cycled off. Headlight delay can be
canceled by either turning the headlight switch on then off,
or by turning the ignition to the ON/RUN position.
NOTE:
This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.
Lights-On Reminder
If the headlights, parking lights, or cargo lights are left on
after the ignition is turned OFF, a chime will sound when the
driver’s door is opened. 2

70 GETTING TO KNOW YOUR VEHICLE
Front Fog Lights — If Equipped
To activate the front fog lights, turn on the parking lights or
low beam headlights and push in the center of the headlight
switch control knob. Pushing the headlight switch control
knob a second time will turn the front fog lights off.
Front Fog Light Switch Turn Signals
Move the multifunction lever up or down and the arrows on
each side of the instrument cluster display will flash to show
proper operation of the front and rear turn signal lights.
NOTE:
If either light remains on and does not flash, or there is a very
fast flash rate, check for a defective outside light bulb. If an
indicator fails to light when the lever is moved, it would
suggest that the indicator bulb is defective.
Lane Change Assist — If Equipped
Tap the multifunction lever up or down once, without
moving beyond the detent, and the turn signal (right or left)
will flash three times then automatically turn off.

GETTING TO KNOW YOUR VEHICLE 71
Cargo Lights — If Equipped
The cargo lights (if equipped) and trailer spotter lamps (if
equipped) are turned on by pushing the cargo lights button
located on the lower half of the headlight switch.
Cargo Lights Button On Headlight Switch
The cargo lights will turn on for approximately 60 seconds
when a key fob unlock button is pushed, as part of the Illu -
minated Entry feature. Battery Saver
To protect the life of your vehicle’s battery, load shedding is
provided for both the interior and exterior lights.
If the ignition is OFF, the interior lights will automatically
turn off when:
• Any door is left ajar for 10 minutes.
• The Dome Defeat button is pushed.
• The Cargo and Spotter lights are manually activated by the
headlight switch.
NOTE:
Battery saver mode is canceled if the ignition is ON.
If the headlights remain on while the ignition is cycled OFF,
the exterior lights will automatically turn off after eight
minutes. If the headlights are turned on and left on for eight
minutes while the ignition is OFF, the exterior lights will
automatically turn off. 2

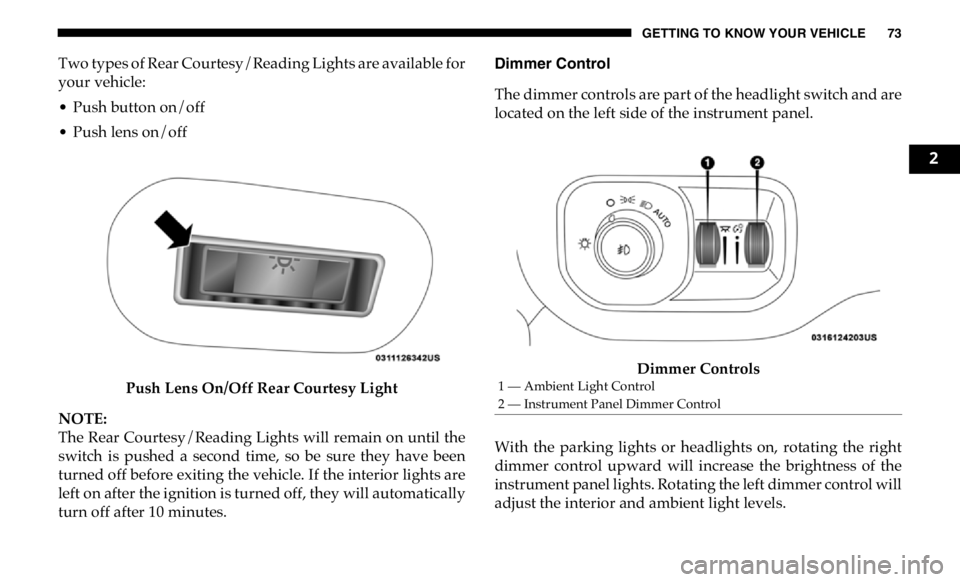

GETTING TO KNOW YOUR VEHICLE 73
Two types of Rear Courtesy/Reading Lights are available for
your vehicle:
• Push button on/off
• Push lens on/off
Push Lens On/Off Rear Courtesy Light
NOTE:
The Rear Courtesy/Reading Lights will remain on until the
switch is pushed a second time, so be sure they have been
turned off before exiting the vehicle. If the interior lights are
left on after the ignition is turned off, they will automatically
turn off after 10 minutes. Dimmer Control
The dimmer controls are part of the headlight switch and are
located on the left side of the instrument panel.
Dimmer Controls
With the parking lights or headlights on, rotating the right
dimmer control upward will increase the brightness of the
instrument panel lights. Rotating the left dimmer control will
adjust the interior and ambient light levels. 1 — Ambient Light Control
2 — Instrument Panel Dimmer Control 2
