2019 RAM CHASSIS CAB cabin filter

GETTING TO KNOW YOUR VEHICLE 91
Outside Air Intake
Make sure the air intake, located directly in front of the wind -
shield, is free of obstructions, such as leaves. Leaves collected
in the air intake may reduce airflow, and if they enter the
plenum, they could plug the water drains. In Winter months,
make sure the air intake is clear of ice, slush, and snow.
Cabin Air Filter
The climate control system filters out dust and pollen from
the air. Contact an authorized dealer to service your cabin air

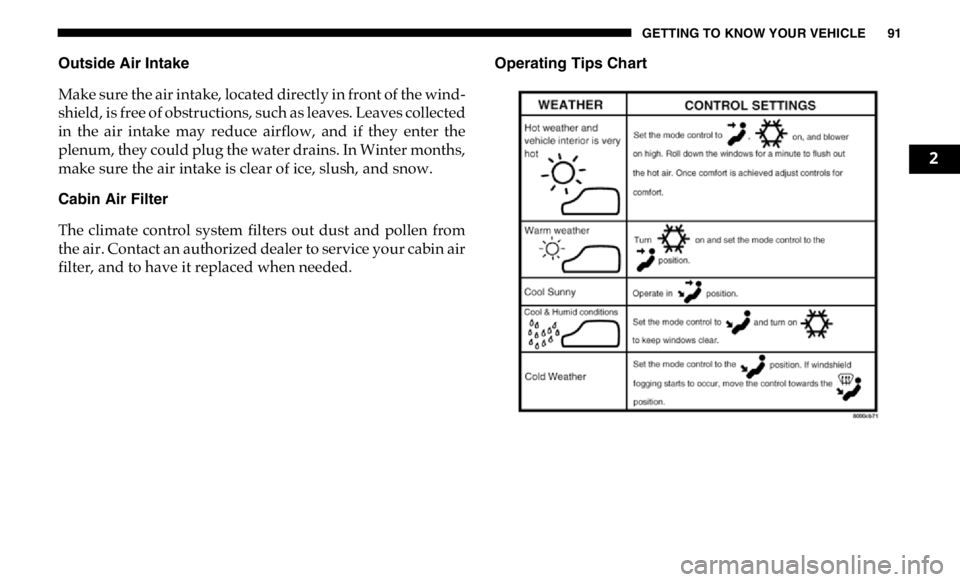

filter, and to have it replaced when needed. Operating Tips Chart
2

SERVICING AND MAINTENANCE 423
Cabin Filter Replacement (A/C Air Filter)
Refer to the “Maintenance Plan” for the proper maintenance
intervals.
The cabin air filter is located in the fresh air inlet behind the
glove compartment. Perform the following procedure to
replace the filter:
1. Open the glove compartment and remove all contents. 2. With the glove compartment door open, remove the
glove compartment tension tether and tether clip by
sliding the clip toward the face of the glove compartment
door. Lift the clip out of glove compartment door and
release into dash panel.
Right Side Of Glove CompartmentWARNING!
Do not remove the cabin air filter while the vehicle is
running, or while the ignition is in the ACC or ON/RUN
mode. With the cabin air filter removed and the blower
operating, the blower can contact hands and may propel
dirt and debris into your eyes, resulting in personal
injury.
1 — Glove Compartment Door
2 — Glove Compartment Tension Tether 7

SERVICING AND MAINTENANCE 425

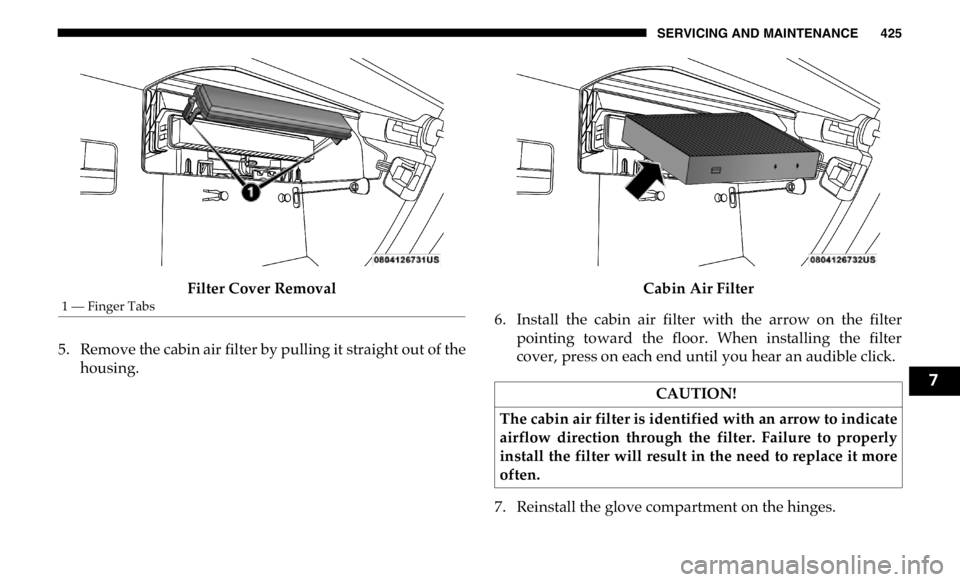

Filter Cover Removal
5. Remove the cabin air filter by pulling it straight out of the
housing. Cabin Air Filter
6. Install the cabin air filter with the arrow on the filter
pointing toward the floor. When installing the filter
cover, press on each end until you hear an audible click.
7. Reinstall the glove compartment on the hinges.1 — Finger Tabs
CAUTION!
The cabin air filter is identified with an arrow to indicate
airflow direction through the filter. Failure to properly
install the filter will result in the need to replace it more
often. 7
