2019 Ram 3500 Chassis Cab belt

SAFETY 215
Carefully read and follow all the instructions and warnings
in the child restraint Owner’s Manual and on all the labels
attached to the child restraint.
Before buying any restraint system, make sure that it has a
label certifying that it meets all applicable Safety Standards.
You should also make sure that you can install it in the
vehicle where you will use it.NOTE:

• For additional information, refer to
http://www.nhtsa.gov/
parents-and-caregivers or call: 1–888–327–4236
• Canadian residents should refer to Transport Canada’s website for additional information: http://www.tc.gc.ca/eng/motorve -
hiclesafety/safedrivers-childsafety-index-53.htm

Summary Of Recommendations For Restraining Children In Vehicles Child Size, Height, Weight Or AgeRecommended Type Of Child
Restraint
Infants and Toddlers
Children who are two years old or younger
and who have not reached the height or
weight limits of their child restraint
Either an Infant Carrier or a Convertible
Child Restraint, facing rearward in a
rear seat of the vehicle
Small Children
Children who are at least two years old or
who have outgrown the height or weight
limit of their rear-facing child restraint
Forward-Facing Child Restraint with a
five-point Harness, facing forward in a
rear seat of the vehicle
Larger Children Children who have outgrown their
forward-facing child restraint, but are
too small to properly fit the vehicle’s
seat belt Belt Positioning Booster Seat and the
vehicle seat belt, seated in a rear seat of
the vehicle
Children Too Large for Child Restraints Children 12 years old or younger, who
have outgrown the height or weight
limit of their booster seat Vehicle Seat Belt, seated in a rear seat of
the vehicle
4

SAFETY 217
Older Children And Child Restraints
Children who are two years old or who have outgrown their
rear-facing convertible child seat can ride forward-facing in
the vehicle. Forward-facing child seats and convertible child
seats used in the forward-facing direction are for children
who are over two years old or who have outgrown the
rear-facing weight or height limit of their rear-facing
convertible child seat. Children should remain in a
forward-facing child seat with a harness for as long as
possible, up to the highest weight or height allowed by the
child seat.
All children whose weight or height is above the
forward-facing limit for the child seat should use a belt-posi-
tioning booster seat until the vehicle’s seat belts fit properly.
If the child cannot sit with knees bent over the vehicle’s seat
cushion while the child’s back is against the seatback, they
should use a belt-positioning booster seat. The child and
belt-positioning booster seat are held in the vehicle by the
seat belt.WARNING!
• Improper installation can lead to failure of an infant or child restraint. It could come loose in a collision. The
child could be badly injured or killed. Follow the child
restraint manufacturer’s directions exactly when
installing an infant or child restraint.
• After a child restraint is installed in the vehicle, do not move the vehicle seat forward or rearward because it
can loosen the child restraint attachments. Remove the
child restraint before adjusting the vehicle seat posi -
tion. When the vehicle seat has been adjusted, reinstall
the child restraint.
• When your child restraint is not in use, secure it in the vehicle with the seat belt or LATCH anchorages, or
remove it from the vehicle. Do not leave it loose in the
vehicle. In a sudden stop or accident, it could strike the
occupants or seatbacks and cause serious personal
injury.
4

218 SAFETY
Children Too Large For Booster Seats
Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend over
the front of the seat when their back is against the seatback,
should use the seat belt in a rear seat. Use this simple 5-step
test to decide whether the child can use the vehicle’s seat belt
alone:
1. Can the child sit all the way back against the back of thevehicle seat?
2. Do the child’s knees bend comfortably over the front of the vehicle seat – while the child is still sitting all the way
back?
3. Does the shoulder belt cross the child’s shoulder between the neck and arm?
4. Is the lap part of the belt as low as possible, touching the child’s thighs and not the stomach?
5. Can the child stay seated like this for the whole trip? If the answer to any of these questions was “no,” then the
child still needs to use a booster seat in this vehicle. If the
child is using the lap/shoulder belt, check seat belt fit peri
-
odically and make sure the seat belt buckle is latched. A
child’s squirming or slouching can move the belt out of posi -
tion. If the shoulder belt contacts the face or neck, move the
child closer to the center of the vehicle, or use a booster seat
to position the seat belt on the child correctly.
WARNING!
Never allow a child to put the shoulder belt under an
arm or behind their back. In a crash, the shoulder belt
will not protect a child properly, which may result in
serious injury or death. A child must always wear both
the lap and shoulder portions of the seat belt correctly.

SAFETY 219
Recommendations For Attaching Child Restraints Restraint Type Combined Weight
of the Child +
Child Restraint Use Any Attachment Method Shown With An “X” Below
LATCH – Lower Anchors Only Seat Belt OnlyLATCH – Lower
Anchors + Top Tether Anchor Seat Belt + Top
Tether Anchor
Rear-Facing Child Restraint Up to 65 lbs
(29.5 kg) X
X
Rear-Facing Child Restraint More than 65 lbs
(29.5 kg) X
Forward-Facing Child Restraint Up to 65 lbs
(29.5 kg) X
X
Forward-Facing Child Restraint More than 65 lbs
(29.5 kg) X
4

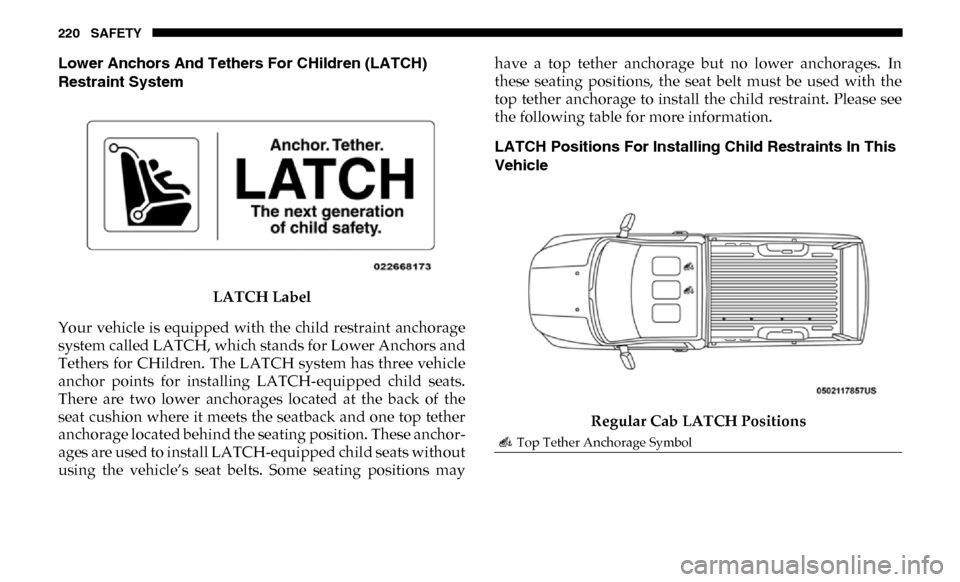

220 SAFETY
Lower Anchors And Tethers For CHildren (LATCH)
Restraint System LATCH Label
Your vehicle is equipped with the child restraint anchorage
system called LATCH, which stands for Lower Anchors and
Tethers for CHildren. The LATCH system has three vehicle
anchor points for installing LATCH-equipped child seats.
There are two lower anchorages located at the back of the
seat cushion where it meets the seatback and one top tether
anchorage located behind the seating position. These anchor -
ages are used to install LATCH-equipped child seats without
using the vehicle’s seat belts. Some seating positions may have a top tether anchorage but no lower anchorages. In
these seating positions, the seat belt must be used with the
top tether anchorage to install the child restraint. Please see
the following table for more information.
LATCH Positions For Installing Child Restraints In This
Vehicle
Regular Cab LATCH Positions
Top Tether Anchorage Symbol

222 SAFETY
Frequently Asked Questions About Installing Child Restraints With LATCH
What is the weight limit (child’s weight
+ weight of the child restraint) for using
the LATCH anchorage system to attach
the child restraint? 65 lbs (29.5 kg)Use the LATCH anchorage system until the combined
weight of the child and the child restraint is 65 lbs (29.5
kg). Use the seat belt and tether anchor instead of the
LATCH system once the combined weight is more than
65 lbs (29.5 kg).
Can the LATCH anchorages and the
seat belt be used together to attach a
rear-facing or forward-facing child
restraint? NoDo not use the seat belt when you use the LATCH
anchorage system to attach a rear-facing or
forward-facing child restraint.
Booster seats may be attached to the LATCH anchorages
if allowed by the booster seat manufacturer. See your
booster seat owner’s manual for more information.
Can a child seat be installed in the
center position using the inner LATCH
lower anchorages from the outboard
seating positions? No – Regular / Crew
Full Rear Bench
N/A – Crew Split Rear
BenchRegular Cab Front/Full Bench Rear Seat: Use the seat belt
and tether anchor to install a child seat in the center
seating position.
Split Bench Rear Seat: Use the supplied center lower
anchorages to install a child restraint in the center
position.

SAFETY 223
Can two child restraints be attached
using a common lower LATCH
anchorage?NoNever “share” a LATCH anchorage with two or more
child restraints. If the center position does not have
dedicated LATCH lower anchorages, use the seat belt to
install a child seat in the center position next to a child
seat using the LATCH anchorages in an outboard
position.
Can the rear-facing child restraint touch
the back of the front passenger seat? YesThe child seat may touch the back of the front passenger
seat if the child restraint manufacturer also allows
contact. See your child restraint owner’s manual for more
information.
Can the rear head restraints be
removed? YesThe head restraints can be removed in every rear seating
position if they interfere with the installation of the child
restraint.
Refer to “Head Restraints” in “Getting To Know Your
Vehicle” for further information.
Frequently Asked Questions About Installing Child Restraints With LATCH
4

226 SAFETY
Center Seat LATCH
Regular Cab or Crew Cab Full Bench Rear Seat: No Lower
Center LATCH Anchorages Available
Crew Cab Split Bench Rear Seat: Center LATCH Anchor-
ages Available
If a child restraint installed in the center position blocks the
seat belt webbing or buckle for the outboard position, do not
use that outboard position. If a child seat in the center posi -
tion blocks the outboard LATCH anchors or seat belt, do not
install a child seat in that outboard position. Always follow the directions of the child restraint manu
-
facturer when installing your child restraint. Not all child
restraint systems will be installed as described here.
To Install A LATCH-Compatible Child Restraint
If the selected seating position has a Switchable Automatic
Locking Retractor (ALR) seat belt, stow the seat belt,
following the instructions below. See the section “Installing
Child Restraints Using the Vehicle Seat Belt” to check what
type of seat belt each seating position has.
1. Loosen the adjusters on the lower straps and on the tether strap of the child seat so that you can more easily attach
the hooks or connectors to the vehicle anchorages.
WARNING!
• Do not install a child restraint in the center position using the LATCH system. This position is not approved
for installing child seats using the LATCH attachments.
You must use the seat belt and tether anchor to install a
child seat in the center seating position.
• Never use the same lower anchorage to attach more than one child restraint. Please refer to “To Install A
LATCH-Compatible Child Restraint” for typical instal -
lation instructions.
WARNING!
Never use the same lower anchorage to attach more than
one child restraint. Please refer to “To Install A
LATCH-Compatible Child Restraint” for typical
installation instructions.
