Your vehicle may also be designed to perform any of these
other functions in response to the Enhanced Accident
Response System:
•Turn off the Fuel Filter Heater, Turn off the HVAC
Blower Motor, Close the HVAC Circulation Door
• Cut off battery power to the:
• Engine
• Electric Motor (if equipped)
• Electric power steering
• Brake booster
• Electric park brake
• Automatic transmission gear selector
• Horn
• Front wiper
• Headlamp washer pump NOTE:
After an accident, remember to cycle the ignition
to the STOP (OFF/LOCK) position and remove the key
from the ignition switch to avoid draining the battery.
Carefully check the vehicle for fuel leaks in the engine
compartment and on the ground near the engine compart-
ment and fuel tank before resetting the system and starting
the engine. If there are no fuel leaks or damage to the
vehicle electrical devices (e.g. headlights) after an accident,
reset the system by following the procedure described
below. If you have any doubt, contact an authorized dealer.
Enhanced Accident Response System Reset
Procedure
In order to reset the Enhanced Accident Response System
functions after an event, the ignition switch must be
changed from ignition START or ON/RUN to ignition OFF.
Carefully check the vehicle for fuel leaks in the engine
compartment and on the ground near the engine compart-
ment and fuel tank before resetting the system and starting
the engine.
5
SAFETY 261

The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Compart-
ment” illustration in this section.
Lubricants which do not have both the engine oil certifi-
cation mark and the correct SAE viscosity grade number
should not be used.
Engine Oil Viscosity (SAE Grade) — 5.7L Engine
Mopar SAE 5W-20 engine oil approved to FCA Material
Standard MS-6395 such as Pennzoil, Shell Helix or equiva-
lent is recommended for all operating temperatures. This
engine oil improves low temperature starting and vehicle
fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Compart-
ment” illustration in this section.
Lubricants which do not have both the engine oil certifi-
cation mark and the correct SAE viscosity grade number
should not be used.
Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes are
followed.
Synthetic engine oils which do not have both the engine oil
certification mark and the correct SAE viscosity grade
number should not be used.
Materials Added To Engine Oil
The manufacturer strongly recommends against the addi-
tion of any additives (other than leak detection dyes) to the
engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental additives.
Disposing Of Used Engine Oil And Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact an authorized dealer, service station
or governmental agency for advice on how and where used
oil and oil filters can be safely discarded in your area.
500 SERVICING AND MAINTENANCE

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
1500 Regular Cab Shortbed/Crew Quad Cab Models 23 Gallons87 Liters
1500 Regular Cab Shortbed/Crew Quad Cab Models 26 Gallons98 Liters
1500 Regular Cab Longbed/Crew Quad Cab Models (Optional) 33 Gallons121 Liters
Engine Oil With Filter
3.6L Engine (We recommend you use SAE 0W-20, API Certified) 5 Quarts4.7 Liters
5.7L Engines (We recommend you use SAE 5W-20, API Certified) 7 Quarts6.6 Liters
Cooling System
3.6L Engine (We recommend you use Mopar Antifreeze/Coolant 10
Year/150,000 Mile Formula that meets the requirements of FCA Mate-
rial Standard MS.90032.) 13.7 Quarts
13 Liters
3.6L Motor Generator Unit (We recommend you use Mopar
Antifreeze/Coolant 10 Year/150,000 Mile Formula that meets the re-
quirements of FCA Material Standard MS.90032.) 1.8 Quarts
1.7 Liters
5.7L Engine – 1500 Models (We recommend you use Mopar
Antifreeze/Coolant 10 Year/150,000 Mile Formula that meets the re-
quirements of FCA Material Standard MS.90032.) 18.3 Quarts
17.3 Liters
9
TECHNICAL SPECIFICATIONS 563

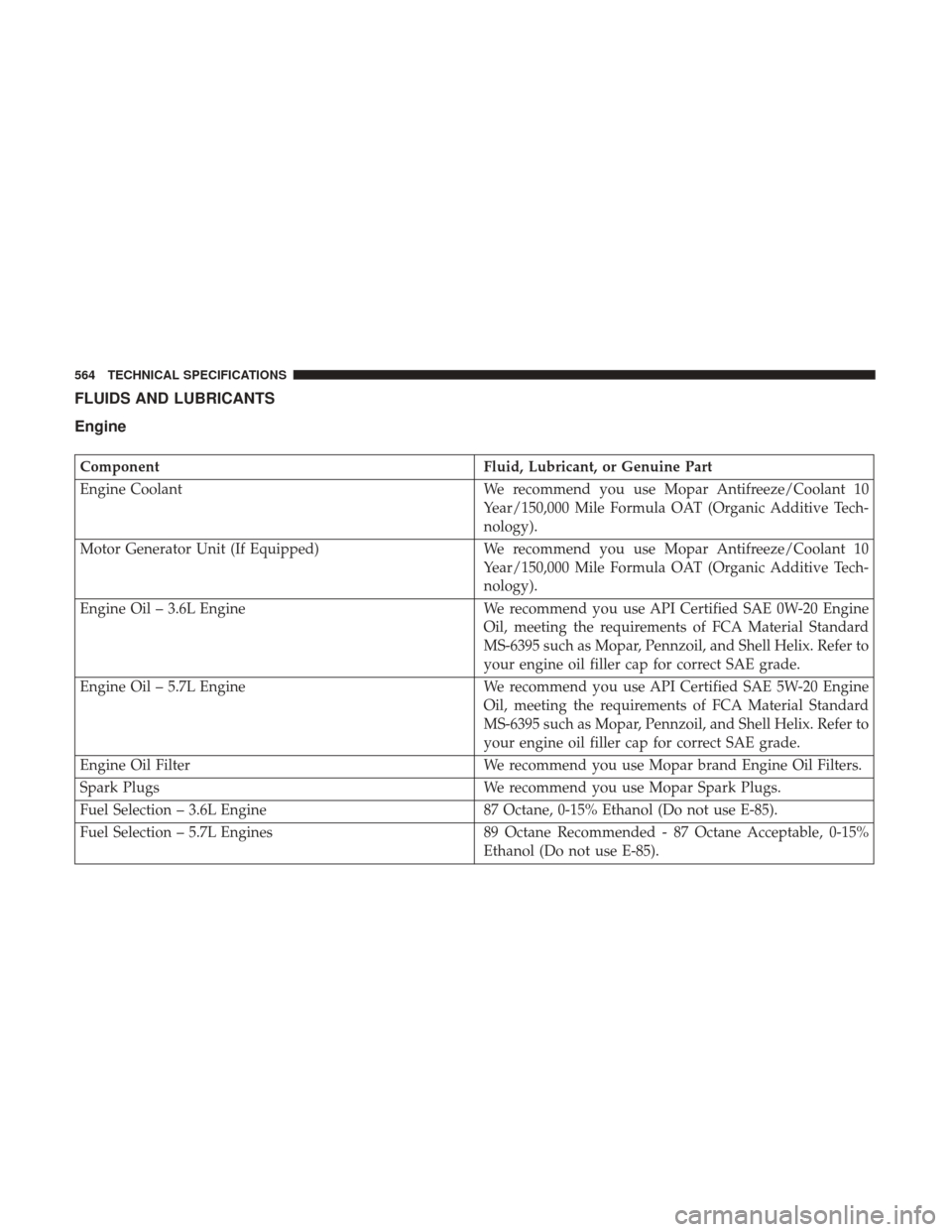

FLUIDS AND LUBRICANTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use Mopar Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology).
Motor Generator Unit (If Equipped) We recommend you use Mopar Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology).
Engine Oil – 3.6L Engine We recommend you use API Certified SAE 0W-20 Engine
Oil, meeting the requirements of FCA Material Standard
MS-6395 such as Mopar, Pennzoil, and Shell Helix. Refer to
your engine oil filler cap for correct SAE grade.
Engine Oil – 5.7L Engine We recommend you use API Certified SAE 5W-20 Engine
Oil, meeting the requirements of FCA Material Standard
MS-6395 such as Mopar, Pennzoil, and Shell Helix. Refer to
your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use Mopar brand Engine Oil Filters.
Spark Plugs We recommend you use Mopar Spark Plugs.
Fuel Selection – 3.6L Engine 87 Octane, 0-15% Ethanol (Do not use E-85).
Fuel Selection – 5.7L Engines 89 Octane Recommended - 87 Octane Acceptable, 0-15%
Ethanol (Do not use E-85).
564 TECHNICAL SPECIFICATIONS

Adaptive Cruise Control (ACC) (Cruise Control) . . . .343
Adding Engine Coolant (Antifreeze).............515
Adding Fuel ............................. .404
Additives, Fuel ........................... .559
Adjust Down .................................47
Forward ................................47
Rearward ...............................47
Up....................................47
Adjustable Pedals ...........................60
Air Bag Air Bag Operation ....................... .247
Air Bag Warning Light .................243, 248
Enhanced Accident Response .............260, 484
Event Data Recorder (EDR) .................485
FrontAirBag .......................... .248
If Deployment Occurs .....................259
Knee Impact Bolsters ..................... .255
Maintaining Your Air Bag System .............262
Maintenance ........................... .262
Redundant Air Bag Warning Light ............244
Transporting Pets ....................... .284
Air Bag Light ...................... .179, 243, 285
Air Cleaner, Engine (Engine Air Cleaner Filter) ......501
Air Conditioner Maintenance ..................503 Air Conditioner Refrigerant
................503, 504
Air Conditioner System ..................... .503
Air Conditioning ............................80
Air Conditioning Filter ....................95, 504
Air Conditioning, Operating Tips ................94
Air Conditioning System ......................93
Air Filter ............................... .501
Air Pressure Tires................................. .533
Air Suspension ........................ .322, 328
Alarm Panic ..................................21
Security Alarm....................... .33, 181
Alterations/Modifications Vehicle .................................6
Android Auto ............................ .667
Antifreeze (Engine Coolant) ................514, 563
Disposal .............................. .516
Anti-Lock

Brake System (ABS) .................198
Anti-Lock Warning Light .....................188
Apple CarPlay ........................... .669
Assist, Hill Start .......................... .200
Audio Systems (Radio) ...................... .569
Auto Down Power Windows ...................96
Automatic Door Locks ........................41
680 INDEX

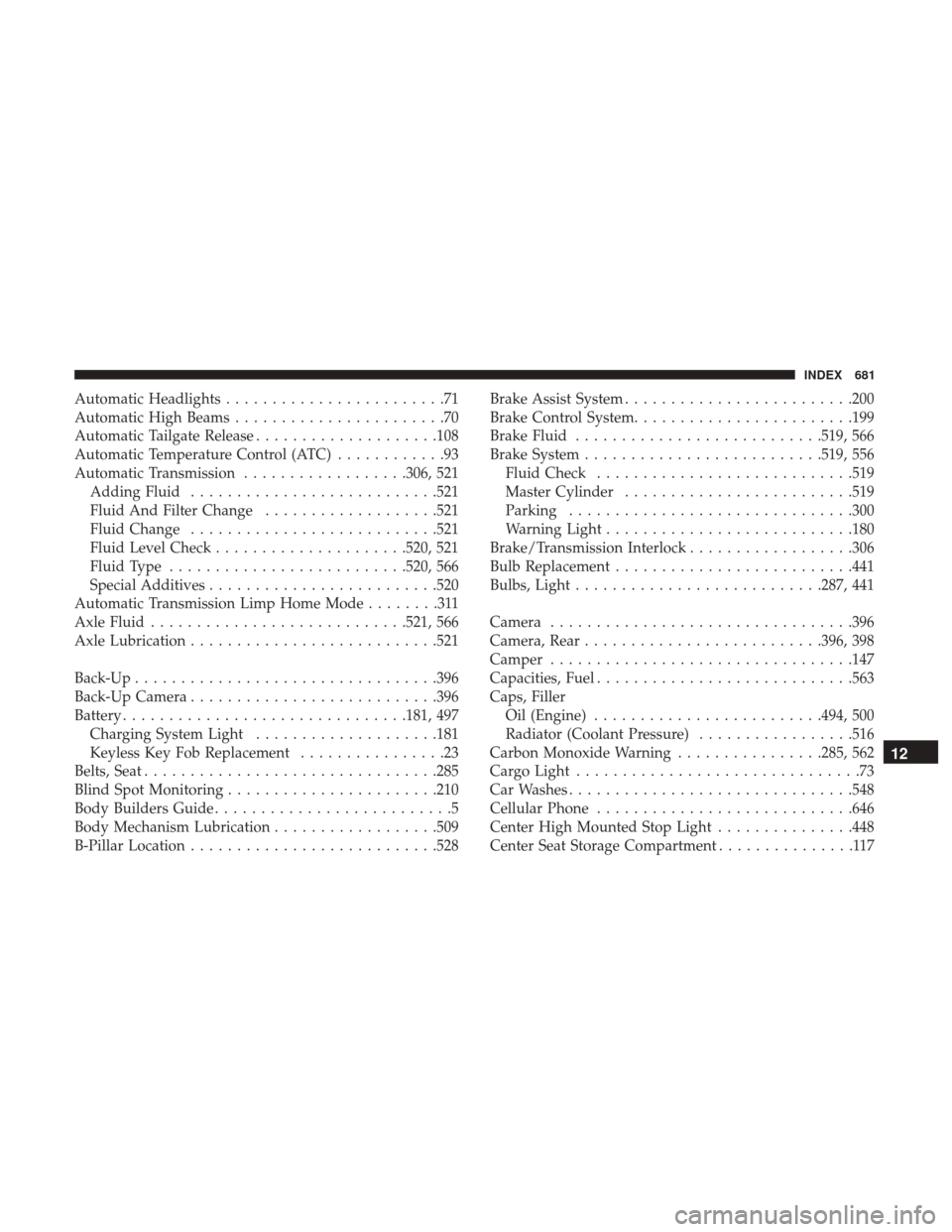

Automatic Headlights........................71
Automatic High Beams .......................70
Automatic Tailgate Release ....................108
Automatic Temperature Control (ATC) ............93
Automatic Transmission ..................306, 521
Adding Fluid .......................... .521
Fluid And Filter Change ...................521
Fluid Change .......................... .521
Fluid Level Check .....................520, 521
Fluid Type ......................... .520, 566
Special Additives ........................ .520
Automatic Transmission Limp Home Mode ........311
Axle Fluid ........................... .521, 566
Axle Lubrication .......................... .521
Back-Up ................................ .396
Back-Up Camera .......................... .396
Battery .............................. .181, 497
Charging System Light ....................181
Keyless Key Fob Replacement ................23
Belts, Seat ............................... .285
Blind Spot Monitoring ...................... .210
Body Builders Guide ..........................5
Body Mechanism Lubrication ..................509
B-Pillar Location .......................... .528Brake Assist System
........................ .200
Brake Control System ....................... .199
Brake Fluid .......................... .519, 566
Brake System ......................... .519, 556
Fluid Check ........................... .519
Master Cylinder ........................ .519
Parking .............................. .300
Warning Light .......................... .180
Brake/Transmission Interlock ..................306
Bulb Replacement ......................... .441
Bulbs, Light .......................... .287, 441
Camera ................................ .396
Camera,

Rear ......................... .396, 398
Camper ................................ .147
Capacities, Fuel ........................... .563
Caps, Filler Oil (Engine) ........................ .494, 500
Radiator (Coolant Pressure) .................516
Carbon Monoxide Warning ................285, 562
Cargo Light ...............................73
Car Washes .............................. .548
Cellular Phone ........................... .646
Center High Mounted Stop Light ...............448
Center Seat Storage Compartment ...............117
12
INDEX 681

Disable Vehicle Towing..................... .481
Disposal Antifreeze (Engine Coolant) .................516
Disturb ................................. .667
Door Ajar ............................... .183
Door Ajar Light ........................... .183
Door Locks Automatic ..............................41
Doors ....................................35
Drag And Drop Menu ...................... .569
Driver ’s Seat Back Tilt ........................43
Driving Through Flowing, Rising, Or Shallow Standing
Water ................................ .430
Dual Rear Wheels ......................... .557
Electrical Power Outlets ..................... .127
Electric Brake Control System ..................199
Anti-Lock Brake System ....................198
Electronic Roll Mitigation ...............202, 207
Electric Parking Brake ...................... .300
Electronically Shifted Transfer Case ..........314, 318
Electronic Range Select (ERS)..................312
Electronic Speed Control (Cruise Control) .........340
Electronic Stability Control (ESC) ...............203Electronic Throttle Control Warning Light
.........182
Emergency, In Case Of Freeing Vehicle When Stuck .................480
Hazard Warning Flasher ...................435
Jump Starting .......................... .474
Emission Control System Maintenance ............195
Engine ................................. .494
Air Cleaner ............................ .501
Block Heater ........................... .299
Break-In Recommendations .................299
Compartment ....................494, 495, 496
Compartment Identification ...........494, 495, 496
Coolant (Antifreeze) ..................... .564
Exhaust Gas Caution ...................285, 562
Fails To Start ........................... .298
Flooded,

Starting ........................ .298
Fuel Requirements ....................558, 563
Jump Starting .......................... .474
Oil ........................... .499, 563, 564
Oil Filler Cap ....................... .494, 500
Oil Filter .............................. .501
Oil Selection ........................ .499, 563
Oil Synthetic ........................... .500
Overheating ........................... .477
Starting .............................. .294
12
INDEX 683

Engine Oil Viscosity........................ .499
Engine Oil Viscosity Chart ....................499
Enhanced Accident Response Feature .........260, 484
Entry System, Illuminated .....................76
Ethanol ................................. .560
Exhaust Gas Cautions ....................285, 562
Exhaust System ........................ .285, 511
Exterior Lighting ............................68
Exterior Lights ......................... .68, 287
Filters Air Cleaner ............................ .501
Air Conditioning ..................... .95, 504
Engine Oil ......................... .501, 564
Engine Oil Disposal ...................... .500
Flashers Turn Signals ..................... .73, 192, 287
Flash-To-Pass ..............................71
Flat Tire Stowage .......................... .470
Fluid, Brake ............................. .566
Fluid Capacities ........................... .563
Fluid Leaks .............................. .288
Fluid Level Checks Brake ................................ .519
Fluids And Lubricants ...................... .564Fog Lights
............................ .72, 446
Fold-Flat Seats .............................43
Forward Collision Warning ....................221
Four-Way Hazard Flasher .....................435
Four Wheel Drive ......................... .313
Freeing A Stuck Vehicle ..................... .480
Front Axle (Differential) ..................... .521
Fuel ................................... .558
Adding .............................. .404
Additives ............................. .559
Clean Air ............................. .559
Ethanol .............................. .560
Gasoline .............................. .558
Light ................................ .186
Materials
Added........................ .559
Methanol ............................. .560
Octane Rating ....................558, 559, 564
Requirements ....................... .558, 563
Tank Capacity .......................... .563
Fuses .................................. .449
Garage Door Opener (HomeLink) ...............109
Gasoline, Clean Air ........................ .559
Gasoline, Reformulated ..................... .559
General Information ........................ .231
684 INDEX
