Seats, restraints37Horizontal adjustment
To adjust horizontally, pull the head
restraint forwards. It engages in
several positions.
To return to its rearmost position, pull fully forwards and release.
Head restraints on rear seats
Height adjustment
Pull the head restraint upwards or
press the catch to release and push the head restraint downwards.
Removal
Press both catches, pull the head restraint upwards and remove.
Active head restraints
In the event of a rear-end impact, the front parts of the active head
restraints are moved slightly
forwards. Thus the head is supported
so that the risk of whiplash injury is
reduced.
Note
Approved accessories may only be attached if the seat is not in use.

Seats, restraints41Armrest
Base armrest
The armrest can be slid forwards.
FlexConsole armrest
The armrest can be moved in a centre
console. Pull the handle to slide the
armrest.
There are two storages, a storage
drawer and a movable cupholder in
the armrest console.
Armrest storage 3 65.
Removing the armrest
Flex console armrest can be
removed.
Press fastenings inward and fold down locking mechanism at the rear
end of the armrest.

44Seats, restraintsThird row seats9Warning
When seats or backrests of
second and third seat row are
being adjusted or folded, keep
hands and feet away from the
moving area.
Never store objects under the
seats.
Never adjust seats while driving as they could move uncontrollably.
Drive only with engaged seats and
backrests.
Caution
Before setting up or folding down
seats, all components must be
removed from the side rails and
from the lashing eyes.
Lashing eyes must be in stored
position.
The seats in the third row can be folded down to the vehicle floor if they
are not required, or for increasing the
size of the load compartment.
The seats in the third row can only be
used if the second seat row is not in
the lounge position.
Setting up the seats ● Fold in interior protection mat 3 70 and remove load
compartment cover 3 68.
● Insert the latch plate of the seat
belt on each side into the pocket
that is mounted at the belt.

48Seats, restraintsUnfasten
To release belt, press red button on
belt buckle.
Centre seat belt of the secondseat row
The centre seat is equipped with a particular three-point seat belt.
Pull latch plates with the belt out of
belt holder in the roof.
Remove lower latch plate from
retainer and click it into left-hand
buckle ( 1) at the centre seat. Guide
the upper latch plate with the belt over
the lap area and the shoulder (do not twist) and click into right-hand buckle
( 2 ) at centre seat.
To unfasten the seat belt, first press
the button on the right-hand buckle
( 2 ) and remove upper latch plate.
Then press the button on the left-
hand buckle ( 1) and remove lower
latch plate. The seat belt retracts
automatically.Push the top latch plate into the
retainer. Fold over locked together
latch plates against the seat belt.

58Seats, restraintsISOFIX child restraint systems of
universal category positions are
marked in the table by IUF 3 59.
Selecting the right system The rear seats are the most
convenient location to fasten a child
restraint system.
Children should travel facing
rearwards in the vehicle as long as
possible. This makes sure that the child's backbone, which is still very
weak, is under less strain in the event
of an accident.
Suitable are child restraint systems
that comply with valid UN ECE
regulations. Check local laws and
regulations for mandatory use of child restraint systems.
The following child restraints are
recommended for the following
weight classes:
Maxi Cosi Cabriofix for children up to 13 kg for group 0, group 0+ and Duo
Plus for children from 13 kg to 18 kg in group I.Ensure that the child restraint system to be installed is compatible with the
vehicle type.
Ensure that the mounting location of
the child restraint system within the
vehicle is correct, see following
tables.
Allow children to enter and exit the
vehicle only on the side facing away
from the traffic.
When the child restraint system is not
in use, secure the seat with a seat belt or remove it from the vehicle.
Note
Do not affix anything on the child restraint systems and do not cover
them with any other materials.
A child restraint system which has
been subjected to stress in an
accident must be replaced.

Seats, restraints59Child restraint installation locations
Permissible options for fastening a child restraint system with a three-point seat belt
Weight class
On front passenger seatOn outboard seats in
the second rowOn centre seat
in the second
rowOn seats in the
third rowactivated airbagdeactivated airbagGroup 0: up to 10 kgXU 1,2U/L 3XU/L3Group 0+: up to 13 kgXU1,2U/L 3XU/L3Group I: 9 to 18 kgXU1,2U/L 3,4XU/L3,4Group II: 15 to 25 kgXXU/L3,4XU/L3,4Group III: 22 to 36 kgXXU/L3,4XU/L3,4U:universal suitability in conjunction with three-point seat beltL:suitable for particular child restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories. The
child restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child restraint
system)X:no child restraint system permitted in this weight class1:move seat forwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure that the belt runs forwards from the upper anchorage point2:move seat upwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensurethat the belt is tight on the buckle side3:move the respective front seat ahead of the child restraint system forwards as far as necessary4:adjust the respective headrest as necessary or remove if required

Seats, restraints61IL:suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.The ISOFIX restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child
restraint system)IUF:suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight classX:no ISOFIX child restraint system approved in this weight class1:move seat forwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure
that the belt runs forwards from the upper anchorage point2:move seat upwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure
that the belt is tight on the buckle side3:move the respective front seat ahead of the child restraint system forwards as far as necessary4:adjust the respective headrest as necessary or remove if requiredA – ISO//F3:forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.B – ISO//F2:forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.B1 – ISO//F2X:forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.C – ISO//R3:rear-facing child restraint system for children of maximum size in the weight class up to 18 kg.D – ISO//R2:rear-facing child restraint system for smaller children in the weight class up to 18 kg.E – ISO//R1:rear-facing child restraint system for young children in the weight class up to 13 kg.
Permissible options for fitting an i-Size child restraint system with ISOFIX brackets
On front passenger seatOn outboard seats in
the second rowOn centre seat in the
second rowOn the seats in the
third rowactivated airbagdeactivated airbagi-Size child
restraint
systemsXXi - UXXi - U:suitable for i-Size 'universal' forward and rearward facing child restraint systemsX:seating position not suitable for i-Size 'universal' child restraint systems

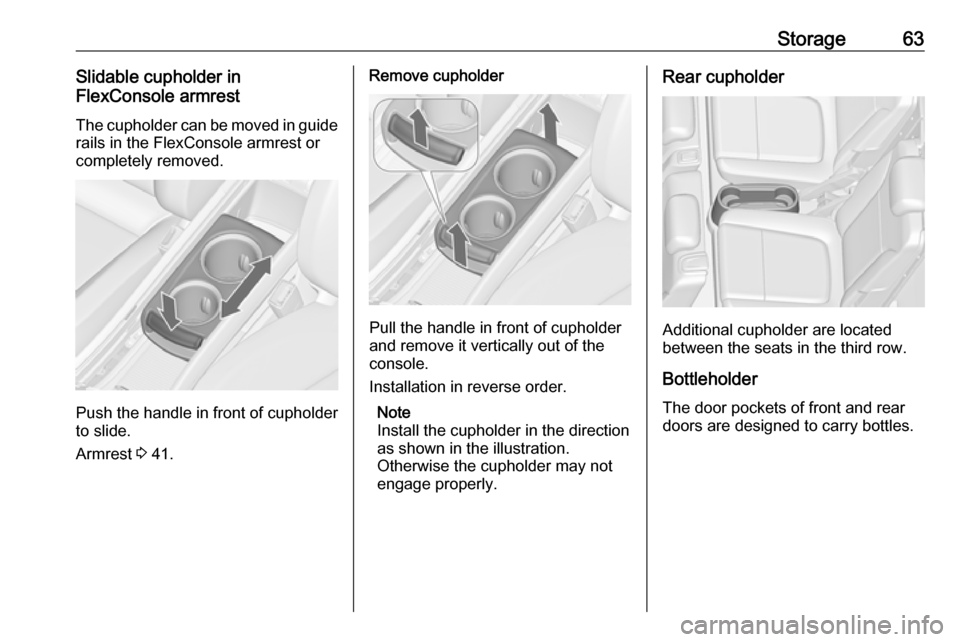

Storage63Slidable cupholder in
FlexConsole armrest
The cupholder can be moved in guide rails in the FlexConsole armrest or
completely removed.
Push the handle in front of cupholder
to slide.
Armrest 3 41.
Remove cupholder
Pull the handle in front of cupholder
and remove it vertically out of the
console.
Installation in reverse order.
Note
Install the cupholder in the direction as shown in the illustration.
Otherwise the cupholder may not engage properly.
Rear cupholder
Additional cupholder are located
between the seats in the third row.
Bottleholder
The door pockets of front and rear
doors are designed to carry bottles.
