2019 OPEL GRANDLAND X climate control

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............21
Seats, restraints ........................... 44
Storage ........................................ 68
Instruments and controls .............78
Lighting ...................................... 113
Climate control ........................... 123
Driving and operating .................134
Vehicle care ............................... 201
Service and maintenance ..........240
Technical data ........................... 246
Customer information ................259
Index .......................................... 270Contents

In brief111Power windows .....................40
2 Exterior mirrors .....................37
3 Side air vents ...................... 131
4 Turn lights, headlight
flash, low / high beam,
high beam assist .................118
Exit lighting ......................... 122
Parking lights ...................... 119
Buttons for Driver
Information Centre ..............100
5 Cruise control .....................157
Speed limiter ....................... 160
Heated steering wheel ..........79
6 Instruments ........................... 90
Driver Information Centre .... 100
7 Infotainment controls
8 Windscreen wiper and
washer, rear wiper and
washer ................................. 80
9 Power button ....................... 136
10 Centre air vents .................. 131
11 Hazard warning flashers ....118
12 Info Display ........................ 10213Anti-theft alarm system
status LED ........................... 35
14 Central locking system ..........24
15 Glovebox .............................. 68
16 Controls for Info Display
operation ............................. 102
17 Climate control system ........ 124
18 USB charging port ................ 84
19 Power outlet .......................... 84
20 Parking assist / Advanced
parking assist .....................175
Lane departure warning .....188
Eco button for stop-start
system ................................. 139
Electronic Stability Control and Traction Control ...........154
Sport mode ......................... 157
21 Manual transmission ..........150
Automatic transmission ......147
22 Electric parking brake .........151
23 Selective ride control ..........155
24 Ignition switch .....................135
25 Steering wheel adjustment ..7926 Horn ..................................... 80
27 Storage ................................. 68
28 Bonnet release lever ..........203
29 Light switch ........................ 113
Headlight range
adjustment ......................... 115
Front / rear fog lights ..........119
Instrument illumination .......120

16In briefClimate control
Heated rear windowHeating and ventilation system, air
conditioning system
The heating is operated by pressing
b .
Electronic climate control system
The heating is operated by pressing
b .
Heated rear window 3 41.
Heated exterior mirrors
Pressing b also activates the heated
exterior mirrors.
Heated exterior mirrors 3 38.
Demisting and defrosting the
windows
Heating and ventilation system, air conditioning system
● press à, the air distribution is
directed towards the windscreen
● set temperature controller £ to
warmest level
● switch on air conditioning A/C, if
required
● set fan speed Z to highest level
● switch on heated rear window b

In brief17●switch on heated windscreen ,
● open side air vents as required and direct them towards the doorwindows
Heating and ventilation system
3 123.
Air conditioning system 3 124.
Heated windscreen 3 42.Electronic climate control system
● press à, the LED in the button
illuminates to indicate activation
● temperature and air distribution are set automatically and the fan
runs at high speed
● switch on air conditioning by pressing A/C, if required
● switch on heated rear window b
● switch on heated windscreen ,
● to return to previous mode, press
à again
● to return to automatic mode, press AUTO
Electronic climate control system
3 127.

Keys, doors and windows41
Press and hold e to close windows.
Release button to stop window
movement.
If the windows are fully closed, the
hazard warning lights will flash twice.
Overload
If the windows are repeatedly
operated within short intervals, the
window operation is disabled for
some time.
Initialising the power windows
If the windows cannot be closed
automatically (e.g. after
disconnecting the vehicle battery), a
warning message is displayed in the
Driver Information Centre.
Vehicle messages 3 104.
Activate the window electronics as follows:
1. Close doors.
2. Switch on ignition.
3. Pull switch until the window is closed and keep pulling for
additional 2 seconds.
4. Push switch until the window is completely open and keep
pushing for additional 2 seconds.
5. Repeat for each window.
Heated rear window Operated by pressing b together with
heated exterior mirrors.
Heating works with the engine
running and is switched off
automatically after a short time.Depending on climate control system, b is located at a different position.
Vehicles with heating and
ventilation system or air
conditioning system

42Keys, doors and windowsVehicles with electronic climate
control system
Heated windscreen
Operated by pressing ,. LED in
button illuminates.
Heating works with the engine
running and is switched off
automatically after a short time.
Depending on climate control
system, , is located at a different
position.
Vehicles with electronic climate
control system
Vehicles with air conditioning
system
Sun visors
The sun visors can be folded down or swivelled to the side to prevent
dazzling.
If the sun visors have integral mirrors, the mirror covers should be closed
when driving.
A ticket holder is located on the
backside of the sun visor.
Roller blinds
To reduce sunlight at the second row seats, pull the blind upwards using
the grip and engage it at the top of the
door frame.

68StorageStorageStorage compartments................68
Glovebox ................................... 68
Cupholders ................................ 68
Centre console storage .............69
Load compartment .......................69
Load compartment cover ...........71
Rear floor storage cover ............72
Lashing eyes ............................. 73
Safety net .................................. 73
Warning triangle ........................75
First aid kit ................................. 75
Roof rack system .........................75
Roof rack ................................... 75
Loading information .....................76Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.
Glovebox
On some versions the glovebox is
ventilated. Air ventilation and
temperature depend on the settings
of the climate control system. The air
vent in the glovebox can be closed
3 131.
Other versions may have a CD player
in the glovebox.
The glovebox should be closed whilst driving.
Cupholders
Cupholders are located in the centre
console.

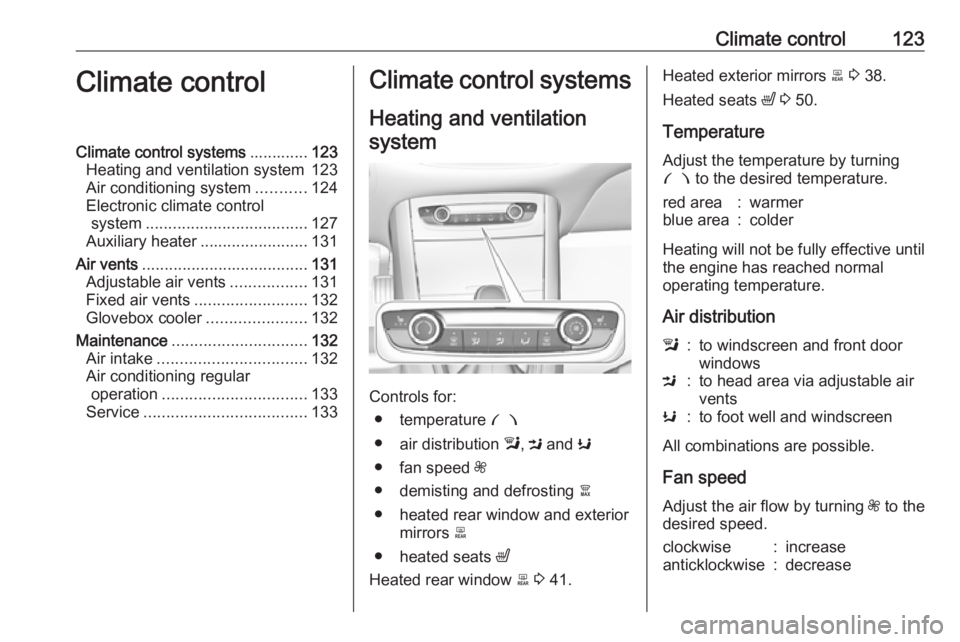

Climate control123Climate controlClimate control systems.............123
Heating and ventilation system 123
Air conditioning system ...........124
Electronic climate control system .................................... 127
Auxiliary heater ........................131
Air vents ..................................... 131
Adjustable air vents .................131
Fixed air vents ......................... 132
Glovebox cooler ......................132
Maintenance .............................. 132
Air intake ................................. 132
Air conditioning regular
operation ................................ 133
Service .................................... 133Climate control systems
Heating and ventilation system
Controls for: ● temperature £
● air distribution l, M and K
● fan speed Z
● demisting and defrosting à
● heated rear window and exterior mirrors b
● heated seats ß
Heated rear window b 3 41.
Heated exterior mirrors b 3 38.
Heated seats ß 3 50.
Temperature
Adjust the temperature by turning £ to the desired temperature.red area:warmerblue area:colder
Heating will not be fully effective until
the engine has reached normal
operating temperature.
Air distribution
l:to windscreen and front door
windowsM:to head area via adjustable air
ventsK:to foot well and windscreen
All combinations are possible.
Fan speed
Adjust the air flow by turning Z to the
desired speed.
clockwise:increaseanticklockwise:decrease
