2019 OPEL CORSA E refuelling

82Instruments and controlsIlluminates when the engine is
runningCaution
Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.
1. Depress the clutch.
2. Set selector lever to neutral.
3. Move out of the flow of traffic as quickly as possible without
impeding other vehicles.
4. Switch off the ignition.
9 Warning
When the engine is off,
considerably more force is needed
to brake and steer.
During an Autostop, the brake
servo unit will still be operational.
Do not remove key until vehicle is stationary, otherwise the steeringwheel lock could engage
unexpectedly.
Keep engine turned off and let the
vehicle be towed to a workshop.
Low fuel Y illuminates or flashes yellow.
Illuminates
Level in fuel tank is too low.
Flashes
Fuel used up. Refuel immediately.
Never run the fuel tank dry.
Refuelling 3 152.
Catalytic converter 3 126.
Immobiliser
d flashes yellow.
Fault in the immobiliser system. The
engine cannot be started.
Immobiliser 3 28.
Reduced engine power
# illuminates yellow.
The engine power is limited. Consult
a workshop.Autostop
Autostop active D illuminates red or white.
Engine is in an Autostop.
Stop-start system 3 122.
Exterior light 8 illuminates green.
The exterior lights are on 3 100.
High beam C illuminates blue.
Illuminated when high beam is on or
during headlight flash 3 102.
Front fog lights > illuminates green.
The front fog lights are on 3 104.
Rear fog light r illuminates yellow.
The rear fog light is on 3 105.

Instruments and controls85Note
Some systems override the main
menu tabs. The currently active tab
is indicated by a small arrow head.
Some of the displayed functions differ
when the vehicle is being driven or at
a standstill. Some functions are only
available when the vehicle is being
driven.
Trip/Fuel information menu ;
Possible pages are: ● digital vehicle speed
● trip odometer
● average fuel economy
● average vehicle speed
● instantaneous fuel economy
● fuel range
● fuel range LPG version
● timer
● outside temperature
Selection and indication is different
between Midlevel display and Uplevel display.Digital vehicle speed
Digital display of the instantaneous
speed.
Trip odometer
Trip odometer displays the current
distance since a certain reset.
Trip odometer counts up to
9999.9 km and then restarts at 0.
Turn the adjuster wheel to select
between trip odometer 1 and 2 for Uplevel display.
To reset, press SET/CLR for a few
seconds while viewing this page.
The information of trip page 1 and 2
can be reset separately while the
respective display is active.
Average fuel economy
Display of average consumption. The
measurement can be reset at any
time and starts with a default value.
To reset, press SET/CLR for a few
seconds while viewing this page.
The information of trip page 1 and 2
can be reset separately while the
respective display is active.On vehicles with LPG engines:
Average consumption is indicated for
the currently selected mode, LPG or
petrol.
Average vehicle speed
Display of average speed. The
measurement can be reset at any
time.
To reset, press SET/CLR for a few
seconds while viewing this page.
The information of trip page 1 and 2
can be reset separately while the
respective display is active.
Instantaneous fuel economy
Display of the instantaneous
consumption.
On vehicles with LPG engines:
Instantaneous consumption is
indicated for the currently selected
mode, LPG or petrol.
Fuel range
Range is calculated from current fuel
tank level and current consumption.
The display shows average values.
After refuelling, the range is updated
automatically after a brief delay.

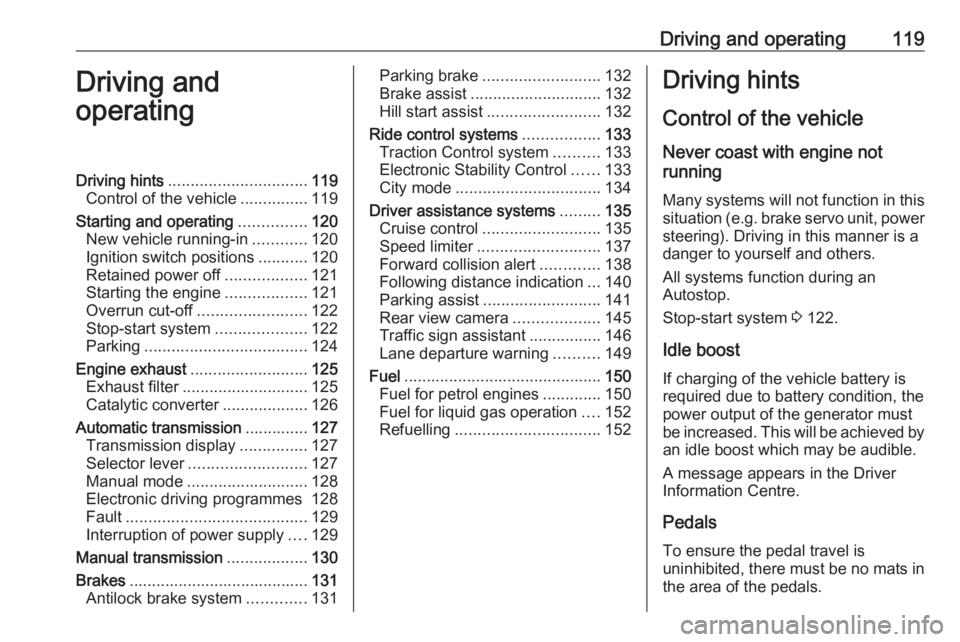

Driving and operating119Driving and
operatingDriving hints ............................... 119
Control of the vehicle ...............119
Starting and operating ...............120
New vehicle running-in ............120
Ignition switch positions ...........120
Retained power off ..................121
Starting the engine ..................121
Overrun cut-off ........................ 122
Stop-start system ....................122
Parking .................................... 124
Engine exhaust .......................... 125
Exhaust filter ............................ 125
Catalytic converter ...................126
Automatic transmission ..............127
Transmission display ...............127
Selector lever .......................... 127
Manual mode ........................... 128
Electronic driving programmes 128
Fault ........................................ 129
Interruption of power supply ....129
Manual transmission ..................130
Brakes ........................................ 131
Antilock brake system .............131Parking brake .......................... 132
Brake assist ............................. 132
Hill start assist ......................... 132
Ride control systems .................133
Traction Control system ..........133
Electronic Stability Control ......133
City mode ................................ 134
Driver assistance systems .........135
Cruise control .......................... 135
Speed limiter ........................... 137
Forward collision alert .............138
Following distance indication ...140
Parking assist .......................... 141
Rear view camera ...................145
Traffic sign assistant ................146
Lane departure warning ..........149
Fuel ............................................ 150
Fuel for petrol engines .............150
Fuel for liquid gas operation ....152
Refuelling ................................ 152Driving hints
Control of the vehicle
Never coast with engine not
running
Many systems will not function in this
situation (e.g. brake servo unit, power
steering). Driving in this manner is a
danger to yourself and others.
All systems function during an
Autostop.
Stop-start system 3 122.
Idle boost
If charging of the vehicle battery is
required due to battery condition, the
power output of the generator must be increased. This will be achieved by an idle boost which may be audible.
A message appears in the Driver
Information Centre.
Pedals
To ensure the pedal travel is
uninhibited, there must be no mats in
the area of the pedals.

152Driving and operatingFuel for liquid gas operation
Liquid gas is known as LPG
(Liquefied Petroleum Gas) or under its French name GPL (Gaz de Pétrole Liquéfié). LPG is also known as
Autogas.
LPG consists mainly of propane and
butane. The octane rating is between
105 and 115, depending on the
butane proportion. LPG is stored
liquid at around 5-10 bar pressure.
The boiling point depends on the
pressure and mixing ratio. At ambient pressure, it is between -42 °C (pure
propane) and -0.5 °C (pure butane).
Caution
The system works at an ambient
temperature of approx. -8 °C to
100 °C.
Full function of the LPG system can
only be guaranteed with liquid gas
which complies with the minimum
requirements of DIN EN 589.
Fuel selector 3 73.
Refuelling9 Danger
Before refuelling, switch off
ignition and any external heaters
with combustion chambers.
Follow the operating and safety
instructions of the filling station
when refuelling.
9 Danger
Fuel is flammable and explosive.
No smoking. No naked flames or
sparks.
If you can smell fuel in your
vehicle, have the cause of this
remedied immediately by a
workshop.
A label with symbols at the fuel filler
flap is indicating the allowed fuel
types. In Europe the pump nozzles of the filling stations are marked with
these symbols. Refuel only the
allowed fuel type.
Caution
In case of misfuelling, do not
switch on ignition.
Fuel filler flap is located at right rear
side of the vehicle.

Driving and operating153
The fuel filler flap can only be opened
if the vehicle is unlocked. Release the
fuel filler flap by pushing the flap.
Petrol refuelling To open, turn the cap slowly
anticlockwise.The fuel filler cap can be retained in the bracket on the fuel filler flap.
Place the nozzle in straight position to
the filler neck and press with slight
force to insert.
To refuel, switch on pump nozzle.
After the automatic cut-off, the tank can be topped up by operating the
pump nozzle a maximum of two more times.
Caution
Wipe off any overflowing fuel
immediately.
To close, turn the fuel filler cap
clockwise until it clicks.
Close the flap and engage.
Liquid gas refuelling Follow the operating and safety
instructions of the filling station when
refuelling.
Filling adapter
As filling systems are not
standardised, different adapters are
required which are available from
Opel Distributors and from Opel
Service Partners.

226I
Identification plate .....................206
Ignition switch positions .............120
Immobiliser ............................ 28, 82
Indicators ...................................... 71
Info Display ................................... 88
Information displays...................... 83
Instrument cluster ........................71
Instrument panel fuse box .........175
Instrument panel illumination control .................................... 106
Instrument panel overview ........... 10
Interior care ............................... 200
Interior lighting ............................ 106
Interior lights ...................... 106, 172
Interior mirrors .............................. 30
Interruption of power supply ......129
Introduction .................................... 3
J
Jump starting ............................. 195
K
Key, memorised settings ..............23
Keys ............................................. 21
Keys, locks ................................... 21
L
Lane departure warning .......80, 149
Lashing eyes ............................... 60
Light switch ................................ 100Load compartment ................26, 57
Load compartment cover .............59
Loading information .....................61
Low fuel ....................................... 82
LPG ...................................... 73, 152
M
Malfunction indicator light ............79
Manual anti-dazzle ......................30
Manual mode ............................. 128
Manual transmission .................. 130
Manual windows ..........................31
Memorised settings ......................23
Midlevel display ............................ 83
Mirror adjustment ........................... 8
Misted light covers .....................105
N New vehicle running-in ..............120
Number plate light .....................171
O Object detection systems ...........141
Odometer ..................................... 71
Oil, engine .......................... 203, 207
OnStar .......................................... 95
Operate pedal ............................... 80
Outside temperature ....................67
Overrun cut-off ........................... 122P
Parking ................................ 19, 124
Parking assist ......................80, 141
Parking brake ............................ 132
Parking lights ............................. 105
Particulate filter ........................... 125
Performing work ........................158
Power outlets ............................... 69
Power steering.............................. 80
Power windows ............................ 31
Puncture ..................................... 192
R Radio Frequency Identification (RFID) ..................................... 223
Radio remote control ...................22
REACH ....................................... 218
Reading lights ............................ 107
Rear floor storage cover ..............59
Rear fog light ...............82, 105, 168
Rear view camera ...................... 145
Rear window wiper and washer ..66
Recommended fluids and lubricants ........................ 203, 207
Reduced engine power ................82
Refuelling ................................... 152 Registered trademarks ...............220
Retained power off .....................121
Reversing lights .........................105
Ride control systems ..................133
