2019 NISSAN VERSA NOTE engine

When planning to drive your NISSAN ve-
hicle in another country,you should first
find out if the fuel available is suitable for
your vehicle's engine.
Using fuel with an octane rating that is too
low may cause engine damage. All gaso-
line vehicles must be operated with un-
leaded gasoline. Therefore, avoid taking
your vehicle to areas where appropriate
fuel is not available.
When transferring the registration of
your vehicle to another country, state,
province or district, it may be necessary
to modif y the vehicle to meet local laws
and regulations.
The laws and regulations for motor vehicle
emission control and safety standards
vary according to the country, state, prov-
ince or district; therefore, vehicle specifica-
tions may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, trans-
portation and registration are the re-
sponsibility of the user. NISSAN is not re-
sponsible for any inconvenience that
may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The Vehicle Identification Number (VIN)
plate is attached as shown. This number is
the identification for your vehicle and is
used in the vehicle registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The vehicle identification number is lo-
cated as shown.
LTI2050LTI2274
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
10-10Technical and consumer information

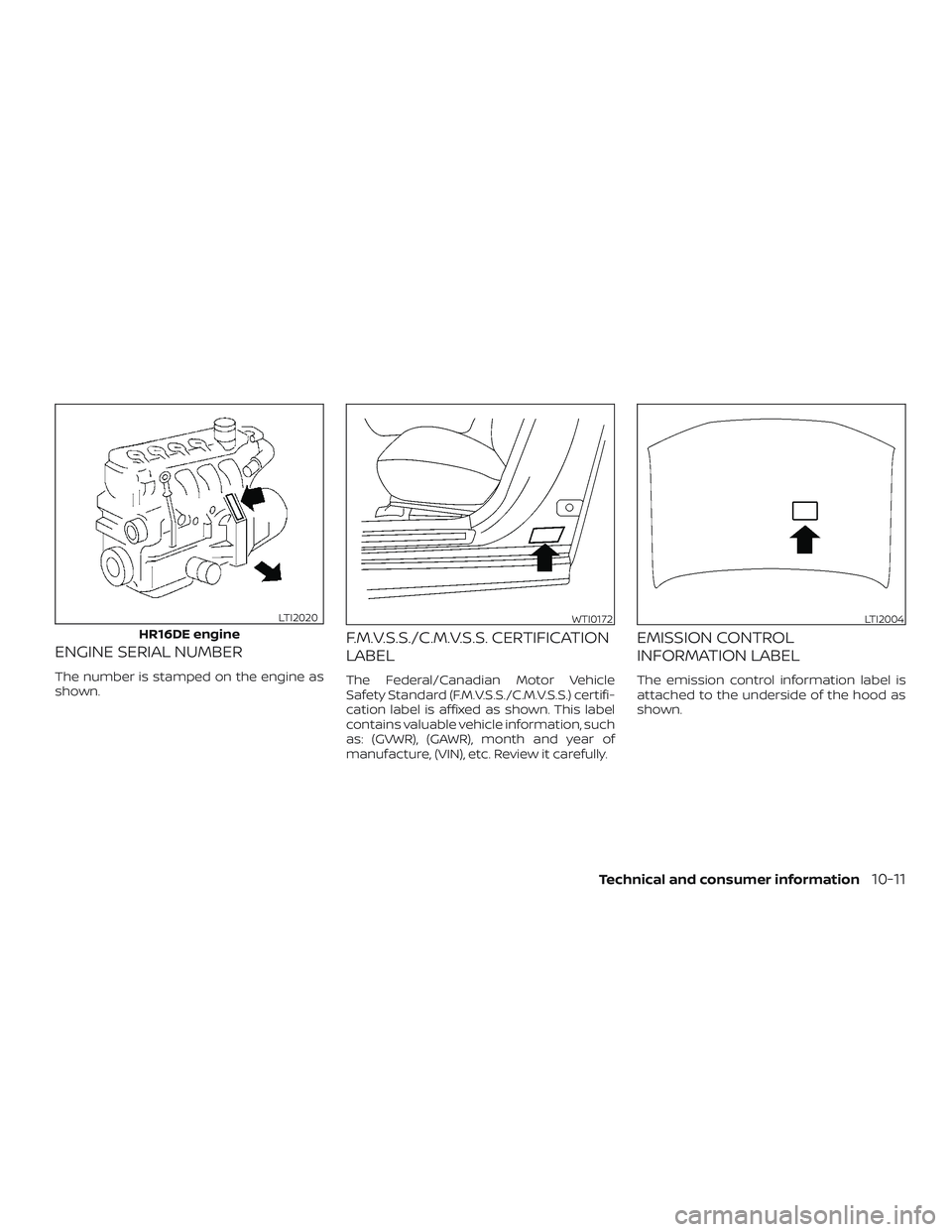

ENGINE SERIAL NUMBER
The number is stamped on the engine as
shown.
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle
Safety Standard (F.M.V.S.S./C.M.V.S.S.) certifi-
cation label is affixed as shown. This label
contains valuable vehicle information, such
as: (GVWR), (GAWR), month and year of
manufacture, (VIN), etc. Review it carefully.
EMISSION CONTROL
INFORMATION LABEL
The emission control information label is
attached to the underside of the hood as
shown.
HR16DE engine
LTI2020WTI0172LTI2004
Technical and consumer information10-11

Do not tow a trailer with your vehicle.
FLAT TOWING
Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when
towing a vehicle behind a recreational ve-
hicle, such as a motor home.
CAUTION
∙ Failure to follow these guidelines canresult in severe transmission damage.
∙ Whenever flat towing your vehicle, al- ways tow forward, never backward.
∙
Never tow your front wheel drive ve-
hicle with the front tires on the ground.
Doing so may cause serious and expen-
sive damage to the powertrain.
∙ DO NOT tow any continuously variable transmission vehicle with all four
wheels on the ground (flat towing).
Doing so WILL DAMAGE internal trans-
mission parts due to lack of transmis-
sion lubrication.
∙ For emergency towing procedures re- fer to “Towing recommended by
NISSAN” in the “In case of emergency ”
section of this manual.
Manual Transmission (if so
equipped)
∙ Always tow with the manual transmis- sion in N (Neutral).
∙ Af ter towing 500 miles (805 km), start and idle the engine with the transmis-
sion in N (Neutral) for two minutes. Fail-
ure to idle the engine af ter every
500 miles (805 km) of towing may cause
damage to internal transmission parts.
Continuously Variable
Transmission (if so equipped)
To tow a vehicle equipped with a continu-
ously variable transmission, an appropriate
vehicle dolly MUSTbe placed under the
towed vehicle’s drive wheels. Alwaysfollow
the dolly manufacturer’s recommenda-
tions when using their product. DOT (Department of Transportation) Qual-
ity Grades: All passenger car tires must
conform to federal safety requirements in
addition to these grades.
Quality grades can be found where appli-
cable on the tire sidewall between tread
shoulder and maximum section width. For
example:
Treadwear 200 Traction AA Temperature
A
Treadwear
The treadwear grade is a comparative rat-
ing based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one
and one-half (1 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.
TOWING A TRAILER
UNIFORM TIRE QUALITY GRADING
Technical and consumer information10-17

Due to legal requirements in some states
and Canadian Provinces, your vehicle may
be required to be in what is called the
“ready condition” for an
Inspection/Maintenance (I/M) test of the
emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the ready condition can
be obtained by ordinary usage of the ve-
hicle.
If a powertrain system component is re-
paired or the battery is disconnected, the
vehicle may be reset to a “not ready” condi-
tion. Before taking the I/M test, check the
vehicle’s inspection/maintenance test
readiness condition. Place the ignition
switch in the ON position without starting
the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds
and then blinks for 10 seconds, the I/M test
condition is “not ready”. If the MIL does not
blink af ter 20 seconds, the I/M test condi-
tion is “ready”. It is recommended that you
visit a NISSAN dealer to set the “ready con-
dition” or to prepare the vehicle for testing.This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a ve-
hicle’s systems performed. The EDR is de-
signed to record data related to vehicle dy-
namics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to re-
cord such data as:
∙ How various systems in your vehicle were operating;
∙ Whether or not the driver and passen- ger safety belts were buckled/fastened;
∙ How far (if at all) the driver was depress- ing the accelerator and/or brake pedal;
and,
∙ How fast the vehicle was traveling.
∙ Sounds are not recorded. These data can help provide a better un-
derstanding of the circumstances in which
crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-
trivial crash situation occurs; no data are
recorded by the EDR under normal driving
conditions and no personal data (e.g.
name, gender, age and crash location) are
recorded. However, other parties, such as
law enforcement, could combine the EDR
data with the type of personally identif ying
data routinely acquired during a crash in-
vestigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition to
the vehicle manufacturer and NISSAN
dealer, other parties, such as law enforce-
ment, that have the special equipment, can
read the information if they have access to
the vehicle or the EDR. EDR data will only be
accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
EVENT DATA RECORDERS (EDR)
10-20Technical and consumer information

11 Index
A
Air bag (See supplemental restraint
system) .................... .1-44
Air bag system Front (See supplemental front impact air
bagsystem)............... .1-55
Air bag warning labels ............1-63
Airbagwarninglight .........1-63, 2-20
Air bag warning light, supplemental . . .1-63, 2-20
Air cleaner housing filter ..........8-16
Air conditioner Air conditioner operation ........4-18
Air conditioner service ..........4-23
Air conditioner specification label . .10-12
Air conditioner system refrigerant and oil
recommendations ............10-7
Air conditioner system refrigerant
recommendations ............10-7
Heater and air conditioner controls. .4-15
Servicing air conditioner ........4-23
Air flow charts .................4-19
Alarm system
(See vehicle security system) .......2-24
Anchor point locations ............1-27
Antenna ....................4-42
Antifreeze ...................5-36
Anti-lock brake warning light ........2-15
Anti-lock Braking System (ABS) ......5-31
Armrests.....................1-5
Audible reminders ..............2-23 Audiosystem.................4-23
AM/FMradio................4-28
AMradioreception............4-24
Auxliliary (AUX) devices operation . . .4-30
Bluetooth® audio .............4-37
FM/AM/SAT radio with compact disc (CD)
player....................4-26
FMradioreception............4-23
iPod®Player................4-34
iPod® player operation .........4-34
Radio ....................4-23
Steering wheel audio control
switch....................4-41
USBinterface ...............4-31
USB (Universal Serial Bus) Connection
Port.....................4-31
Automatic Automatic power window switch . . .2-43
Automatic door locks .............3-7
B
Battery..................5-36,8-12 Charge warning light ...........2-16
Battery replacement ............8-22
Keyfob................8-22,8-22
NISSAN Intelligent Key® .........8-24
Before starting the engine .........5-15
Belt(Seedrivebelt)..............8-14
Bluetooth® audio ...............4-37
Bluetooth® hands-free phone system . .4-46 Bluetooth® connections .........4-61Connecting procedure
.........4-52
Text messaging .............4-58
Voice commands ............4-53
Booster seats .................1-41
Brake Anti-lock Braking System (ABS) ....5-31
Brakefluid..................8-9
Brakelight(Seestoplight).......8-27
Brakesystem...............5-31
Brakewarninglight............2-15
Brakewearindicators.......2-23,8-18
Parking brake operation ........5-23
Self-adjustingbrakes ..........8-18
Brakeassist..................5-32
Brakefluid....................8-9
Brakes......................8-18
Brakesystem.................5-31
Break-in schedule ..............5-26
Brightness/contrast button .........4-7
Brightness control Instrument panel .............2-30
Bulb check/instrument panel .......2-15
Bulb replacement ..............
8-27
C
Capacities and recommended fuel/
lubricants....................10-2
Cargocover..................2-40
Cargo
(See vehicle loading information) .....10-13
Car phone or CB radio ...........4-46

Checking bulbs.................2-15
Childrestraints........1-20, 1-21, 1-23, 1-25 LATCH (Lower Anchors and Tethers for
CHildren)System..............1-25
Precautions on child
restraints .........1-23, 1-30, 1-36, 1-41
Top tether strap anchor point
locations.................. .1-27
Child restraint with top tether strap . . . .1-27
Child safety rear door lock ..........3-8
Chimes, audible reminders .........2-23
Cleaningexteriorandinterior......7-2,7-4
Clock set/adjustment .............4-5
Clutch Clutchfluid.................8-10
C.M.V.S.S. certification label .........10-11
Coldweatherdriving.............5-36
Continuously Variable Transmission
(CVT) ....................5-10,5-17
Continuously Variable Transmission (CVT)
fluid......................8-9
Driving with Continuously Variable
Transmission (CVT) .........5-10,5-17
Control panel buttons .............4-3
Brightness/contrast button .......4-7
Enterbutton.................4-3
Settingbutton................4-5
Controls Audio controls (steering wheel) .....4-41
Heater and air conditioner controls . .4-15
Coolant Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant .........8-5
Checking engine coolant level ......8-5
Engine coolant temperature gauge . .2-9 Corrosionprotection..............7-7
Cruisecontrol .................5-24
Cupholders...................2-37
Curtain side-impact and rollover air
bag.......................
.1-60
D
Daytime running light system
(Canada only) ..................2-29
Defroster switch Rearwindowdefrosterswitch.....2-28
Dimensions and weights ...........10-9
Dimmer switch for instrument panel . . .2-30
Display controls
(see control panel buttons) ..........4-3
Door locks ..................3-5,3-6
Door open warning light ...........2-16
Drivebelt ....................8-14
Driving Cold weather driving ...........5-36
Driving with Continuously Variable
Transmission (CVT) .........5-10,5-17
Driving with manual transmission . . .5-22
Precautions when starting and
driving.....................5-2
Drivingthevehicle...............5-17
E
Economy - fuel .................5-28
Emergency engine shutoff ..........5-14
Emission control information label . . . .10-11
Emission control system warranty . . . .10-18 Engine
Before starting the engine ........5-15
Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant .........8-5
Changing engine oil ............8-7
Changing engine oil filter .........8-8
Checking engine coolant level ......8-5
Checking engine oil level .........8-6
Engine compartment check
locations...................8-3
Engine coolant temperature gauge . .2-9
Engine cooling system ..........8-4
Engine oil ...................8-6
Engine oil and oil filter
recommendation .............10-6
Engine oil pressure warning light . . . .2-16
Engine oil viscosity .............10-7
Engine serial number ...........10-11
Engine specifications ...........10-8
S

tarting the engine ............5-16
Engine Block Heater .............5-37
Engine coolant temperature gauge ....2-9
Enterbutton...................4-3
EventDatarecorders............10-20
Exhaust gas (Carbon monoxide) .......5-2
Explanation of maintenance items .....9-2
Explanation of scheduled maintenance
items .......................9-5
Extended storage switch...........8-21
F
Flashers
(Seehazardwarningflasherswitch)....6-2
11-2

Flattire....................6-3,6-3
Floormatpositioningaid...........7-6
FluidBrakefluid..................8-9
Capacities and recommended
fuel/lubricants...............10-2
Clutchfluid.................8-10
Continuously Variable Transmission (CVT)
fluid......................8-9
Engine coolant ...............8-4
Engine oil ...................8-6
F.M.V.S.S. certification label ..........10-11
Foglightswitch ................2-31
Front air bag system
(See supplemental restraint system) . . .1-55
Front-door pocket ...............2-35
Frontseats................... .1-2
Fuel Capacities and recommended
fuel/lubricants...............10-2
Fuel economy ...............5-28
Fuel-filler door lock opener lever ....3-28
Fuel gauge .................2-10
Fueloctanerating.............10-6
Fuel recommendation ..........10-4
Loose fuel cap warning .......2-7,3-29
Fuelefficientdrivingtips...........5-27
Fuel-filler door .................3-28
Fuel gauge ...................2-10
Fuses .......................8-19
Fusiblelinks...................8-19 G
Gauge Engine coolant temperature gauge . .2-9
Fuel gauge .................2-10
Odometer ..................2-6
Speedometer ................2-5
Tachometer .................2-8
Trip computer ................2-11
Trip odometer ................2-6
General maintenance .............9-2
Glovebox....................2-36
H
Hands-free phone system, Bluetooth® . .4-46
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-28
Headlightcontrolswitch...........2-28
Headlights ...................8-25
Headrestraints .................1-6
Heatedseats..................2-32
Heated seat switches ............2-32
Heater Heater and air conditioner controls . .4-15
Heater operation ..............4-17
Hood release ..................3-26
Horn.......................2-32
I
Ignition switch ..................5-9
Push-button ignition switch .......5-11
Immobilizer system ........2-24,5-11, 5-15Important vehicle information label
. . . .10-11
Increasing fuel economy ..........5-28
Indicator NISSAN Intelligent Key® battery discharge
indicator...................5-14
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ................2-14,2-20
Instrument brightness control .......2-30
Instrument panel .............0-6,2-2
Instrument panel dimmer switch .....2-30
Intelligent Key system Key operating range ............3-14
Key operation ................3-15
Mechanical key ...............3-4
Remote keyless entry operation . .3-9, 3-18
Troubleshooting guide .......3-24,3-25
Warning signals ...........3-24,3-25
Interiorlight...............2-43, 2-44
iPod®Player...................4-34
ISOFIX child restraints .............1-25
J
J

umpstarting ..............6-12,8-13
K
Key........................ .3-2
Key fob battery replacement .....8-22,8-22
Keyless entry With Intelligent Key system
(See Intelligent Key system) .....3-9,3-18
11-3

KeysNISSAN Intelligent Key® .......3-3,3-12
NISSAN Vehicle Immobilizer System
keys......................3-5
L
Label Tire and Loading Information label . .10-12
Labels Air conditioner specification label . . .10-12
C.M.V.S.S. certification label .......10-11
Emission control information label . .10-11
Engine serial number ...........10-11
F.M.V.S.S. certification label ........10-11
Tire and Loading Information label . .10-12
Vehicle identification number (VIN) . .10-10
Vehicle identification number (VIN)
plate.....................10-10
Warning labels (for SRS) ..........1-63
LATCH (Lower Anchors and Tethers for
CHildren)System................1-25
Launch bar menu ................4-7
License plate Installing the license plate .......10-13
Light Airbagwarninglight........1-63, 2-20
Brakelight(Seestoplight)........8-27
Bulb check/instrument panel ......2-15
Bulb replacement .............8-27
Charge warning light ...........2-16
ExteriorandInteriorlights........8-27
Foglights..................8-26
Foglightswitch ..............2-31
Headlight and turn signal switch ....2-28Headlightcontrolswitch.........2-28
Headlights .................8-25
Interiorlight.............2-43,2-44
Lightbulbs.................8-25
Low tire pressure warning light
.....2-17
Low windshield-washer fluid warning
light......................2-19
Passenger air bag and status light. . .1-55
Security indicator light ..........2-22
Warning/indicator lights and audible
reminders ...............2-14,2-20
Lights ......................8-25
Lock Child safety rear door lock ........3-8
Door locks ................3-5,3-6
Fuel-filler door lock opener lever . . . .3-28
Power door locks ..............3-7
Loose fuel cap warning .........2-7,3-29
Lowfuelwarninglight.............2-17
Low tire pressure warning light .......2-17
Low windshield-washer fluid warning
light........................2-19
Luggage
(See vehicle loading information) .....10-13
M
Maintenance General maintenance ...........9-2
Insidethevehicle..............9-3
Maintenance precautions .........8-2
Outsidethevehicle.............9-2
Seat belt maintenance ..........1-19
Under the hood and vehicle .......9-4
Maintenance log ................9-13 Maintenance requirements
..........9-2
Maintenance schedules ............9-7
Maintenance under severe operation
conditions....................9-12
Malfunctionindicatorlight..........2-21
Manual front seat adjustment ........1-3
Manual windows ................2-43
Meters and gauges ...............2-3
Instrument brightness control .....2-30
Mirror Outsidemirrors..............3-33
Rearview...................3-32
Vanitymirror................3-32
Mirrors......................3-32
N
NissanConnect® Owner's Manual ......4-2
NISSAN Intelligent Key® .........3-3,3-12
NISSAN Intelligent Key® battery discharge
indicator.....................5-14
NISSAN Vehicle Immobilizer
System ...............2-24,5 -11, 5-15
O
Octane rating (See fuel octane rating) . .10-6
Odometer ................... .2-6
Oil C

apacities and recommended
fuel/lubricants...............10-2
Changing engine oil ............8-7
Changing engine oil filter .........8-8
Checking engine oil level .........8-6
11-4
