2019 NISSAN ROGUE headrest

1. Supplemental air bags (P. 1-46)
2. Occupant classification sensor(weight sensor) (P. 1-46)
3. Front Seat belt with pretensioner(s)
and shoulder heights adjuster
(P. 1-12, 1-46)
4. Head restraints/headrests (P. 1-8)
5. Roof-mounted curtain side-impact
and rollover supplemental air bag
(P. 1-46)
6. 2nd row center position top tether
strap (located on ceiling) (P. 1-24)
7. 2nd row outboard seat top tether
strap anchor (located on bottom
of seatback) (P. 1-24)
8. LATCH (Lower Anchors and Tethers
for CHildren) (P. 1-24)
9. Folding 2nd row bench (P. 1-2)
10. Front seat-mounted side-impact
supplemental air bag (P. 1-46)
11. Seats (P. 1-2)
Refer to the page number indicated in
parentheses for operating details.
LII2549
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual seat adjustment
(if so equipped) ................................1-3
Front power seat adjustment
(if so equipped) ............................... 1-4
Rear bench seat adjustment ................. 1-6
Armrests ..................................... 1-6
Flexible seating ................................1-7
Head restraints/headrests ...................... 1-8
Adjustable head restraint/headrest
components ................................. 1-9
Non-adjustable head restraint/
headrest components ........................ 1-9
Remove...................................... 1-10
Install ......................................... 1-10
Adjust ........................................ 1-11
Seatbelts ....................................... 1-12
Precautions on seat belt usage ...............1-12
Seat belt warning light ........................ 1-15
Pregnant women ............................. 1-15
Injured persons ............................... 1-15
Three-point type seat belt with
retractor ..................................... 1-15Seat belt extenders
.......................... 1-20
Seat belt maintenance .......................1-21
Child safety ...................................... 1-21
Infants ...................................... 1-22
Small children ............................... 1-22
Larger children .............................. 1-22
Child restraints ................................. 1-24
Precautions on child restraints ..............1-24
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-26
Rear-facing child restraint installation
using LATCH ................................. 1-29
Rear-facing child restraint installation
using the seat belts .......................... 1-31
Forward-facing child restraint
installation using LATCH .....................1-34
Forward-facing child restraint
installation using the seat belts ..............1-37
Booster seats ............................... 1-42
Supplemental Restraint System (SRS) ...........1-46
Precautions on SRS .......................... 1-46
Supplemental air bag warning labels ........1-64
Supplemental

air bag warning light ..........1-65

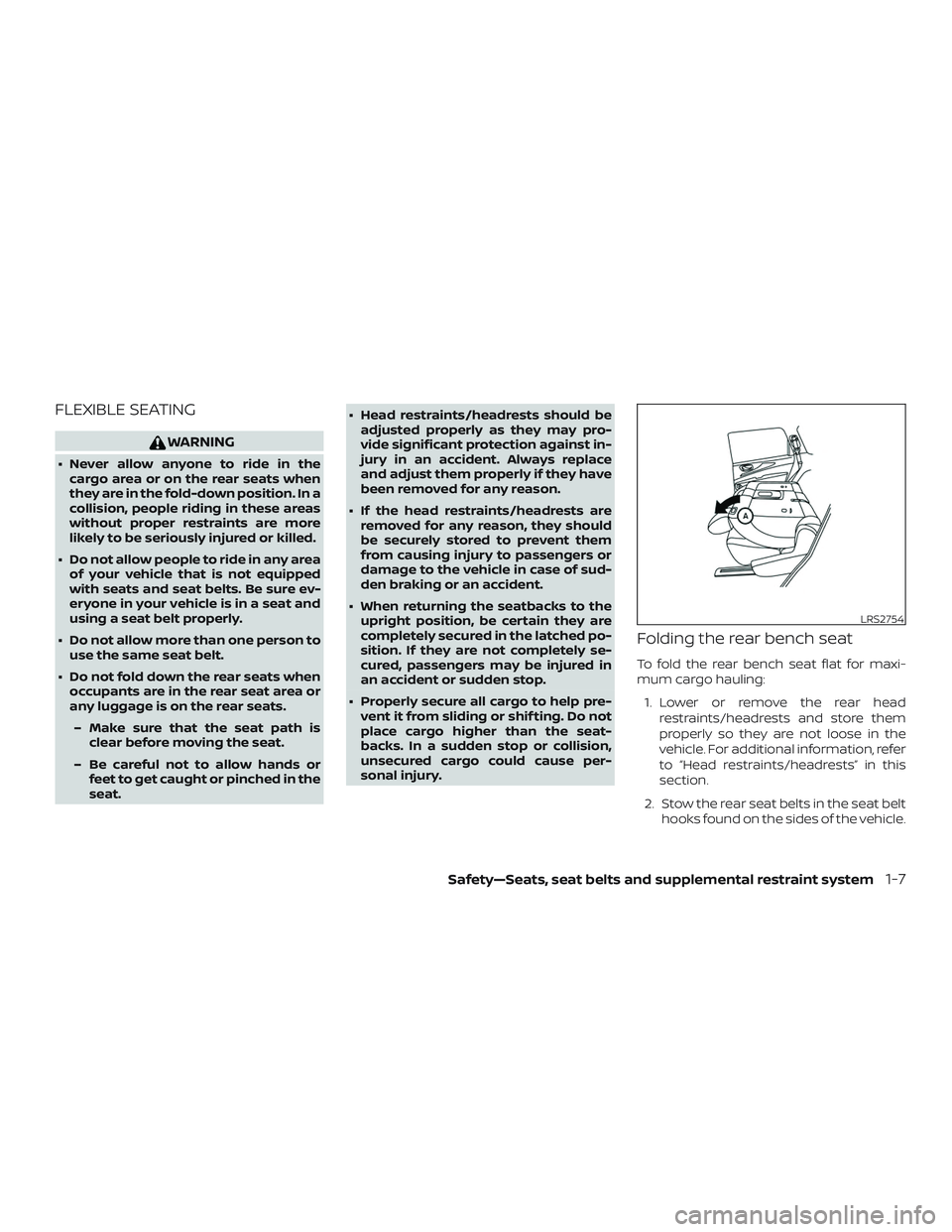

FLEXIBLE SEATING
WARNING
∙ Never allow anyone to ride in thecargo area or on the rear seats when
they are in the fold-down position. In a
collision, people riding in these areas
without proper restraints are more
likely to be seriously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts. Be sure ev-
eryone in your vehicle is in a seat and
using a seat belt properly.
∙ Do not allow more than one person to use the same seat belt.
∙ Do not fold down the rear seats when occupants are in the rear seat area or
any luggage is on the rear seats.
– Make sure that the seat path is clear before moving the seat.
– Be careful not to allow hands or feet to get caught or pinched in the
seat. ∙ Head restraints/headrests should be
adjusted properly as they may pro-
vide significant protection against in-
jury in an accident. Always replace
and adjust them properly if they have
been removed for any reason.
∙ If the head restraints/headrests are removed for any reason, they should
be securely stored to prevent them
from causing injury to passengers or
damage to the vehicle in case of sud-
den braking or an accident.
∙ When returning the seatbacks to the upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.
∙ Properly secure all cargo to help pre- vent it from sliding or shif ting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.
Folding the rear bench seat
To fold the rear bench seat flat for maxi-
mum cargo hauling:
1. Lower or remove the rear head restraints/headrests and store them
properly so they are not loose in the
vehicle. For additional information, refer
to “Head restraints/headrests” in this
section.
2. Stow the rear seat belts in the seat belt hooks found on the sides of the vehicle.
LRS2754
Safety—Seats, seat belts and supplemental restraint system1-7

3. Lif t up on the seatback release leverA
on the top of the outboard seats to fold
the seatbacks flat.
4. To return the rear bench seats to a seating position, push up on the seat-
back until it latches in place.WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head
restraints/headrests must be adjusted
properly, as specified in this section.
Check the adjustment af ter someone
else uses the seat. Do not attach any-
thing to the head restraint/headrest
stalks or remove the head
restraint/headrest. Do not use the seat
if the head restraint/headrest has been
removed. If the head restraint/headrest
was removed, reinstall and properly ad-
just the head restraint/headrest before
an occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraints/headrests. This may in-
crease the risk of serious injury or death
in a collision. The illustration shows the seating posi-
tions equipped with head
restraints/headrests.

Indicates the seating position is
equipped with a head restraint.
 Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).
∙ Your vehicle is equipped with a head restraint/headrest that may be inte-
grated, adjustable or non-adjustable.
LRS2403
HEAD RESTRAINTS/HEADRESTS
1-8Safety—Seats, seat belts and supplemental restraint system

∙ Adjustable head restraints/headrestshave multiple notches along the stalk(s)
to lock them in a desired adjustment
position.
∙ The non-adjustable head restraints/ headrests have a single locking notch
to secure them to the seat frame.
∙ Proper Adjustment: – For the adjustable type, align thehead restraint/headrest so the cen-
ter of your ear is approximately level
with the center of the head
restraint/headrest.
– If your ear position is still higher than the recommended alignment, place
the head restraint/headrest at the
highest position.
∙ If the head restraint/headrest has been removed, ensure that it is reinstalled
and locked in place before riding in that
designated seating position.
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
LRS2300LRS2299
Safety—Seats, seat belts and supplemental restraint system1-9

REMOVE
Use the following procedure to remove the
head restraint/headrest:1. Pull the head restraint/headrest up to the highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not
loose in the vehicle. 5. Reinstall and properly adjust the head
restraint/headrest before an occupant
uses the seating position.
INSTALL
1. Align the head restraint/headreststalks with the holes in the seat. Make
sure that the head restraint/headrest is
facing the correct direction. The stalk
with the notch (notches)
1must be
installed in the hole with the lock knob
2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/headrest before an occupant
uses the seating position.
LRS2302LRS2303
1-10Safety—Seats, seat belts and supplemental restraint system

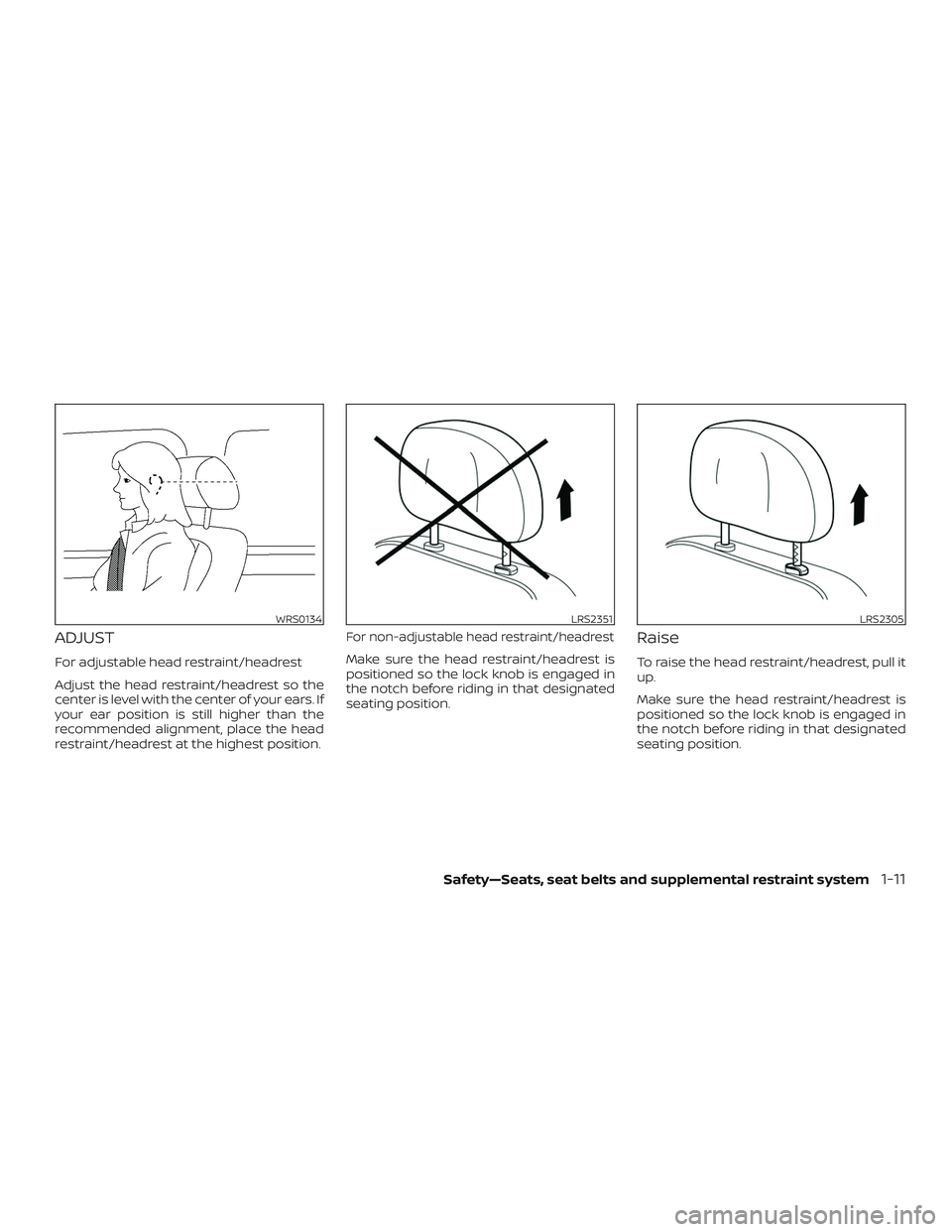

ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears. If
your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.
For non-adjustable head restraint/headrest
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
Raise
To raise the head restraint/headrest, pull it
up.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
WRS0134LRS2351LRS2305
Safety—Seats, seat belts and supplemental restraint system1-11

Lower
To lower, push and hold the lock knob and
push the head restraint/headrest down.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
PRECAUTIONS ON SEAT BELT
USAGE
If you are wearing your seat belt properly
adjusted and you are sitting upright and
well back in your seat with both feet on the
floor, your chances of being injured or killed
in a collision and/or the severity of injury
may be greatly reduced. NISSAN strongly
encourages you and all of your passengers
to buckle up every time you drive, even if
your seating position includes a supple-
mental air bag.Most U.S. states and Canadian provinces
or territories specif y that seat belts be
worn at all times when a vehicle is being
driven.
LRS2306SSS0136
SEAT BELTS
1-12Safety—Seats, seat belts and supplemental restraint system
