2019 NISSAN FRONTIER PRO-4X glove box

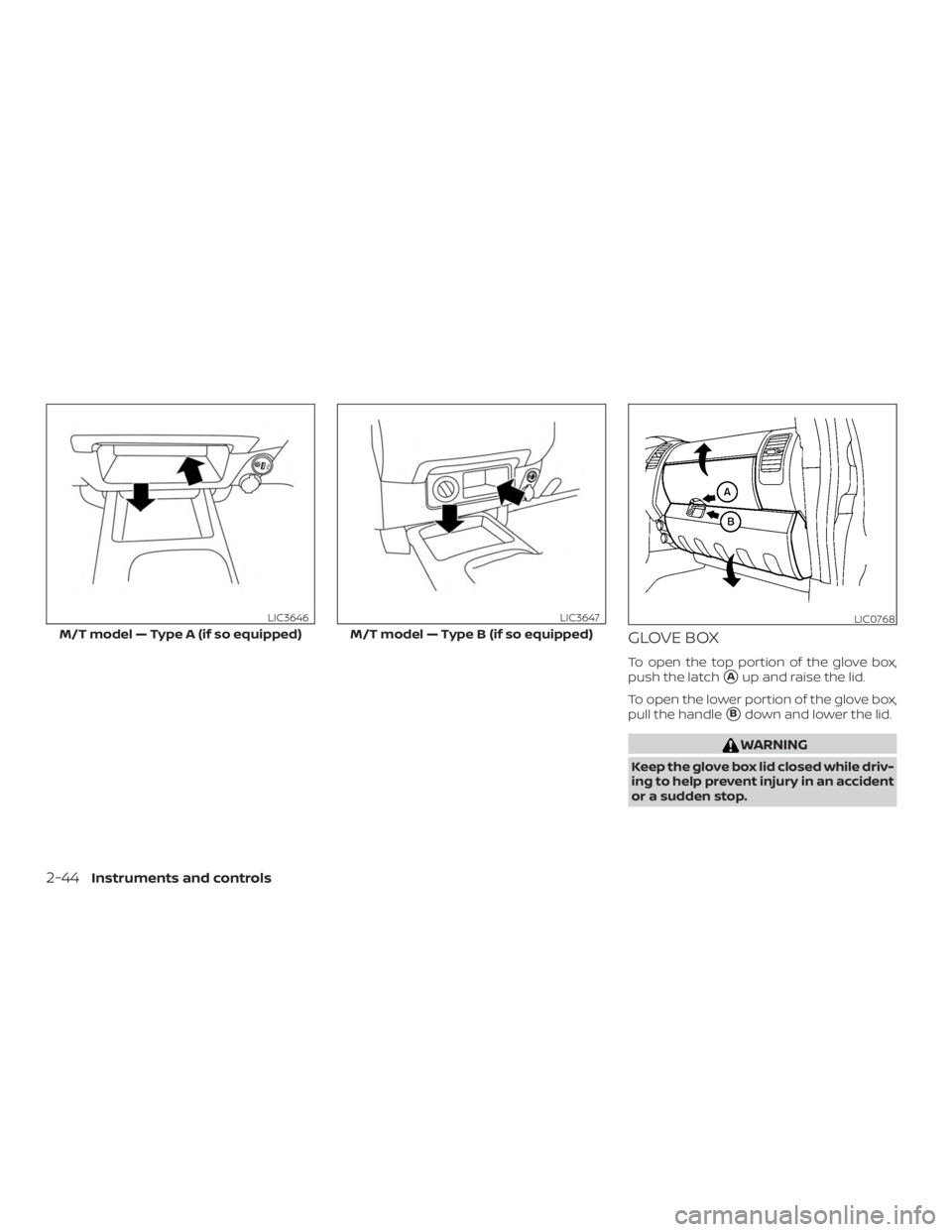

GLOVE BOX
To open the top portion of the glove box,
push the latch
Aup and raise the lid.
To open the lower portion of the glove box,
pull the handle
Bdown and lower the lid.

6. Take the tailgate plug from the glovebox and connect it to the tailgate wir-
ing harness to avoid contamination
which will lead to malfunction of the
rear camera.
7. Remove the tailgate. For additional in- formation, refer to “Removing the tail-
gate” in this section.
Removing the tailgate
1. Release the tailgate support cables.

WARNING
∙ Operating the engine with the aircleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops the
flame if the engine backfires. If it isn’t
there, and the engine backfires, you
could be burned. Do not drive with the
air cleaner removed, and be careful
when working on the engine with the
air cleaner removed.
∙ Never pour fuel into the throttle body or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.
IN-CABIN MICROFILTER
The in-cabin microfilter restricts the entry
of airborne dust and pollen particles and
reduces some objectionable outside
odors. The filter is located behind the glove
box. For additional information on change
intervals, refer to the "Maintenance and
schedules" section of this manual.
To replace the filter, perform the following
procedure:
1. Open the glove box and press in on the sides so that it will open completely al-
lowing it to hang by the cord. 2. Gently lif t up on the tab
1.
3. Pull the filter cover toward you and then down
2.
4. Remove the old filter
3.
NOTE:
The filter is marked with air flow arrows.
The end of the filter with the arrow
should face the rear of the vehicle. The
arrows should face downward. 5. Insert the new filter into the housing and slide it over to the right.

6. Replace the filter cover. The cover willclick into place under the tab.

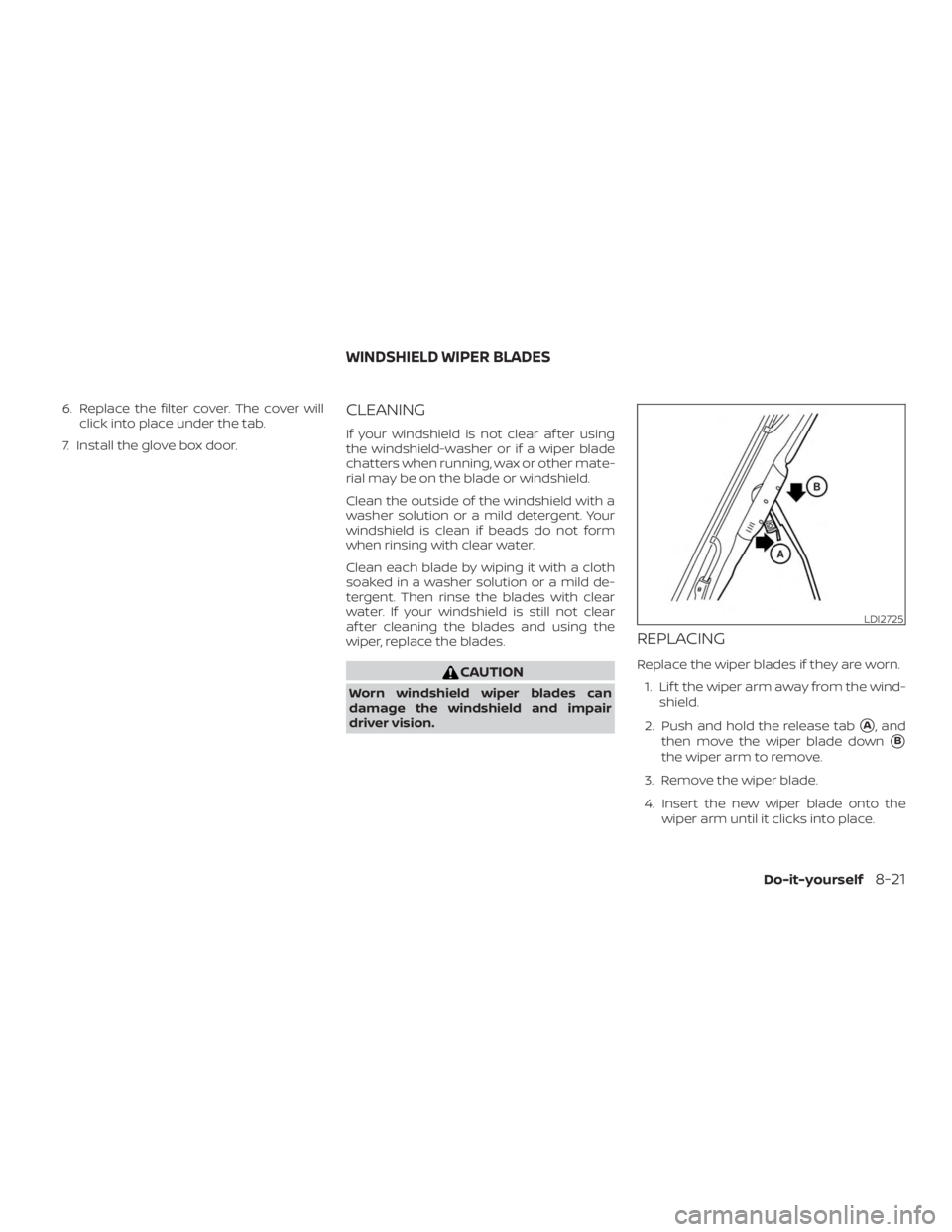

7. Install the glove box door.CLEANING
If your windshield is not clear af ter using
the windshield-washer or if a wiper blade
chatters when running, wax or other mate-
rial may be on the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form
when rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild de-
tergent. Then rinse the blades with clear
water. If your windshield is still not clear
af ter cleaning the blades and using the
wiper, replace the blades.
