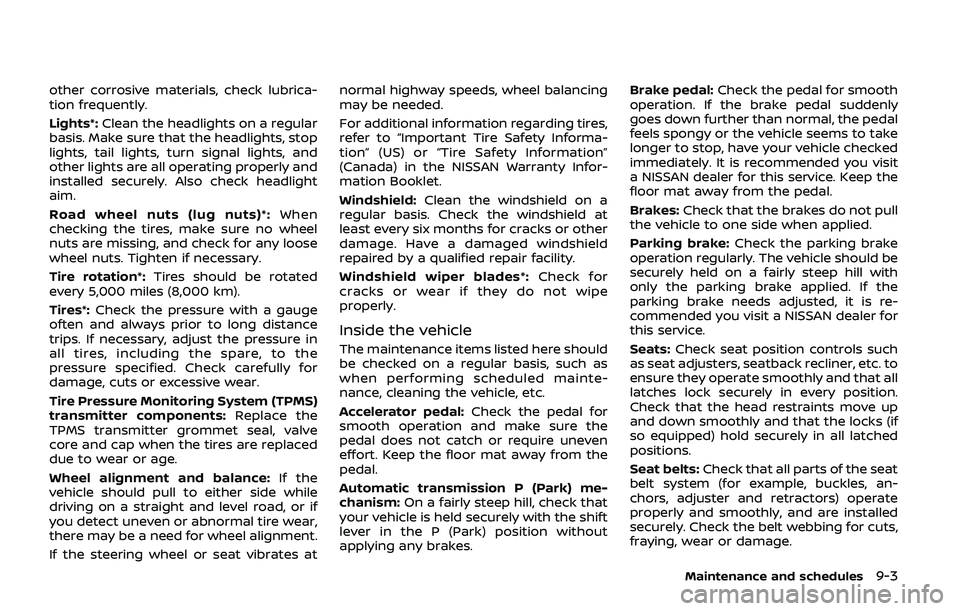

other corrosive materials, check lubrica-
tion frequently.
Lights*:Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and
other lights are all operating properly and
installed securely. Also check headlight
aim.
Road wheel nuts (lug nuts)*: When
checking the tires, make sure no wheel
nuts are missing, and check for any loose
wheel nuts. Tighten if necessary.
Tire rotation*: Tires should be rotated
every 5,000 miles (8,000 km).
Tires*: Check the pressure with a gauge
often and always prior to long distance
trips. If necessary, adjust the pressure in
all tires, including the spare, to the
pressure specified. Check carefully for
damage, cuts or excessive wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the
TPMS transmitter grommet seal, valve
core and cap when the tires are replaced
due to wear or age.
Wheel alignment and balance: If the
vehicle should pull to either side while
driving on a straight and level road, or if
you detect uneven or abnormal tire wear,
there may be a need for wheel alignment.
If the steering wheel or seat vibrates at normal highway speeds, wheel balancing
may be needed.
For additional information regarding tires,
refer to “Important Tire Safety Informa-
tion” (US) or “Tire Safety Information”
(Canada) in the NISSAN Warranty Infor-
mation Booklet.
Windshield:
Clean the windshield on a
regular basis. Check the windshield at
least every six months for cracks or other
damage. Have a damaged windshield
repaired by a qualified repair facility.
Windshield wiper blades*: Check for
cracks or wear if they do not wipe
properly.
Inside the vehicle
The maintenance items listed here should
be checked on a regular basis, such as
when performing scheduled mainte-
nance, cleaning the vehicle, etc.
Accelerator pedal: Check the pedal for
smooth operation and make sure the
pedal does not catch or require uneven
effort. Keep the floor mat away from the
pedal.
Automatic transmission P (Park) me-
chanism: On a fairly steep hill, check that
your vehicle is held securely with the shift
lever in the P (Park) position without
applying any brakes. Brake pedal:
Check the pedal for smooth
operation. If the brake pedal suddenly
goes down further than normal, the pedal
feels spongy or the vehicle seems to take
longer to stop, have your vehicle checked
immediately. It is recommended you visit
a NISSAN dealer for this service. Keep the
floor mat away from the pedal.
Brakes: Check that the brakes do not pull
the vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with
only the parking brake applied. If the
parking brake needs adjusted, it is re-
commended you visit a NISSAN dealer for
this service.
Seats: Check seat position controls such
as seat adjusters, seatback recliner, etc. to
ensure they operate smoothly and that all
latches lock securely in every position.
Check that the head restraints move up
and down smoothly and that the locks (if
so equipped) hold securely in all latched
positions.
Seat belts: Check that all parts of the seat
belt system (for example, buckles, an-
chors, adjuster and retractors) operate
properly and smoothly, and are installed
securely. Check the belt webbing for cuts,
fraying, wear or damage.
Maintenance and schedules9-3

11-4
Emission control information label .... 10-11
Engine serial number .................................... 10-11
F.M.V.S.S./C.M.V.S.S.
certification label .............................................. 10-11
Tire and Loading
information label................................ 8-32, 10-12
Vehicle identification number (VIN) .... 10-10
Lane Departure Warning (LDW) indicator
light (orange)..............................................................\
..... 2-14
Lane Departure Warning (LDW)/Intelligent
Lane Intervention (I-LI) ............................................ 5-23
LATCH system ................................................................ 1-35
License plate, Installing front
license plate.................................................................. 10-12
Liftgate........................................................................\
......... 3-22
Light Air bag warning light......................................... 1-72
Bulb replacement ................................................. 8-24
Cargo light ................................................................. 2-71
Fog light switch ..................................................... 2-42
Headlight switch ................................................... 2-37
Headlights bulb replacement ..................... 8-24
Indicator lights........................................................ 2-17
Interior light switch............................................. 2-69
Interior lights............................................................ 2-69
Map lights ................................................................... 2-70
Replacement ............................................................ 8-24
Vanity mirror lights ............................................. 2-71
Warning/indicator lights and
audible reminders ................................................ 2-11
Lights, Exterior and interior
light replacement ........................................................ 8-26
Linking Intelligent Key (air conditioner)..... 4-42
Loading information (See vehicle
loading information) .............................................. 10-13
Lock Automatic door locks........................................... 3-6 Door locks...................................................................... 3-4
Liftgate lock .............................................................. 3-22
Power door lock ....................................................... 3-4
Locking with mechanical key ................................ 3-4
Loose fuel cap warning.......................................... 3-26
Low outside temperature warning............... 2-25
Low tire pressure warning light ...................... 2-15
Low tire pressure warning system
(See Tire Pressure Monitoring
System (TPMS)).................................................................. 5-5
Luggage hooks ............................................................. 2-60
M
Maintenance........................................................................\
9-2 Battery........................................................................\
... 8-11
General maintenance........................................... 9-2
Inside the vehicle..................................................... 9-3
Maintenance indicators................................... 2-26
Maintenance log.................................................... 9-14
Maintenance precautions................................. 8-2
Maintenance requirements ............................. 9-2
Maintenance schedules...................................... 9-6
Maintenance under severe
driving conditions ................................................ 9-13
Outside the vehicle ................................................ 9-2
Seat belt maintenance..................................... 1-29
Standard maintenance ....................................... 9-7
Maintenance schedules.............................................. 9-6
Malfunction Indicator Light (MIL) .................... 2-18
Map lights ........................................................................\
.. 2-70
Master warning light................................................. 2-16
Mechanical key (Intelligent Key system) ....... 3-3
Memory storage, Automatic
drive positioner ............................................................. 3-41
Meter Trip computer ......................................................... 2-28 Meters and gauges ........................................................ 2-5
Instrument brightness control .................. 2-41
Mirror Inside mirror ............................................................. 3-31
Intelligent Rear View Mirror.......................... 3-32
Outside mirrors ...................................................... 3-38
Vanity mirror ............................................................ 3-40
Monitor Intelligent Around View Monitor .............. 4-10
Monitor, RearView Monitor ...................................... 4-3
Moonroof........................................................................\
.... 2-66
Moving Object Detection (MOD) ...................... 4-28N
New vehicle break-in ............................................. 5-120
NISSAN all-mode 4WD®........................................ 5-121
NISSAN Vehicle Immobilizer System ............ 2-32
NissanConnect® Owner’s Manual....................... 4-2
O
Odometer........................................................................\
....... 2-6
Off-road recovery ............................................................ 5-9
Oil Capacities and
recommended fluids/lubricants............... 10-2
Changing engine oil and filter ...................... 8-6
Checking engine oil level................................... 8-6
Engine oil.....................................................................\
... 8-6
Engine oil pressure gauge ............................... 2-8
Engine oil viscosity .............................................. 10-6
Oil filter replacement indicator ................. 2-26
Operation, operational indicators .................. 2-23
Outside air temperature ........................................ 2-29
Outside mirrors ............................................................. 3-38
Overheat, If your vehicle overheats.............. 6-14

11-6
Precautions when starting
and driving.................................................................... 5-4
Push starting............................................................ 6-14
Starting the engine............................................. 5-16
Status light, Front passenger air bag ......... 1-63
Steering Heated steering wheel ..................................... 2-42
Power steering ................................................... 5-135
Power steering fluid .............................................. 8-8
Tilt/telescopic steering .................................... 3-29
Storage ........................................................................\
........ 2-54
Sun visors ........................................................................\
.. 3-30
Sunglasses holder....................................................... 2-56
Supplemental air bag warning labels ......... 1-71
Supplemental air bag
warning light .................................................... 1-72, 2-17
Supplemental restraint system........................ 1-55 Precautions on supplemental
restraint system .................................................... 1-55
Switch Fog light switch ..................................................... 2-42
Hazard warning flasher switch .................... 6-2
Headlight aiming control ............................... 2-40
Headlight switch ................................................... 2-37
Ignition switch ........................................................ 5-18
Intelligent Auto Headlight switch ............ 2-38
Power door lock switch ..................................... 3-5
SNOW mode switch ............................................ 2-47
Turn signal switch ............................................... 2-41
Vehicle Dynamic Control (VDC)
OFF switch ................................................................. 2-48
T
Tachometer........................................................................\
.. 2-7
Temperature gauge, Engine coolant
temperature gauge ....................................................... 2-7 Theft (NISSAN Vehicle Immobilizer
System), Engine start ............................................... 2-32
Three-way catalyst......................................................... 5-4
Tilt/telescopic steering ........................................... 3-29
Tire
Pressure, Low tire pressure
warning light ............................................................ 2-15
Tire replacement indicator ........................... 2-26
Tires Flat tire........................................................................\
..... 6-3
Tire and Loading
information label................................ 8-32, 10-12
Tire chains.................................................................. 8-37
Tire dressing................................................................ 7-4
Tire pressure ............................................................ 8-30
Tire Pressure Monitoring
System (TPMS) ................................................ 5-5, 6-3
Tire rotation.............................................................. 8-37
Types of tires ........................................................... 8-36
Uniform tire quality grading .................... 10-30
Wheel/tire size ........................................................ 10-8
Wheels and tires .................................................... 8-30
Top Tether strap child restraints........................ 1-38
TOW mode ..................................................................... 5-131
TOW mode switch....................................................... 2-47
Towing Flat towing............................................................. 10-29
Tow truck towing................................................. 6-16
Towing a trailer.................................................. 10-17
Towing safety...................................................... 10-22
TPMS, Tire Pressure
Monitoring System ............................................. 5-5, 6-3 TPMS with Easy Fill Tire Alert......................... 5-8
Trailer towing .............................................................. 10-17 Transceiver
HomeLink®
Universal Transceiver ......................... 2-71, 2-75
Transmission Automatic Transmission Fluid (ATF) ........ 8-8
Driving with
automatic transmission .................................. 5-18
Transmission shift lever lock release ..... 5-22
Transmitter (See remote keyless
entry system) .................................................................. 3-15
Traveling or registering your vehicle in
another country ........................................................ 10-10
Trip computer ................................................................ 2-28
Trip odometer ................................................................ 2-28
Turn signal switch ...................................................... 2-41
U
Underbody cleaning ...................................................... 7-3
Uniform tire quality grading ............................ 10-30
USB (Universal Serial Bus)
charging connector................................................... 2-54
V
Vanity mirror ................................................................... 3-40
Vanity mirror lights .................................................... 2-71
Variable voltage control system ..................... 8-13
Vehicle Dimensions ................................................................ 10-9
Identification number (VIN)....................... 10-10
Loading information ...................................... 10-13
Recovery (freeing a stuck vehicle) .......... 6-19
Security system...................................................... 2-30
Vehicle Dynamic Control (VDC)
OFF switch ................................................................. 2-48

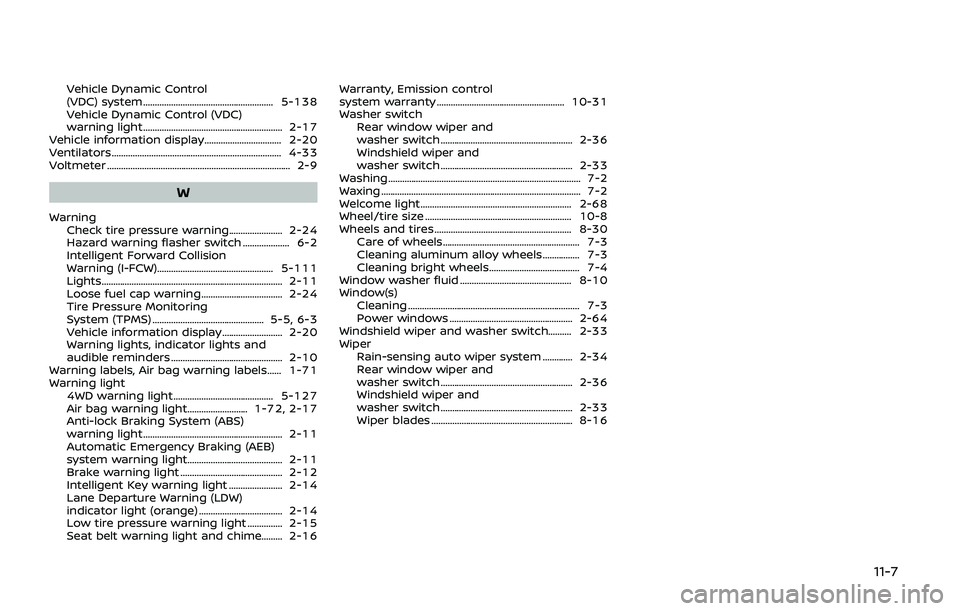

Vehicle Dynamic Control
(VDC) system ........................................................ 5-138
Vehicle Dynamic Control (VDC)
warning light ............................................................ 2-17
Vehicle information display................................. 2-20
Ventilators ........................................................................\
. 4-33
Voltmeter ........................................................................\
....... 2-9
W
Warning Check tire pressure warning....................... 2-24
Hazard warning flasher switch .................... 6-2
Intelligent Forward Collision
Warning (I-FCW).................................................. 5-111
Lights..................................................................\
............ 2-11
Loose fuel cap warning................................... 2-24
Tire Pressure Monitoring
System (TPMS) ................................................ 5-5, 6-3
Vehicle information display.......................... 2-20
Warning lights, indicator lights and
audible reminders ................................................ 2-10
Warning labels, Air bag warning labels...... 1-71
Warning light 4WD warning light ........................................... 5-127
Air bag warning light.......................... 1-72, 2-17
Anti-lock Braking System (ABS)
warning light ............................................................ 2-11
Automatic Emergency Braking (AEB)
system warning light......................................... 2-11
Brake warning light ............................................ 2-12
Intelligent Key warning light ....................... 2-14
Lane Departure Warning (LDW)
indicator light (orange) .................................... 2-14
Low tire pressure warning light ............... 2-15
Seat belt warning light and chime......... 2-16 Warranty, Emission control
system warranty ....................................................... 10-31
Washer switch
Rear window wiper and
washer switch ......................................................... 2-36
Windshield wiper and
washer switch ......................................................... 2-33
Washing........................................................................\
........... 7-2
Waxing ........................................................................\
.............. 7-2
Welcome light................................................................. 2-68
Wheel/tire size ............................................................... 10-8
Wheels and tires ........................................................... 8-30 Care of wheels........................................................... 7-3
Cleaning aluminum alloy wheels ................ 7-3
Cleaning bright wheels....................................... 7-4
Window washer fluid ................................................ 8-10
Window(s) Cleaning ........................................................................\
.. 7-3
Power windows ..................................................... 2-64
Windshield wiper and washer switch.......... 2-33
Wiper Rain-sensing auto wiper system ............. 2-34
Rear window wiper and
washer switch ......................................................... 2-36
Windshield wiper and
washer switch ......................................................... 2-33
Wiper blades ............................................................. 8-16
11-7
