2019 MITSUBISHI MIRAGE G4 display

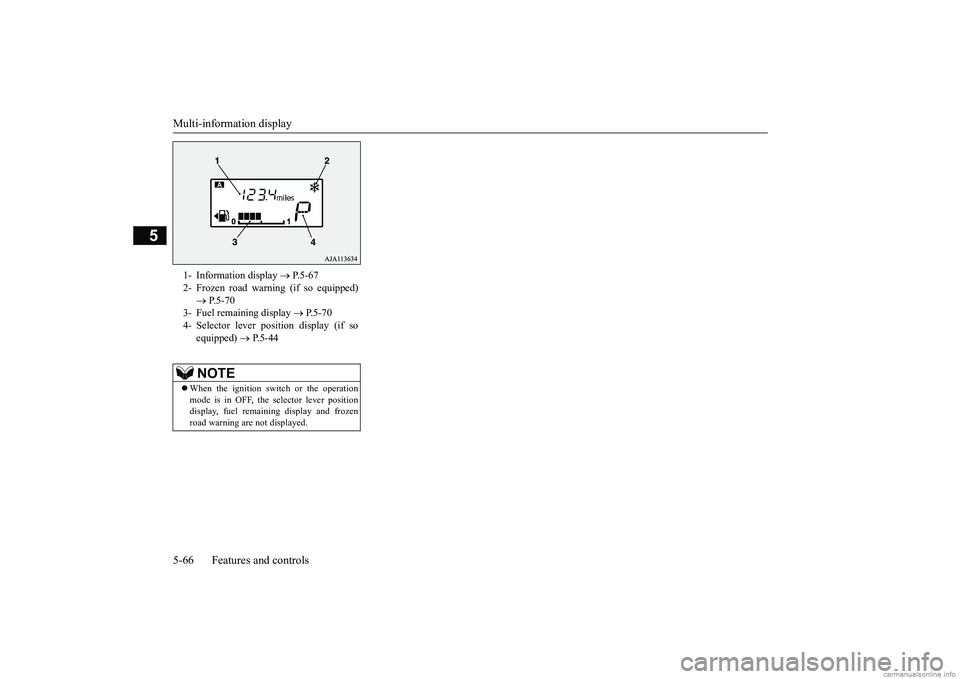

Multi-information display 5-66 Features and controls
5
1- Information display
 P.5-67
2- Frozen road warning (if so equipped)
 P.5-70
3- Fuel remaining display
 P.5-70
4- Selector lever position display (if so
equipped)
 P.5-44
NOTE
When the ignition swit
ch or the operation
mode is in OFF, the
selector lever position
display, fuel remaining display and frozenroad warning are not displayed.
BK0267800US.book 66 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Multi-information display
Features and controls 5-67
5
N00574801054
Each time you lightly press the multi-inf
ormation display switch (A), the disp
lay switches in the following order.
Information display 1- Odometer
 P.5-68
2-
Trip odometer
 P.5-68
3-
Trip odometer
 P.5-68
4- Instrument panel li
ght dimmer control
 P.5-68
5- Driving range display
 P.5-69
6- Average fuel consumption display

P.5-69
7- Outside temperature display (if so
equipped)
 P.5-69
8- Service reminder (distance)
 P.5-71
9- Service reminder (month)
 P.5-71
NOTE
When the ignition switch or the
operation mode is in OFF, the driving range di
splay, average fuel cons
umption display and outsi
de temperature display are
not displayed.  While driving, the service reminder is
not displayed even if you operate th
e multi-information
display switch.
BK0267800US.book 67 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Multi-information display 5-68 Features and controls
5
N00574900016
The odometer indicates the total distance the vehicle has traveled.
N00575000014
The trip odometer indicates the distance trav-eled between two points. To return the display to 0, hold down the multi-information displa
y switch for about 1
second or more. Only the currently displayed value will be reset. Example
If trip odometer is displayed, only trip odometer will be reset.
N00575101025
Turn the parking lights on and press the multi-information display switch (2), there is a sound and the brightness changes.
 When the parking lights are not illuminated,
the instrument panel light
dimmer control is not displa
yed even if you operate the
multi-information display
switch.NOTE
Odometer Trip odometer Usage examples for trip odometer , trip odometer
It is possible to meas
ure two currently trav-
eled distances, from home using trip odom- eter and from a particular point on theway using trip odometer .
To reset the trip odometer
NOTE
 Both trip odometers and can count up to 9999.9 miles/kilometers. When a trip odometer goes past 9999.9miles/kilometers, it returns to 0.0 miles/kilo- meters.  When disconnecting the battery terminal, the memories of trip odom
eter displays and
are cleared, and thei
r displays return to
“0.0 miles/kilometers”.
Instrument panel light dimmer control
1- Brightness level 2- Multi-informati
on display switch
NOTE
When the parking lights are illuminated, you can adjust to 8 levels.  Each time you reduce tw
o brightness levels,
the segment display of the brightness level decreases by one segment.  If you press and hold the switch for longer than about 1 second, the brightness automati-cally scrolls through its different levels, and stops scrolling when you release the switch. Select your desired
level of brightness.
Bright Dim
BK0267800US.book 68 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Multi-information display
Features and controls 5-69
5
N00575201042
This displays the approximate driving range (how many more miles or
kilometers you can
drive). When the driving range falls below approximately 30 miles (
50 km), “---” is dis-
played.
N00575300017
This displays the average fuel consumptionfrom the last reset to the present. The reset mode conditions for the average fuel consumption disp
lay can be switched
between “Auto reset”
and “Manual reset”.
For information on how to change the aver- age fuel consumption di
splay setting, refer to
“Changing the function settings” on page 5-72.
N00556501134
Shows the temperature
outside the vehicle.
The brightness level of the instruments is stored when the ignition switch is turned tothe “OFF” position or the operation mode isput in OFF.
Driving range display
NOTE
 The driving range is determined based on the fuel consumption da
ta. This may vary
depending on the drivi
ng conditions and hab-
its. Treat the distance displayed as just a rough guideline.  When you refuel, the driving range display is updated. However, if you only add a small amount offuel, the correct value
will not be displayed.
Fill to a full tank whenever possible.  When your vehicle is stopped on an extremely steep hill, the driving range value may change. This is due to the movement of fuel in the tank and does not indicate anybreakdown.NOTE
 The display setting ca
n be changed to the
preferred units (miles or km).Refer to “Changing th
e function settings” on
page 5-72.
Average fuel consumption dis- play
NOTE
 The average fuel cons
umption display can be
reset separately in both auto reset mode andmanual reset mode.  “---” is displayed when the average fuel con- sumption cannot be measured.  The initial (default) setting is “Auto reset mode”.NOTE
 Average fuel consumption may vary depend on the driving conditi
ons (road conditions,
how you drive, etc.).The actual fuel consum
ption may differ from
the fuel consumption displayed, so treat the fuel consumption displayed as just a roughguideline.  Disconnecting the batter
y cable wi
ll erase
from memory the manual reset mode or auto reset mode setting for the average fuel con- sumption display.  The display setting ca
n be changed to the
preferred units {mpg, km/L, L/100 km}.Refer to “Changing the function settings” on page 5-72.
Outside temperature display
(if
so equipped)
NOTE
 The display setting ca
n be changed to the
preferred units (°F or °C). Refer to “Changing the function settings” on page 5-72.  Depending on factors such as the driving conditions, the displa
yed temperature may
vary from the actual outside temperature.NOTE
BK0267800US.book 69 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Multi-information display 5-70 Features and controls
5
N00579000041
If the outside air temperature drops below approx. 37 °F (3 °C), the alarm sounds and the outside air temperature warning symbol (A) flashes for about 10 seconds.
N00575401031
The fuel remaining disp
lay indicates the fuel
level in the fuel tank
when the ignition switch
or the operation mode in ON.
When the remaining fuel level runs low (one segment is displayed), the last segment of the fuel gauge flashes when
the ignition switch is
turned to the “ON” position or the operation mode is changed to ON.When the remaining fuel level runs very low (no segments displayed), the bar graph flashes.If the warning display a
ppears, refuel as soon
as possible.
Frozen road warning
(if so
equipped)
CAUTION There is a danger the ro
ad might be icy, even
when this symbol is not flashing, so please take care when driving.
Fuel remaining display
1- Full 0- Empty
NOTE
 It may take several se
conds to stabilize the
display after re
filling the tank.
 If fuel is added with
the ignition switch or
the operation mode in ON, the remainingfuel display may incorre
ctly indicate the fuel
level.  The fuel lid mark (A) indicates that the fuel tank filler door is located on the left side of the vehicle. (Refer to “Filling the fuel tank”on page 3-3.)
Fuel remaining warning display
NOTE
 On hills or curves, the display may be incor- rect due to the movement
of fuel in the tank.
CAUTIONRunning out of gas coul
d damage the cata-
lytic converter. If the warning displayappears, refuel as soon as possible.
BK0267800US.book 70 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Multi-information display
Features and controls 5-71
5
N00556701312
Displays the approximate time until the next recommended periodic inspection. “---” is displayed when the inspection time hasarrived. 1. Shows the time until the next periodic inspection.
2. This informs you that a periodic inspec- tion is due. Contact an authorized Mitsubishi Motors dealer or a repair facil-ity of your choice to have the system checked. 3. After your vehicle is inspected at anauthorized Mitsubishi Motors dealer, it displays the time until the next periodic inspection.
The “---” display can be
reset while the igni-
tion switch or the oper
ation mode is in OFF.
1. When you lightly press the multi-informa- tion display switch a few times, the infor-mation display switches to the service reminder display. 2. Press and hold the mu
lti-information dis-
play switch for about 1 second or more tomake the wrench symbol start flashing. (If there is no operation for about 10 seconds with flashing, the display will revert to itsoriginal indication.)
Service reminder
NOTE
 The service reminder ti
me can be modified
by an authorized Mitsubishi Motors dealer,to adjust for severe usage, etc. Refer to “Severe maintenance sc
hedule” in your vehi-
cle’s Warranty and Main
tenance Manual. For
further information,
please contact your
authorized Mitsubish
i Motors dealer.
Distance Month
NOTE
Shows the distance in units of 100 miles (100 km) and the time in units of 1 month.NOTE
 When the next periodic inspection is approaching, the wrench
symbol will be dis-
played whenever the ignition switch is turned from the “OFF” position to the “ON” position or when the operation mode ischanged from OFF to ON. The wrench symbol will
continuously be dis-
played, even on non-service reminder dis-plays (odometer, trip meter, etc.), until the service reminder is reset. When the service reminder resets, thewrench symbol will
not be displayed until
the next periodic inspection.
To reset
BK0267800US.book 71 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Multi-information display 5-72 Features and controls
5
3. With this indicator flashing, if you lightly press the multi-information meter switch,the display switches from “---” to “cLEAr”. After that, the time until the next periodic inspection is shown.
N00556801267
The “Average fuel co
nsumption reset mode”,
“Fuel consumption un
it” and “Temperature
unit” setting can be
modified as desired,
when the ignition switch or the operation mode is ON.
N00575501032
You can change the mode condition for theaverage fuel consumption display to “Auto reset” or “Manual reset”.
1. When you lightly press the multi-informa- tion display switch a few times, the infor-mation display switches to the driving range display. Refer to “Information display” on page5-67. 2. Each time you press the multi-information display switch for 1 second or more ondriving range display, you can switch reset mode for average fuel consumption. (A: Auto reset mode, B: Manual reset mode)  When the average fuel consumption is being displayed, if you hold down themulti-information display switch, these calculations will
be reset to zero.
 When the following operation is per- formed, the mode setting changes auto- matically from manual to auto.
CAUTION The customer is responsible for making sure that regular inspections
and maintenance and
periodic inspections
and maintenance are
performed.Inspections and mainte
nance must be per-
formed to prevent accidents and malfunc- tions.NOTE
 The “---” display cannot
be reset while the
ignition switch or th
e operation mode is in
ON.
 When “---” is displaye
d, after a certain dis-
tance and a certain pe
riod of time, the dis-
play is reset and the time until the nextperiodic inspecti
on is displayed.
 If you accidentally rese
t the display, consult
an authorized Mitsubishi Motors dealer for assistance.
Changing the function settings
CAUTION The driver should not operate the display while the vehicle is in motion. When operating the system, stop the vehicle in a safe area.
Changing the reset mode for aver- age fuel consumption
NOTE
Manual reset modeAuto reset mode Manual reset mode
BK0267800US.book 72 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Multi-information display
Features and controls 5-73
5
[Except for vehicles equipped with the F. A . S . T. - k e y ]Turn the ignition switch to the “ON” posi- tion from the “ACC” or “OFF” position. [For vehicles equipped with the F.A.S.T.- key]Change the operation mode to ON from ACC or OFF.  When the average fuel consumption is being displayed, if you hold down the multi-information display switch, these calculations will be reset to zero. When the engine switch or the operation mode is in the following conditions, the average fuel consumption display willautomatically reset. [Except for vehicles equipped with the F. A . S . T. - k e y ] The ignition switch has been set to the“ACC” or “OFF” position for about 4 hours or more. [For vehicles equipped with the F.A.S.T.- key]The operation mode has been set to ACC or OFF for about 4 hours or more.
N00557100156
The fuel consumption display unit can bechanged. The distance and amount units are also switched to match the selected fuel con-sumption unit. 1. When you lightly press the multi-informa- tion display switch a few times, the infor- mation display switches to the averagefuel consumption display. Refer to “Information display” on page 5-67.2. Press and hold the multi-information dis- play switch for about 5 seconds or more until buzzer sound
is heard twice.
3. Press and hold the mu
lti-information dis-
play switch to switch in sequence from“km/L”
 “L/100 km”
 “mpg”

“km/L”.
The distance units is also changed in the fol- lowing combinations to match the selected fuel consumption unit.
Auto reset mode
NOTE
 The average fuel cons
umption display can be
reset separately for the auto reset mode andfor the manual reset mode.  Disconnecting the batt
ery cable will erase
from memory the manual reset mode or autoreset mode setting for the average fuel con- sumption display.  The initial (default) setting is “Auto reset mode”.
Changing the fuel consumption display unit
NOTE
 The display units for the driving range, the average fuel consumption are changed, but the units for the indica
ting needle (speedom-
eter), the odometer, the trip odometer and theservice reminder will
remain unchanged.
 If the battery is disconnected, the memory of the unit setting is erased and it returns auto- matically to fa
ctory setting.
