Combination headlights and dimmer switch
Features and controls 5-189
5
from the ignition switch while the lights are on, the tone will sound to remind you to turn off the lights. [When using the F.A.S.T.-key to start the engine]If the driver’s door is opened with the opera- tion mode is put in OFF or ACC, or if the operation mode is changed to OFF while thelights are on, the tone will sound to remind you to turn off the lights. In either case, the lights will turn off automat- ically and so will the tone. Or you can turn the light switch to the
“OFF” position to stop
the tone.
N00549901178
To change the headlights from high beam to low beam and vice versa, pull the turn signal lever to (1). Switch the headlights to lowbeam as a courtesy whenever there are oncoming vehicles, or when there is traffic moving ahead of you. An illuminated bluelight in the instrument cluster indicates when the headlights are on high beam.
N00550001225
You can flash the high beams by pulling the lever gently toward you (2). The lights willgo back to normal when you let go. While the high beam is on, you will see a blue light on the instrument panel.
N00591300060
The Automatic High Beam (AHB) turns the high beam light on or off automatically according to surrounding light conditions.The sensor (A) detects lights, such as the lights of an oncoming vehicle, a vehicle ahead or street lights.
Dimmer (high/low beam change)
Headlight flasher
NOTE
 You can flash the high beams by pulling the lever toward you, even if the light switch isoff.  If you turn the lights off with the head lights set to high beam illumination, the headlights are automatically returned to their low beam setting.
Automatic High Beam (AHB)
(if
so equipped)
WA R N I N G Do not rely solely on the AHB. Always observe surrounding traffic and light con- ditions. If necessary, manually turn the high beams on or off.Refer to “Dimmer (high/low beam change)” on page 5-189.
BK0266800US.book
189 ページ ２０１８年６月２７日　水曜日　午後５時６分

Combination headlights and dimmer switch 5-190 Features and controls
5
N00593600100
1. Rotate the light switch to “ ” position or “AUTO” position when the engine is running.2. Press the AHB switch. The AHB is activated and the indicator is illuminated.If the AHB switch is pressed again, theAHB will be deactivated and AHB indica- tor will go off.
1. Pull the turn signal lever toward you.
2. The AHB indicator will go off. 3. The AHB switch is pressed again, the AHB will be activated. 1. Pull the turn signal lever toward you. 2. The AHB indicator will go off and thehigh beam indicator illuminates. 3. The AHB switch is pressed again, the AHB will be activated.
N00593700055
The high beam headlights illuminate when all of the following conditions are met:  Your vehicle speed exceeds approxi- mately 33 mph (53 km/h). It is dark ahead of your vehicle.  There are no vehicles
in front or oncom-
ing vehicles, or none of their exteriorlights are illuminating.
The low beam headlights illuminate when any of the following conditions occur:  Your vehicle speed does not exceed approximately 28 mph (45 km/h). It is bright ahead of your vehicle.  An exterior light of a vehicle in front or oncoming vehicle is illuminating.
How to use the AHB

NOTE
 If the headlights are on when the light switch is in the “AUTO” position, the AHB works.  You can switch the headlight beams (high/low) manually by operating the lever even if the AHB is working. Refer to “Dimmer (high/low beam change)”on page 5-189. If the lever is operated manually, the AHB indicator will go off and the AHB will bedeactivated. Refer to “Manual switching” on page 5-190.  The AHB is not deactivated when you pull the lever slightly (operation of the headlight flasher).

Manual switching

Switching to low beam
Switching to high beamAutomatic switching conditions

BK0266800US.book
190 ページ ２０１８年６月２７日　水曜日　午後５時６分

Combination headlights and dimmer switch
Features and controls 5-191
5
The sensitivity of the sensor can be temporar- ily lowering in the following ways. 1. Park your vehicle in a safe place and the ignition switch is turned to the “OFF” position or the operation mode is put inOFF.
NOTE
 The headlights may not be switched from high beam to low beam under the following circumstances. • A vehicle in front or oncoming vehicle is hindered by any object such as continuous bends, elevated median/island, traffic signs, roadside trees. • Your vehicle passes an oncoming vehicle suddenly on a bend with poor visibility. • Another vehicle crosses ahead of your vehi- cle.
 The headlights may remain at low beam (or be switched from high beam to low beam)when a reflective object
(e.g. street light,
traffic signal, noticeboard and signboard) reflects light.  Any of the following factors may influence the headlight beam switching timing: • How brightly the exteri
or lights of a vehicle
in front or oncoming vehicle illuminate. • Movement or direction of a vehicle in front or oncoming vehicle. • Only right or left exterior light of a vehicle in front or oncoming vehicle is illuminat-ing. • A vehicle in front or oncoming vehicle is a motorcycle. • Road conditions (gradient, bends and road surface). • The number of occupants and luggage load.
 The AHB recognizes environmental condi- tions by sensing a light source ahead of your vehicle. Therefore, you may feel like some- thing is not quite right when the headlight beams are switched automatically.  The system may not detect a light vehicle such as a bicycle.  The system may not detect an ambient brightness precisely. This causes the trafficto be dazzled by high beam or the low beam to be maintained. In such cases, you should switch the headlight beams manually. • In bad weather (heavy rain, fog, snow or sandstorm). • The windshield is dirty or fogged up. • The windshield is cracked or broken. • The sensor is deformed or dirty.• A light, which is similar to the headlights or tail lights, is shining around your vehicle. • A vehicle in front or oncoming vehicle is driven without lights, the exterior lights aredirty or discolored, or the direction of the headlight beams is adjusted improperly. • It becomes dark and bright suddenly and continuously around your vehicle. • Your vehicle is driven on uneven surfaces. • Your vehicle is driven on a winding road.• A reflective object such as a noticeboard or a mirror reflects a light ahead of your vehi- cle.NOTE
• When lights of the vehicle in front or head-lights of an oncoming vehicle blend into the other lights. • The rear end of a vehicle in front (such as a container truck) reflect a strong light. • Your vehicle's headlight
is broken or dirty.
• Your vehicle is inclined due to a flat tire or towing. • The warning display appears. (Refer to “System problem warning” onpage 5-192.)
 Observe the precautions below to maintain good usage conditions: • Do not attempt to disassemble the sensor.• Do not affix a sticker or label on the wind- shield near the sensor. • Avoid overload. • Do not modify your vehicle. • When the windshield is replaced, use the Mitsubishi Motors genuine parts.
To adjust the sensitivity of the sensor
NOTE
BK0266800US.book
191 ページ ２０１８年６月２７日　水曜日　午後５時６分

Combination headlights and dimmer switch
Features and controls 5-193
5
If the AHB determines that its performance has been degraded, the warning display will appear. This can occur when:  Foreign objects, such as dirt, snow or ice, adhere to the windshield of the sensor portion.  In adverse weather
conditions, such as
rain, snow, sandstorms, etc. A front vehicle or an oncoming vehicle is splashing water, snow or dirt.
When the sensor performance returns, the AHB will resume operation.If the warning display does not disappear after waiting for a while, there is a possibility that the sensor has a malfunction. Contact anauthorized Mitsubishi Motors dealer for inspection of the sensor.
N00563201263
This function turns on the front side-markerand parking lights for approximately 30 sec-
onds after the UNLOCK button on the key is pressed when the combination headlights and dimmer switch is in the “OFF” or “AUTO” position (vehicles equipped with the auto-matic light control). The welcome light func- tion will operate only when it is dark outside the vehicle.
N00547301194
This function turns on the headlights in thelow beam setting for approximately 30 sec-onds after the ignition switch is turned to the “OFF” position or the operation mode is put in OFF. 1. Turn the combination headlights and dim- mer switch to the “OFF” or “AUTO”position (vehicles equipped with the auto- matic light control). 2. Turn the ignition switch to the “OFF”position or put the operation mode in OFF. Also, if a key was used to start the engine, remove the key from the ignitionswitch. 3. Within 60 seconds of turning the ignition switch to the “OFF” position or puttingthe operation mode in OFF, pull the turn signal lever toward you.

Windshield is dirty

Welcome light
NOTE
While the welcome light function is operat- ing, perform one of the following operationsto cancel the function. • Press the LOCK button on the key.• Turn the combination headlights and dim- mer switch to the “ ” or “ ” position. • Turn the ignition switch to the “ON” posi- tion or put the operation mode in ON.
 It is possible to modify functions as follows: • The headlights can be set to come on in the low beam setting. • The welcome light function can be deacti- vated. For details, consult a Mitsubishi Motors dealer. On vehicles equipped with Smartphone Link Display Audio, screen operations can beused to make the adjustment. Refer to the separate owner’s manual for details.
Coming home light
BK0266800US.book
193 ページ ２０１８年６月２７日　水曜日　午後５時６分

Headlight leveling switch (if so equipped) 5-194 Features and controls
5
4. The headlights will come on in the low beam setting for approximately 30 sec- onds. After the headlights go off, the headlights can be turned on again in thelow beam setting for approximately 30 seconds by pulling the turn signal lever toward you within 60 seconds of turningthe ignition switch to the “OFF” position or putting the operation mode in OFF. To turn on the headlights again after 60 sec-onds of turning the ignition switch to the“OFF” position or putting the operation mode in OFF, repeat the process from step 1.
N00537101131
The direction of the headlight beam (thedirection in which the light shines) altersaccording to the number of people and the load in the vehicle. Lower the headlight angle if it is too high due to the number of peopleand/or the load in the vehicle so that the head- lights’ glare does not distract the drivers of approaching vehicles. First set the light switch to the “ ” position, then turn the headlight leveling switch knob to lower the beam. The greater the number on the head- light leveling switch knob, the lower thebeam will point. Set the switch to the appropriate position so that the headlight beam is level with the road.
N00522601604
When changing lanes, or to making a gradualturn, hold the lever in the “lane change” posi-
NOTE
 While the coming home light function is operating, perform one of the following operations to cancel the function. • Pull the turn signal lever toward you. • Turn the combination headlights and dim- mer switch to the “ ” or “ ” position or put the operation mode in ON. • Turn the ignition switch to the “ON” posi- tion or put the operation mode in ON.
 It is possible to modify functions as follows: • The time that the headlights remain on can be changed. • The coming home light function can be deactivated.
For details, consult a Mitsubishi Motors dealer. On vehicles equipped with Smartphone Link Display Audio, screen operations can be used to make the adjustment.Refer to separate owner’s manual for details.
Headlight leveling switch
(if
so equipped)
NOTE
WA R N I N G To avoid distraction while driving, always perform headlight adjustments before vehicle operation.NOTE
 Start adjusting when the knob is at the “0” position (when the beam is at its highest).  Keep the knob in the “0” position except when using the knob to lower the headlight beam angle.  Always return the knob to the “0” position when the load is removed and the people have left the vehicle.
Turn signal lever
BK0266800US.book
194 ページ ２０１８年６月２７日　水曜日　午後５時６分

Wiper and washer switch 5-200 Features and controls
5
Move the lever in the direction of the arrow and release, to operate the wipers once. Use this function when you are driving in mist or drizzle. The wipers will operate once if the lever israised to the “MIST” position and released when the ignition switch or the operation mode is in ON or ACC. The wipers will con-tinue to operate while the lever is held in the“MIST” position.
The wipers will operate once if the lever is moved to the “AUTO” position and the knob (C) is turned in the “+” direction when the ignition switch or the operation mode is inON.
N00504601413
The windshield washer can be operated with the ignition switch or the operation mode in ON or ACC.The washer fluid will be sprayed onto the windshield by pulling the lever toward you. When the wipers are not in operation or inintermittent operation, by pulling the lever toward you, the wipers will operate several times while the washer fluid is being sprayed.
Misting function
Windshield washer
NOTE
 It is possible to modify functions as follows: • Intelligent washer can be deactivated. Refer to “Intelligent washer” on page 5-201. • The wipers can be set to operate again after approximately 6 seconds. These functions are not activated when the vehicle is shipped from the factory. To activate or deactivate these functions,please contact your authorized Mitsubishi Motors dealer. On vehicles equipped with Smartphone LinkDisplay Audio, screen operations can be used to make the adjustment. Refer to the separate owner’s manual fordetails.
BK0266800US.book
200 ページ ２０１８年６月２７日　水曜日　午後５時６分

Wiper and washer switch
Features and controls 5-201
5
By releasing the lever soon after pulling it toward you, the washer fluid will be sprayedseveral times while the wipers are operating several times. Intelligent washer will stop operating withany operation of the lever.
N00523201476
The rear window wiper and washer can beoperated when the ignition switch or theoperation mode is in ON or ACC. Turn the knob to operate the rear window wiper.
N00523501277
Intelligent washer Rear window wiper and washer OFF- Off
INT- The wiper operates continuously for
several seconds then operates inter-mittently at intervals of approxi- mately 8 seconds.
-
Washer fluid will be sprayed onto the rear window glass while the knob is turned fully in either direction. When the washer fluid is sprayed, thewiper will automatically operate two or three times.NOTE
 The rear window wiper will automatically perform several continuous operations if the selector lever is put in the “R” (REVERSE) position while the windshield wipers or therear window wiper is operating. (automatic operation mode) After the automatic operation, the rear win-dow wiper will stop operating if the knob is in the “OFF” position. If the knob is in the “INT” position, the rear window wiper willreturn to the intermittent operation. It is possible to set the rear window wiper to perform the automatic operation only if theselector lever is put in the “R” (REVERSE) position while the rear window wiper is operating with the knob in the “INT” posi- tion. See your authorized Mitsubishi Motorsdealer for details.
 If the knob is in the “O
FF” position, turn the
knob to the “INT” position twice quickly to operate the rear window wiper continuously. (continuous operation mode) Turn the knob to the “OFF” position to stopthe rear window wiper continuous operation.  The wiper intermittent operation time can be adjusted. See your authorized Mitsubishi Motors dealer for details.For vehicles equipped with the Smartphone Link Display Audio, adjustments can be made using screen operations. For furtherdetails, refer to the separate owner’s manual.  The washer fluid reservoir is located in the engine compartment. Check the fluid level regularly and refill if necessary. (Refer to “Washer fluid” on page9-9.)
Precautions to observe when using wipers and washers
CAUTION If the washer is used in cold weather, the washer fluid sprayed onto the glass might freeze, blocking your view. Heat the glass with the defroster before using the washer.NOTE
BK0266800US.book
201 ページ ２０１８年６月２７日　水曜日　午後５時６分

Cargo area cover (if so equipped)
Features and controls 5-219
5

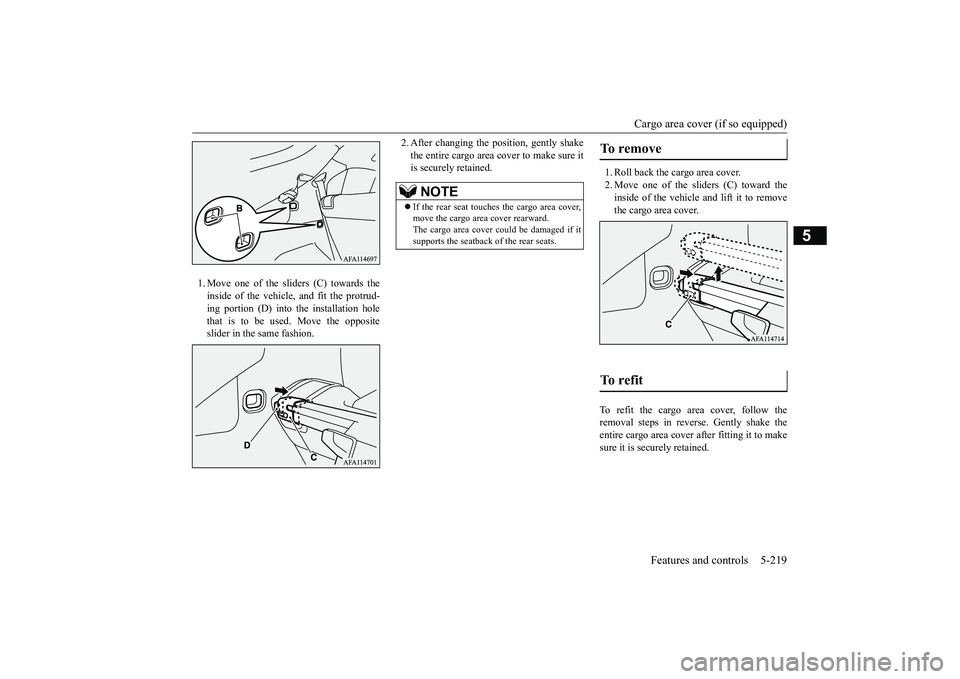

1. Move one of the sliders (C) towards the inside of the vehicle, and fit the protrud-ing portion (D) into the installation hole that is to be used. Move the opposite slider in the same fashion.
2. After changing the position, gently shake the entire cargo area cover to make sure it is securely retained.
1. Roll back the cargo area cover. 2. Move one of the sliders (C) toward the inside of the vehicle
and lift it to remove
the cargo area cover.
To refit the cargo area cover, follow the removal steps in reverse. Gently shake the entire cargo area cover after fitting it to makesure it is securely retained.
NOTE
 If the rear seat touches the cargo area cover, move the cargo area cover rearward. The cargo area cover could be damaged if itsupports the seatback of the rear seats.
To remove To refit
