2019 MERCEDES-BENZ SPRINTER octane

FUEL: DIESEL
Your New Sprinter Requires
Ultra- Low S ulfur Diesel Fuel. All
stations pumping diesel fuel in the
vicinity of an interstate must offer
this fuel. This fuel is clear to
yellowish in color.
JUMP- STARTING
Push the red shroud back and twist to expose the
connector. This is the place to attach the positive
jumper cable. The negat ive connection is on the
driver’s side fender under the hood and looks like
a brass post. If your vehicle is equipped with a
battery under the hood, this is an auxiliary battery.
D O NOT ATTEMPT TO JUMP-START THE UNDER
HOOD BATTERY! This could be dangerous,
allowing for potential explosion of the battery.
Use fuels with Bio-Diesel content of 5%
maximum whenever possible. (Owners
Manu al pg. 328)
NOTE: If gasoline is accidentally added to the
fuel tank, t his can cause catastrophic failures if
vehicle is operated (not covered under
Warranty).

If the problem is noticed immediately and only a
small amount of gasoline has been added, it is
possible to prevent severe damage by
immediately draining and flushing the fuel
system.
If this icon is displayed, it indicates
water in the fuel. Drain the fuel filter
with water separator immediately.
Otherwise, the engine may be damaged.
Refer to the Owner’s Manual or contact Roadside
Assistance at 877-762-8267 for help.
DIE S EL P A RTIC U LA TE FI LT ER (D PF)
KEYLESS START
Your new Sprinter is equipped with
Keyless Start.
•Press once to turn on accessory power (without
brake applied)
operational times, monitor the DPF filter load in the
instrument cluster (service menu>diesel particular fill
level) before reaching 100% drive on the freeway or
county drive for 20 minutes. This will facilitate the
regeneration of the diesel particulate filter.
(Owners Manual pg. 115).

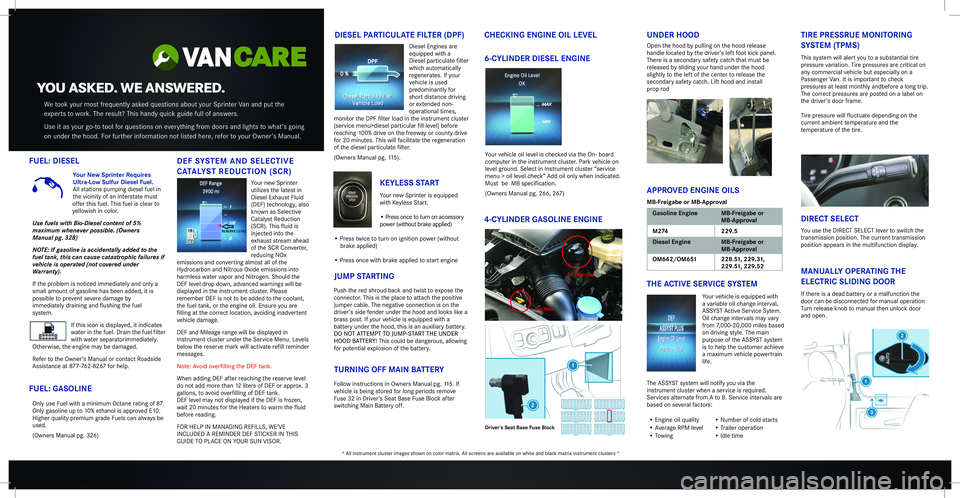

YOU ASKED. WE ANSWERED.
We took your most frequently asked questions about your Sprinter Van and put the
experts to work. The result? This handy quick guide full of answers.
Use it as your go-to tool for questions on everything from doors and lights to what’s going
on under the hood. For further information not listed here, refer to your Owner’s Manual.
DIRECT SELECT
You use the DIRECT SELECT lever to switch the
transmission position. The current
transmission position appears in the
multifunction display.
MANUALLY OPERATING THE
ELECTRIC SLIDING DOOR
If there is a dead battery or a malfunction the
door can be disconnected for manual operation
Turn release knob to manual th en unlock door
and open.
Open the hood by pulling on the hood release
handle located by the driver’s left foot kick panel.
There is a secondary safety catch that must be
released by sliding your hand under the hood
slightly to the left of the center to release the
secondary safety catch. Lift hood and install prop
rod
Your vehicle i s equipped with
a variable oil change interval,
ASSYST Active Service
System. Oil change intervals
may vary from 7,000- 20,000
m iles based on driving style.
The main purpose of the
ASSYST system is to help the
customer achieve a maximum
vehicle powertrain life.
• Engine oil quality
• Average RPM level
• Towing • Number
of cold starts
• Trailer operation
• Idle time
•
Press twice to turn on ignition power (without
brake applied)
• Press once with brake applied to start
engine
The ASSYST system will notify you via the
instrument cluster when a service is required.
Services alternate from A to B. Service intervals
are based on several factors:
reducing NOx emissions and converting almost all of
the Hydrocarbon and Nitrous Oxide emissions into
harmless water vapor and Nitrogen. Should the DEF
level drop down, advanced warnings will be displayed
in the instrument cluster. Please remember DEF is not
to be added to the coolant, the fuel tank, or the
engine oil. Ensure you are filling at the correct
location, avoiding inadvertent vehicle damage.
DEF and Mileage range will be displayed in Instrument
cluster under the Service Menu. Levels below t he
reserve mark will activate refill reminder messages.
Note: Avoid overfilling the DEF tank.
When adding DEF after reaching the reserve level do
not add more than 12 liters of DEF or approx. 3
gallons, to avoid overfilling of DEF tank.
DEF level may not displayed if the DE F is frozen, wait
20 minutes for the Heat ers to warm the fluid before
reading.
FOR HELP IN MANAGING REFILLS, WE’VE
INCLUDED A REMINDER DEF STICKER IN THIS
GUIDE TO PLACE ON YOUR SUN VISOR.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This system will alert you to a substantial tire
pressure variation. Tire pressures are critical on
any commercial vehicle but especially on
a
Passenger Van . It is important to check
pressures at least monthly and before a long
trip. The correct pressures are posted on a label
on the driver’s door frame.
Tire pressure will fluctuate depending on the
current ambient temperature and the
temperature of the tire.
Diesel Engines are
equipped with a Diesel
particulate filter which
automatically
regenerates. If your
vehicle is used
predominantly for
short distance driving
or extended non-
CHECKING ENGINE OIL LEVEL
FUEL: GASOLINE DEF SYSTEM AND SELECTIVE
CATALYST REDUCTION (SCR)
Your vehicle oil level is checked via the On-
board compu ter in the instrument clust er. Park
vehicle on level ground. Select in Instrument
clust er “service menu > oil level check” Add oil
only when indicated. Must be MB
specification. ( Owners Manual pg. 2 66, 267)
Only use Fuel with a minimum Octane rating of 87.
Only gasoline up to 10% ethanol is approved E10.
Higher quality premium grade Fuels can always be
used. (Owners Manual pg.326)
UNDER HOOD
Your new Sprinter
utilizes the latest in
Diesel Exhaust Fluid
(DEF) technology, also
known as Selective
Catalyst Reduction
(SCR). This fluid is
injected into the
exhaust stream ahead
of the SCR Converter,
6 Cylinder Diesel Engine
4 Cylinder Gasoline Engine Approved Engine Oils
Turning Off Main Battery Switch
Follow instruction s in Owners Manual pg. 115. If
vehicle is being stored for long periods remove Fuse
32 in Driver's Seat Base Fuse Block after switching
Main Battery off.
* All ins trument cluster images shown on Color matrix all screens are available on White and Black matrix instrument clusters *
Driver's Seat Base Fuse Block
FUEL: D IESEL
Your New Sprinter Requires
Ultra- Low S ulfur Diesel Fuel. All
stations pumping diesel fuel in the
vicinity of an interstate must offer
this fuel. This fuel is clear to
yellowish in color.
JUMP- STARTING
Push the red shroud back and twist to expose the
connector. This is the place to attach the positive
jumper cable. The negat ive connection is on the
driver’s side fender under the hood and looks like
a brass post. If your vehicle is equipped with a
battery under the hood, this is an auxiliary battery.
D O NOT ATTEMPT TO JUMP-START THE UNDER
HOOD BATTERY! This could be dangerous,
allowing for potential explosion of the battery.
Use fuels with Bio-Diesel content of 5%
maximum whenever possible. (Owners
Manu al pg. 328)
NOTE: If gasoline is accidentally added to the
fuel tank, t his can cause catastrophic failures if
vehicle is operated (not covered under
Warranty).

If the problem is noticed immediately and only a
small amount of gasoline has been added, it is
possible to prevent severe damage by
immediately draining and flushing the fuel
system.
If this icon is displayed, it indicates
water in the fuel. Drain the fuel filter
with water separator immediately.
Otherwise, the engine may be damaged.
Refer to the Owner’s Manual or contact Roadside
Assistance at 877-762-8267 for help.
DIE S EL P A RTIC U LA TE FI LT ER (D PF)
KEYLESS START
Your new Sprinter is equipped with
Keyless Start.
•Press once to turn on accessory power (without
brake applied)
operational times, monitor the DPF filter load in the
instrument cluster (service menu>diesel particular fill
level) before reaching 100% drive on the freeway or
county drive for 20 minutes. This will facilitate the
regeneration of the diesel particulate filter.
(Owners Manual pg. 115).
YOU ASKED. WE ANSWERED.
We took your most frequently asked questions about your Sprinter Van and put the
experts to work. The result? This handy quick guide full of answers.
Use it as your go-to tool for questions on everything from doors and lights to what’s going
on under the hood. For further information not listed here, refer to your Owner’s Manual.
DIRECT SELECT
You use the DIRECT SELECT lever to switch the
transmission position. The current
transmission position appears in the
multifunction display.
MANUALLY OPERATING THE
ELECTRIC SLIDING DOOR
If there is a dead battery or a malfunction the
door can be disconnected for manual operation
Turn release knob to manual th en unlock door
and open.
Open the hood by pulling on the hood release
handle located by the driver’s left foot kick panel.
There is a secondary safety catch that must be
released by sliding your hand under the hood
slightly to the left of the center to release the
secondary safety catch. Lift hood and install prop
rod
Your vehicle i s equipped with
a variable oil change interval,
ASSYST Active Service
System. Oil change intervals
may vary from 7,000- 20,000
m iles based on driving style.
The main purpose of the
ASSYST system is to help the
customer achieve a maximum
vehicle powertrain life.
• Engine oil quality
• Average RPM level
• Towing • Number
of cold starts
• Trailer operation
• Idle time
•
Press twice to turn on ignition power (without
brake applied)
• Press once with brake applied to start
engine
The ASSYST system will notify you via the
instrument cluster when a service is required.
Services alternate from A to B. Service intervals
are based on several factors:
reducing NOx emissions and converting almost all of
the Hydrocarbon and Nitrous Oxide emissions into
harmless water vapor and Nitrogen. Should the DEF
level drop down, advanced warnings will be displayed
in the instrument cluster. Please remember DEF is not
to be added to the coolant, the fuel tank, or the
engine oil. Ensure you are filling at the correct
location, avoiding inadvertent vehicle damage.
DEF and Mileage range will be displayed in Instrument
cluster under the Service Menu. Levels below t he
reserve mark will activate refill reminder messages.
Note: Avoid overfilling the DEF tank.
When adding DEF after reaching the reserve level do
not add more than 12 liters of DEF or approx. 3
gallons, to avoid overfilling of DEF tank.
DEF level may not displayed if the DE F is frozen, wait
20 minutes for the Heat ers to warm the fluid before
reading.
FOR HELP IN MANAGING REFILLS, WE’VE
INCLUDED A REMINDER DEF STICKER IN THIS
GUIDE TO PLACE ON YOUR SUN VISOR.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This system will alert you to a substantial tire
pressure variation. Tire pressures are critical on
any commercial vehicle but especially on a
Passenger Van . It is important to check
pressures at least monthly and before a long
trip. The correct pressures are posted on a label
on the driver’s door frame.
Tire pressure will fluctuate depending on the
current ambient temperature and the
temperature of the tire.
Diesel Engines are
equipped with a Diesel
particulate filter which
automatically
regenerates. If your
vehicle is used
predominantly for
short distance driving
or extended non-
CHECKING ENGINE OIL LEVEL
FUEL: GASOLINE DEF SYSTEM AND SELECTIVE
CATALYST REDUCTION (SCR)
Your vehicle oil level is checked via the On-
board compu ter in the instrument clust er. Park
vehicle on level ground. Select in Instrument
clust er “service menu > oil level check” Add oil
only when indicated. Must be MB
specification. ( Owners Manual pg. 2 66, 267)
Only use Fuel with a minimum Octane rating of 87.
Only gasoline up to 10% ethanol is approved E10.
Higher quality premium grade Fuels can always be
used. (Owners Manual pg.326)
UNDER HOOD
Your new Sprinter
utilizes the latest in
Diesel Exhaust Fluid
(DEF) technology, also
known as Selective
Catalyst Reduction
(SCR). This fluid is
injected into the
exhaust stream ahead
of the SCR Converter,
6 Cylinder Diesel Engine
4 Cylinder Gasoline Engine Approved Engine Oils
Turning Off Main Battery Switch
Follow instruction s in Owners Manual pg. 115. If
vehicle is being stored for long periods remove Fuse
32 in Driver's Seat Base Fuse Block after switching
Main Battery off.
* All ins trument cluster images shown on Color matrix all screens are available on White and Black matrix instrument clusters *
Driver's Seat Base Fuse Block
FUEL: D IESEL
Your New Sprinter Requires
Ultra- Low S ulfur Diesel Fuel. All
stations pumping diesel fuel in the
vicinity of an interstate must offer
this fuel. This fuel is clear to
yellowish in color.
JUMP- STARTING
Push the red shroud back and twist to expose the
connector. This is the place to attach the positive
jumper cable. The negat ive connection is on the
driver’s side fender under the hood and looks like
a brass post. If your vehicle is equipped with a
battery under the hood, this is an auxiliary battery.
D O NOT ATTEMPT TO JUMP-START THE UNDER
HOOD BATTERY! This could be dangerous,
allowing for potential explosion of the battery.
Use fuels with Bio-Diesel content of 5%
maximum whenever possible. (Owners
Manu al pg. 328)
NOTE: If gasoline is accidentally added to the
fuel tank, t his can cause catastrophic failures if
vehicle is operated (not covered under
Warranty).

If the problem is noticed immediately and only a
small amount of gasoline has been added, it is
possible to prevent severe damage by
immediately draining and flushing the fuel
system.
If this icon is displayed, it indicates
water in the fuel. Drain the fuel filter
with water separator immediately.
Otherwise, the engine may be damaged.
Refer to the Owner’s Manual or contact Roadside
Assistance at 877-762-8267 for help.
DIE S EL P A RTIC U LA TE FI LT ER (D PF)
KEYLESS START
Your new Sprinter is equipped with
Keyless Start.
•Press once to turn on accessory power (without
brake applied)
operational times, monitor the DPF filter load in the
instrument cluster (service menu>diesel particular fill
level) before reaching 100% drive on the freeway or
county drive for 20 minutes. This will facilitate the
regeneration of the diesel particulate filter.
(Owners Manual pg. 115).
YOU ASKED. WE ANSWERED.
We took your most frequently asked questions about your Sprinter Van and put the
experts to work. The result? This handy quick guide full of answers.
Use it as your go-to tool for questions on everything from doors and lights to what’s going
on under the hood. For further information not listed here, refer to your Owner’s Manual.
DIRECT SELECT
You use the DIRECT SELECT lever to switch the
transmission position. The current
transmission position appears in the
multifunction display.
MANUALLY OPERATING THE
ELECTRIC SLIDING DOOR
If there is a dead battery or a malfunction the
door can be disconnected for manual operation
Turn release knob to manual th en unlock door
and open.
Open the hood by pulling on the hood release
handle located by the driver’s left foot kick panel.
There is a secondary safety catch that must be
released by sliding your hand under the hood
slightly to the left of the center to release the
secondary safety catch. Lift hood and install prop
rod
Your vehicle i s equipped with
a variable oil change interval,
ASSYST Active Service
System. Oil change intervals
may vary from 7,000- 20,000
m iles based on driving style.
The main purpose of the
ASSYST system is to help the
customer achieve a maximum
vehicle powertrain life.
• Engine oil quality
• Average RPM level
• Towing • Number
of cold starts
• Trailer operation
• Idle time
•
Press twice to turn on ignition power (without
brake applied)
• Press once with brake applied to start
engine
The ASSYST system will notify you via the
instrument cluster when a service is required.
Services alternate from A to B. Service in tervals
are based on several factors:
reducing NOx emissions and converting almost all of
the Hydrocarbon and Nitrous Oxide emissions into
harmless water vapor and Nitrogen. Should the DEF
level drop down, advanced warnings will be displayed
in the instrument cluster. Please remember DEF is not
to be added to the coolant, the fuel tank, or the
engine oil. Ensure you are filling at the correct
location, avoiding inadvertent vehicle damage.
DEF and Mileage range will be displayed in Instrument
cluster under the Service Menu. Levels below t he
reserve mark will activate refill reminder messages.
Note: Avoid overfilling the DEF tank.
When adding DEF after reaching the reserve level do
not add more than 12 liters of DEF or approx. 3
gallons, to avoid overfilling of DEF tank.
DEF level may not displayed if the DE F is frozen, wait
20 minutes for the Heat ers to warm the fluid before
reading.
FOR HELP IN MANAGING REFILLS, WE’VE
INCLUDED A REMINDER DEF STICKER IN THIS
GUIDE TO PLACE ON YOUR SUN VISOR.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This system will alert you to a substantial tire
pressure variation. Tire pressures are critical on
any commercial vehicle but especially on
a
Passenger Van . It is important to check
pressures at least monthly and before a long
trip. The correct pressures are posted on a label
on the driver’s door frame.
Tire pressure will fluctuate depending on the
current ambient temperature and the
temperature of the tire.
Diesel Engines are
equipped with a Diesel
particulate filter which
automatically
regenerates. If your
vehicle is used
predominantly for
short distance driving
or extended non-
CHECKING ENGINE OIL LEVEL
FUEL: GASOLINE DEF SYSTEM AND SELECTIVE
CATALYST REDUCTION (SCR)
Your vehicle oil level is checked via the On-
board compu ter in the instrument clust er. Park
vehicle on level ground. Select in Instrument
clust er “service menu > oil level check” Add oil
only when indicated. Must be MB
specification. ( Owners Manual pg. 2 66, 267)
Only use Fuel with a minimum Octane rating of 87.
Only gasoline up to 10% ethanol is approved E10.
Higher quality premium grade Fuels can always be
used. (Owners Manual pg.326)
UNDER HOOD
Your new Sprinter
utilizes the latest in
Diesel Exhaust Fluid
(DEF) technology, also
known as Selective
Catalyst Reduction
(SCR). This fluid is
injected into the
exhaust stream ahead
of the SCR Converter,
6 Cylinder Diesel Engine
4 Cylinder Gasoline Engine Approved Engine Oils
Turning Off Main Battery Switch
Follow
instruction s in Owners Manual pg. 115. If
vehicle is being stored for long periods remove Fuse
32 in Driver's Seat Base Fuse Block after switching
Main Battery off.
* All ins trument cluster images shown on Color matrix all screens are available on White and Black matrix instrument clusters *
Driver's Seat Base Fuse Block
YOU ASKED. WE ANSWERED.
We took your most frequently asked questions about your Sprinter Van and put the
experts to work. The result? This handy quick guide full of answers.
Use it as your go-to tool for questions on everything from doors and lights to what’s going
on under the hood. For further information not listed here, refer to your Owner’s Manual.
Your New Sprinter Requires
Ultra-Low Sulfur Diesel Fuel.
All stations pumping diesel fuel in
the vicinity of an interstate must
offer this fuel. This fuel is clear to
yellowish in color.
Use fuels with Bio-Diesel content of 5%
maximum whenever possible. (Owners
Manual pg. 328)
NOTE: If gasoline is accidentally added to the
fuel tank, this can cause catastrophic failures if
vehicle is operated (not covered under
Warranty).
If the problem is noticed immediately and only a
small amount of gasoline has been added, it is
possible to prevent severe damage by
immediately draining and flushing the fuel
system.
If this icon is displayed, it indicates
water in the fuel. Drain the fuel filter
with water separatorimmediately.
Otherwise, the engine may be damaged.
Refer to the Owner’s Manual or contact Roadside
Assistance at 877-762-8267 for help.
* All instrument cluster images shown on color matrix. All screens are available on white and black matrix instrument clusters *
Only use Fuel with a minimum Octane rating of 87.
Only gasoline up to 10% ethanol is approved E10.
Higher quality premium grade Fuels can always be
used.
(Owners Manual pg. 326)
FUEL: D IESEL
Your New Sprinter Requires
Ultra- Low S ulfur Diesel Fuel. All
stations pumping diesel fuel in the
vicinity of an interstate must offer
this fuel. This fuel is clear to
yellowish in color.
JUMP- STARTING
Push the red shroud back and twist to expose the
connector. This is the place to attach the positive
jumper cable. The negat ive connection is on the
driver’s side fender under the hood and looks like
a brass post. If your vehicle is equipped with a
battery under the hood, this is an auxiliary battery.
D O NOT ATTEMPT TO JUMP-START THE UNDER
HOOD BATTERY! This could be dangerous,
allowing for potential explosion of the battery.
Use fuels with Bio-Diesel content of 5%
maximum whenever possible. (Owners
Manu al pg. 328)
NOTE: If gasoline is accidentally added to the
fuel tank, t his can cause catastrophic failures if
vehicle is operated (not covered under
Warranty).

If the problem is noticed immediately and only a
small amount of gasoline has been added, it is
possible to prevent severe damage by
immediately draining and flushing the fuel
system.
If this icon is displayed, it indicates
water in the fuel. Drain the fuel filter
with water separator immediately.
Otherwise, the engine may be damaged.
Refer to the Owner’s Manual or contact Roadside
Assistance at 877-762-8267 for help.
DIE S EL P A RTIC U LA TE FI LT ER (D PF)
KEYLESS START
Your new Sprinter is equipped with
Keyless Start.
•Press once to turn on accessory power (without
brake applied)
operational times, monitor the DPF filter load in the
instrument cluster (service menu>diesel particular fill
level) before reaching 100% drive on the freeway or
county drive for 20 minutes. This will facilitate the
regeneration of the diesel particulate filter.
(Owners Manual pg. 115).
YOU ASKED. WE ANSWERED.
We took your most frequently asked questions about your Sprinter Van and put the
experts to work. The result? This handy quick guide full of answers.
Use it as your go-to tool for questions on everything from doors and lights to what’s going
on under the hood. For further information not listed here, refer to your Owner’s Manual.
DIRECT SELECT
You use the DIRECT SELECT lever to switch the
transmission position. The current
transmission position appears in the
multifunction display.
MANUALLY OPERATING THE
ELECTRIC SLIDING DOOR
If there is a dead battery or a malfunction the
door can be disconnected for manual operation
Turn release knob to manual th en unlock door
and open.
Open the hood by pulling on the hood release
handle located by the driver’s left foot kick panel.
There is a secondary safety catch that must be
released by sliding your hand under the hood
slightly to the left of the center to release the
secondary safety catch. Lift hood and install prop
rod
Your vehicle i s equipped with
a variable oil change interval,
ASSYST Active Service
System. Oil change intervals
may vary from 7,000- 20,000
m iles based on driving style.
The main purpose of the
ASSYST system is to help the
customer achieve a maximum
vehicle powertrain life.
• Engine oil quality
• Average RPM level
• Towing • Number
of cold starts
• Trailer operation
• Idle time
•
Press twice to turn on ignition power (without
brake applied)
• Press once with brake applied to start
engine
The ASSYST system will notify you via the
instrument cluster when a service is required.
Services alternate from A to B. Service intervals
are based on several factors:
reducing NOx emissions and converting almost all of
the Hydrocarbon and Nitrous Oxide emissions into
harmless water vapor and Nitrogen. Should the DEF
level drop down, advanced warnings will be displayed
in the instrument cluster. Please remember DEF is not
to be added to the coolant, the fuel tank, or the
engine oil. Ensure you are filling at the correct
location, avoiding inadvertent vehicle damage.
DEF and Mileage range will be displayed in Instrument
cluster under the Service Menu. Levels below t he
reserve mark will activate refill reminder messages.
Note: Avoid overfilling the DEF tank.
When adding DEF after reaching the reserve level do
not add more than 12 liters of DEF or approx. 3
gallons, to avoid overfilling of DEF tank.
DEF level may not displayed if the DE F is frozen, wait
20 minutes for the Heat ers to warm the fluid before
reading.
FOR HELP IN MANAGING REFILLS, WE’VE
INCLUDED A REMINDER DEF STICKER IN THIS
GUIDE TO PLACE ON YOUR SUN VISOR.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This system will alert you to a substantial tire
pressure variation. Tire pressures are critical on
any commercial vehicle but especially on
a
Passenger Van . It is important to check
pressures at least monthly and before a long
trip. The correct pressures are posted on a label
on the driver’s door frame.
Tire pressure will fluctuate depending on the
current ambient temperature and the
temperature of the tire.
Diesel Engines are
equipped with a Diesel
particulate filter which
automatically
regenerates. If your
vehicle is used
predominantly for
short distance driving
or extended non-
CHECKING ENGINE OIL LEVEL
FUEL: GASOLINE DEF SYSTEM AND SELECTIVE
CATALYST REDUCTION (SCR)
Your vehicle oil level is checked via the On-
board compu ter in the instrument clust er. Park
vehicle on level ground. Select in Instrument
clust er “service menu > oil level check” Add oil
only when indicated. Must be MB
specification. ( Owners Manual pg. 2 66, 267)
Only use Fuel with a minimum Octane rating of 87.
Only gasoline up to 10% ethanol is approved E10.
Higher quality premium grade Fuels can always be
used. (Owners Manual pg.326)
UNDER HOOD
Your new Sprinter
utilizes the latest in
Diesel Exhaust Fluid
(DEF) technology, also
known as Selective
Catalyst Reduction
(SCR). This fluid is
injected into the
exhaust stream ahead
of the SCR Converter,
6 Cylinder Diesel Engine
4 Cylinder Gasoline Engine Approved Engine Oils
Turning Off Main Battery Switch
Follow instruction s in Owners Manual pg. 115. If
vehicle is being stored for long periods remove Fuse
32 in Driver's Seat Base Fuse Block after switching
Main Battery off.
* All ins trument cluster images shown on Color matrix all screens are available on White and Black matrix instrument clusters *
Driver's Seat Base Fuse Block
FUEL: DIESEL
DEF SYSTEM AND SELECTIVE
CATALYST REDUCTION (SCR)
Your new Sprinter
utilizes the latest in
Diesel Exhaust Fluid
(DEF) technology, also
known as Selective
Catalyst Reduction
(SCR). This fluid is
injected into the
exhaust stream ahead
of the SCR Converter,
reducing NOx
emissions and converting almost all of the
Hydrocarbon and Nitrous Oxide emissions into
harmless water vapor and Nitrogen. Should the
DEF level drop down, advanced warnings will be
displayed in the instrument cluster. Please
remember DEF is not to be added to the coolant,
the fuel tank, or the engine oil. Ensure you are
filling at the correct location, avoiding inadvertent
vehicle damage.
DEF and Mileage range will be displayed in
Instrument cluster under the Service Menu. Levels
below the reserve mark will activate refill reminder
messages.
Note: Avoid overfilling the DEF tank.
When adding DEF after reaching the reserve level
do not add more than 12 liters of DEF or approx. 3
gallons, to avoid overfilling of DEF tank.
DEF level may not displayed if the DEF is frozen,
wait 20 minutes for the Heaters to warm the fluid
before reading.
FOR HELP IN MANAGING REFILLS, WE’VE
INCLUDED A REMINDER DEF STICKER IN THIS
GUIDE TO PLACE ON YOUR SUN VISOR.
FUEL: GASOLINE
FUEL: D IESEL
Your New Sprinter Requires
Ultra- Low S ulfur Diesel Fuel. All
stations pumping diesel fuel in the
vicinity of an interstate must offer
this fuel. This fuel is clear to
yellowish in color.
JUMP- STARTING
Push the red shroud back and twist to expose the
connector. This is the place to attach the positive
jumper cable. The negat ive connection is on the
driver’s side fender under the hood and looks like
a brass post. If your vehicle is equipped with a
battery under the hood, this is an auxiliary battery.
D O NOT ATTEMPT TO JUMP-START THE UNDER
HOOD BATTERY! This could be dangerous,
allowing for potential explosion of the battery.
Use fuels with Bio-Diesel content of 5%
maximum whenever possible. (Owners
Manu al pg. 328)
NOTE: If gasoline is accidentally added to the
fuel tank, t his can cause catastrophic failures if
vehicle is operated (not covered under
Warranty).

If the problem is noticed immediately and only a
small amount of gasoline has been added, it is
possible to prevent severe damage by
immediately draining and flushing the fuel
system.
If this icon is displayed, it indicates
water in the fuel. Drain the fuel filter
with water separator immediately.
Otherwise, the engine may be damaged.
Refer to the Owner’s Manual or contact Roadside
Assistance at 877-762-8267 for help.
DIE S EL P A RTIC U LA TE FI LT ER (D PF)
KEYLESS START
Your new Sprinter is equipped with
Keyless Start.
•Press once to turn on accessory power (without
brake applied)
operational times, monitor the DPF filter load in the
instrument cluster (service menu>diesel particular fill
level) before reaching 100% drive on the freeway or
county drive for 20 minutes. This will facilitate the
regeneration of the diesel particulate filter.
(Owners Manual pg. 115).
YOU ASKED. WE ANSWERED.
We took your most frequently asked questions about your Sprinter Van and put the
experts to work. The result? This handy quick guide full of answers.
Use it as your go-to tool for questions on everything from doors and lights to what’s going
on under the hood. For further information not listed here, refer to your Owner’s Manual.
DIRECT SELECT
You use the DIRECT SELECT lever to switch the
transmission position. The current
transmission position appears in the
multifunction display.
MANUALLY OPERATING THE
ELECTRIC SLIDING DOOR
If there is a dead battery or a malfunction the
door can be disconnected for manual operation
Turn release knob to manual th en unlock door
and open.
Open the hood by pulling on the hood release
handle located by the driver’s left foot kick panel.
There is a secondary safety catch that must be
released by sliding your hand under the hood
slightly to the left of the center to release the
secondary safety catch. Lift hood and install prop
rod
Your vehicle i s equipped with
a variable oil change interval,
ASSYST Active Service
System. Oil change intervals
may vary from 7,000- 20,000
m iles based on driving style.
The main purpose of the
ASSYST system is to help the
customer achieve a maximum
vehicle powertrain life.
• Engine oil quality
• Average RPM level
• Towing • Number
of cold starts
• Trailer operation
• Idle time
•
Press twice to turn on ignition power (without
brake applied)
• Press once with brake applied to start
engine
The ASSYST system will notify you via the
instrument cluster when a service is required.
Services alternate from A to B. Service intervals
are based on several factors:
reducing NOx emissions and converting almost all of
the Hydrocarbon and Nitrous Oxide emissions into
harmless water vapor and Nitrogen. Should the DEF
level drop down, advanced warnings will be displayed
in the instrument cluster. Please remember DEF is not
to be added to the coolant, the fuel tank, or the
engine oil. Ensure you are filling at the correct
location, avoiding inadvertent vehicle damage.
DEF and Mileage range will be displayed in Instrument
cluster under the Service Menu. Levels below t he
reserve mark will activate refill reminder messages.
Note: Avoid overfilling the DEF tank.
When adding DEF after reaching the reserve level do
not add more than 12 liters of DEF or approx. 3
gallons, to avoid overfilling of DEF tank.
DEF level may not displayed if the DE F is frozen, wait
20 minutes for the Heat ers to warm the fluid before
reading.
FOR HELP IN MANAGING REFILLS, WE’VE
INCLUDED A REMINDER DEF STICKER IN THIS
GUIDE TO PLACE ON YOUR SUN VISOR.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This system will alert you to a substantial tire
pressure variation. Tire pressures are critical on
any commercial vehicle but especially on a
Passenger Van . It is important to check
pressures at least monthly and before a long
trip. The correct pressures are posted on a label
on the driver’s door frame.
Tire pressure will fluctuate depending on the
current ambient temperature and the
temperature of the tire.
Diesel Engines are
equipped with a Diesel
particulate filter which
automatically
regenerates. If your
vehicle is used
predominantly for
short distance driving
or extended non-
CHECKING ENGINE OIL LEVEL
FUEL: GASOLINE DEF SYSTEM AND SELECTIVE
CATALYST REDUCTION (SCR)
Your vehicle oil level is checked via the On-
board compu ter in the instrument clust er. Park
vehicle on level ground. Select in Instrument
clust er “service menu > oil level check” Add oil
only when indicated. Must be MB
specification. ( Owners Manual pg. 2 66, 267)
Only use Fuel with a minimum Octane rating of 87.
Only gasoline up to 10% ethanol is approved E10.
Higher quality premium grade Fuels can always be
used. (Owners Manual pg.326)
UNDER HOOD
Your new Sprinter
utilizes the latest in
Diesel Exhaust Fluid
(DEF) technology, also
known as Selective
Catalyst Reduction
(SCR). This fluid is
injected into the
exhaust stream ahead
of the SCR Converter,
6 Cylinder Diesel Engine
4 Cylinder Gasoline Engine Approved Engine Oils
Turning Off Main Battery Switch
Follow instruction s in Owners Manual pg. 115. If
vehicle is being stored for long periods remove Fuse
32 in Driver's Seat Base Fuse Block after switching
Main Battery off.
* All ins trument cluster images shown on Color matrix all screens are available on White and Black matrix instrument clusters *
Driver's Seat Base Fuse Block
FUEL: D IESEL
Your New Sprinter Requires
Ultra- Low S ulfur Diesel Fuel. All
stations pumping diesel fuel in the
vicinity of an interstate must offer
this fuel. This fuel is clear to
yellowish in color.
JUMP- STARTING
Push the red shroud back and twist to expose the
connector. This is the place to attach the positive
jumper cable. The negat ive connection is on the
driver’s side fender under the hood and looks like
a brass post. If your vehicle is equipped with a
battery under the hood, this is an auxiliary battery.
D O NOT ATTEMPT TO JUMP-START THE UNDER
HOOD BATTERY! This could be dangerous,
allowing for potential explosion of the battery.
Use fuels with Bio-Diesel content of 5%
maximum whenever possible. (Owners
Manu al pg. 328)
NOTE: If gasoline is accidentally added to the
fuel tank, t his can cause catastrophic failures if
vehicle is operated (not covered under
Warranty).

If the problem is noticed immediately and only a
small amount of gasoline has been added, it is
possible to prevent severe damage by
immediately draining and flushing the fuel
system.
If this icon is displayed, it indicates
water in the fuel. Drain the fuel filter
with water separator immediately.
Otherwise, the engine may be damaged.
Refer to the Owner’s Manual or contact Roadside
Assistance at 877-762-8267 for help.
DIE S EL P A RTIC U LA TE FI LT ER (D PF)
KEYLESS START
Your new Sprinter is equipped with
Keyless Start.
•Press once to turn on accessory power (without
brake applied)
operational times, monitor the DPF filter load in the
instrument cluster (service menu>diesel particular fill
level) before reaching 100% drive on the freeway or
county drive for 20 minutes. This will facilitate the
regeneration of the diesel particulate filter.
(Owners Manual pg. 115).
YOU ASKED. WE ANSWERED.
We took your most frequently asked questions about your Sprinter Van and put the
experts to work. The result? This handy quick guide full of answers.
Use it as your go-to tool for questions on everything from doors and lights to what’s going
on under the hood. For further information not listed here, refer to your Owner’s Manual.
DIRECT SELECT
You use the DIRECT SELECT lever to switch the
transmission position. The current
transmission position appears in the
multifunction display.
MANUALLY OPERATING THE
ELECTRIC SLIDING DOOR
If there is a dead battery or a malfunction the
door can be disconnected for manual operation
Turn release knob to manual th en unlock door
and open.
Open the hood by pulling on the hood release
handle located by the driver’s left foot kick panel.
There is a secondary safety catch that must be
released by sliding your hand under the hood
slightly to the left of the center to release the
secondary safety catch. Lift hood and install prop
rod
Your vehicle i s equipped with
a variable oil change interval,
ASSYST Active Service
System. Oil change intervals
may vary from 7,000- 20,000
m iles based on driving style.
The main purpose of the
ASSYST system is to help the
customer achieve a maximum
vehicle powertrain life.
• Engine oil quality
• Average RPM level
• Towing • Number
of cold starts
• Trailer operation
• Idle time
•
Press twice to turn on ignition power (without
brake applied)
• Press once with brake applied to start
engine
The ASSYST system will notify you via the
instrument cluster when a service is required.
Services alternate from A to B. Service intervals
are based on several factors:
reducing NOx emissions and converting almost all of
the Hydrocarbon and Nitrous Oxide emissions into
harmless water vapor and Nitrogen. Should the DEF
level drop down, advanced warnings will be displayed
in the instrument cluster. Please remember DEF is not
to be added to the coolant, the fuel tank, or the
engine oil. Ensure you are filling at the correct
location, avoiding inadvertent vehicle damage.
DEF and Mileage range will be displayed in Instrument
cluster under the Service Menu. Levels below t he
reserve mark will activate refill reminder messages.
Note: Avoid overfilling the DEF tank.
When adding DEF after reaching the reserve level do
not add more than 12 liters of DEF or approx. 3
gallons, to avoid overfilling of DEF tank.
DEF level may not displayed if the DE F is frozen, wait
20 minutes for the Heat ers to warm the fluid before
reading.
FOR HELP IN MANAGING REFILLS, WE’VE
INCLUDED A REMINDER DEF STICKER IN THIS
GUIDE TO PLACE ON YOUR SUN VISOR.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This system will alert you to a substantial tire
pressure variation. Tire pressures are critical on
any commercial vehicle but especially on
a
Passenger Van . It is important to check
pressures at least monthly and before a long
trip. The correct pressures are posted on a label
on the driver’s door frame.
Tire pressure will fluctuate depending on the
current ambient temperature and the
temperature of the tire.
Diesel Engines are
equipped with a Diesel
particulate filter which
automatically
regenerates. If your
vehicle is used
predominantly for
short distance driving
or extended non-
CHECKING ENGINE OIL LEVEL
FUEL: GASOLINE DEF SYSTEM AND SELECTIVE
CATALYST REDUCTION (SCR)
Your vehicle oil level is checked via the On-
board compu ter in the instrument clust er. Park
vehicle on level ground. Select in Instrument
clust er “service menu > oil level check” Add oil
only when indicated. Must be MB
specification. ( Owners Manual pg. 2 66, 267)
Only use Fuel with a minimum Octane rating of 87.
Only gasoline up to 10% ethanol is approved E10.
Higher quality premium grade Fuels can always be
used. (Owners Manual pg.326)
UNDER HOOD
Your new Sprinter
utilizes the latest in
Diesel Exhaust Fluid
(DEF) technology, also
known as Selective
Catalyst Reduction
(SCR). This fluid is
injected into the
exhaust stream ahead
of the SCR Converter,
6 Cylinder Diesel Engine
4 Cylinder Gasoline Engine Approved Engine Oils
Turning Off Main Battery Switch
Follow instruction s in Owners Manual pg. 115. If
vehicle is being stored for long periods remove Fuse
32 in Driver's Seat Base Fuse Block after switching
Main Battery off.
* All ins trument cluster images shown on Color matrix all screens are available on White and Black matrix instrument clusters *
Driver's Seat Base Fuse Block
FUEL: D IESEL
Your New Sprinter Requires
Ultra- Low S ulfur Diesel Fuel. All
stations pumping diesel fuel in the
vicinity of an interstate must offer
this fuel. This fuel is clear to
yellowish in color.
JUMP- STARTING
Push the red shroud back and twist to expose the
connector. This is the place to attach the positive
jumper cable. The negat ive connection is on the
driver’s side fender under the hood and looks like
a brass post. If your vehicle is equipped with a
battery under the hood, this is an auxiliary battery.
D O NOT ATTEMPT TO JUMP-START THE UNDER
HOOD BATTERY! This could be dangerous,
allowing for potential explosion of the battery.
Use fuels with Bio-Diesel content of 5%
maximum whenever possible. (Owners
Manu al pg. 328)
NOTE: If gasoline is accidentally added to the
fuel tank, t his can cause catastrophic failures if
vehicle is operated (not covered under
Warranty).

If the problem is noticed immediately and only a
small amount of gasoline has been added, it is
possible to prevent severe damage by
immediately draining and flushing the fuel
system.
If this icon is displayed, it indicates
water in the fuel. Drain the fuel filter
with water separator immediately.
Otherwise, the engine may be damaged.
Refer to the Owner’s Manual or contact Roadside
Assistance at 877-762-8267 for help.
DIE S EL P A RTIC U LA TE FI LT ER (D PF)
KEYLESS START
Your new Sprinter is equipped with
Keyless Start.
•Press once to turn on accessory power (without
brake applied)
operational times, monitor the DPF filter load in the
instrument cluster (service menu>diesel particular fill
level) before reaching 100% drive on the freeway or
county drive for 20 minutes. This will facilitate the
regeneration of the diesel particulate filter.
(Owners Manual pg. 115).
YOU ASKED. WE ANSWERED.
We took your most frequently asked questions about your Sprinter Van and put the
experts to work. The result? This handy quick guide full of answers.
Use it as your go-to tool for questions on everything from doors and lights to what’s going
on under the hood. For further information not listed here, refer to your Owner’s Manual.
DIRECT SELECT
You use the DIRECT SELECT lever to switch the
transmission position. The current
transmission position appears in the
multifunction display.
MANUALLY OPERATING THE
ELECTRIC SLIDING DOOR
If there is a dead battery or a malfunction the
door can be disconnected for manual operation
Turn release knob to manual th en unlock door
and open.
Open the hood by pulling on the hood release
handle located by the driver’s left foot kick panel.
There is a secondary safety catch that must be
released by sliding your hand under the hood
slightly to the left of the center to release the
secondary safety catch. Lift hood and install prop
rod
Your vehicle i s equipped with
a variable oil change interval,
ASSYST Active Service
System. Oil change intervals
may vary from 7,000- 20,000
m iles based on driving style.
The main purpose of the
ASSYST system is to help the
customer achieve a maximum
vehicle powertrain life.
• Engine oil quality
• Average RPM level
• Towing • Number
of cold starts
• Trailer operation
• Idle time
•
Press twice to turn on ignition power (without
brake applied)
• Press once with brake applied to start
engine
The ASSYST system will notify you via the
instrument cluster when a service is required.
Services alternate from A to B. Service intervals
are based on several factors:
reducing NOx emissions and converting almost all of
the Hydrocarbon and Nitrous Oxide emissions into
harmless water vapor and Nitrogen. Should the DEF
level drop down, advanced warnings will be displayed
in the instrument cluster. Please remember DEF is not
to be added to the coolant, the fuel tank, or the
engine oil. Ensure you are filling at the correct
location, avoiding inadvertent vehicle damage.
DEF and Mileage range will be displayed in Instrument
cluster under the Service Menu. Levels below t he
reserve mark will activate refill reminder messages.
Note: Avoid overfilling the DEF tank.
When adding DEF after reaching the reserve level do
not add more than 12 liters of DEF or approx. 3
gallons, to avoid overfilling of DEF tank.
DEF level may not displayed if the DE F is frozen, wait
20 minutes for the Heat ers to warm the fluid before
reading.
FOR HELP IN MANAGING REFILLS, WE’VE
INCLUDED A REMINDER DEF STICKER IN THIS
GUIDE TO PLACE ON YOUR SUN VISOR.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This system will alert you to a substantial tire
pressure variation. Tire pressures are critical on
any commercial vehicle but especially on
a
Passenger Van . It is important to check
pressures at least monthly and before a long
trip. The correct pressures are posted on a label
on the driver’s door frame.
Tire pressure will fluctuate depending on the
current ambient temperature and the
temperature of the tire.
Diesel Engines are
equipped with a Diesel
particulate filter which
automatically
regenerates. If your
vehicle is used
predominantly for
short distance driving
or extended non-
CHECKING ENGINE OIL LEVEL
FUEL: GASOLINE DEF SYSTEM AND SELECTIVE
CATALYST REDUCTION (SCR)
Your vehicle oil level is checked via the On-
board compu ter in the instrument clust er. Park
vehicle on level ground. Select in Instrument
clust er “service menu > oil level check” Add oil
only when indicated. Must be MB
specification. ( Owners Manual pg. 2 66, 267)
Only use Fuel with a minimum Octane rating of 87.
Only gasoline up to 10% ethanol is approved E10.
Higher quality premium grade Fuels can always be
used. (Owners Manual pg.326)
UNDER HOOD
Your new Sprinter
utilizes the latest in
Diesel Exhaust Fluid
(DEF) technology, also
known as Selective
Catalyst Reduction
(SCR). This fluid is
injected into the
exhaust stream ahead
of the SCR Converter,
6 Cylinder Diesel Engine
4 Cylinder Gasoline Engine
Approved Engine Oils
Turning Off Main Battery Switch
Follow instruction s in Owners Manual pg. 115. If
vehicle is being stored for long periods remove Fuse
32 in Driver's Seat Base Fuse Block after switching
Main Battery off.
* All ins trument cluster images shown on Color matrix all screens are available on White and Black matrix instrument clusters *
Driver's Seat Base Fuse Block
Diesel Engines are
equipped with a
Diesel particulate filter
which automatically
regenerates. If your
vehicle is used
predominantly for
short distance driving
or extended non-
operational times,
monitor the DPF filter load in the instrument cluster
(service menu>diesel particular fill level) before
reaching 100% drive on the freeway or county drive
for 20 minutes. This will facilitate the regeneration
of the diesel particulate filter.
(Owners Manual pg. 115).
Your new Sprinter is equipped
with Keyless Start.
• Press once to turn on accessory
power (without brake applied)
• Press twice to turn on ignition power (without
brake applied)
• Press once with brake applied to start engine
Push the red shroud back and twist to expose the
connector. This is the place to attach the positive
jumper cable. The negative connection is on the
driver’s side fender under the hood and looks like a
brass post. If your vehicle is equipped with a
battery under the hood, this is an auxiliary battery.
DO NOT ATTEMPT TO JUMP-START THE UNDER
HOOD BATTERY! This could be dangerous, allowing
for potential explosion of the battery. Your vehicle oil level is checked via the On- board
computer in the instrument cluster. Park vehicle on
level ground. Select in Instrument cluster “service
menu > oil level check” Add oil only when indicated.
Must be MB specification.
(Owners Manual pg. 266, 267) Open the hood by pulling on the hood release
handle located by the driver’s left foot kick panel.
There is a secondary safety catch that must be
released by sliding your hand under the hood
slightly to the left of the center to release the
secondary safety catch. Lift hood and install
prop rod This system will alert you to a substantial tire
pressure variation. Tire pressures are critical on
any commercial vehicle but especially on a
Passenger Van. It is important to check
pressures at least monthly andbefore a long trip.
The correct pressures are posted on a label on
the driver’s door frame.
Tire pressure will fluctuate depending on the
current ambient temperature and the
temperature of the tire.
You use the DIRECT SELECT lever to switch the
transmission position. The current transmission
position appears in the multifunction display.
If there is a dead battery or a malfunction the
door can be disconnected for manual operation
Turn release knob to manual then unlock door
and open.
Follow instructions in Owners Manual pg. 115. If
vehicle is being stored for long periods remove
Fuse 32 in Driver’s Seat Base Fuse Block after
switching Main Battery off.
DIESEL PARTICULATE FILTER (DPF) CHECKING ENGINE OIL LEVEL UNDER HOODTIRE PRESSRUE MONITORING
SYSTEM (TPMS)
DIRECT SELECT
MANUALLY OPERATING THE
ELECTRIC SLIDING DOOR
6-CYLINDER DIESEL ENGINE
4-CYLINDER GASOLINE ENGINE
KEYLESS START
JUMP STARTING
TURNING OFF MAIN BATTERY
FUEL: D IESEL
Your New Sprinter Requires
Ultra- Low S ulfur Diesel Fuel. All
stations pumping diesel fuel in the
vicinity of an interstate must offer
this fuel. This fuel is clear to
yellowish in color.
JUMP- STARTING
Push the red shroud back and twist to expose the
connector. This is the place to attach the positive
jumper cable. The negat ive connection is on the
driver’s side fender under the hood and looks like
a brass post. If your vehicle is equipped with a
battery under the hood, this is an auxiliary battery.
D O NOT ATTEMPT TO JUMP-START THE UNDER
HOOD BATTERY! This could be dangerous,
allowing for potential explosion of the battery.
Use fuels with Bio-Diesel content of 5%
maximum whenever possible. (Owners
Manu al pg. 328)
NOTE: If gasoline is accidentally added to the
fuel tank, t his can cause catastrophic failures if
vehicle is operated (not covered under
Warranty).

If the problem is noticed immediately and only a
small amount of gasoline has been added, it is
possible to prevent severe damage by
immediately draining and flushing the fuel
system.
If this icon is displayed, it indicates
water in the fuel. Drain the fuel filter
with water separator immediately.
Otherwise, the engine may be damaged.
Refer to the Owner’s Manual or contact Roadside
Assistance at 877-762-8267 for help.
DIE S EL P A RTIC U LA TE FI LT ER (D PF)
KEYLESS START
Your new Sprinter is equipped with
Keyless Start.
•Press once to turn on accessory power (without
brake applied)
operational times, monitor the DPF filter load in the
instrument cluster (service menu>diesel particular fill
level) before reaching 100% drive on the freeway or
county drive for 20 minutes. This will facilitate the
regeneration of the diesel particulate filter.
(Owners Manual pg. 115).
YOU ASKED. WE ANSWERED.
We took your most frequently asked questions about your Sprinter Van and put the
experts to work. The result? This handy quick guide full of answers.
Use it as your go-to tool for questions on everything from doors and lights to what’s going
on under the hood. For further information not listed here, refer to your Owner’s Manual.
DIRECT SELECT
You use the DIRECT SELECT lever to switch the
transmission position. The current
transmission position appears in the
multifunction display.
MANUALLY OPERATING THE
ELECTRIC SLIDING DOOR
If there is a dead battery or a malfunction the
door can be disconnected for manual operation
Turn release knob to manual th en unlock door
and open.
Open the hood by pulling on the hood release
handle located by the driver’s left foot kick panel.
There is a secondary safety catch that must be
released by sliding your hand under the hood
slightly to the left of the center to release the
secondary safety catch. Lift hood and install prop
rod
Your vehicle i s equipped with
a variable oil change interval,
ASSYST Active Service
System. Oil change intervals
may vary from 7,000- 20,000
m iles based on driving style.
The main purpose of the
ASSYST system is to help the
customer achieve a maximum
vehicle powertrain life.
• Engine oil quality
• Average RPM level
• Towing • Number
of cold starts
• Trailer operation
• Idle time
•
Press twice to turn on ignition power (without
brake applied)
• Press once with brake applied to start
engine
The ASSYST system will notify you via the
instrument cluster when a service is required.
Services alternate from A to B. Service intervals
are based on several factors:
reducing NOx emissions and converting almost all of
the Hydrocarbon and Nitrous Oxide emissions into
harmless water vapor and Nitrogen. Should the DEF
level drop down, advanced warnings will be displayed
in the instrument cluster. Please remember DEF is not
to be added to the coolant, the fuel tank, or the
engine oil. Ensure you are filling at the correct
location, avoiding inadvertent vehicle damage.
DEF and Mileage range will be displayed in Instrument
cluster under the Service Menu. Levels below t he
reserve mark will activate refill reminder messages.
Note: Avoid overfilling the DEF tank.
When adding DEF after reaching the reserve level do
not add more than 12 liters of DEF or approx. 3
gallons, to avoid overfilling of DEF tank.
DEF level may not displayed if the DE F is frozen, wait
20 minutes for the Heat ers to warm the fluid before
reading.
FOR HELP IN MANAGING REFILLS, WE’VE
INCLUDED A REMINDER DEF STICKER IN THIS
GUIDE TO PLACE ON YOUR SUN VISOR.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This system will alert you to a substantial tire
pressure variation. Tire pressures are critical on
any commercial vehicle but especially on a
Passenger Van . It is important to check
pressures at least monthly and before a long
trip. The correct pressures are posted on a label
on the driver’s door frame.
Tire pressure will fluctuate depending on the
current ambient temperature and the
temperature of the tire.
Diesel Engines are
equipped with a Diesel
particulate filter which
automatically
regenerates. If your
vehicle is used
predominantly for
short distance driving
or extended non-
CHECKING ENGINE OIL LEVEL
FUEL: GASOLINE DEF SYSTEM AND SELECTIVE
CATALYST REDUCTION (SCR)
Your vehicle oil level is checked via the On-
board compu ter in the instrument clust er. Park
vehicle on level ground. Select in Instrument
clust er “service menu > oil level check” Add oil
only when indicated. Must be MB
specification. ( Owners Manual pg. 2 66, 267)
Only use Fuel with a minimum Octane rating of 87.
Only gasoline up to 10% ethanol is approved E10.
Higher quality premium grade Fuels can always be
used. (Owners Manual pg.326)
UNDER HOOD
Your new Sprinter
utilizes the latest in
Diesel Exhaust Fluid
(DEF) technology, also
known as Selective
Catalyst Reduction
(SCR). This fluid is
injected into the
exhaust stream ahead
of the SCR Converter,
6 Cylinder Diesel Engine
4 Cylinder Gasoline Engine Approved Engine Oils
Turning Off Main Battery Switch
Follow instruction s in Owners Manual pg. 115. If
vehicle is being stored for long periods remove Fuse
32 in Driver's Seat Base Fuse Block after switching
Main Battery off.
* All ins trument cluster images shown on Color matrix all screens are available on White and Black matrix instrument clusters *
Driver's Seat Base Fuse Block
FUEL: D IESEL
Your New Sprinter Requires
Ultra- Low S ulfur Diesel Fuel. All
stations pumping diesel fuel in the
vicinity of an interstate must offer
this fuel. This fuel is clear to
yellowish in color.
JUMP- STARTING
Push the red shroud back and twist to expose the
connector. This is the place to attach the positive
jumper cable. The negat ive connection is on the
driver’s side fender under the hood and looks like
a brass post. If your vehicle is equipped with a
battery under the hood, this is an auxiliary battery.
D O NOT ATTEMPT TO JUMP-START THE UNDER
HOOD BATTERY! This could be dangerous,
allowing for potential explosion of the battery.
Use fuels with Bio-Diesel content of 5%
maximum whenever possible. (Owners
Manu al pg. 328)
NOTE: If gasoline is accidentally added to the
fuel tank, t his can cause catastrophic failures if
vehicle is operated (not covered under
Warranty).

If the problem is noticed immediately and only a
small amount of gasoline has been added, it is
possible to prevent severe damage by
immediately draining and flushing the fuel
system.
If this icon is displayed, it indicates
water in the fuel. Drain the fuel filter
with water separator immediately.
Otherwise, the engine may be damaged.
Refer to the Owner’s Manual or contact Roadside
Assistance at 877-762-8267 for help.
DIE S EL P A RTIC U LA TE FI LT ER (D PF)
KEYLESS START
Your new Sprinter is equipped with
Keyless Start.
•Press once to turn on accessory power (without
brake applied)
operational times, monitor the DPF filter load in the
instrument cluster (service menu>diesel particular fill
level) before reaching 100% drive on the freeway or
county drive for 20 minutes. This will facilitate the
regeneration of the diesel particulate filter.
(Owners Manual pg. 115).
YOU ASKED. WE ANSWERED.
We took your most frequently asked questions about your Sprinter Van and put the
experts to work. The result? This handy quick guide full of answers.
Use it as your go-to tool for questions on everything from doors and lights to what’s going
on under the hood. For further information not listed here, refer to your Owner’s Manual.
DIRECT SELECT
You use the DIRECT SELECT lever to switch the
transmission position. The current
transmission position appears in the
multifunction display.
MANUALLY OPERATING THE
ELECTRIC SLIDING DOOR
If there is a dead battery or a malfunction the
door can be disconnected for manual operation
Turn release knob to manual th en unlock door
and open.
Open the hood by pulling on the hood release
handle located by the driver’s left foot kick panel.
There is a secondary safety catch that must be
released by sliding your hand under the hood
slightly to the left of the center to release the
secondary safety catch. Lift hood and install prop
rod
Your vehicle i s equipped with
a variable oil change interval,
ASSYST Active Service
System. Oil change intervals
may vary from 7,000- 20,000
m iles based on driving style.
The main purpose of the
ASSYST system is to help the
customer achieve a maximum
vehicle powertrain life.
• Engine oil quality
• Average RPM level
• Towing • Number
of cold starts
• Trailer operation
• Idle time
•
Press twice to turn on ignition power (without
brake applied)
• Press once with brake applied to start
engine
The ASSYST system will notify you via the
instrument cluster when a service is required.
Services alternate from A to B. Service intervals
are based on several factors:
reducing NOx emissions and converting almost all of
the Hydrocarbon and Nitrous Oxide emissions into
harmless water vapor and Nitrogen. Should the DEF
level drop down, advanced warnings will be displayed
in the instrument cluster. Please remember DEF is not
to be added to the coolant, the fuel tank, or the
engine oil. Ensure you are filling at the correct
location, avoiding inadvertent vehicle damage.
DEF and Mileage range will be displayed in Instrument
cluster under the Service Menu. Levels below t he
reserve mark will activate refill reminder messages.
Note: Avoid overfilling the DEF tank.
When adding DEF after reaching the reserve level do
not add more than 12 liters of DEF or approx. 3
gallons, to avoid overfilling of DEF tank.
DEF level may not displayed if the DE F is frozen, wait
20 minutes for the Heat ers to warm the fluid before
reading.
FOR HELP IN MANAGING REFILLS, WE’VE
INCLUDED A REMINDER DEF STICKER IN THIS
GUIDE TO PLACE ON YOUR SUN VISOR.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This system will alert you to a substantial tire
pressure variation. Tire pressures are critical on
any commercial vehicle but especially on
a
Passenger Van . It is important to check
pressures at least monthly and before a long
trip. The correct pressures are posted on a label
on the driver’s door frame.
Tire pressure will fluctuate depending on the
current ambient temperature and the
temperature of the tire.
Diesel Engines are
equipped with a Diesel
particulate filter which
automatically
regenerates. If your
vehicle is used
predominantly for
short distance driving
or extended non-
CHECKING ENGINE OIL LEVEL
FUEL: GASOLINE DEF SYSTEM AND SELECTIVE
CATALYST REDUCTION (SCR)
Your vehicle oil level is checked via the On-
board compu ter in the instrument clust er. Park
vehicle on level ground. Select in Instrument
clust er “service menu > oil level check” Add oil
only when indicated. Must be MB
specification. ( Owners Manual pg. 2 66, 267)
Only use Fuel with a minimum Octane rating of 87.
Only gasoline up to 10% ethanol is approved E10.
Higher quality premium grade Fuels can always be
used. (Owners Manual pg.326)
UNDER HOOD
Your new Sprinter
utilizes the latest in
Diesel Exhaust Fluid
(DEF) technology, also
known as Selective
Catalyst Reduction
(SCR). This fluid is
injected into the
exhaust stream ahead
of the SCR Converter,
6 Cylinder Diesel Engine
4 Cylinder Gasoline Engine Approved Engine Oils
Turning Off Main Battery Swit
