2019 MERCEDES-BENZ SLC Owners Manual

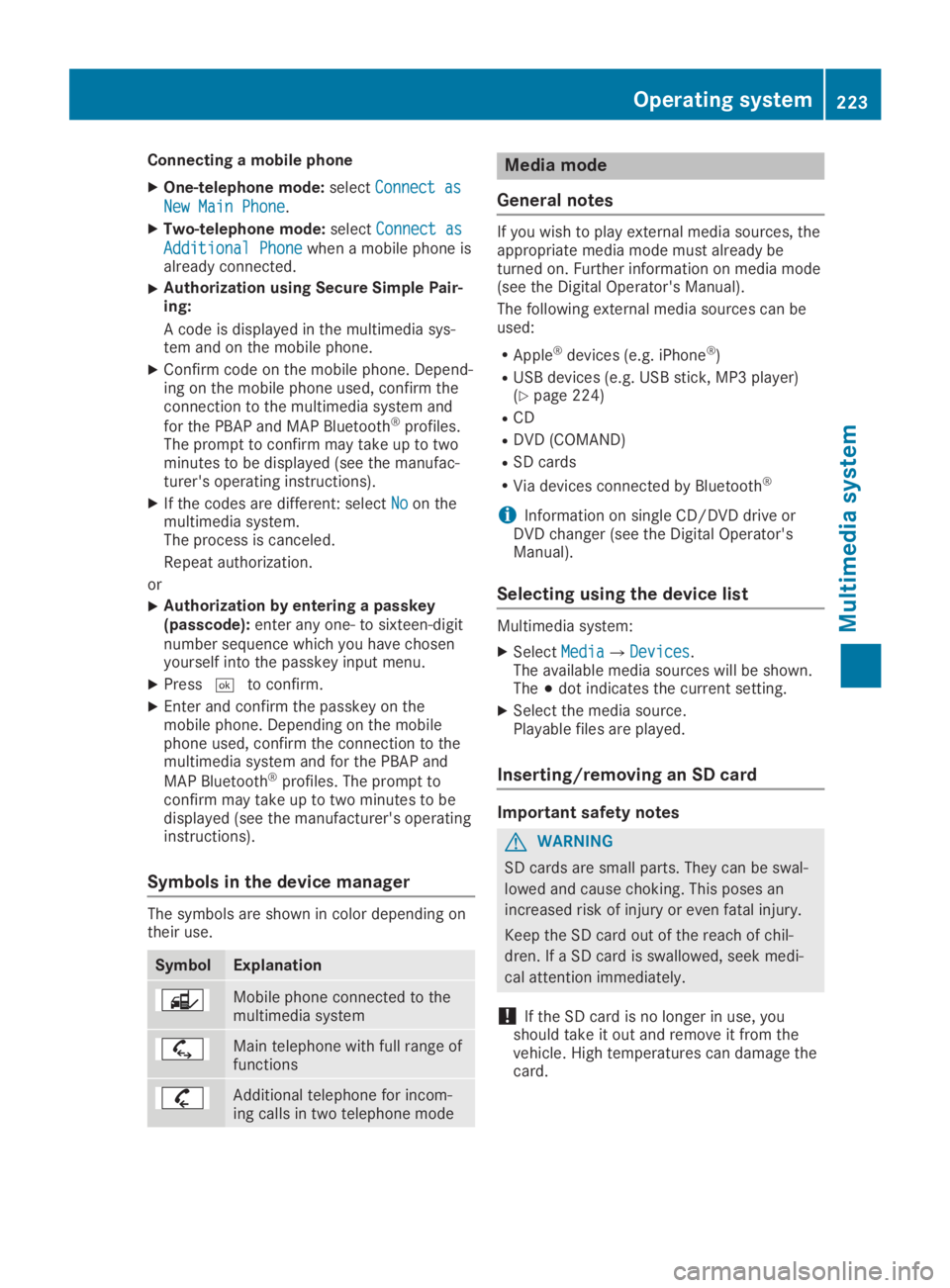

Connecting a mobile phone
XOne-telephone mode:selectConnect asConnect as
New Main PhoneNew Main Phone.
XTwo-telephone mode:selectConnect asConnect as
Additional PhoneAdditional Phonewhen a mobile phone isalready connected.
XAuthorization using Secure Simple Pair-ing:
A code is displayed in the multimedia sys-tem and on the mobile phone.
XConfirm code on the mobile phone. Depend-ing on the mobile phone used, confirm theconnection to the multimedia system and
for the PBAP and MAP Bluetooth®profiles.The prompt to confirm may take up to twominutes to be displayed (see the manufac-turer's operating instructions).
XIf the codes are different: selectNoNoon themultimedia system.The process is canceled.
Repeat authorization.
or
XAuthorization by entering a passkey(passcode):enter any one- to sixteen-digitnumber sequence which you have chosenyourself into the passkey input menu.
XPressTto confirm.
XEnter and confirm the passkey on themobile phone. Depending on the mobilephone used, confirm the connection to themultimedia system and for the PBAP and
MAP Bluetooth®profiles. The prompt toconfirm may take up to two minutes to bedisplayed (see the manufacturer's operatinginstructions).
Symbols in the device manager
The symbols are shown in color depending ontheir use.
SymbolExplanation
Mobile phone connected to themultimedia system
Main telephone with full range offunctions
Additional telephone for incom-ing calls in two telephone mode
Media mode
General notes
If you wish to play external media sources, theappropriate media mode must already beturned on. Further information on media mode(see the Digital Operator's Manual).
The following external media sources can beused:
RApple®devices (e.g. iPhone®)
RUSB devices (e.g. USB stick, MP3 player)(Ypage 224)
RCD
RDVD (COMAND)
RSD cards
RVia devices connected by Bluetooth®
iInformation on single CD/DVD drive orDVD changer (see the Digital Operator'sManual).
Selecting using the device list
Multimedia system:
XSelectMediaMedia{DevicesDevices.The available media sources will be shown.The;dot indicates the current setting.
XSelect the media source.Playable files are played.
Inserting/removing an SD card
Important safety notes
GWARNING
SD cards are small parts. They can be swal-
lowed and cause choking. This poses an
increased risk of injury or even fatal injury.
Keep the SD card out of the reach of chil-
dren. If a SD card is swallowed, seek medi-
cal attention immediately.
!If the SD card is no longer in use, youshould take it out and remove it from thevehicle. High temperatures can damage thecard.
Operating system223
Multimedia system
Z

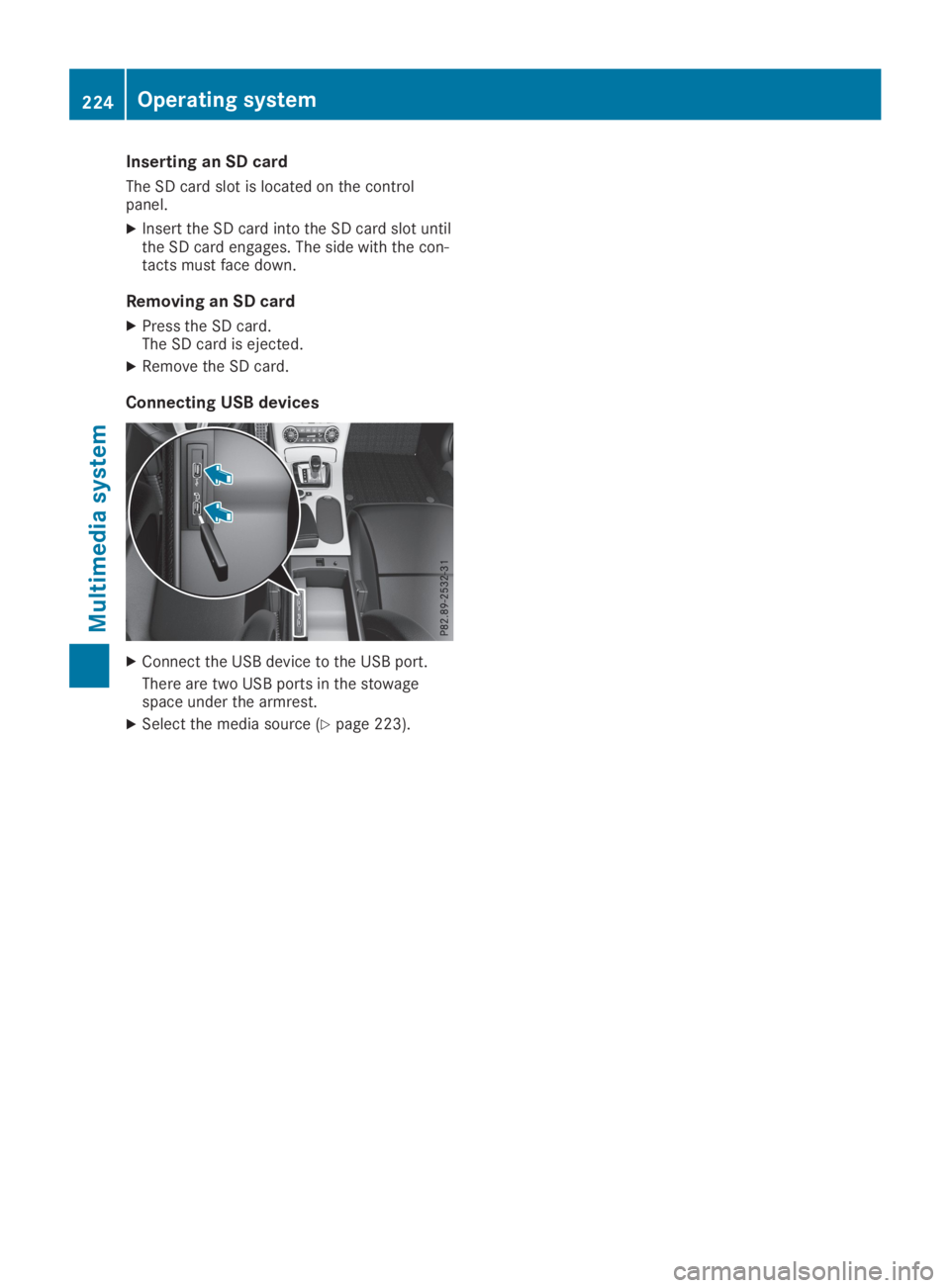

Inserting an SD card
The SD card slot is located on the controlpanel.
XInsert the SD card into the SD card slot untilthe SD card engages. The side with the con-tacts must face down.
Removing an SD card
XPress the SD card.The SD card is ejected.
XRemove the SD card.
Connecting USB devices
XConnect the USB device to the USB port.
There are two USB ports in the stowagespace under the armrest.
XSelect the media source (Ypage 223).
224Operating system
Multimedia system

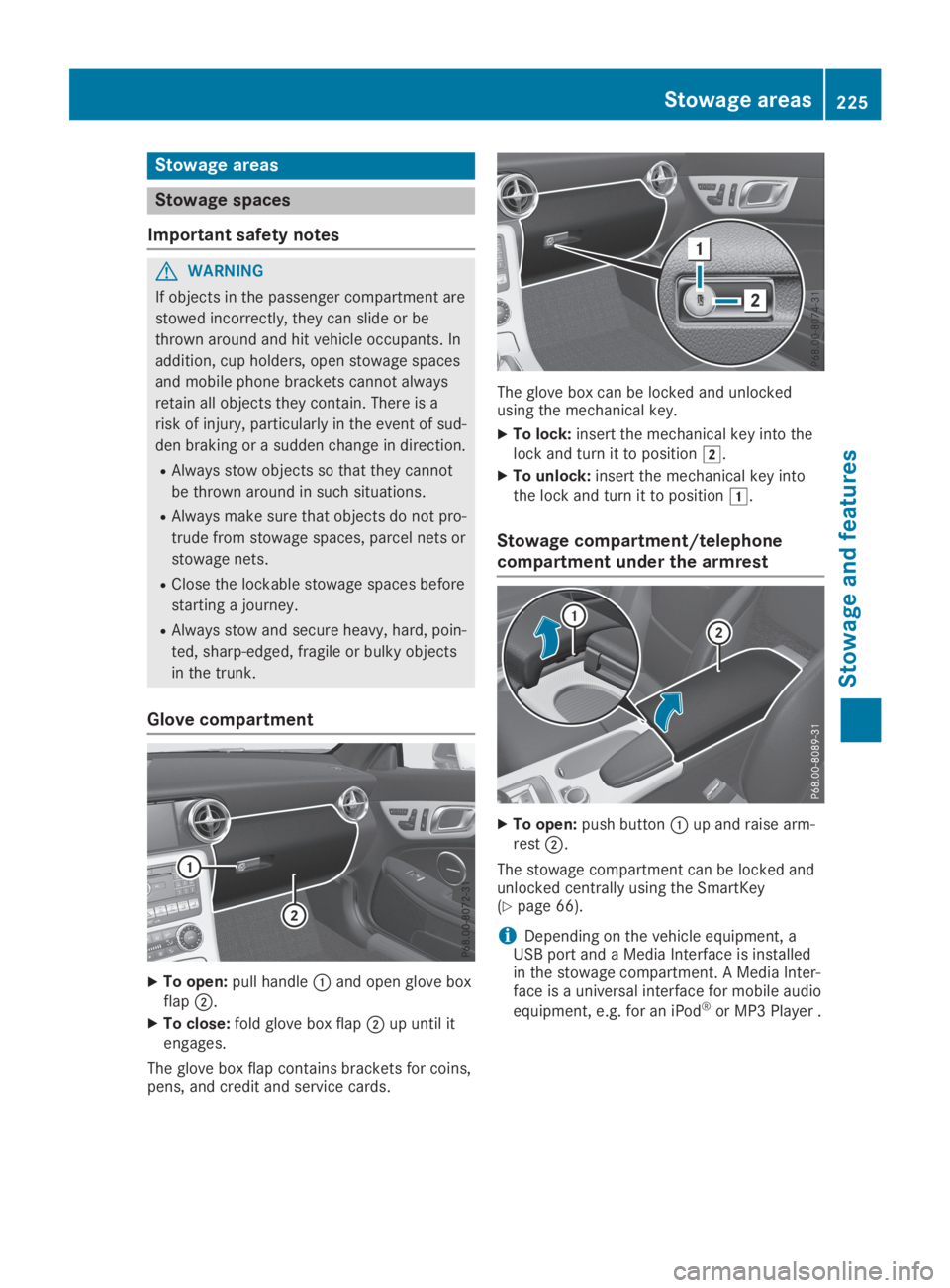

Stowage areas
Stowage spaces
Important safety notes
GWARNING
If objects in the passenger compartment are
stowed incorrectly, they can slide or be
thrown around and hit vehicle occupants. In
addition, cup holders, open stowage spaces
and mobile phone brackets cannot always
retain all objects they contain. There is a
risk of injury, particularly in the event of sud-
den braking or a sudden change in direction.
RAlways stow objects so that they cannot
be thrown around in such situations.
RAlways make sure that objects do not pro-
trude from stowage spaces, parcel nets or
stowage nets.
RClose the lockable stowage spaces before
starting a journey.
RAlways stow and secure heavy, hard, poin-
ted, sharp-edged, fragile or bulky objects
in the trunk.
Glove compartment
XTo open:pull handleCand open glove boxflapD.
XTo close:fold glove box flapDup until itengages.
The glove box flap contains brackets for coins,pens, and credit and service cards.
The glove box can be locked and unlockedusing the mechanical key.
XTo lock:insert the mechanical key into thelock and turn it to positionH.
XTo unlock:insert the mechanical key intothe lock and turn it to positionG.
Stowage compartment/telephone
compartment under the armrest
XTo open:push buttonCup and raise arm-restD.
The stowage compartment can be locked andunlocked centrally using the SmartKey(Ypage 66).
iDepending on the vehicle equipment, aUSB port and a Media Interface is installedin the stowage compartment. A Media Inter-face is a universal interface for mobile audio
equipment, e.g. for an iPod®or MP3 Player .
Stowage areas225
Stowage and features
Z

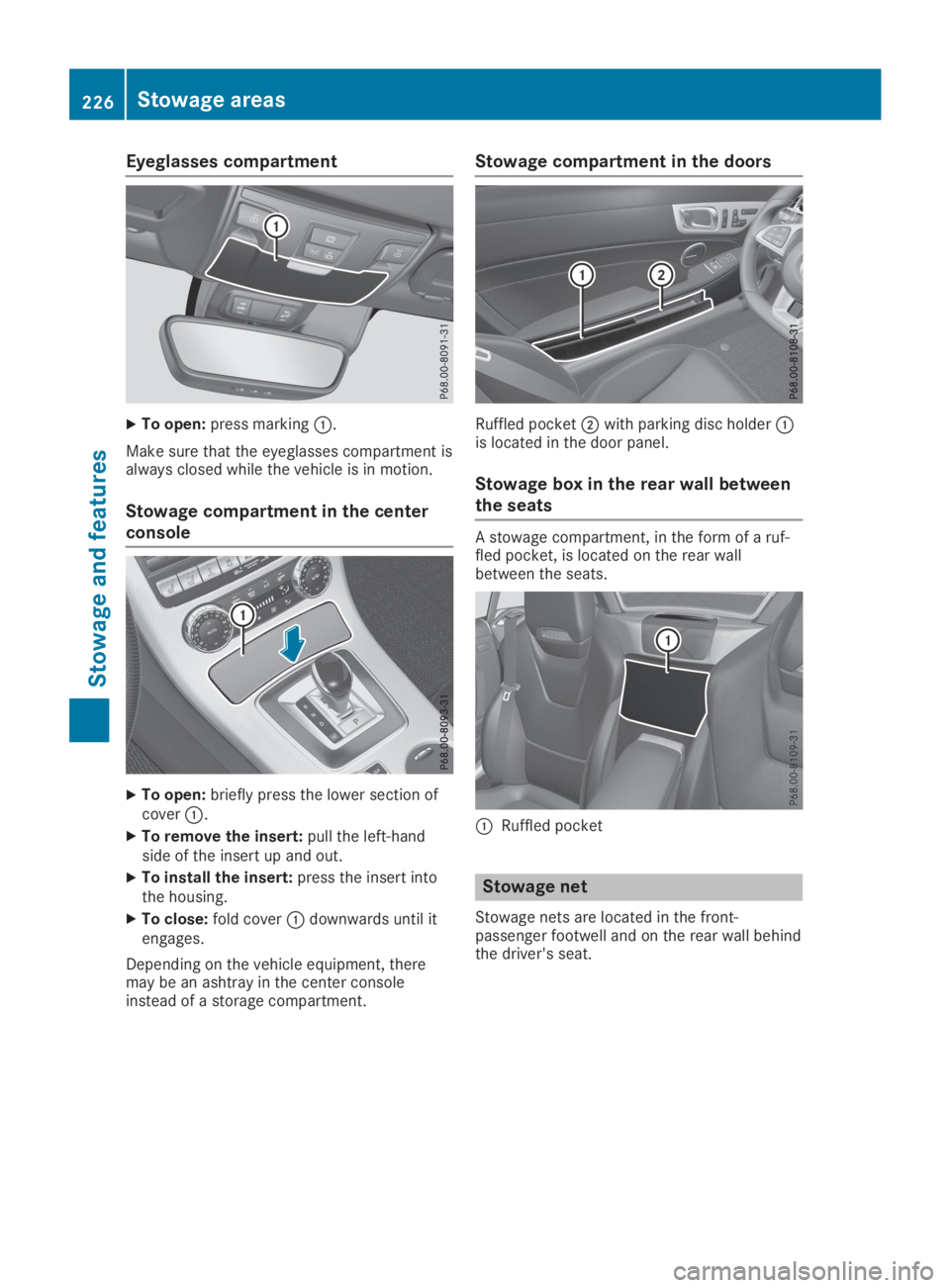

Eyeglasses compartment
XTo open:press markingC.
Make sure that the eyeglasses compartment isalways closed while the vehicle is in motion.
Stowage compartment in the center
console
XTo open:briefly press the lower section ofcoverC.
XTo remove the insert:pull the left-handside of the insert up and out.
XTo install the insert:press the insert intothe housing.
XTo close:fold coverCdownwards until itengages.
Depending on the vehicle equipment, theremay be an ashtray in the center consoleinstead of a storage compartment.
Stowage compartment in the doors
Ruffled pocketDwith parking disc holderCis located in the door panel.
Stowage box in the rear wall between
the seats
A stowage compartment, in the form of a ruf-fled pocket, is located on the rear wallbetween the seats.
CRuffled pocket
Stowage net
Stowage nets are located in the front-passenger footwell and on the rear wall behindthe driver's seat.
226Stowage areas
Stowage and features

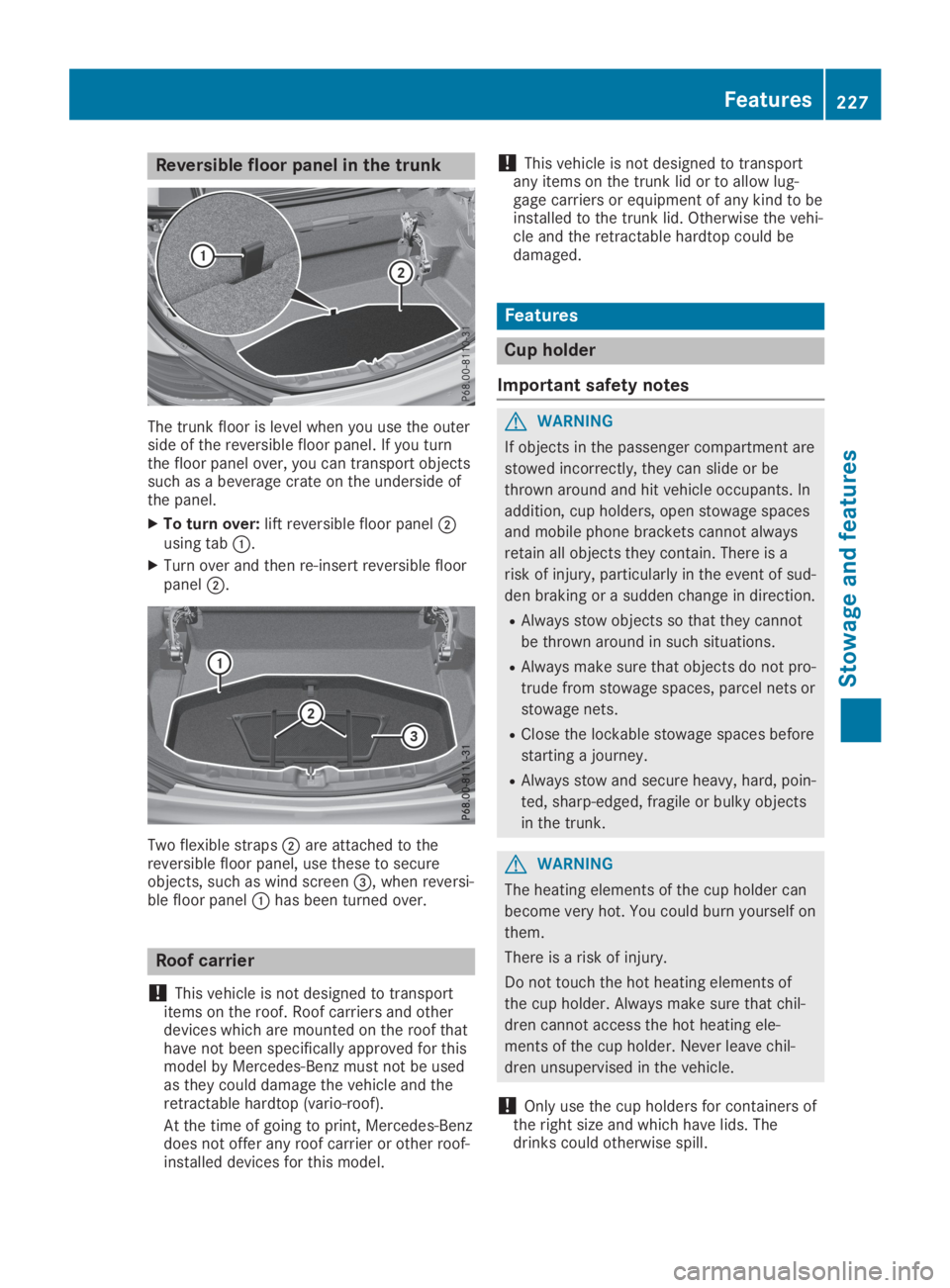

Reversible floor panel in the trunk
The trunk floor is level when you use the outerside of the reversible floor panel. If you turnthe floor panel over, you can transport objectssuch as a beverage crate on the underside ofthe panel.
XTo turn over:lift reversible floor panelDusing tabC.
XTurn over and then re-insert reversible floorpanelD.
Two flexible strapsDare attached to thereversible floor panel, use these to secureobjects, such as wind screen

!Do not expose drinks bottles in the cupholder in the center console to continuous,strong and direct sunlight. The passengercompartment in the area of the center con-sole can otherwise be damaged by the con-centrated and reflected sunlight.

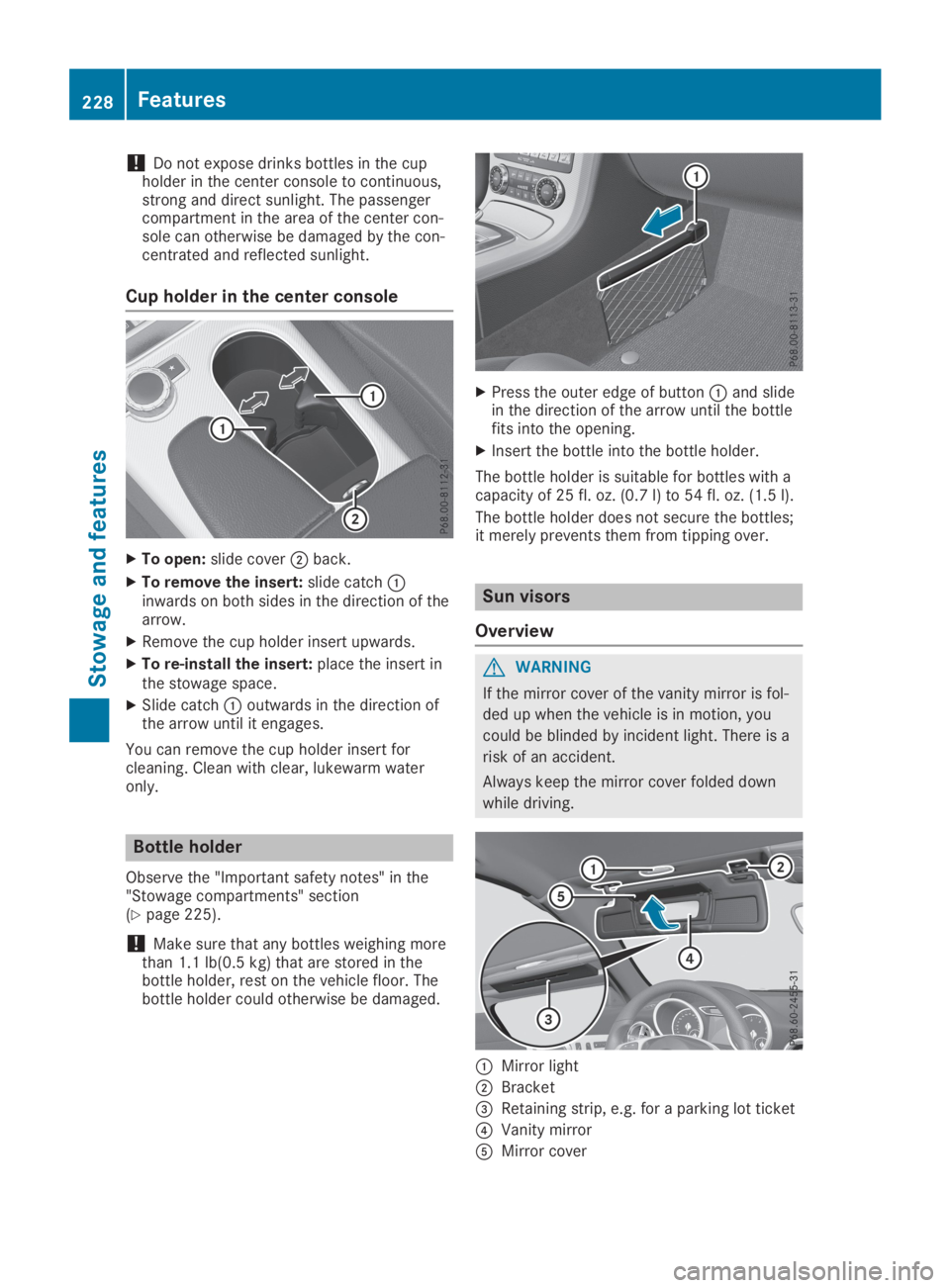

Cup holder in the center console
XTo open:slide coverDback.
XTo remove the insert:slide catchCinwards on both sides in the direction of thearrow.
XRemove the cup holder insert upwards.
XTo re-install the insert:place the insert inthe stowage space.
XSlide catchCoutwards in the direction ofthe arrow until it engages.
You can remove the cup holder insert forcleaning. Clean with clear, lukewarm wateronly.
Bottle holder
Observe the "Important safety notes" in the"Stowage compartments" section(Ypage 225).
!Make sure that any bottles weighing morethan 1.1 lb(0.5 kg) that are stored in thebottle holder, rest on the vehicle floor. Thebottle holder could otherwise be damaged.
XPress the outer edge of buttonCand slidein the direction of the arrow until the bottlefits into the opening.
XInsert the bottle into the bottle holder.
The bottle holder is suitable for bottles with acapacity of 25 fl. oz. (0.7 l) to 54 fl. oz. (1.5 l).
The bottle holder does not secure the bottles;it merely prevents them from tipping over.
Sun visors
Overview
GWARNING
If the mirror cover of the vanity mirror is fol-
ded up when the vehicle is in motion, you
could be blinded by incident light. There is a
risk of an accident.
Always keep the mirror cover folded down
while driving.
CMirror light
DBracket

iWhen driving at high speeds with the sidewindow or roof open:
If you have inserted a car park ticket intoretaining strip

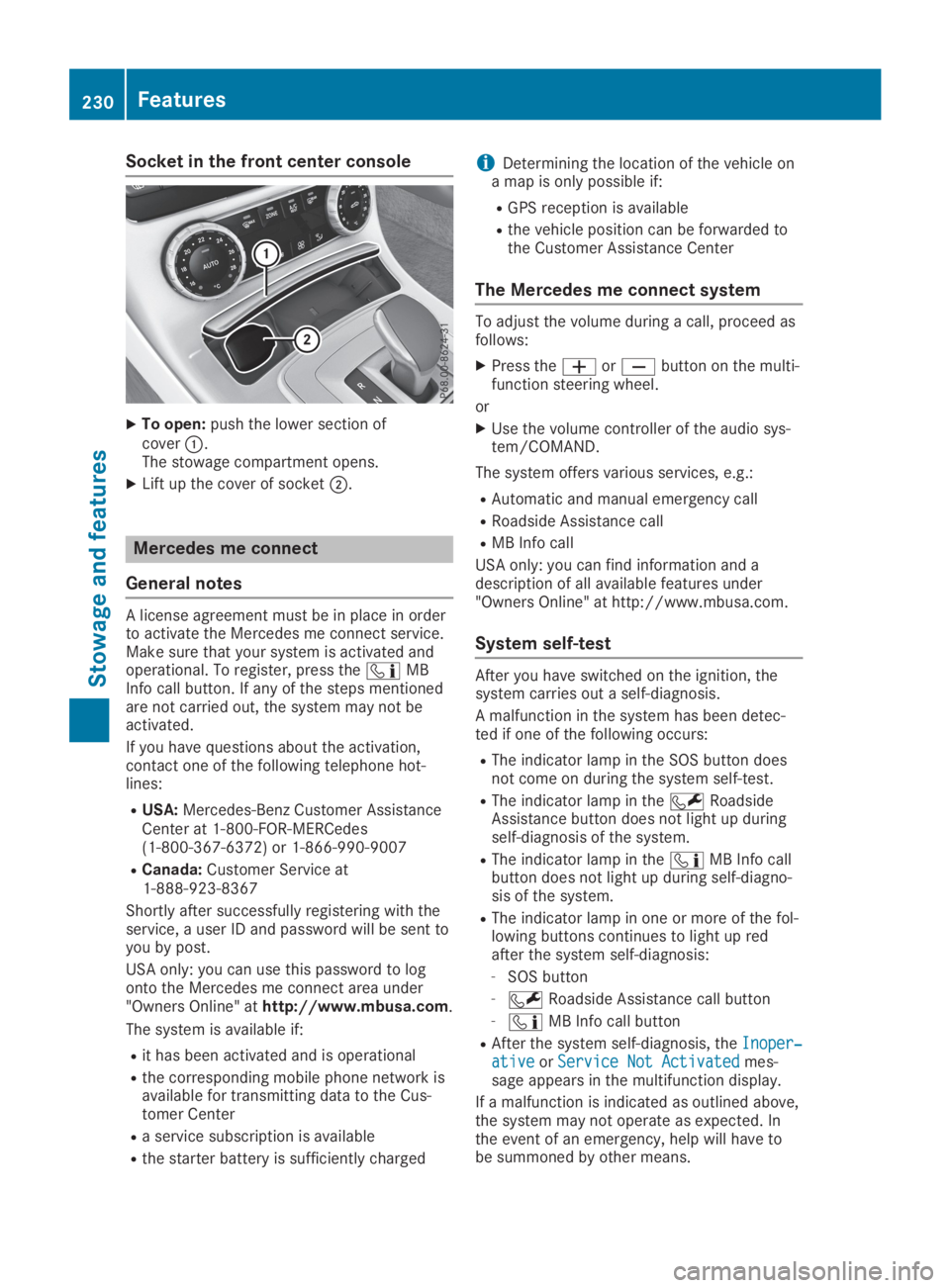

Socket in the front center console
XTo open:push the lower section ofcoverC.The stowage compartment opens.
XLift up the cover of socketD.
Mercedes me connect
General notes
A license agreement must be in place in orderto activate the Mercedes me connect service.Make sure that your system is activated andoperational. To register, press the
