2019 MERCEDES-BENZ GLA wipers

Index.......................................................4
Digital Operator's Manual..................24
Introduction ...........................................24
Operation ............................................... 24
Introduction.........................................25
Protecting the environment ...................25
Genuine Mercedes-Benz parts ...............25
Operator's Manual ................................. 26
Service and vehicle operation ................26
Operating safety .................................... 27
QR code for rescue card ........................ 28
Data storage .......................................... 28
Information on copyright ....................... 30
At a glance...........................................31
Cockpit .................................................. 31
Instrument cluster ................................. 32
Multifunction steering wheel ................. 33
Center console ...................................... 34
Door control panel ................................. 37
Overhead control panel .........................38
Safety...................................................39
Panic alarm ............................................ 39
Occupant safety .................................... 39
Children in the vehicle ........................... 53
Pets in the vehicle ................................. 59
Driving safety systems ........................... 60
Protection against theft .........................67
Opening and closing...........................69
SmartKey ............................................... 69
Doors ..................................................... 75
Cargo compartment ...............................77
Side windows ......................................... 83
Panorama roof with power tilt/slid-
ing panel ................................................ 87
Seats, steering wheel and mir-
rors.......................................................92
Correct driver's seat position ................ 92
Seats ..................................................... 92
Steering wheel ....................................... 97
Mirrors ................................................... 98
Memory function ................................. 101
Lights and windshield wipers..........102
Exterior lighting ................................... 102
Interior lighting .................................... 105
Replacing bulbs ................................... 106
Windshield wipers ................................ 109
Climate control.................................113
Overview of climate control systems ... 113
Operating the climate control sys-
tems .................................................... 118
Air vents .............................................. 123
Driving and parking..........................124
Notes on breaking-in a new vehicle ..... 124
Driving ................................................. 124
DYNAMIC SELECT button (all vehi-
cles except Mercedes-AMG vehi-
cles) ..................................................... 132
DYNAMIC SELECT controller
(Mercedes-AMG vehicles) .................... 133
Automatic transmission ....................... 134
Refueling ............................................. 142
Parking ................................................ 145
Driving tips .......................................... 148
Driving systems ................................... 157
On-board computer and displays....188
Important safety notes ........................ 188
Displays and operation ........................ 188
Menus and submenus ......................... 191
Display messages ................................ 203
Warning and indicator lamps in the
instrument cluster ............................... 230
Multimedia system...........................242
General notes ...................................... 242
Important safety notes ........................ 242
Function restrictions ............................ 242
Operating system ................................ 243
2Contents

Important safety notes .................. 304
Information on driving .................... 304
Interchanging/changing ................ 325
Mounting a new wheel ................... 328
Removing a wheel.......................... 328
Storing ........................................... 326
Tightening torque ........................... 329
Wheel size/tire size ....................... 329
Wheels and tires
Changing a wheel.......................... 326
Window curtain air bag
Display message ............................ 211
Operation ......................................... 47
Windows
see Side windows
Windshield
Defrosting ...................................... 120
Windshield washer system
Adding washer fluid ....................... 276
Important safety notes .................. 338
Windshield wipers
Display message ............................ 228
Problem (malfunction) ................... 112
Rear window wiper........................ 110
Replacing the wiper blades ............ 110
Switching on/off........................... 109
Winter driving
Slippery road surfaces ................... 153
Snow chains .................................. 307
Winter operation
General notes ................................ 306
Winter tires
M+S tires....................................... 306
Wiper blades
Cleaning ......................................... 282
Important safety notes .................. 110
Replacing (rear window)................ 112
Wooden trim (cleaning instruc-
tions).................................................. 284
Workshop
see Qualified specialist workshop
Z
ZONE function
Switching on/off........................... 120
Index23

daytime running lamps or low-beam head-lamps go out after 3 minutes.
When the engine is running, the vehicle is sta-tionary and in bright ambient light: if you turnthe light switch to the`position, the day-time running lamps and parking lamps turn on.
If the engine is running and you turn the lightswitch to theXposition, the manual set-tings take precedence over the daytime run-ning lamps.
USA only:
The daytime running lamps improve the visibil-ity of your vehicle during the day. To do this,the daytime running lamps function must beswitched on using the on-board computer(Ypage 199).
If the engine is running and you turn the lightswitch to the`orXposition, the man-ual settings take precedence over the daytimerunning lamps.
Low-beam headlamps
Even if the light sensor does not detect that itis dark, the parking lamps and low-beam head-lamps switch on when the ignition is switchedon and the light switch is set to theXposi-tion. This is a particularly useful function in theevent of rain and fog.
XTo switch on the low-beam headlamps:turn the SmartKey to positionHin the igni-tion lock or start the engine.
XTurn the light switch toX.The greenXindicator lamp in the instru-ment cluster lights up.
Front fog lamps
In conditions where visibility is poor due tofog, snow or rain, the fog lamps improve visi-bility as well as making it easier for other roadusers to see you. They can be operatedtogether with the parking lamps or togetherwith the parking lamps and low-beam head-lamps.
XTo switch on the fog lamps:turn theSmartKey to positionHin the ignition lockor start the engine.
XTurn the light switch toXorX.
XPress theZbutton.The greenZindicator lamp in the instru-ment cluster lights up.
XTo switch off the fog lamps:press theZbutton.The greenZindicator lamp in the instru-ment cluster goes out.
Rear fog lamp
The rear fog lamp improves visibility of yourvehicle for the traffic behind in the event ofthick fog. Please take note of the country-spe-cific regulations for the use of rear fog lamps.
XTo switch on the rear fog lamp:turn theSmartKey in the ignition lock to positionHor start the engine.
XTurn the light switch toXorX.
XPress the^button.The yellow^indicator lamp in the instru-ment cluster lights up.
XTo switch off the rear fog lamp:press the^button.The yellow^indicator lamp in the instru-ment cluster goes out.
Parking lamps
!If the battery charge is very low, the park-ing lamps or standing lamps are automati-cally switched off to enable the next enginestart. Always park your vehicle safely and ina well lit area, in accordance with the rele-vant legal stipulations. Avoid using the`parking lamps over a period of severalhours. If possible, switch on the right-handdor left-handcstanding lamps.
XTo switch on:turn the light switch to`.The green`indicator lamp in the instru-ment cluster lights up.
Standing lamps
Switching on the standing lamps ensures thecorresponding side of the vehicle is illumina-ted.
XTo switch on the standing lamps:theSmartKey is not in the ignition lock or it is inpositionZin the ignition lock.
XTurn the light switch toc(left-hand sideof the vehicle) ord(right-hand side ofthe vehicle).
Exterior lighting103
Lights and windshield wipers
Z

XInsert the new bulb and engage it to thestop.
XPress on housing coverCand turn it to theright.
Turn signals (halogen headlamps)
XSwitch off the lights.
XOpen the hood.
XTurn bulb holderCcounter-clockwise andpull out.
XTurn the bulb counter-clockwise and pull itout of bulb holderC.
XInsert the new bulb into bulb holderC.
XInsert bulb holderCand turn it clockwiseuntil it engages.
Replacing rear bulbs
Opening and closing the side trim pan-
els
Left-hand side trim panel
You must open the side trim panel in the cargocompartment before you can replace the bulbsin the tail lamps.
XTo open:turn release knobCcounter-clockwise and remove side trim panelD.
XTo close:insert side trim panelDand turnrelease knobCclockwise.
Right-hand side trim panel
You must open the side trim panel in the cargocompartment before you can replace the bulbsin the tail lamps.
XTo open:release right-hand trim panelCatthe top and fold it down in the direction ofthe arrow.
XTo close:replace side panelingC.
Tail lamps
Due to their location, have the bulbs in thebackup lamp (vehicles with halogen head-lamps) and rear fog lamp in the tailgatechanged at a qualified specialist workshop.
XSwitch off the lights.
XOpen the cargo compartment.
XOpen the side trim panel (Ypage 108).
XRelease and remove connectorD.
XHold the tail lamp and unscrew fendernutC.
XRemove the tail lamp.
108Replacing bulbs
Lights and windshield wipers

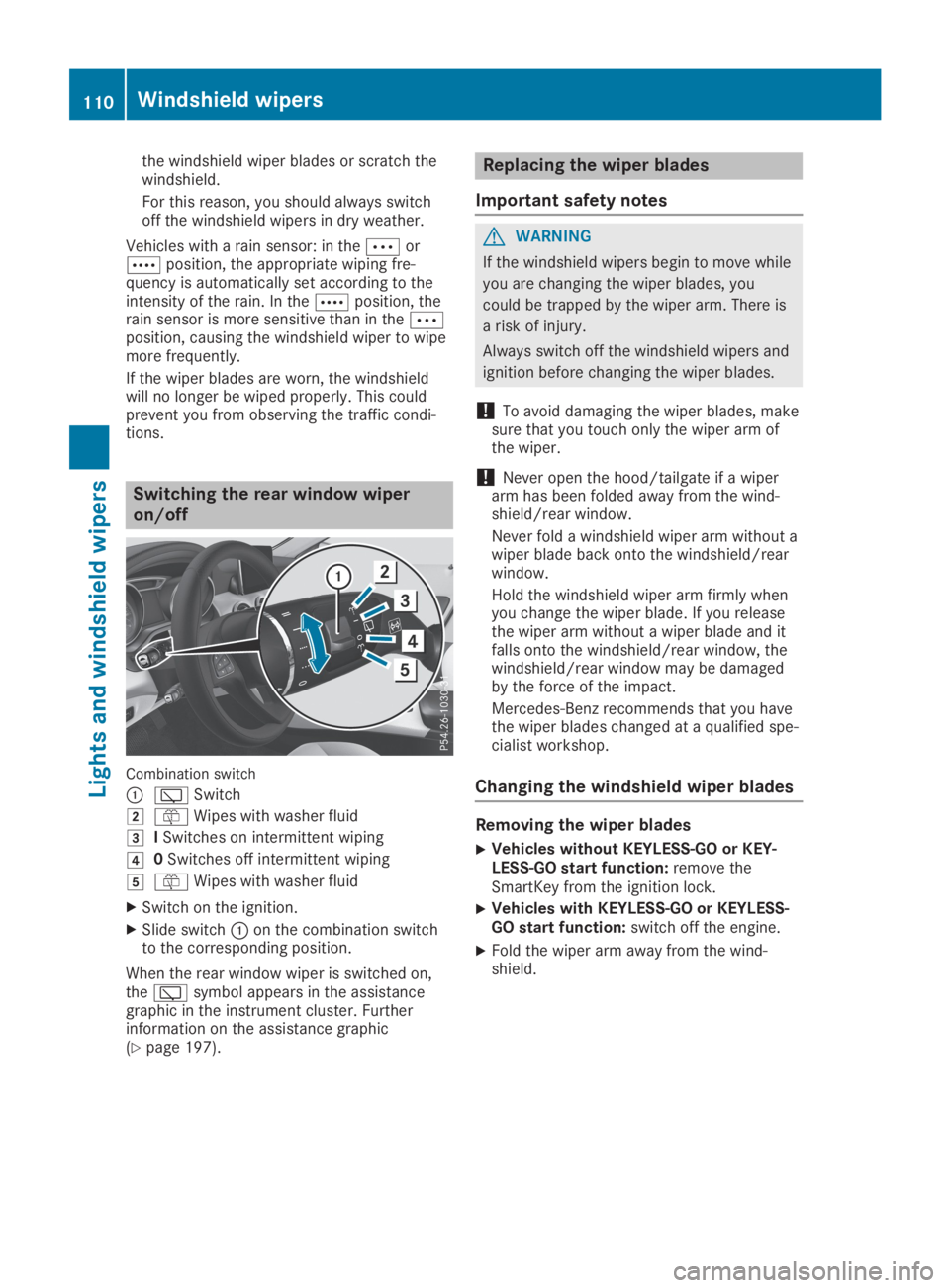

the windshield wiper blades or scratch thewindshield.
For this reason, you should always switchoff the windshield wipers in dry weather.
Vehicles with a rain sensor: in theborcposition, the appropriate wiping fre-quency is automatically set according to theintensity of the rain. In thecposition, therain sensor is more sensitive than in thebposition, causing the windshield wiper to wipemore frequently.
If the wiper blades are worn, the windshieldwill no longer be wiped properly. This couldprevent you from observing the traffic condi-tions.
Switching the rear window wiper
on/off
Combination switch
C

There is a risk of fire and an accident.
Release the parking brake fully before driv-
ing off.
!Do not warm up the engine while station-ary. Pull away immediately. Avoid highengine speeds and full throttle until theengine has reached its operating tempera-ture.
In vehicles with automatic transmission,engage positions P and R only when thevehicle is stationary.
Where possible, avoid spinning the drivewheels when pulling away on slippery roads.You could otherwise damage the drive train.
!Mercedes-AMG vehicles:avoid full-loadoperation and engine speeds greater than5000 rpm when the engine is cold. Thishelps to protect the engine and avoidsuncomfortable driving.

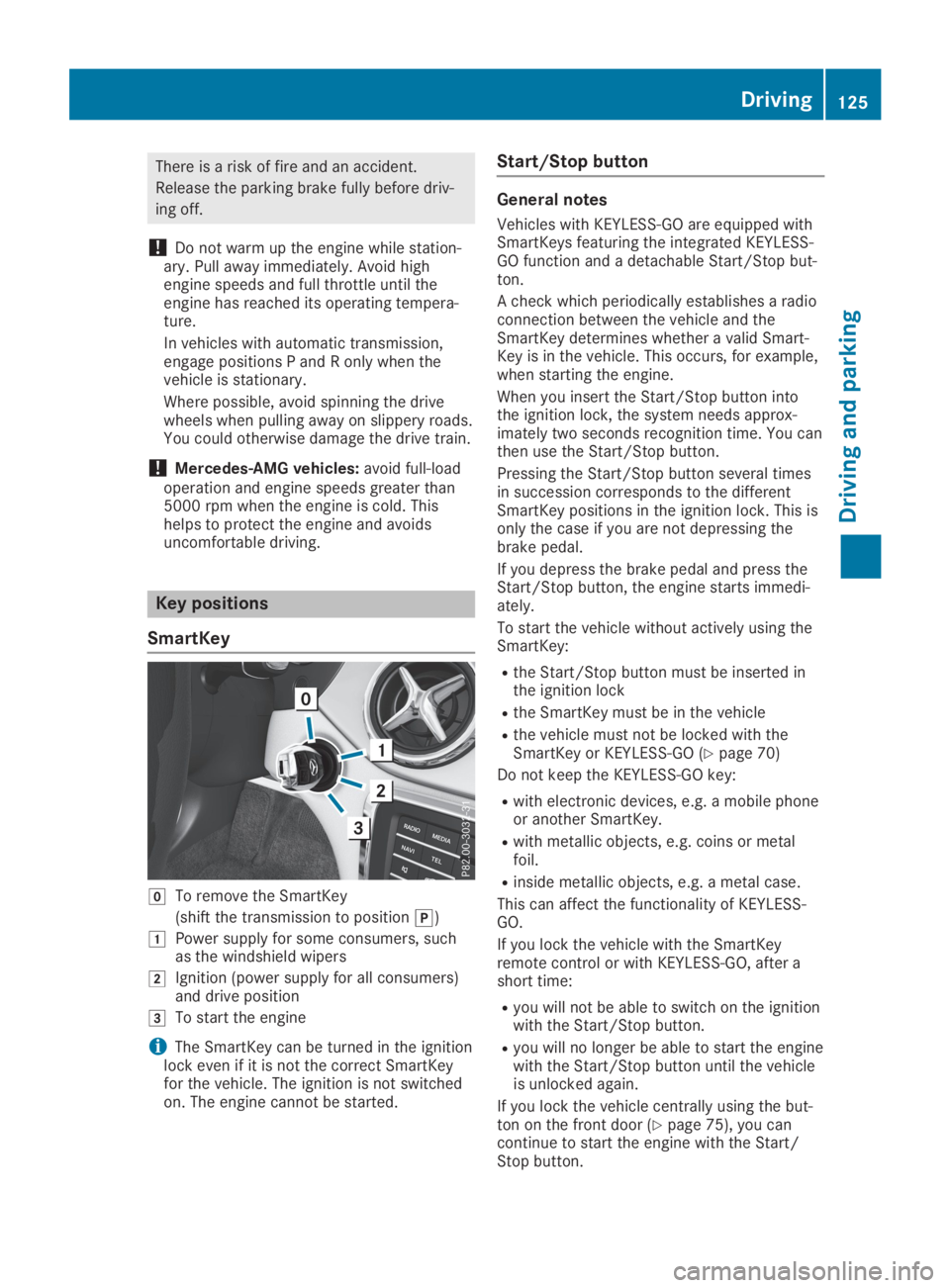

Key positions
SmartKey
ZTo remove the SmartKey
(shift the transmission to position])
GPower supply for some consumers, suchas the windshield wipers
HIgnition (power supply for all consumers)and drive position
ITo start the engine
iThe SmartKey can be turned in the ignitionlock even if it is not the correct SmartKeyfor the vehicle. The ignition is not switchedon. The engine cannot be started.
Start/Stop button
General notes
Vehicles with KEYLESS-GO are equipped withSmartKeys featuring the integrated KEYLESS-GO function and a detachable Start/Stop but-ton.
A check which periodically establishes a radioconnection between the vehicle and theSmartKey determines whether a valid Smart-Key is in the vehicle. This occurs, for example,when starting the engine.
When you insert the Start/Stop button intothe ignition lock, the system needs approx-imately two seconds recognition time. You canthen use the Start/Stop button.
Pressing the Start/Stop button several timesin succession corresponds to the differentSmartKey positions in the ignition lock. This isonly the case if you are not depressing thebrake pedal.
If you depress the brake pedal and press theStart/Stop button, the engine starts immedi-ately.
To start the vehicle without actively using theSmartKey:
Rthe Start/Stop button must be inserted inthe ignition lock
Rthe SmartKey must be in the vehicle
Rthe vehicle must not be locked with theSmartKey or KEYLESS-GO (Ypage 70)
Do not keep the KEYLESS-GO key:
Rwith electronic devices, e.g. a mobile phoneor another SmartKey.
Rwith metallic objects, e.g. coins or metalfoil.
Rinside metallic objects, e.g. a metal case.
This can affect the functionality of KEYLESS-GO.
If you lock the vehicle with the SmartKeyremote control or with KEYLESS-GO, after ashort time:
Ryou will not be able to switch on the ignitionwith the Start/Stop button.
Ryou will no longer be able to start the enginewith the Start/Stop button until the vehicleis unlocked again.
If you lock the vehicle centrally using the but-ton on the front door (Ypage 75), you cancontinue to start the engine with the Start/Stop button.
Driving125
Driving and parking
Z

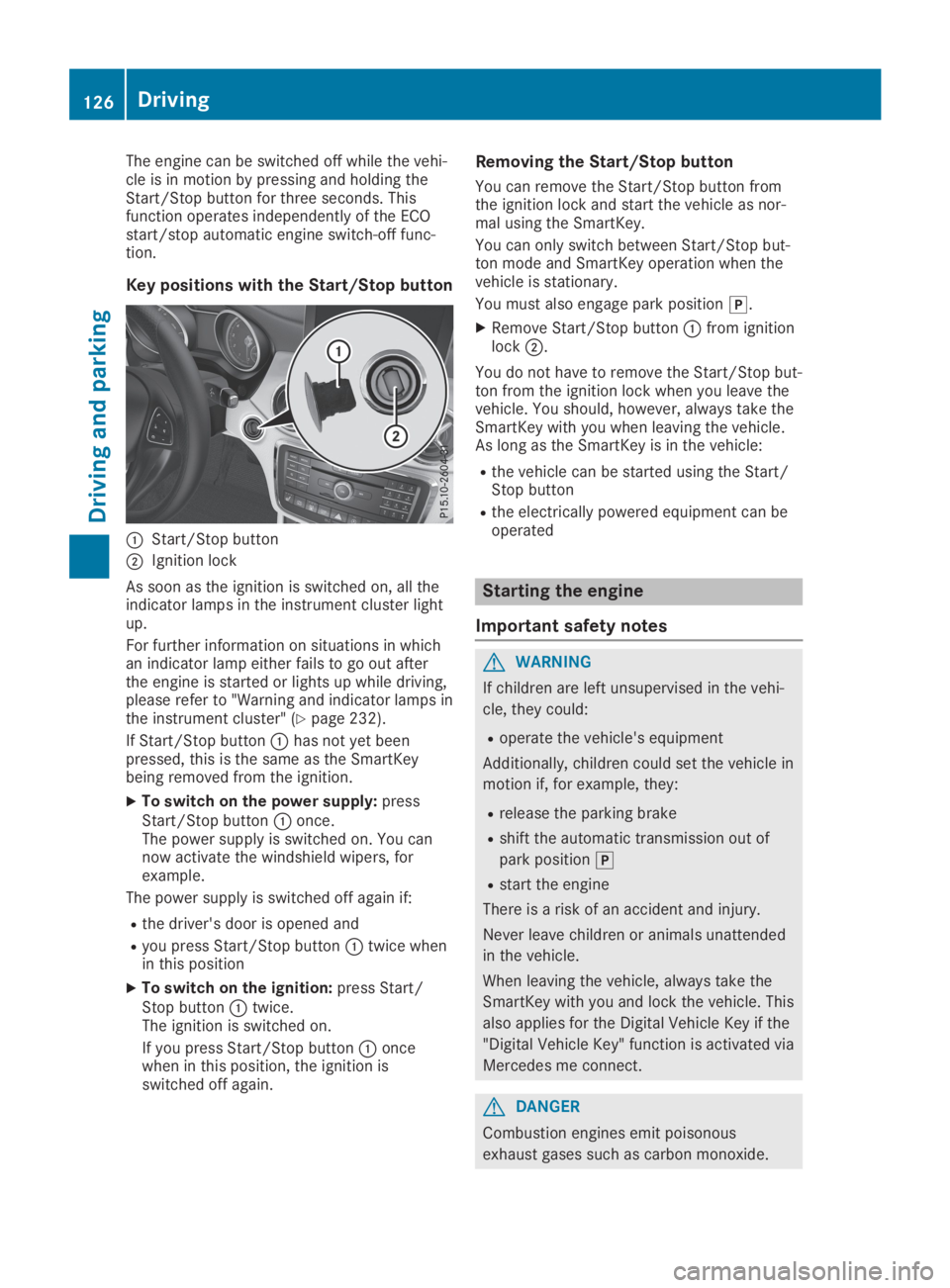

The engine can be switched off while the vehi-cle is in motion by pressing and holding theStart/Stop button for three seconds. Thisfunction operates independently of the ECOstart/stop automatic engine switch-off func-tion.
Key positions with the Start/Stop button
CStart/Stop button
DIgnition lock
As soon as the ignition is switched on, all theindicator lamps in the instrument cluster lightup.
For further information on situations in whichan indicator lamp either fails to go out afterthe engine is started or lights up while driving,please refer to "Warning and indicator lamps inthe instrument cluster" (Ypage 232).
If Start/Stop buttonChas not yet beenpressed, this is the same as the SmartKeybeing removed from the ignition.
XTo switch on the power supply:pressStart/Stop buttonConce.The power supply is switched on. You cannow activate the windshield wipers, forexample.
The power supply is switched off again if:
Rthe driver's door is opened and
Ryou press Start/Stop buttonCtwice whenin this position
XTo switch on the ignition:press Start/Stop buttonCtwice.The ignition is switched on.
If you press Start/Stop buttonConcewhen in this position, the ignition isswitched off again.
Removing the Start/Stop button
You can remove the Start/Stop button fromthe ignition lock and start the vehicle as nor-mal using the SmartKey.
You can only switch between Start/Stop but-ton mode and SmartKey operation when thevehicle is stationary.
You must also engage park position].
XRemove Start/Stop buttonCfrom ignitionlockD.
You do not have to remove the Start/Stop but-ton from the ignition lock when you leave thevehicle. You should, however, always take theSmartKey with you when leaving the vehicle.As long as the SmartKey is in the vehicle:
Rthe vehicle can be started using the Start/Stop button
Rthe electrically powered equipment can beoperated
Starting the engine
Important safety notes
GWARNING
If children are left unsupervised in the vehi-
cle, they could:
Roperate the vehicle's equipment
Additionally, children could set the vehicle in
motion if, for example, they:
Rrelease the parking brake
Rshift the automatic transmission out of
park position]
Rstart the engine
There is a risk of an accident and injury.
Never leave children or animals unattended
in the vehicle.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. This
also applies for the Digital Vehicle Key if the
"Digital Vehicle Key" function is activated via
Mercedes me connect.
GDANGER
Combustion engines emit poisonous
exhaust gases such as carbon monoxide.
126Driving
Driving and parking

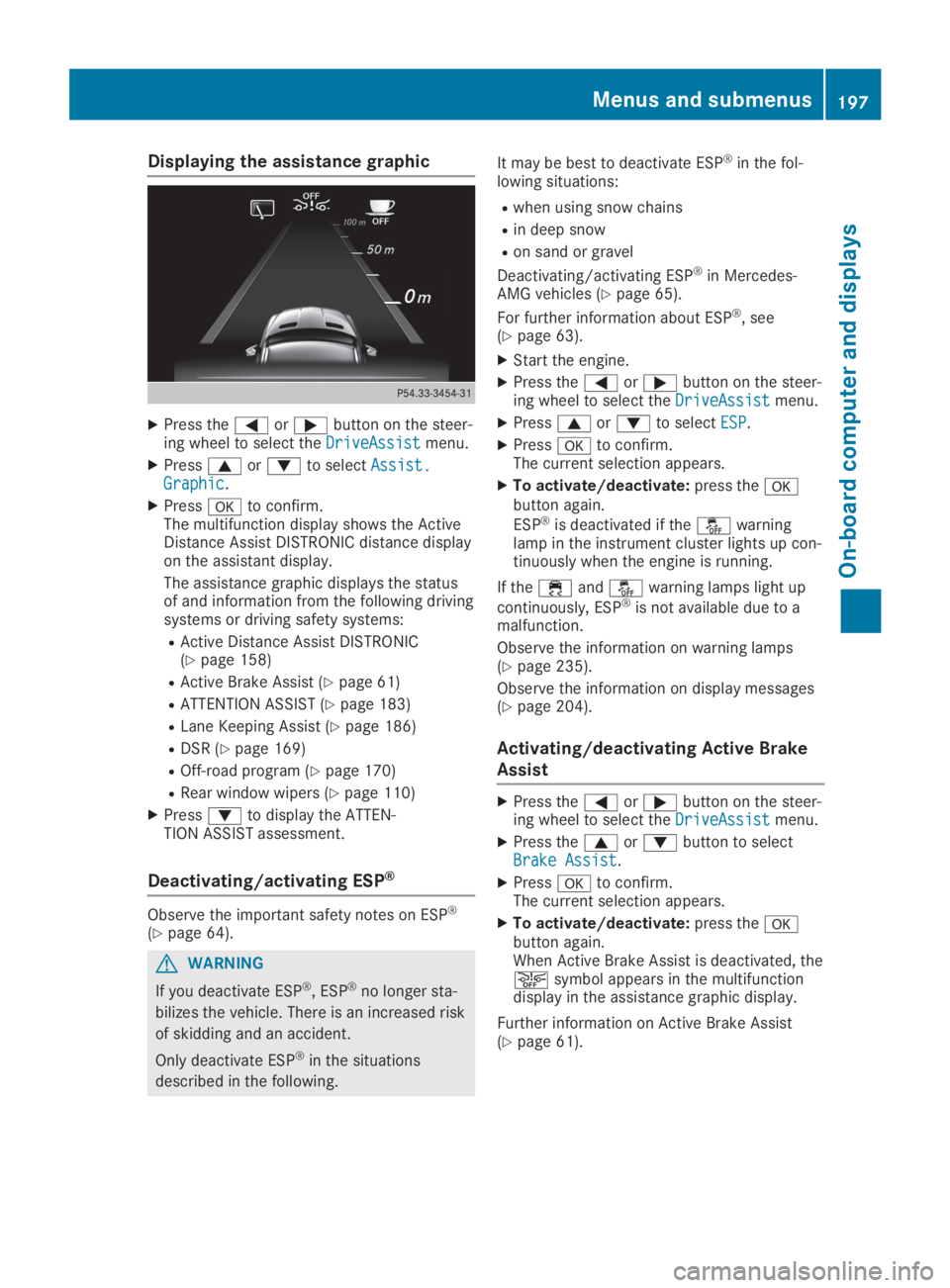

Displaying the assistance graphic
XPress theYorebutton on the steer-ing wheel to select theDriveAssistDriveAssistmenu.
XPresscordto selectAssist.Assist.GraphicGraphic.
XPressvto confirm.The multifunction display shows the ActiveDistance Assist DISTRONIC distance displayon the assistant display.
The assistance graphic displays the statusof and information from the following drivingsystems or driving safety systems:
RActive Distance Assist DISTRONIC(Ypage 158)
RActive Brake Assist (Ypage 61)
RATTENTION ASSIST (Ypage 183)
RLane Keeping Assist (Ypage 186)
RDSR (Ypage 169)
ROff-road program (Ypage 170)
RRear window wipers (Ypage 110)
XPressdto display the ATTEN-TION ASSIST assessment.
Deactivating/activating ESP®
Observe the important safety notes on ESP®
(Ypage 64).
GWARNING
If you deactivate ESP®, ESP®no longer sta-
bilizes the vehicle. There is an increased risk
of skidding and an accident.
Only deactivate ESP®in the situations
described in the following.
It may be best to deactivate ESP®in the fol-lowing situations:
Rwhen using snow chains
Rin deep snow
Ron sand or gravel
Deactivating/activating ESP®in Mercedes-AMG vehicles (Ypage 65).
For further information about ESP®, see(Ypage 63).
XStart the engine.
XPress theYorebutton on the steer-ing wheel to select theDriveAssistDriveAssistmenu.
XPresscordto selectESPESP.
XPressvto confirm.The current selection appears.
XTo activate/deactivate:press thevbutton again.
ESP®is deactivated if the
