2019 MAZDA MODEL MX-5 MIATA RF display

Follow the manufacturer's instructions and always keep the child-restraint system buckled
down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could move
causing serious injury or death to the child or other occupants. Make sure any child-restraint
system is properly secured in place accordin g to the child-restraint system manufacturer's
instructions. When not in use, remove it from the vehicle or fasten it with a seat belt.
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicl e is moving is extremely dangerous. No matter
how strong the person may be, he or she cannot hold onto a child in a sudden stop or collision
and it could result in serious injury or death to the child or other occupants. Even in a
moderate accident, the child may be exposed to air bag forces that could result in serious
injury or death to the child, or the child may be slammed into an adult, causing injury to both
child and adult.
Always make sure the passenger air bag deactivation indicator light is illuminated when
using a child-restraint system:
Seating a child in a child-restraint system that is installed on the passenger seat with the
passenger air bag deactivation indicator light not illuminated is extremely dangerous. In an
accident, an air bag could inflate and cause seri ous injuries or even death to the child seated
in the child-restraint system. Always make su re the passenger air bag deactivation indicator
light is illuminated.
Refer to Passenger Occupant Classification System on page 2-45.
(Except Mexico)
Vehicles with a passenger air bag have the following warning label. The warning label is
displayed in compliance with regulations.
Essential Safety Equipment
Child Restraint
2-21
MX-5_8GV5-EA-18E_Edition3 2018-7-17 15:48:16

Properly dispose of the air bag system:
Improper disposal of an air bag or a vehicle with live air bags in it can be extremely
dangerous. Unless all safety procedures are foll owed, injury could result. Have an Authorized
Mazda Dealer safely dispose of the air bag sy stem or scrap an air bag equipped vehicle.
NOTE
If it becomes necessary to have the components or wiring system for the supplementary
restraint system modified to accommodate a person with certain medical conditions in
accordance with a certified physician, contact an Authorized Mazda Dealer, refer to
“Customer Assistance (U.S.A.)” (page 8-2).
When an air bag deploys, a loud inflation noise can be heard and some smoke will be
released. Neither is likely to cause injury, however, the text ure of the air bags may cause
light skin injuries on body parts not covered with clothing through friction.
Should you sell your Mazda, we urge you to tell the new owner of its air bag systems and
that familiarization with all instructions about them, from the Owner's Manual, is
important.
Vehicles with a passenger air bag have a warning label attached as shown in the
following.
(Except Mexico)
This warning label is displayed in compliance with regulations.
(Mexico)
This warning label reminds you not to put a rear-facing child-restraint system on the
passenger seat at any time.

Essential Safety Equipment
SRS Air Bags
2-36
MX-5_8GV5-EA-18E_Edition3 2018-7-17 15:48:16

To use the auxiliary key, pull out the
auxiliary key from th e transmitter while
pressing the knob.
Knob
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the fuel-filler lid, and opens the trunk lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
It can also help you signal for attention or
help.
Operating the theft-deterrent system is
also possible on theft-deterrent
system-equipped vehicles.

System malfunctions or warnings are
indicated by the following warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an Authorized
Mazda Dealer, according to the indication.
KEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-26.
Ignition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-50.
Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-50.
If you have a problem with the key,
consult an Authorized Mazda Dealer.

If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make the
lost or stolen k ey inoperative.
Before Driving
Keys
3-3
MX-5_8GV5-EA-18E_Edition3 2018-7-17 15:48:16

CAUTION
Radio equipment like this is governed by
laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
NOTE
The keyless entry system operation may
vary due to local conditions.
The keyless entry system is fully
operational (door/fuel-filler lid lock/
unlock) when the ignition is switched
off. The system does not operate if the
ignition is switched to any position other
than off.
If the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be weak. To install a new battery,
refer to Key Battery Replacement (page
6-33).
Battery life is about one year. Replace
the battery with a new one if the KEY
indicator light (green) flashes in the
instrument cluster (for vehicles with a
type A instrument cluster (page 4-26),
messages are displayed in the
instrument cluster). Replacing the
battery about once a year is
recommended because the KEY warning
light/indicator light may not illuminate
or flash depending on the rate of battery
depletion.
Additional keys can be obtained at an
Authorized Mazda Dealer. Up to 6 keys
can be used with the keyless functions
per vehicle. Bring all keys to an
Authorized Mazda Dealer when
additional keys are required.
▼Tr a n s m i t t e r
Operation buttons
Operation indicator light
NOTE
The headlights turn on/off by operating
the transmitter. Refer to Leaving Home
Light on page 4-48.
Before Driving
Keys
3-4
MX-5_8GV5-EA-18E_Edition3
2018-7-17 15:48:16

When flashing
This indicates that the roof is being open/closed. (During switch operation)
When not illuminated
This indicates that the roof is open/closed fully.
NOTE
If the operation indicator light flashes quickly, there may be a system malfunction. Consult
an Authorized Mazda Dealer.
Roof operation display
The roof operation status is i ndicated on the multi-information display.
▼Opening the Roof
When opening the roof, make sure objects
inside the vehicle are not blown away by
the wind. Secure all loose objects inside
before driving with
the roof down.
1. Park the vehicle on level ground in a
safe place where the vehicle does not
obstruct traffic.
Shift the shift lever to neutral on a
manual transmission vehicle.
Shift the selector lever to P on an
automatic transmi ssion vehicle.
Apply the parking brake.
2. Make sure that the trunk is closed.
3. Start the engine to prevent the battery from going dead.
4. Continue pressing the retractablehardtop switch in the open direction
until the roof open ing operation is
completed. When the opening
operation is completed, a beep sound is
activated and the operation indicator
light turns off.
Before Driving
Convertible Top (Hardtop)
3-41
MX-5_8GV5-EA-18E_Edition3 2018-7-17 15:48:16

4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine.............................. 4-4 Ignition Switch........ ..................... 4-4
Starting the Engine....................... 4-5
Turning the Engine Off...............4-10
Instrument Cluster and Display ............
........................................................... 4-11 Meters and Gauges..................... 4-11
Multi-information Display and INFO
Switch
*....................................... 4-18
Warning/Indicator Lights............4-26
Manual Transmission
Operation......................................... 4-31 Manual Transmission Shift
Pattern......................................... 4-31
Automatic Transmission................. 4-34 Automatic Transmission
Controls...................................... 4-34
Shift-Lock System...................... 4-35
Transmission Ranges.................. 4-35
Manual Shift Mode..................... 4-37
Direct Mode
*.............................. 4-42
Driving Tips................................4-43
Switches and Controls..................... 4-44
Lighting Control......................... 4-44
Turn and Lane-Change
Signals........................................ 4-49
Windshield Wipers and
Washer........................................ 4-50
Rear Window Defogg er.............. 4-53
Horn............................................ 4-55
Hazard Warning Flasher............. 4-55
HomeLink Wireless Control
System
*.......................................4-56
Brake................................................ 4-60 Brake System.............................. 4-60
Hill Launch Assist (HLA)
*.........4-63
ABS/TCS/DSC................................. 4-64 Antilock Brake System
(ABS)..........................................4-64
Traction Control System
(TCS).......................................... 4-65
Dynamic Stability Control
(DSC)..........................................4-66
Fuel Economy Monitor................... 4-68 Fuel Economy Monito r...............4-68
Drive Selection................................. 4-71 Drive Selection
*..........................4-71
Power Steering................................. 4-73 Power Steering............................4-73
*Some models.4-1
MX-5_8GV5-EA-18E_Edition3 2018-7-17 15:48:16

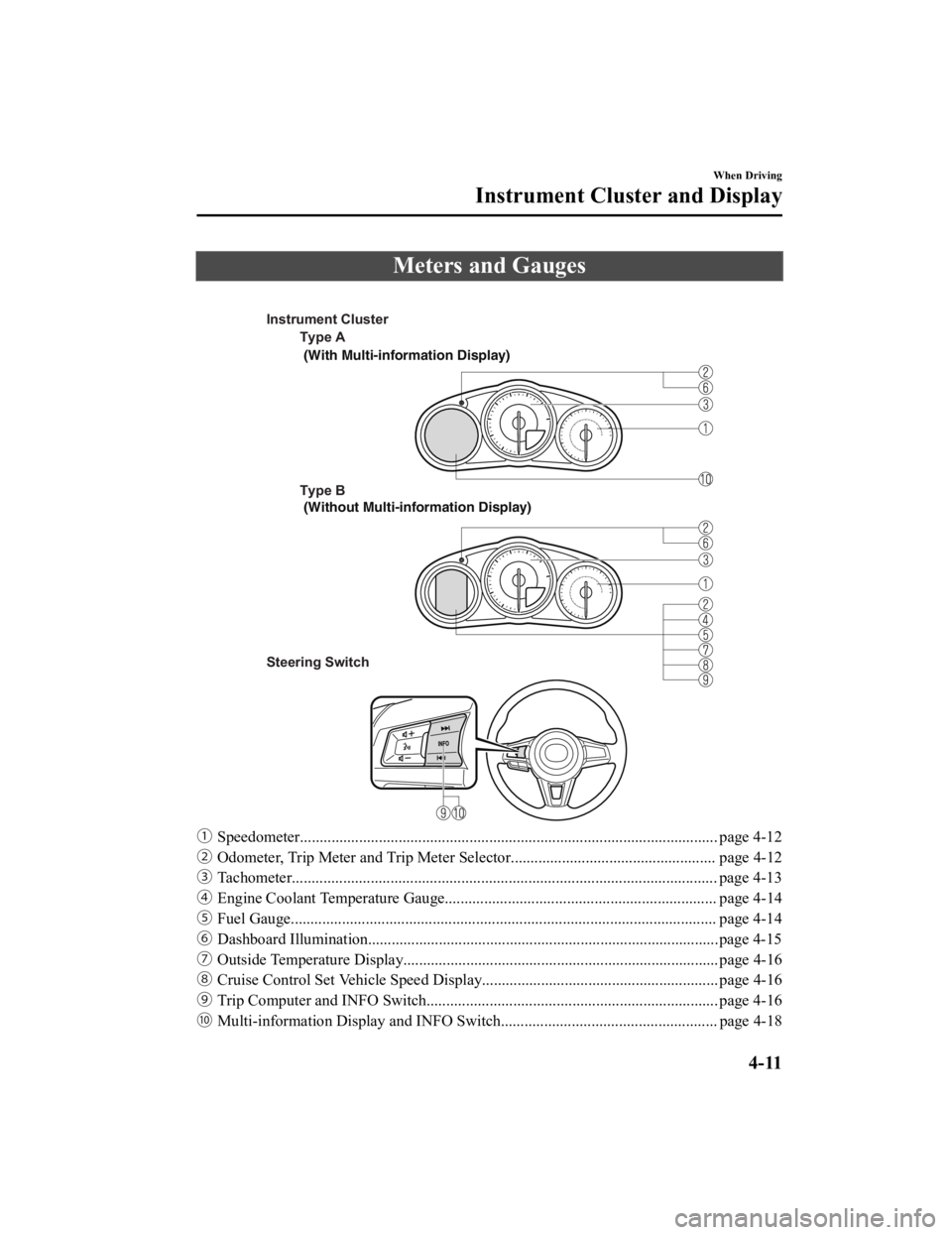

Meters and Gauges

Type A
Type B
Steering Switch (With Multi-information Display)
(Without Multi-information Display)
Instrument Cluster
ƒ
Speedometer.......................................................................................................... page 4-12
„ Odometer, Trip Meter and Tri p Meter Selector.................................................... page 4-12
… Tachometer............................................................................................................ page 4-1 3
† Engine Coolant Temperature Gauge............................... ...................................... page 4-14
‡ Fuel Gauge............................................................................................................ page 4-1 4
ˆ Dashboard Illumination.........................................................................................page 4-15
‰ Outside Temperature Display.................................... ............................................ page 4-16
Š Cruise Control Set Vehicle Speed Display....................... ..................................... page 4-16
‹ Trip Computer and INFO Switch.................................. ........................................ page 4-16
ΠMulti-information Display and INFO Switch...................... ................................. page 4-18
When Driving
Instrument Cluster and Display
4-11
MX-5_8GV5-EA-18E_Edition3 2018-7-17 15:48:16

▼Speedometer
The speedometer indicates the speed of the
vehicle.
▼Odometer, Trip Meter and Trip
Meter Selector (Without
Multi-information Display)
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector while one of them is displayed.
The selected mode will be displayed.

Press the selector Press the selector
Press the selector
Odometer
Trip meter A
Trip meter B
Selector

NOTE
When the ignition is switched to ACC or
off, the odometer or trip meters cannot be
displayed, however, pressing the selector
can inadvertently switch the trip meters or
reset them during an approximate
ten-minute period in the following cases:
After the ignition is
switched to off from
ON.
After the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Tr i p m e t e r
The trip meter can record the total distance
of two trips. One is r ecorded in trip meter
A, and the other is re corded in trip meter
B.

For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.

When trip meter A is s elected, pressing the
selector again within one second will
change to trip meter B mode.

When trip meter A is selected, TRIP A
will be displayed. Wh en trip meter B is
selected, TRIP B will be displayed.

When Driving
Instrument Cluster and Display
4-12
MX-5_8GV5-EA-18E_Edition3 2018-7-17 15:48:16
