2019 MAZDA MODEL CX-3 ESP

To secure the jack
1. Insert the wing bolt into the jack withthe jack screw pointing down and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction shown in the figure.
Wing bolt
Jack screw
3. Turn the wing bolt completely tosecure the jack.
NOTE
If the jack is not completely secured, it
could rattle while driving. Make sure
the jack screw is sufficiently tightened.
4. Insert the cover tabs and install the cover.
NOTE
Verify that the cover is securely
installed.
Maintenance
•Always keep the jack clean.
•Make sure the moving parts are kept
free from dirt or rust.
•Make sure the screw thread is
adequately lubricated.
▼ Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used fo
r long drives or
extended periods.
WA R N I N G
Do not install the temporary spare tire on
the front wheels (driving wheels):
Driving with the temporary spare tire on
one of the front driving wheels is
dangerous. Handling will be affected. You
could lose control of the vehicle, especially
on ice or snow bound roads, and have an
accident. Move a regular tire to the front
wheel and install the temporary spare tire
to the rear.
CAUTION
 When using the temporary spare tire,
driving stability may decrease compared
to when using only the conventional tire.
Drive carefully.
 To avoid damage to the temporary spare
tire or to the vehicle, observe the
following precautions:
 Do not exceed 80 km/h (50 mph).
 Avoid driving over obstacles. Also, do
not drive through an automatic car
wash. This tire's diameter is smaller
than a conventional tire, so the ground
clearance is reduced.
If Trouble Arises
Flat Tire
7-6
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Reporting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a crash or could cause injury
or death, you should immediately inform the National Highway Tr affic Safety
Administration (NHTSA) in addition to notifying Mazda Motor Cor poration (Your Mazda
Importer/Distributor).

If NHTSA receives similar complaints, it may open an investigat ion, and if it finds that a
safety defect exists in a group of vehicles, it may order a rec all and remedy campaign.
However, NHTSA cannot become involved in individual problems be tween you, your
dealer, or Mazda Motor Corporation (Your Mazda Importer/Distrib utor).

To contact NHTSA, you may call the Vehicle Safety Hotline toll- free at 1-888-327-4236
(TTY:1-800-424-9153); go to http: //www.safercar.gov; or write to: Administrator, NHTSA,
1200 New Jersey Avenue, SE., Washington, DC, 20590. You can als o obtain other
information about motor vehicle s afety from http://www.safercar.gov.
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:

Mazda North American Operations
200 Spectrum Center Drive Suite 100
Irvine, California 92618
or
P.O. Box 19734
Irvine, CA 92623-9734
Customer Experience Center or toll free at 1 (800) 222-5500

If you live outside of the U.S.A., please c ontact the nearest Mazda Distributor shown (page
8-13) in this manual.
Customer Information and Reporting Safety Defects
Reporting Safety Defects
8-14
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, th ey could affect your vehicle's
performance or safety systems; th e Mazda warranty doesn't cover this. Before you install
any non-genuine parts or accessories, consult an Authorized Maz da Dealer.
WA R N I N G
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:
Improperly designed parts or accessories could seriously affect your vehicle's performance or
safety systems. This could cause you to have an accident or increase your chances of injuries
in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as mobile
telephones, two-way radios, stereo systems, and car alarm systems:
Incorrectly choosing or installing improper add-on equipment or choosing an improper
installer is dangerous. Essential systems could be damaged, causing engine stalling, air-bag
(SRS) activation, ABS/TCS/DSC inacti vation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Customer Information and Reporting Safety Defects
Wa r r an t y
8-19
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Cell Phones Warning
WA R N I N G
Please comply with the legal regulations concerning the use of communication equipment in
vehicles in your country:
Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous. Dialing a
number on a cell phone while driving also ties-up the driver's hands. Use of these devices will
cause the driver to be distracted and could lead to a serious accident. If a passenger is unable
to use the device, pull off the right-of-way to a safe area before use. If use of a cell phone is
necessary despite this warning, use a hands-free system to at least leave the hands free to
drive the vehicle. Never use a cell phone or othe r electrical devices while the vehicle is moving
and, instead, concentrate on the full-time job of driving.
Customer Information and Reporting Safety Defects
Cell Phones
8-20
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

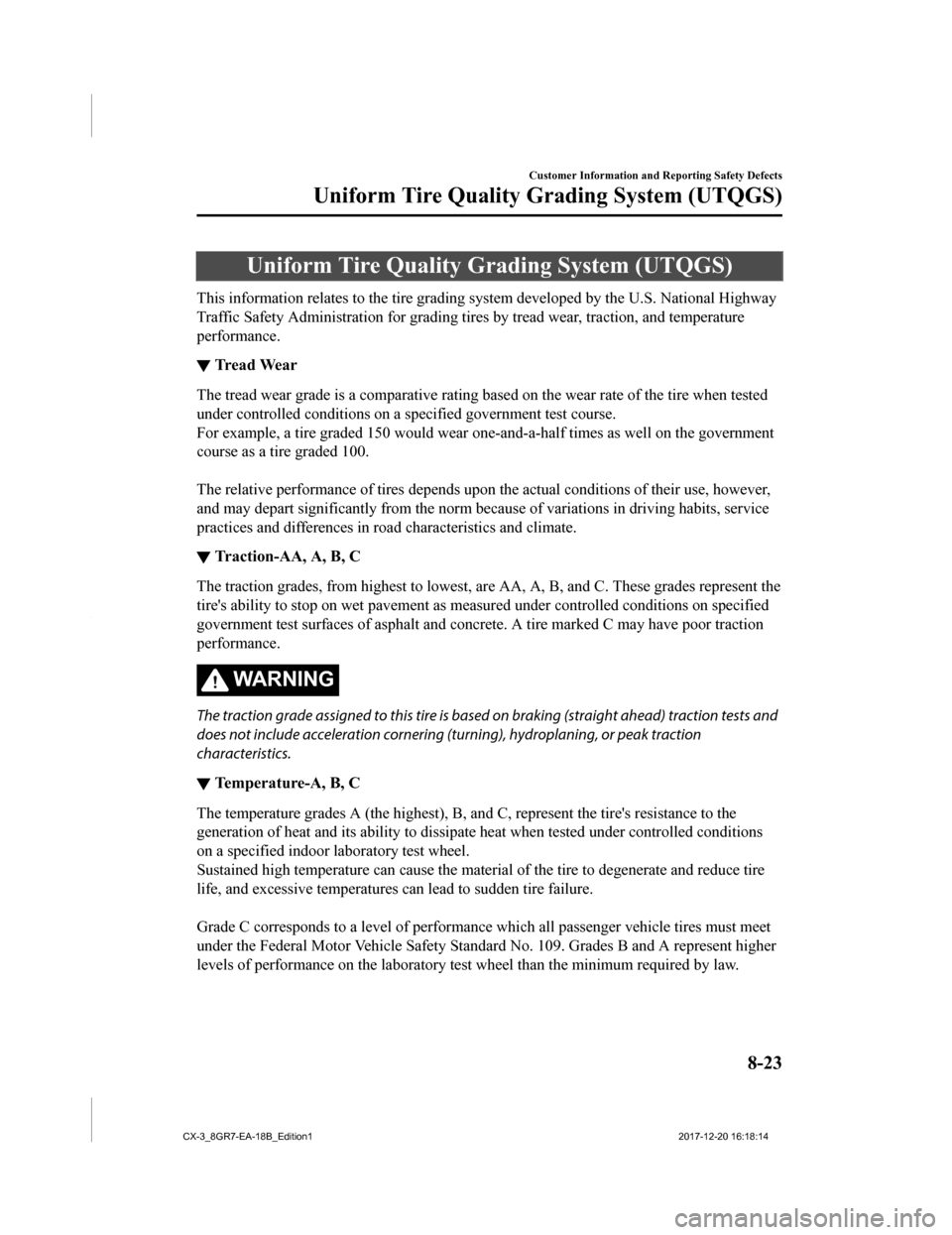

Uniform Tire Quality Grading System (UTQGS)
This information relates to the tire grading system developed by the U.S. National Highway
Traffic Safety Administration for grading tires by tread wear, traction, and temperature
performance.
▼ Tr e a d We a r
The tread wear grade is a comparative rating based on the wear rate of the tire when tested
under controlled conditions on a specified government test cour
se.
For example, a tire graded 150 would wear one-and-a-half times as well on the government
course as a tire graded 100.

The relative performance of tires depends upon the actual condi tions of their use, however,
and may depart significantly from the norm because of variation s in driving habits, service
practices and differences in ro ad characteristics and climate.
▼Traction-AA, A, B, C
The traction grades, from highest
to lowest, are AA, A, B, and C. These grades represent the
tire's ability to stop on wet pavement as measured under contro lled conditions on specified
government test surfaces of asphalt and concrete. A tire marked C may have poor traction
performance.
WA R N I N G
The traction grade assigned to this tire is based on braking (straight ahead) traction tests and
does not include acceleration cornering (turning), hydroplaning, or peak traction
characteristics.
▼ Temperature-A, B, C
The temperature grades A (the hi
ghest), B, and C, represent the tire's resistance to the
generation of heat and its ability to dissipate heat when teste d under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate and reduce tire
life, and excessive temperatures can lead to sudden tire failure.

Grade C corresponds to a level of performance which all passeng er vehicle tires must meet
under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher
levels of performance on the labo ratory test wheel than the minimum required by law.
Customer Information and Reporting Safety Defects
Uniform Tire Quality G rading System (UTQGS)
8-23
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

WA R N I N G
Keep your vehicle's tires properly inflated and not overloaded:
Driving with improperly inflated or overl oaded tires is dangerous. Excessive speed,
underinflation, or excessive loading, either separately or in combination, can cause heat
buildup and possible tire failure. The temperatur e grade for this tire is established for a tire
that is properly inflated and not overloaded.

These grades will be added to the sidewalls of passenger vehicl e tires over the next several
years according to a schedule established by the NHTSA and the tire manufacturers.

The grade of tires available as standard or optional equipment on Mazda vehicles may vary
with respect to grade.

ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND TO
ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.
▼ UNIFORM TIRE QUALITY GRADING
Quality grades can be found where applicable on the tire sidewa
ll between tread shoulder
and maximum section width.
For example:
TREADWEAR 200 TRACTION AA TEMPERATURE A
UTQGS MARK (example)
Customer Information and Reporting Safety Defects
Uniform Tire Quality G rading System (UTQGS)
8-24
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Ve h i c l e L o a d i n g
WA R N I N G
Do not tow a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to tow a
trailer and doing so will affect the drive system which could result in vehicle damage.
This section will guide you in the proper loading of your vehic le, to keep your loaded
vehicle weight within its desi gn rating capability. Properly lo ading your vehicle will provide
maximum return of vehicle design performance. Before loading yo ur vehicle, familiarize
yourself with the following terms for determining your vehicle' s weight ratings, from the
vehicle's Safety Certification La bel and Tire and Load Information Label:
WA R N I N G
Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious consequences
in terms of passenger safety. Too much weight on a vehicle's suspension system can cause
spring or shock absorber failure, brake failu re, handling or steering problems, irregular tire
wear, tire failure or other damage.
Overloading makes a vehicle harder to drive an d control. It also increases the distance
required for stopping. In cases of serious overloading, brakes can fail completely, particularly
on steep grades. The load a tire will carry safely is a combination of the size of the tire, its load
range, and corresponding inflation pressure.
Never overload the vehicle and always observe th e vehicle's weight ratings from the vehicle's
Safety Certification and Tire and Load Information labels.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-36
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Bluetooth® Hands-Free
Ty p e A
U.S.A. and Canada
FCC ID: NT8MBLUEC09 IC:3043A-MBLUEC09
This device complies with Part 15 of
the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
WA R N I N G
Changes or modifications not expressly approv ed by the party responsible for compliance
could void the user's authority to operate the equipment.
The term “IC: ” before the radio certification number only sign ifies that Industry Canada
technical specifications were met.
The antenna used for this transmitter must not be co-located or operating in conjunction
with any other anten na or transmitter. End-users and installers must be provided with
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
Mazda Bluetooth
® Hands-Free Customer Service
•U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.mazdausa.com/mazdaconnect
•Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-46
